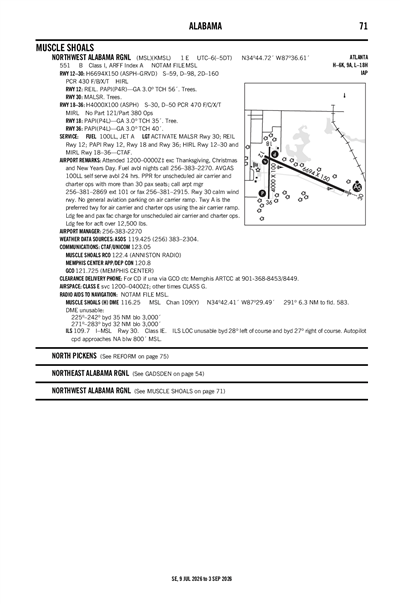

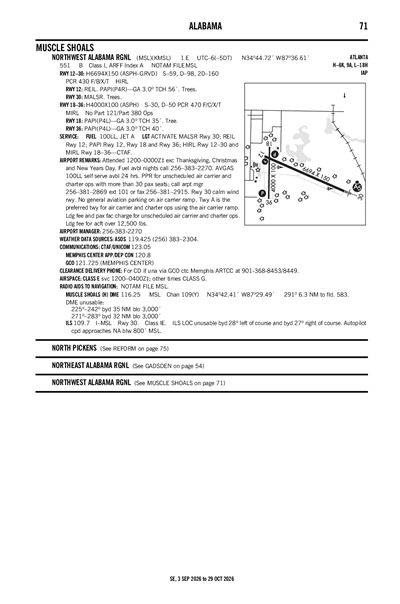

NORTHWEST ALABAMA RGNL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KMSL
ICAO KMSLIATA MSLLocal MSL
NORTHWEST ALABAMA RGNL
PublicPUB

1 miles E of MUSCLE SHOALS, AL, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
34° 44' 43"N 87° 36' 37"W
Elevation
551' MSL
Pattern Alt
1551' MSL
Mag Variation
3°W
Declination
3°W
Fuel
JET A, 100LL
FSS
ANNISTON (ANB)
Sectional
ATLANTA
ARTCC
MEMPHIS (ZME)
Data Effective
8/6/26-9/3/26
KMSL VFR
5:53 PM CDT
Clear
10sm
87°F
71°F
30.09"Hg
150° 6kts
AO2 SLP181 T03060217
METAR KMSL 102253Z AUTO 15006KT 10SM CLR 31/22 A3009 RMK AO2 SLP181 T03060217
+ Add Your Business

KMSL FBOs

Promote Listing
Shoals Flight Center
UNICOM: 123.05
Phone: (256) 383-2270
No Rating Available
0 Reviews (Read | Sign In To Write)
World Fuel
As of 7/29
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 6.85
Full Serve 7.20 6.85
Fuel Notes
Prices include tax
Fuel Hours
Operating Hours 6:00AM - 6:00PM Central Time
CLOSED Dec 24, 25, 31 - Jan 1, Jul 4, Thanksgiving Day and Friday After
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ASOS 119.425
(256) 383-2304

Common

CTAF 123.05
ACTVT MALSR RWY 30; REIL RWY 12; PAPI RWY 12; PAPI RWY 18 & 36; HIRL RWY 12/30; MIRL RWY 18/36 - CTAF.
UNICOM 123.05

Center

MEMPHIS CENTER 120.8
LOW, APCH/DEP SVC PRVDD BY MEMPHIS ARTCC ON FREQS 120.8/307.0 (HUNTSVILLE RCAG).

Flight Service

Flight Service 122.4
(ANB)
Ground Communication Outlet 121.725
GCO AVBL ON FREQ 121.725 FOR MEMPHIS ARTCC (ZME).

Terminal Area Forecast

KMSL
Mon, 8/10 12:20 PM CDT
Mon, 8/10 1:00 PM CDT - Tue, 8/11 1:00 PM CDT
VFR
1:00 PM CDT - 5:00 PM CDT
Scattered 5,000'
6sm
180° 5kts
VFR
5:00 PM CDT - 8:00 PM CDT
Thunderstorm in vicinity
Scattered 5,000'
6sm
230° 5kts
VFR
8:00 PM CDT - 1:00 PM CDT
Scattered 10,000'
6sm
180° 4kts
TAF KMSL 101720Z 1018/1118 18005KT P6SM SCT050
   FM102200 23005KT P6SM VCTS SCT050CB
   FM110100 18004KT P6SM SCT100
KMSL
EffectiveExpiresCategoryNOTAM
Domestic
8/10/26
1249Z
3/1/27
2359Z
!MSL 08/009 MSL OBST TOWER LGT (ASN 2013-ASO-3909-OE) 344753N0873823W (3.5NM NNW MSL) 811FT (382FT AGL) U/S 2608101249-2703012359
8/10/26
0426Z
8/25/26
0326Z
!MSL 08/008 MSL OBST TOWER LGT (ASR 1220380) 344924.90N0874355.90W (7.6NM NW MSL) 883.2FT (310.0FT AGL) U/S 2608100426-2608250326
8/10/26
0125Z
8/25/26
0025Z
!MSL 08/007 MSL OBST TOWER LGT (ASR 1216109) 345159.40N0874151.30W (8.4NM NNW MSL) 931.8FT (319.9FT AGL) U/S 2608100125-2608250025
8/9/26
2258Z
11/7/26
2358Z
!MSL 08/006 MSL OBST TOWER LGT (ASR 1201576) 345237.70N0874015.40W (8.4NM NNW MSL) 906.2FT (265.1FT AGL) U/S 2608092258-2611072358
8/8/26
1851Z
8/23/26
1751Z
!MSL 08/004 MSL OBST TOWER LGT (ASR 1216111) 344408.00N0874458.70W (6.9NM W MSL) 806.8FT (319.9FT AGL) U/S 2608081851-2608231751
7/27/26
1657Z
10/25/26
1657Z
!MSL 07/019 MSL OBST TOWER LGT (ASR 1211503) 345207.10N0872708.60W (10.8NM NE MSL) 988.8FT (310.0FT AGL) U/S 2607271657-2610251657
7/24/26
1156Z
9/7/26
1155Z
!MSL 07/016 MSL OBST TOWER LGT (ASN 2025-ASO-3515-OE) 345510N0875206W (16.4NM NW MSL) 978FT (270FT AGL) U/S 2607241156-2609071155
7/22/26
0738Z
10/20/26
0738Z
!MSL 07/014 MSL OBST TOWER LGT (ASR 1214629) 344129.80N0873046.10W (5.8NM SE MSL) 919.6FT (339.9FT AGL) U/S 2607220738-2610200738
7/12/26
1134Z
11/9/26
1134Z
!MSL 07/007 MSL OBST TOWER LGT (ASR 1261872) 345832.50N0873239.00W (14.2NM NNE MSL) 1065.0FT (285.1FT AGL) U/S 2607121134-2611091134
7/8/26
2103Z
10/6/26
2103Z
!MSL 07/004 MSL OBST TOWER LGT (ASR 1039311) 344316.00N0874850.00W (10.2NM W MSL) 735.2FT (265.1FT AGL) U/S 2607082103-2610062103
6/8/26
1125Z
9/7/26
0400Z
!MSL 06/013 MSL OBST TOWER LGT (ASR 1000934) 345200.00N0873139.00W (8.4NM NNE MSL) 887.5FT (264.8FT AGL) U/S 2606081125-2609070400
5/1/26
1828Z
9/1/26
2000Z
Runway!MSL 05/002 MSL RWY 30 ALS U/S 2605011828-2609012000
5/1/26
0222Z
10/30/26
2359Z
!MSL 05/001 MSL OBST TOWER LGT (ASR UNKNOWN) 344452.00N0874044.00W (2.8NM W MSL) 625FT (113FT AGL) U/S 2605010222-2610302359
4/29/26
1734Z
!MSL 04/030 MSL NAV ILS RWY 30 GP U/S 2604291734-2609011800EST
4/6/26
1119Z
10/26/26
2359Z
!MSL 04/009 MSL OBST TOWER LGT (ASN UNKNOWN) 344531.75N0875056.95W (11.3NM W MSL) 788FT (375FT AGL) U/S 2604061119-2610262359
3/31/26
2017Z
10/1/26
2300Z
Runway!MSL 03/034 MSL RWY 30 THR DISPLACED 1275FT MARKING NOT STD. DECLARED DIST: TORA 5994FT TODA 5994FT ASDA 5994FT LDA 5419FT. 2603312017-2610012300
3/25/26
1747Z
8/31/26
2359Z
!MSL 03/026 MSL OBST TOWER LGT (ASN 2023-ASO-21883-OE) 344541N0875102W (11.9NM W MSL) 795FT (374FT AGL) U/S 2603251747-2608312359
3/25/26
1736Z
8/31/26
2359Z
!MSL 03/025 MSL OBST TOWER LGT (ASN 2023-ASO-21886-OE) 344509N0875132W (12.3NM W MSL) 885FT (373FT AGL) U/S 2603251736-2608312359
FDC
8/5/26
1234Z
9/2/26
1234Z
!FDC 6/2019 MSL IAP NORTHWEST ALABAMA RGNL, MUSCLE SHOALS, AL.
ILS Y OR LOC Y RWY 30, AMDT 1...
VDP NA,
MSL DME OUT OF SERVICE. 2608051234-2609021234EST
8/5/26
1234Z
9/2/26
1234Z
!FDC 6/2018 MSL IAP NORTHWEST ALABAMA RGNL, MUSCLE SHOALS, AL.
ILS Z OR LOC Z RWY 30, AMDT 7...
RADAR REQUIRED EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS.
DIXLI FIX MINIMUMS NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS.
VDP NA,
MSL DME OUT OF SERVICE. 2608051234-2609021234EST
2/7/25
2105Z
!FDC 5/1261 MSL IAP NORTHWEST ALABAMA RGNL, MUSCLE SHOALS, AL.
ILS Y OR LOC Y RWY 30, AMDT 1...
ILS Z OR LOC Z RWY 30, AMDT 7...
AUTO-PILOT COUPLED APPROACH NA BELOW 800.
2502072105-2702072105EST
No
0600-1800
EXC THANKSGIVING, CHRISTMAS, AND NEW YEARS DAY
COLBERT & LAUDERDALE COUNTIES
1729 T. ED CAMPBELL DR SUITE A
MUSCLE SHOALS, AL 35661
Phone: 256-381-2869
BARRY GRIFFITH
1729 T. ED CAMPBELL DR SUITE A
MUSCLE SHOALS, AL 35661
Phone: 256-383-2270
ANNISTON FSS (ANB)
Toll Free: 1-800-WX-BRIEF
MSL
--
ACTVT MALSR RWY 30; REIL RWY 12; PAPI RWY 12; PAPI RWY 18 & 36; HIRL RWY 12/30; MIRL RWY 18/36 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Air Freight
Pilot Instruction
Aircraft Rental

Runway 12/30

6694 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

59,000lbs
98,000lbs
160,000lbs
--
  Runway 12 Runway 30
True Heading 114°294°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 34° 44' 56"N 34° 44' 29"N
Longitude 87° 37' 01"W 87° 35' 48"W
Elevation 542' 550'
Threshold Crossing Height 56 ft. AGL --
Visual Glide Path Angle 3° --
Visual Slope Indicator P4R --
Approach Lights MALSR
Centerline Lights No
Runway End Identifier Lights Yes No

Runway 18/36

4000 ft. x 100 ft.
ASPH
Fair
NONE
MED

30,000lbs
50,000lbs
--
--
  Runway 18 Runway 36
True Heading 181°1°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 34° 45' 03"N 34° 44' 24"N
Longitude 87° 36' 57"W 87° 36' 58"W
Elevation 539' 541'
Threshold Crossing Height 35 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-10FOR CD IF UNA VIA GCO CTC MEMPHIS ARTCC AT 901-368-8453/8449.
A110-2NO GA PARKING ON ACR RAMP.
A110-5LNDG FEE & PAX FAC CHRG FOR UNSKED ACR & CHTR OPNS.
A110-7TWY A IS THE PREF TWY FOR ACR & CHTR OPNS USING THE ACR RAMP.
A110-8LNDG FEE FOR ACR OVER 12,500 LBS.
A110-9GCO AVBL ON FREQ 121.725 FOR MEMPHIS ARTCC (ZME).
A16EXT. 101.
A17-D1EXC THANKSGIVING, CHRISTMAS, AND NEW YEARS DAY
A26PPR FOR UNSKED ACR & CHTR OPNS WITH MORE THAN 30 PSGR SEATS; CALL AMGR (256) 381-2869, EXT 101 OR FAX (256) 381-2915.
A30-18/36RWY 18/36 NOT AVBL FOR PART 121/PART 380 OPS WITH SKED PAX CARRYING OPS MORE THAN 9 PAX SEATS AND NON-SKED PAX CARRYING OPS MORE THAN 30 PAX SEATS.
A30A-30CALM WIND RWY.
A39-12/30PCR VALUE: 430/F/B/X/T
A39-18/36PCR VALUE: 470/F/C/X/T
A70-100LLFUEL AVBL NIGHTS CALL 256-383-2270. AVGAS 100LL SELF SERVE AVBL 24 HRS.
A81-APTACTVT MALSR RWY 30; REIL RWY 12; PAPI RWY 12; PAPI RWY 18 & 36; HIRL RWY 12/30; MIRL RWY 18/36 - CTAF.
NORTHWEST ALABAMA RGNL (ICAO: KMSL, IATA: MSL) is a public airport located in MUSCLE SHOALS, AL, US.
