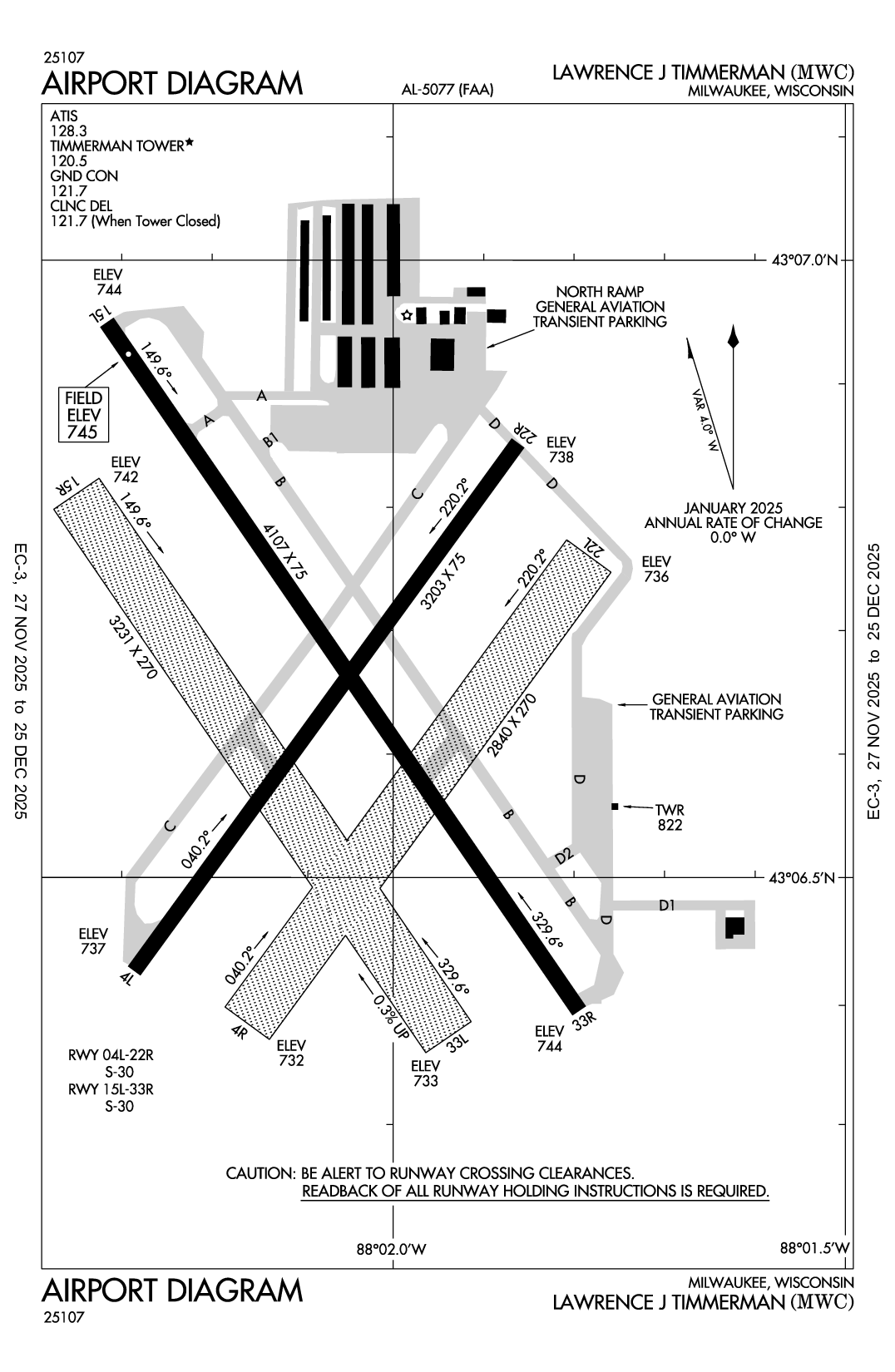

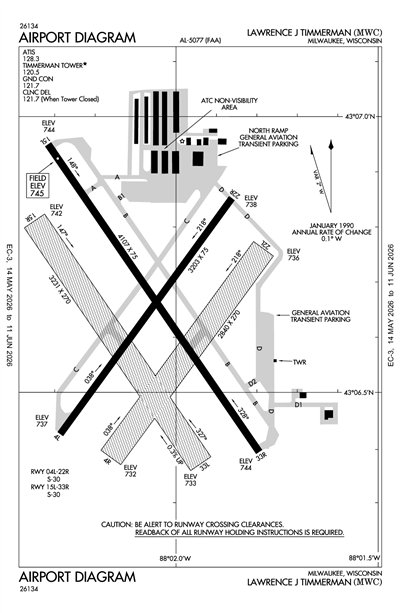

LAWRENCE J TIMMERMAN - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KMWC
ICAO KMWCIATA MWCLocal MWC
LAWRENCE J TIMMERMAN
PublicPUB

5 miles NW of MILWAUKEE, WI, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
43° 06' 37"N 88° 02' 04"W
Elevation
745' MSL
Pattern Alt
1745' MSL
Mag Variation
4°W
Declination
2°W
Fuel
JET A (FSII), 100LL
FSS
GREEN BAY (GRB)
Sectional
CHICAGO
ARTCC
CHICAGO (ZAU)
Data Effective
2/19/26-3/19/26
KMWC VFR
9:15 AM CDT
Broken 5,000'
Broken 4,200'
10sm
34°F
28°F
29.54"Hg
090° 13kts
Gusts 22kts
AO2
METAR KMWC 151415Z AUTO 09013G22KT 10SM BKN042 BKN050 01/M02 A2954 RMK AO2
+ Add Your Business

KMWC FBOs

Promote Listing
Spring City Aviation
UNICOM: 122.95
Phone: (414) 461-3222
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 2/28
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 5.79 6.24
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 128.3
AWOS-3 (414) 461-2954

Common

CTAF 120.5
WHEN ATCT CLSD, MIRL RWY 15L/33R PRESET TO LOW SS-SR; TO INCR INTST AND ACTVT REIL RWY 04L, 15L, 22R, & 33R; PAPI RWY 15L & 33R; VASI RWY 04L & 22R; AND MIRL RWY 04L/22R - CTAF.
UNICOM 122.95

Clearance

Clearance Delivery 121.7
WHEN TWR CLSD

Ground

TIMMERMAN GROUND 121.7
0700-2100

Tower

TIMMERMAN TOWER 120.5
0700-2100

Arrival

GOPAC STAR 126.5

Approach

MILWAUKEE APPROACH 125.35

Departure

MILWAUKEE DEPARTURE 125.35

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

Arrival Procedures

Instrument Approach

Terminal Area Forecast

KUES (10nm)
Sun, 3/15 6:23 AM CDT
Sun, 3/15 7:00 AM CDT - Mon, 3/16 7:00 AM CDT
VFR
7:00 AM CDT - 10:00 AM CDT
Overcast 5,000'
Scattered 1,400'
6sm
100° 15kts
Gusts 28kts
MVFR
8:00 AM CDT - 10:00 AM CDT
Light Rain
Overcast 2,500'
4sm
Calm
MVFR
10:00 AM CDT - 3:00 PM CDT
Light Rain
Overcast 1,100'
3sm
140° 12kts
Gusts 20kts
IFR
Temporary 12:00 PM CDT - 3:00 PM CDT
Light Thunderstorm and Rain
Overcast 1,000'
Broken 600'
1sm
Calm
IFR
3:00 PM CDT - 5:00 PM CDT
Light Rain
Overcast 1,100'
Broken 500'
2sm
250° 13kts
Gusts 21kts
LIFR
5:00 PM CDT - 10:00 PM CDT
Light Freezing Rain and Snow
Overcast 400'
3sm
Calm
IFR
5:00 PM CDT - 10:00 PM CDT
Overcast 1,000'
Broken 500'
6sm
340° 15kts
Gusts 25kts
IFR
10:00 PM CDT - 2:00 AM CDT
Light Freezing Rain
Overcast 600'
4sm
360° 18kts
Gusts 32kts
IFR
2:00 AM CDT - 7:00 AM CDT
Light Snow and Blowing Snow
Overcast 1,100'
Scattered 600'
2sm
340° 20kts
Gusts 33kts
TAF KUES 151123Z 1512/1612 10015G28KT P6SM SCT014 OVC050
   PROB30 1513/1515 4SM -RA OVC025
   FM151500 14012G20KT 3SM -RA OVC011
   TEMPO 1517/1520 1SM -TSRA BKN006CB OVC010
   FM152000 25013G21KT 2SM -RA BKN005 OVC011
   FM152200 34015G25KT P6SM BKN005 OVC010
   PROB30 1522/1603 3SM -FZRASN OVC004
   FM160300 36018G32KT 4SM -FZRA OVC006
   FM160700 34020G33KT 2SM -SN BLSN SCT006 OVC011
KMWC
EffectiveExpiresCategoryNOTAM
Domestic
3/18/26
1430Z
3/18/26
1830Z
!MWC 03/067 MWC AIRSPACE SEE ZAU 03/136 FLTCK ACFT OPS ACFT CS FLC83 2603181430-2603181830
3/17/26
1200Z
!MWC 03/058 MWC OBST CRANE (ASN 2026-AGL-3792-OE) 430718N0880228W (0.7NM NNW MWC) 818FT (95FT AGL) FLAGGED 2603171200-2603172359EST
3/15/26
1205Z
3/16/26
1205Z
!MWC 03/075 MWC TWY ALL FICON WET OBS AT 2603151205. 2603151205-2603161205
3/15/26
1204Z
3/16/26
1204Z
!MWC 03/074 MWC APRON ALL FICON WET OBS AT 2603151204. 2603151204-2603161204
3/15/26
1203Z
3/16/26
1203Z
Runway!MWC 03/073 MWC RWY 15L FICON 5/5/5 100 PCT WET OBS AT 2603151203. 2603151203-2603161203
3/15/26
1202Z
3/16/26
1202Z
Runway!MWC 03/072 MWC RWY 04L FICON 5/5/5 100 PCT WET OBS AT 2603151202. 2603151202-2603161202
3/11/26
0822Z
Runway!MWC 03/043 MWC RWY 04L VASI HIGH INTST U/S 2603110822-2605202000EST
3/9/26
1610Z
3/23/26
2359Z
!MWC 03/041 MWC OBST TOWER LGT (ASR 1204062) 430460.00N0880121.30W (1.7NM SSE MWC) 974.4FT (219.8FT AGL) U/S 2603091610-2603232359
3/9/26
0216Z
4/9/26
2359Z
!MWC 03/040 MWC OBST TOWER LGT (ASR 1035593) 431456.00N0875850.00W (8.7NM NNE MWC) 906.8FT (214.9FT AGL) U/S 2603090216-2604092359
2/1/26
2351Z
3/18/26
2351Z
!MWC 02/001 MWC OBST TOWER LGT (ASR 1051799) 430524.00N0875455.00W (5.3NM ESE MWC) 1331.7FT (655.8FT AGL) U/S 2602012351-2603182351
FDC
3/13/26
1800Z
!FDC 6/6336 MWC ODP LAWRENCE J TIMMERMAN, MILWAUKEE, WI.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 1B...
TAKEOFF OBSTACLE NOTES: RWY 33R, TEMPORARY CRANE, 2138FT FROM DER, 656 FT RIGHT OF CENTERLINE, 95 AGL/818 MSL (2026-AGL-3792-OE). ALL OTHER DATA REMAINS AS PUBLISHED. 2603131800-2604032355EST
4/30/25
1811Z
!FDC 5/3855 MWC IAP LAWRENCE J TIMMERMAN, MILWAUKEE, WI.
RNAV (GPS) RWY 4L, ORIG-E...
STRAIGHT-IN MINIMUMS NA AT NIGHT. CIRCLING RWY 4L, 33R NA AT NIGHT. VDP NA. CHANGE HELICOPTER NOTE TO READ: RWY 4L HELICOPTER VISIBILITY REDUCTION BELOW 1 SM NOT AUTHORIZED.
2504301811-2704301811EST
4/30/25
1811Z
!FDC 5/3853 MWC IAP LAWRENCE J TIMMERMAN, MILWAUKEE, WI.
LOC RWY 15L, AMDT 6F...
RNAV (GPS) RWY 15L, ORIG-E...
RNAV (GPS) RWY 22R, ORIG-F...
CIRCLING RWY 4L, 33R NA AT NIGHT.
2504301811-2704301811EST
Yes
0800-1600
MILWAUKEE COUNTY
COUNTY COURTHOUSE
MILWAUKEE, WI 53233
Phone: 414-747-5300
BRIAN DRANZIK
5300 S HOWELL
MILWAUKEE, WI 53207
Phone: 414-747-5775
GREEN BAY FSS (GRB)
Toll Free: 1-800-WX-BRIEF
MWC
--
WHEN ATCT CLSD, MIRL RWY 15L/33R PRESET TO LOW SS-SR; TO INCR INTST AND ACTVT REIL RWY 04L, 15L, 22R, & 33R; PAPI RWY 15L & 33R; VASI RWY 04L & 22R; AND MIRL RWY 04L/22R - CTAF.
N/A
Yes
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
High & Low Pressure
High & Low Pressure
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 04L/22R

3203 ft. x 75 ft.
ASPH
Excellent
NONE
MED

30,000lbs
--
--
--
  Runway 04L Runway 22R
True Heading 36°216°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 43° 06' 26"N 43° 06' 51"N
Longitude 88° 02' 17"W 88° 01' 52"W
Elevation 737' 738'
Threshold Crossing Height 44 ft. AGL 45 ft. AGL
Visual Glide Path Angle 4° 4°
Visual Slope Indicator V4L V4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes

Runway 04R/22L

2840 ft. x 270 ft.
TURF
Good
NONE


--
--
--
--
  Runway 04R Runway 22L
True Heading 36°216°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 43° 06' 23"N 43° 06' 46"N
Longitude 88° 02' 10"W 88° 01' 47"W
Elevation 732' 736'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 15L/33R

4107 ft. x 75 ft.
ASPH
Excellent
NONE
MED

30,000lbs
--
--
--
  Runway 15L Runway 33R
True Heading 146°326°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 43° 06' 57"N 43° 06' 23"N
Longitude 88° 02' 19"W 88° 01' 48"W
Elevation 744' 744'
Threshold Crossing Height 41 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 4°
Visual Slope Indicator P4R P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes

Runway 15R/33L

3231 ft. x 270 ft.
TURF
Good
NONE


--
--
--
--
  Runway 15R Runway 33L
True Heading 145°325°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 43° 06' 49"N 43° 06' 22"N
Longitude 88° 02' 21"W 88° 01' 56"W
Elevation 742' 733'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-3BCN ELEV 797' MSL.
A110-4TURF RYS 04R/22L & 15R/33L & ALL TURF TWYS CLSD 15 OCT - 1 MAY.
A110-6BIRDS ON & INVOF ARPT.
A110-7CONDS UNMON MON-FRI 1530-0630, SAT, SUN, OR FED HOLS.
A15EMAIL ADDRESS: BDRANZIK@MITCHELLAIRPORT.COM (ALL LOWER CASE)
A42-04R_MARKMKD BY WHITE TFC CONES.
A42-15R_MARKMKD BY WHITE TFC CONES.
A42-22L_MARKMKD BY WHITE TFC CONES.
A42-33L_MARKMKD BY WHITE TFC CONES.
A43-04LWHEN VASI OTS, RWY CLSD TO LDG SS-SR.
A43-22RWHEN VASI OTS, RWY CLSD TO LDG SS-SR.
A43-33RUNUSBL BYD 8 DEGS RIGHT OF CNTRLN. WHEN PAPI OTS, RWY CLSD TO LDG SS-SR.
A81-APTWHEN ATCT CLSD, MIRL RWY 15L/33R PRESET TO LOW SS-SR; TO INCR INTST AND ACTVT REIL RWY 04L, 15L, 22R, & 33R; PAPI RWY 15L & 33R; VASI RWY 04L & 22R; AND MIRL RWY 04L/22R - CTAF.
LAWRENCE J TIMMERMAN (ICAO: KMWC, IATA: MWC) is a public airport located in MILWAUKEE, WI, US.
