iFlightPlanner



...

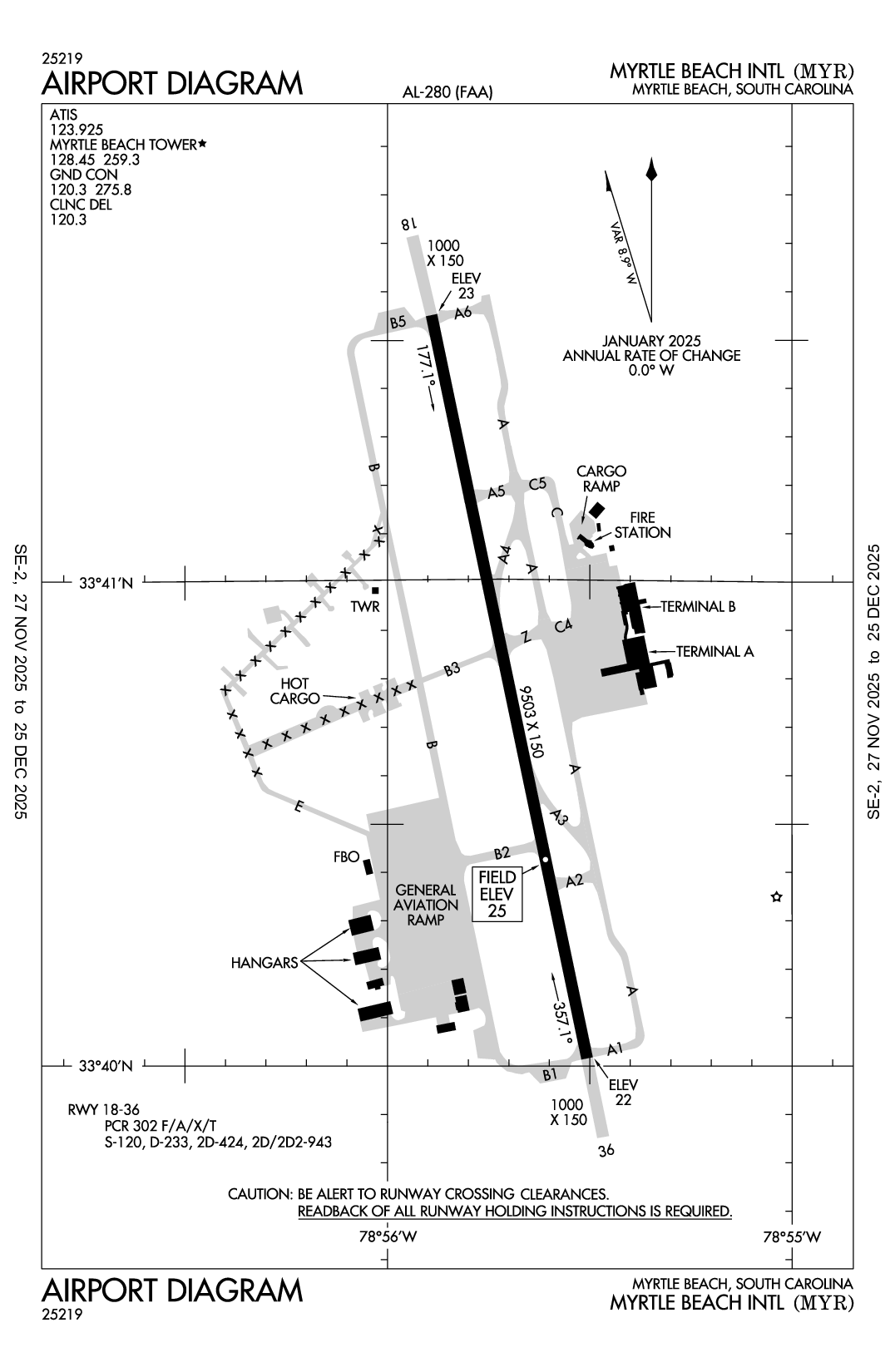

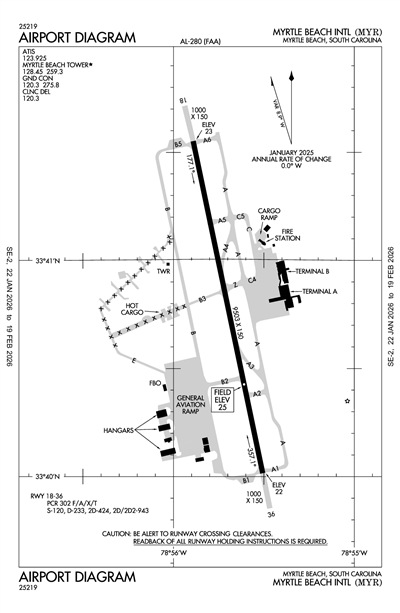

MYRTLE BEACH INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KMYR
MYRTLE BEACH INTL
PublicPUB

3 miles SW of MYRTLE BEACH, SC
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
33° 40' 47"N 78° 55' 42"W
25' MSL
1025' MSL
09° W (2020)
Jet A, 100LL
ANDERSON (AND)
CHARLOTTE
JACKSONVILLE (ZJX)
6/18/20-7/16/20
KMYR VFR
19:56 Z
Clear
10sm
85°F
75°F
30.00"Hg
150° 10kts
AO2 SLP159 T02940239
KMYR 051956Z 15010KT 10SM CLR 29/24 A3000 RMK AO2 SLP159 T02940239

KMYR FBOs, Flight Schools and Ground Support

Myrtle Beach Aviation
Freq: 122.950
Phone: (843) 839-6740
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel, Shell, World Fuel
Fuel as of 6/29 100LL SS-- 100LL FS-- Jet A-- Jet A+-- MoGas--

KMYR Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KMYR Hotels

No hotels are listed for this airport.

KMYR Restaurants

No restaurants are listed for this airport.

KMYR Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.950 128.45

ATIS

ATIS
Hours: 24 HRS
123.925

AWOS-3PT

AWOS-3PT
843-238-0335
123.925

Approach/Departure

APCH/P DEP/P
322-170
119.200
APCH/P DEP/P IC
171-321
127.400

Clearance Delivery

CD/P
120.300

Emergency

EMERG
121.500

Ground

GND/P
120.300

Tower

LCL/P
128.450

Other

CLASS C
322-170
119.200
CLASS C
171-321
127.400

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Terminal Area Forecast

KMYR
17:20 Z
Sun, 7/5, 18:00 Z - Mon, 7/6, 18:00 Z
VFR
18:00 - 1:00 Z
Thunderstorm in vicinity
Overcast 25,000'
Broken 6,000'
Few 4,000'
> 6sm
N/A
150° 8kts
VFR
1:00 - 18:00 Z
Broken 25,000'
> 6sm
N/A
180° 4kts
KMYR 051720Z 0518/0618 15008KT P6SM VCTS FEW040CB BKN060 OVC250
   FM060100 18004KT P6SM BKN250
KMYR NOTAMs
Domestic
7/5/201646Z !MYR 07/006 MYR OBST TOWER LGT (ASR 1042170) 334704.60N0785243.10W (6.8NM NNE MYR) 651.9FT (606.0FT AGL) U/S 2007051646-2007201646
7/4/201225Z !MYR 07/005 MYR RWY 36 PAPI U/S 2007041225-2007072000EST
7/3/200050Z !MYR 07/003 MYR OBST TOWER LGT (ASR 1045523) 334151.80N0785409.10W (1.7NM NE MYR) 217.8FT (193.9FT AGL) U/S 2007030050-2007180050
6/26/202300Z !MYR 06/031 MYR SVC TWR CLSD CLASS C SERVICE NOT AVBL CTC JACKSONVILLE ARTCC ON 134.37 DLY 2300-1100 2006262300-2007311100
6/24/201045Z !MYR 06/024 MYR TWY A SFC MARKINGS BTN TERMINAL RAMP AND TWY A4 NOT STD 2006241045-2011012200
6/24/201044Z !MYR 06/023 MYR APRON TERMINAL RAMP SFC MARKINGS NOT STD 2006241044-2011012200
6/24/201041Z !MYR 06/022 MYR RWY 18/36 WIP CONST ADJ NE EDGE 2006241041-2011012200
6/24/200303Z !MYR 06/021 MYR TWY A5, A6, A7 CLSD 2006240303-2011012200
6/24/200303Z !MYR 06/020 MYR APRON TERMINAL RAMP WIP HVY EQPT ADJ N EDGE 2006240303-2011012200
6/24/200303Z !MYR 06/019 MYR TWY A4 WIP HVY EQPT ADJ NORTH EDGE 2006240303-2011012200
6/24/200303Z !MYR 06/018 MYR TWY A BTN TWY A7 AND TERMINAL RAMP CLSD 2006240303-2011012200
6/24/200302Z !MYR 06/017 MYR TWY A4 CLSD EXC XNG RWY 2006240302-2011012200
6/20/200401Z !MYR 06/011 MYR OBST TOWER LGT (ASR 1044153) 333528.00N0790254.00W (8.1NM SW MYR) 1031.5FT (1011.5FT AGL) U/S 2006200401-2007200401
6/12/201308Z !MYR 06/007 MYR OBST TOWER LGT (ASR 1001127) 333846.70N0785835.40W (3.2NM SW MYR) 263.1FT (240.2FT AGL) U/S 2006121308-2007121308
FDC
5/20/201633Z !FDC 0/2350 MYR IAP MYRTLE BEACH INTL,
MYRTLE BEACH, SC.
ILS OR LOC RWY 18, AMDT 5A...
ILS RWY 18 (SA CAT I), AMDT 5A...
ILS RWY 18 (SA CAT II), AMDT 5A...
MISSED APPROACH: CLIMB TO 800 THEN CLIMBING RIGHT TURN TO 3000
DIRECT HYW NDB AND HOLD. (ADF REQUIRED).
RADAR REQUIRED FOR PROCEDURE ENTRY EXCEPT FOR AIRCRAFT EQUIPPED
WITH SUITABLE RNAV SYSTEM WITH GPS,
CRE VORTAC OUT OF SERVICE. 2005201633-2012301633EST
5/8/201700Z !FDC 0/9472 MYR IAP MYRTLE BEACH INTL,
MYRTLE BEACH, SC.
RNAV (GPS) RWY 36, AMDT 4...
DELETE NOTE: DME/DME RNP-0.3 NA.
PBN REQUIREMENTS NOTE: RNP APCH.
DELETE NOTE: FOR UNCOMPENSATED BARO-VNAV SYSTEMS, LNAV/VNAV NA
BELOW -15C (5F) OR ABOVE 54C (130F).
CHART NOTE: FOR UNCOMPENSATED BARO-VNAV SYSTEMS, LNAV/VNAV NA BELOW
-15C OR ABOVE 54C.
DELETE NOTE: FOR INOPERATIVE MALSF, INCREASE LNAV/VNAV CATS D/E
VISIBILITY TO RVR 6000, AND LNAV CATS D/E VISIBILITY TO 1 1/4.
CHART NOTE: FOR INOPERATIVE ALS, INCREASE LNAV/VNAV CATS D/E
VISIBILITY TO RVR 6000, AND LNAV CATS C/D/E VISIBILITY TO 1 3/8 SM.
LNAV ALL CATS MDA/HAT 480/455.
DELETE NOTE: RADAR REQUIRED.
THIS IS RNAV (GPS) RWY 36, AMDT 4A. 2005081700-PERM
5/1/201152Z !FDC 0/7963 MYR ODP MYRTLE BEACH INTL,
MYRTLE BEACH, SC.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 2...
TAKEOFF OBSTACLE NOTES: RWY 18, TEMPORARY CRANE 4028FT FROM DER,
1329FT LEFT OF CENTERLINE, 145FT AGL/148FT MSL (2018-ASO-19487-OE).
ALL OTHER DATA REMAINS AS PUBLISHED. EXCEPT WHEN ADVISED BY ATCT
THAT THIS CRANE IS DOWN. 2005011152-2012111150EST
3/26/201942Z !FDC 0/1408 MYR IAP MYRTLE BEACH INTL,
Myrtle Beach, SC.
ILS OR LOC RWY 36, AMDT 4...
S-LOC 36 MDA 420/HAT 395 ALL CATS, VIS CATS C/D/E RVR 4500.
TEMPORARY CRANE 148 MSL 4241 FT SE OF RWY 36 (2018-ASO-19487-OE).
2003261942-2011051942EST
5/23/191932Z !FDC 9/2874 MYR IAP MYRTLE BEACH INTL,
Myrtle Beach, SC.
RNAV (GPS) RWY 36, AMDT 4...
LNAV MDA 480/HAT 455 ALL CATS.
1905231932-2105231932EST
Yes
0600-2100
HORRY COUNTY
P O BOX 1236
CONWAY, SC 29526
Phone: 843-448-1580
SCOTT VAN MOPPES
1100 JETPORT RD
MYRTLE BEACH, SC 29577
Phone: 843-448-1580
ANDERSON FSS (AND)
Toll Free: 1-800-WX-BRIEF
MYR
--
WHEN ATCT CLSD ACTVT MALSR RWY 18, MALSF RWY 36; HIRL RWY 18/36 - CTAF.
Clear-Green
Yes
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
38
6
1
6
0
0
Major
Major
None
None
Charter Service
Pilot Instruction
Aircraft Rental

Runway 18/36

9503 ft. x 150 ft.
ASPH
Excellent
GRVD
HIGH
69 /R/B/W/T
120000 lbs
233000 lbs
424000 lbs
943000 lbs
  Runway 18 Runway 36
Runway Heading 168° 348°
Traffic Pattern Right Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 33° 41' 33"N 33° 40' 01"N
Longitude 78° 55' 53"W 78° 55' 30"W
Elevation 22.5 ft. 21.8 ft.
Threshold Crossing Height 64 ft. AGL 71 ft. AGL
Visual Glide Path Angle
Visual Slope Indicator P4L P4L
Approach Lights MALSR MALSF
Centerline Lights No No
Runway End Identifier Lights No No
A110-2GULLS ON & INVOF ARPT.
A110-3NO APPROVAL REQUIRED FOR PUSHBACK AT TERMINAL GATES; PUSH IS AT PILOT'S DISCRETION; REMAIN CLEAR OF TWYS. APRON GATES A7A,A7B,A7C FOR PUSH BACK APPROVAL PPR TWR 120.3.
A110-4CONTACT MYR OPS ON CTAF 128.45 PRIOR TO LANDING 2300-0600.
A110-5SIGHTSEEING HELS OPRG IN CLOSE PROXIMITY OF ARPT AND RWY AT OR BLW 1200. HEL RTES AND HLDG POINTS RMN CLR OF RWY CNTRLNS. HELS DEPG/ARRG PAD LCTD 700 FT SSE APCH END RWY 36.
A110-6TWY B4 CLSD TO ACFT MORE THAN 12,500 LB

View hangar and property listings at KMYR, provided by our partner Hangar Network.

No Hangar Network listings are currently available for this airport.

MYRTLE BEACH INTL (ICAO: KMYR, IATA: MYR) is a public airport located in MYRTLE BEACH, SC.
