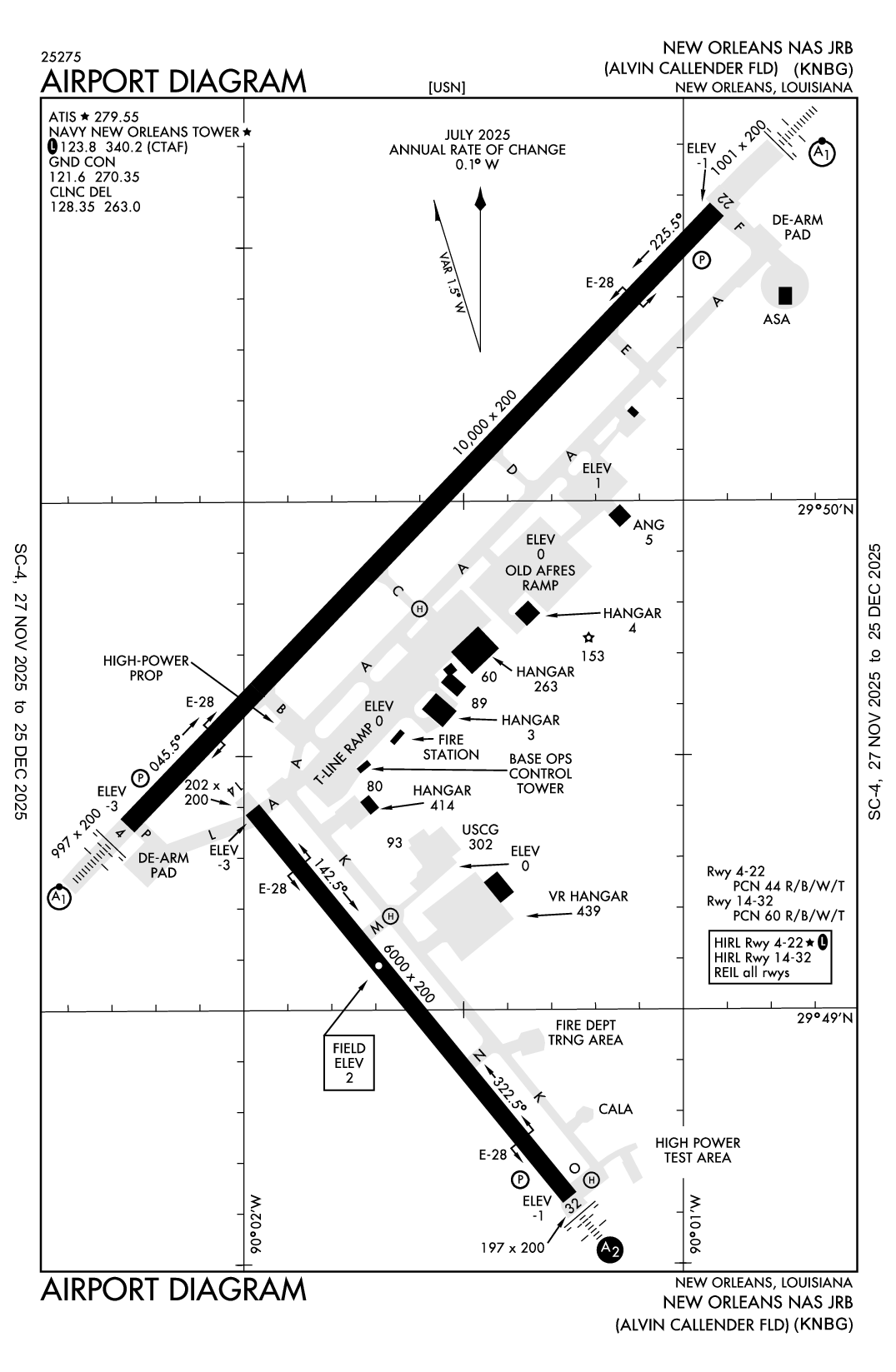

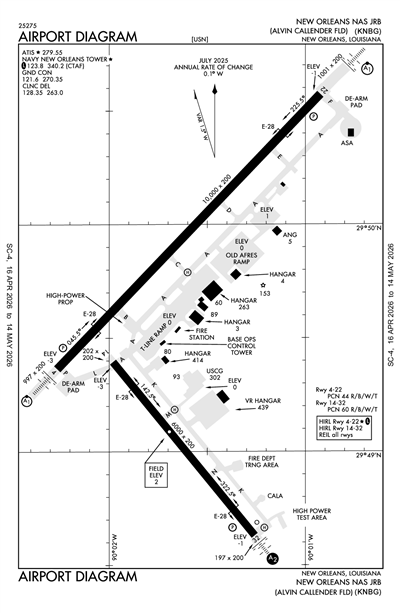

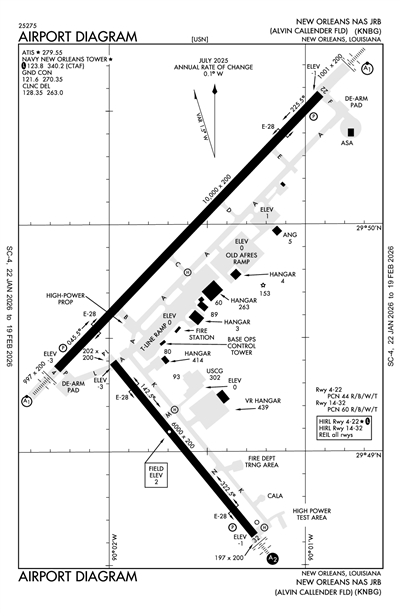

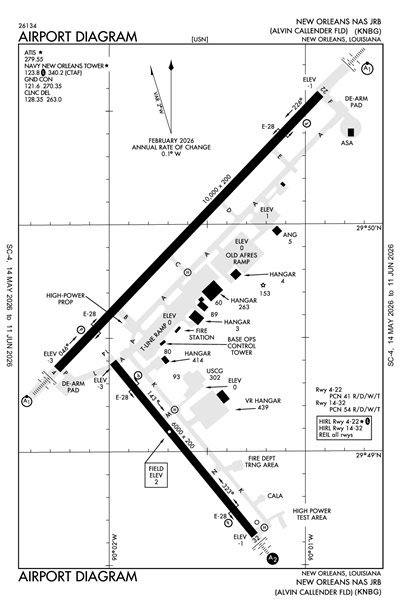

NEW ORLEANS NAS JRB (ALVIN CALLENDER FLD) - Airport Diagram

KNBG

ICAO KNBGIATA NBGLocal NBG

NEW ORLEANS NAS JRB (ALVIN CALLENDER FLD)

PrivatePVT

3 miles S of NEW ORLEANS, LA, US

View on Map

Status

Operational

Coordinates

29° 49' 38"N 90° 01' 36"W

Elevation

2' MSL

Pattern Alt

1002' MSL

Mag Variation

1°W

Declination

0°

Fuel

None Listed

FSS

DE RIDDER (DRI)

Sectional

NEW ORLEANS

ARTCC

HOUSTON (ZHU)

Data Effective

2/19/26-3/19/26

KNBG VFR

6:32 AM CDT RAW

Few 5,500'

Viz

10sm

Temp

59°F

Dew

59°F

Pres

29.86"Hg

Wind

130° 5kts

RMK

AO2 T01500150

SPECI KNBG 151132Z AUTO 13005KT 10SM FEW055 15/15 A2986 RMK AO2 T01500150

Add Your Business

KNBG FBOs

No FBOs (Fixed Base Operators) are listed for this airport.

Your Information

Business

Clearance

Clearance Delivery

128.35

Ground

NAVY NEW ORLEANS GROUND	121.6
1300-0500Z++ MON-FRI, 1500-2300Z++ SAT,SUN; CLSD HOL EXC BY NOTAM.

Tower

NAVY NEW ORLEANS TOWER	123.8
1300-0500Z++ MON-FRI, 1500-2300Z++ SAT,SUN; CLSD HOL EXC BY NOTAM.

Arrival

MNSTR STAR	133.15
EAST

Approach

NEW ORLEANS APPROACH

123.85

Departure

NEW ORLEANS DEPARTURE

123.85

Emergency

121.5

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

AIRPORT DIAGRAM

Airport Minimums

Arrival Procedures

Instrument Approach

Terminal Area Forecast

KNBG

RAW

Reported

Sun, 3/15 2:12 AM CDT

Valid

Sun, 3/15 2:00 AM CDT - Mon, 3/16 2:00 AM CDT

MVFR

2:00 AM CDT - 10:00 AM CDT

Mist

Scattered 3,000'
Few 2,000'

Viz

4.97sm

Pres

29.85"Hg

Wind

150° 10kts

VFR

Becoming 10:00 AM CDT - 5:00 PM CDT

Mist

Broken 6,000'
Scattered 3,000'

Viz

6sm

Pres

29.82"Hg

Wind

170° 16kts

Gusts 23kts

MVFR

Temporary 12:00 PM CDT - 3:00 PM CDT

Broken 1,000'

Viz

N/A

Wind

200° 18kts

Gusts 27kts

MVFR

Becoming 5:00 PM CDT - 2:00 AM CDT

Mist

Broken 3,500'
Broken 1,000'

Viz

6sm

Pres

29.68"Hg

Wind

180° 10kts

TAF KNBG 1507/1607 15010KT 8000 BR FEW020 SCT030 QNH2986INS
   BECMG 1515/1517 17016G23KT 9999 SCT030 BKN060 QNH2982INS
   TEMPO 1517/1520 20018G27KT BKN010
   BECMG 1522/1601 18010KT 9999 BKN010 BKN035 QNH2967INS AUTOMATED SENSOR METWATCH 1507 TIL 1513 TX28/1518Z TN18/1509Z FN00282

KNBG

Effective	Expires	Category	NOTAM
Military
3/18/26 1200Z	3/18/26 1400Z	Runway	!KNBG M0096/26 NBG RWY 04/22 CLSD DUE TO GEAR MAINTENANCE ON 18MAR2026 FROM 0700L(1200Z) - 0900L (1400Z) 2603181200-2603181400
3/17/26 1200Z	3/17/26 1400Z	Runway	!KNBG M0095/26 NBG RWY 04/22 CLSD DUE TO GEAR MAINTENANCE ON 17MAR2026 FROM 0700L(1200Z) - 0900L (1400Z) 2603171200-2603171400
3/2/26 1546Z	5/30/26 1300Z	Aerodrome	AERODROME ALL TRANSIENT AIRCRAFT MUST BE AT OR BELOW MAXIMUM WEIGHT OF 475,000 POUNDS.
2/26/26 2129Z	4/30/26 0700Z	Aerodrome	AERODROME PPR REQUEST SHALL BE MADE 72 HOURS PRIOR TO ARRIVAL.
2/19/26 1501Z	5/19/26 0600Z		REVIEW HRV NOTAMS FOR TACAN STATUS.
2/5/26 1927Z	5/4/26 2300Z		FUEL NOZZLE MAN OPERATOR REQUIRED FOR ALL TRANSIENT AIRCRAFT.

ATC Tower

Yes

Attendance

MON-FRI 1300-0500Z++
SAT-SUN 1600-0000Z++
CLSD HOL EXC BY NOTAM.
CLSD HOL EXCEPT BY NOTAM.

Owner

U S NAVY
OCEANOGRPAHIC OFC-CODE 3142
WASHINGTON, D C 20373

Manager

COMMANDING OFFICER
NAS NEW ORLEANS
NEW ORLEANS, LA 70146

FSS

DE RIDDER FSS (DRI)
Toll Free: 1-800-WX-BRIEF

NOTAM

NBG

Light Schedule

Lights

PCL 123.8 OR 340.2.

Beacon

N/A

Wind Indicator

N/A

Segmented Cir.

Landing Fee

Parking

None

Int'l Operations

NoAirport of Entry

Airframe Repair

None

Pwrplant Repair

None

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

None

Runway 04/22

Dimensions

10000 ft. x 200 ft.

Surface Type

PEM

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

HIGH

Pavement Class

44/R/B/W/T

Single Wheel

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 04	Runway 22
True Heading	44°	224°
Traffic Pattern		Right
Markings	PIR	PIR
Markings Condition	GOOD	GOOD
Latitude	29° 49' 25"N	29° 50' 36"N
Longitude	90° 02' 14"W	90° 00' 55"W
Elevation	-3'	-1'
Threshold Crossing Height	49 ft. AGL	44 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4L	P4L
Approach Lights	ALSF1	ALSF1
Centerline Lights
Runway End Identifier Lights	Yes	Yes

Runway 14/32

Dimensions

6000 ft. x 200 ft.

Surface Type

PEM

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

HIGH

Pavement Class

60/R/B/W/T

Single Wheel

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 14	Runway 32
True Heading	141°	321°
Traffic Pattern	Right
Markings	NPI	NPI
Markings Condition	GOOD	GOOD
Latitude	29° 49' 24"N	29° 48' 38"N
Longitude	90° 01' 59"W	90° 01' 16"W
Elevation	-2'	-1'
Threshold Crossing Height	54 ft. AGL	50 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4L	P4L
Approach Lights		SALS
Centerline Lights
Runway End Identifier Lights	Yes	Yes

A110-10	CSTMS/AG/IMG - AVBL TO MIL ACFT/PERS ONLY, COORD WITH AIRFIELD SERVICES DSN 678-3602, C504-678-3602. OTHER CSTMS REQUIREMENTS CTC C504-623-6600 FOR APPOINTMENT.
A110-11	TRAN ALERT: OPR 1300-0500Z++.
A110-12	CAUTION: NUMEROUS CIV ACFT OPR TO/FR CANALS VCNTY AFLD.
A110-14	SERVICE - A-GEAR: MAINTAINED IN RAISED POSN AND IN BATTERY AT ALL TIMES, DO NOT LAND DRCT ON A-GEAR CABLES.
A110-15	CG - OPR RSTD 0500-1300Z++ TO CG. DSN 678-3515, C504-678-6032.
A110-20	JASU: 4(A/M-47A-4) 4(NC-10) LTD DC PWR.
A110-21	FUEL: OPR 1330-0430Z++. FUEL DELAYS FRI-SUN. TRAN ACFT EXP SOME DELAY FOR SVC OUTSIDE NML WORKING HR. J8
A110-22	OIL: O-128-156.
A110-23	FLUID: PRESAIR LHOX LOX.
A110-24	CAUTION: BIRD HAZ.
A110-26	OT CIV ACFT TRNS CLASS D, CTC ATC ON 123.8 FOR CLNC.
A110-27	SERVICE: NO LAV SERVICES AVBL.
A110-3	CAT B AFLD.
A110-30	SERVICE: L-AOE.
A110-32	SERVICE-LGTS: CARRIER DECK LIGHTING ON RWY 04 FOR FCLP'S AVBL UPON REQ ONE HR PRIOR. CARRIER DECK RWY 32 UNLIT; VFR/DAY USE ONLY
A110-33	ANG- LA ANG AM OPS OPR 1330-2130Z++ TUES-FRI AND UNIT TRNG ACT WEEKEND.LA ANG AM OPS, DSN 457-8637, C504-391-8637, FAX DSN 457-8671, C504-391-8671
A110-34	FIRE DEPT STS CAT II.
A110-35	BASE OPS DSN 678-3101, C504-678-3101 OR FAX DSN 678-9575, C504-678-9575
A110-36	CAUTION: 180 DEG TURNS AND PIVOTS ON ASPH UNAUTHD.
A110-37	SERVICE LGT- DOUBLE YELLOW TWY END LGT AT END OF TWY K/O, L AND P NOT INSTLD.
A110-38	SERVICE: LGT- PILOT CNTRLD AFLD LGT ARE NSTD. ONLY PCL RWY 4/22 HIRL AND RWY 32 SALS. RESPONSE TIME FOR PCL IS NSTD WITH APPROX 10 SEC DELAY FROM PILOT INPUT TO LIGHT INTENS CHANGE
A110-39	FOR CIV ACFT LDG PMT (CALP) INFO CTC AFLD MGR C504-678-4592.
A110-40	RSTD - PPR ALL ACFT 24 HR PN, SHORT NOTICE PPR'S APPROVED ON A CASE-BY-CASE BASIS DSN 678-3602/3, C504-678-3602/3.
A110-8	NUMEROUS BIRDS ON & INVOF ARPT.
A17-D1	CLSD HOL EXC BY NOTAM.
A17-D2	CLSD HOL EXCEPT BY NOTAM.
A40-04/22	PCL NSTD. 3 CLICKS RWY 04 MED INTS. 5 CLICKS RWY 22 MED INTS. 7 CLICKS RWY 04 HI INTS. TTINGS.
A40-14/32	MED INTS ALL SETTINGS.
A49-04	OLS & WAVE-OFF.
A49-22	OLS & WAVE-OFF.
A49-32	RWY 32 - OLS.
A81-APT	PCL 123.8 OR 340.2.
E147	TFC PAT: OVERHEAD BREAK ALT 1500'. PAT ALT 1000'.
E60-04_E28	HOOK E28 (B) (1500')
E60-14_E28	HOOK E28(B) (1025')
E60-22_E28	HOOK E28(B) (1501')
E60-32_E28	HOOK E28(B) (1025')

NEW ORLEANS NAS JRB (ALVIN CALLENDER FLD) (ICAO: KNBG, IATA: NBG) is a private airport located in NEW ORLEANS, LA, US.
