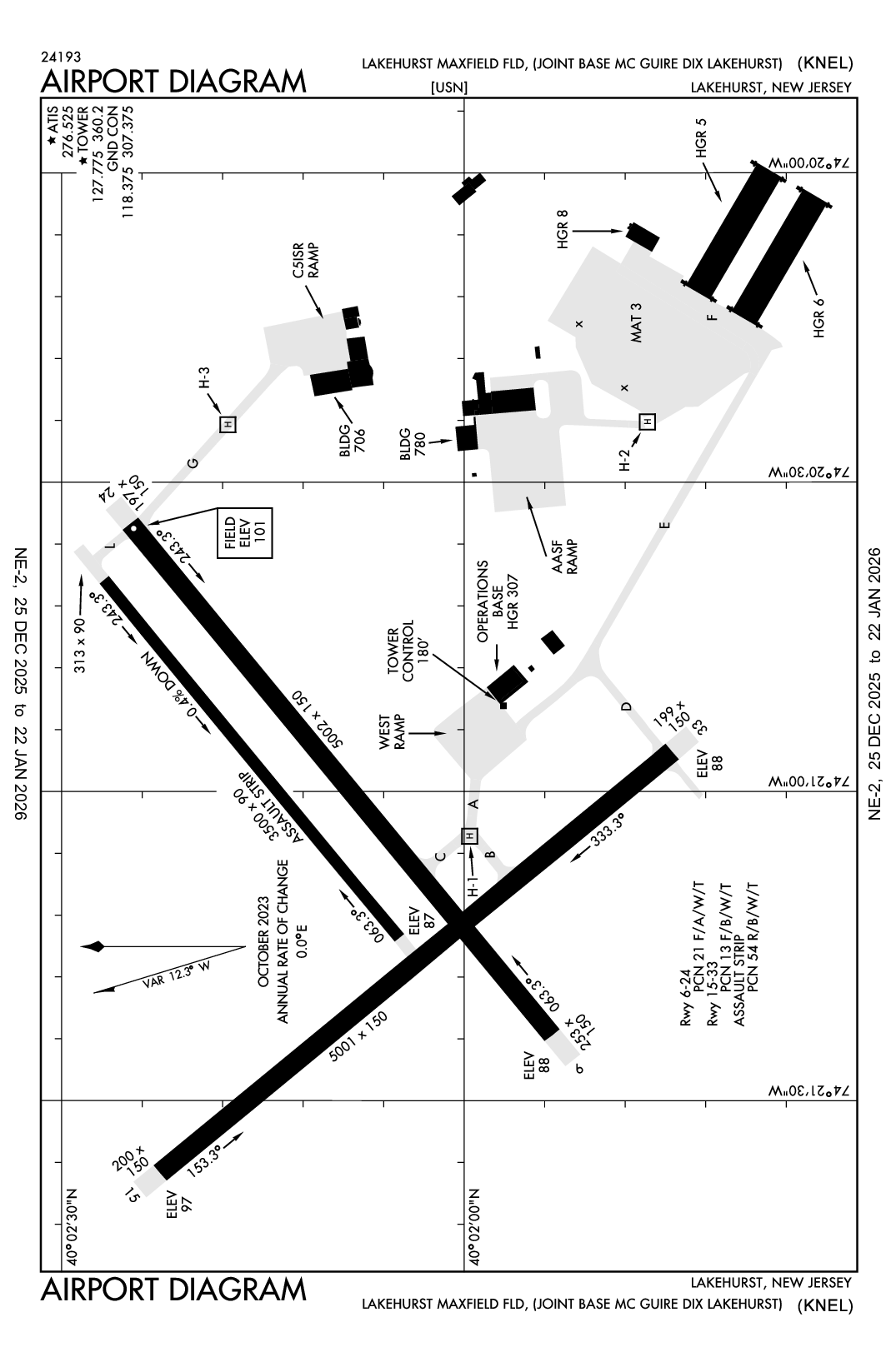

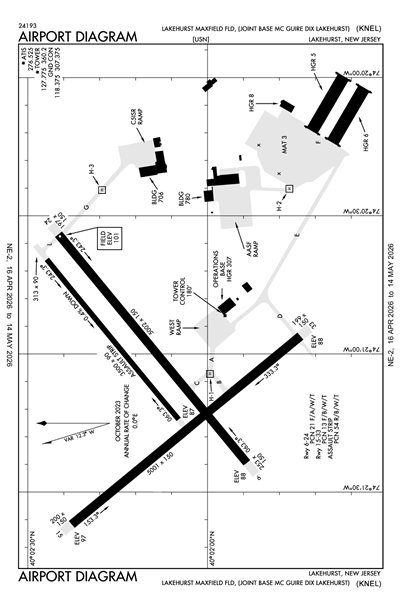

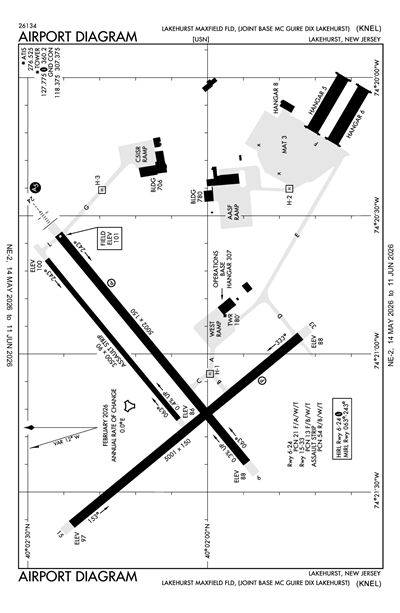

LAKEHURST MAXFIELD FLD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KNEL
ICAO KNELIATA NELLocal NEL
LAKEHURST MAXFIELD FLD
PrivatePVT

3 miles W of LAKEHURST, NJ, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
40° 02' 09"N 74° 21' 05"W
Elevation
101' MSL
Pattern Alt
1101' MSL
Mag Variation
12°W
Declination
11°W
Fuel
None Listed
FSS
MILLVILLE (MIV)
Sectional
NEW YORK
ARTCC
NEW YORK (ZNY)
Data Effective
3/19/26-4/16/26
KMJX (7nm) IFR
8:20 PM EDT
Light Rain and Mist
Overcast 500'
2.5sm
45°F
45°F
30.21"Hg
080° 9kts
Gusts 17kts
AO2 RAB04 CIG 004V008 P0000 $
SPECI KMJX 050020Z AUTO 08009G17KT 2 1/2SM -RA BR OVC005 07/07 A3021 RMK AO2 RAB04 CIG 004V008 P0000 $
+ Add Your Business

KNEL FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Ground

LAKEHURST GROUND 118.375
MON-WED 1300-1700Z++ THU-FRI 1300-0100Z++.

Tower

LAKEHURST TOWER 127.775
MON-WED 1300-1700Z++ THU-FRI 1300-0100Z++.

Approach

MC GUIRE APPROACH 126.475

Departure

MC GUIRE DEPARTURE 126.475

Operations

Operations 41.25

Emergency

Emergency 121.5

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Arrival Procedures

Instrument Approach

Terminal Area Forecast

KTTN (26nm)
Sat, 4/4 8:17 PM EDT
Sat, 4/4 8:00 PM EDT - Sun, 4/5 8:00 PM EDT
MVFR
8:00 PM EDT - 9:00 PM EDT
Overcast 1,500'
6sm
110° 14kts
Gusts 24kts
IFR
9:00 PM EDT - 11:00 PM EDT
Mist and Showers in vicinity
Overcast 700'
5sm
100° 11kts
Gusts 19kts
IFR
11:00 PM EDT - 5:00 AM EDT
Mist
Overcast 500'
1sm
090° 10kts
IFR
5:00 AM EDT - 11:00 AM EDT
Mist
Broken 700'
3sm
140° 5kts
MVFR
11:00 AM EDT - 4:00 PM EDT
Light Thunderstorm and Rain
Broken 1,000'
6sm
270° 10kts
Gusts 20kts
VFR
4:00 PM EDT - 8:00 PM EDT
Broken 3,500'
6sm
290° 10kts
Gusts 17kts
TAF KTTN 050017Z 0500/0524 11014G24KT P6SM OVC015
   FM050100 10011G19KT 5SM BR VCSH OVC007
   FM050300 09010KT 1SM BR OVC005
   FM050900 14005KT 3SM BR BKN007 WS020/21035KT
   FM051500 27010G20KT 6SM -TSRA BKN010CB
   FM052000 29010G17KT P6SM BKN035
KNEL
EffectiveExpiresCategoryNOTAM
Military
4/3/26
1209Z
4/6/26
1200Z
Services!KNEL M0205/26 NEL SVC AUTOMATED WX BCST SYSTEM NOT AVBL VISIBILITY NOT AVAILABLE 2604031209-2604061200
4/3/26
1208Z
4/4/26
1200Z
Runway!KNEL M0204/26 NEL RWY 15/33 WET THIN OBSERVED AT 2604031200. 2604031208-2604041200
4/3/26
1207Z
4/4/26
1200Z
Runway!KNEL M0203/26 NEL RWY 063/243 WET THIN OBSERVED AT 2604031200. 2604031207-2604041200
4/3/26
1207Z
4/4/26
1200Z
Runway!KNEL M0202/26 NEL RWY 06/24 WET THIN OBSERVED AT 2604031200. 2604031207-2604041200
3/31/26
1253Z
6/28/26
2100Z
Apron!KNEL M0193/26 NEL APRON HELIPAD 1 EDGE LGT U/S 2603311253-2606282100
2/27/26
1623Z
5/1/26
1900Z
RunwayRWY 063 ALZ SIGN PANEL 2000FT MARKER ON ALZ06 SOUTHEAST SIDE IS BROKEN
2/27/26
1609Z
5/1/26
1900Z
RunwayRWY 063/243 ALZ HOLD SHORT SIGN SOUTHEAST SIDE OF RWY15/33 INTERSECTION MISSING
2/27/26
1605Z
5/1/26
1900Z
TaxiwayTWY L IDENTIFICATION SIGN AT RWY24 INTERSECTION MISSING
2/27/26
1603Z
5/1/26
1900Z
Taxiway!KNEL M0128/26 NEL TWY D TACAN CHECKPOINT SIGN MISSING 2602271603-2605011900
2/27/26
1602Z
5/1/26
1900Z
Taxiway!KNEL M0127/26 NEL TWY D INFO SIGN MISSING 2602271602-2605011900
2/27/26
1601Z
5/1/26
1900Z
RunwayRWY 15/33 SOUTHWEST SIDE, 2000FT DRM OUT OF SERVICE
1/21/26
1627Z
4/20/26
1300Z
AUTOMATED WEATHER BROADCAST SYSTEM UNRELIABLE
1/16/26
1253Z
4/15/26
1300Z
Runway!KNEL M0042/26 NEL RWY 24 RAI LGT U/S 2601161253-2604151300
Yes
SEE REF REMARK
OPR 1300-0100Z++ MON-FRI. EXT HR 0100-0500Z++ MON-THU FOR SKED ACFT ASSAULT LANDING ZONE (ALZ) NIGHT VISION DEVICE (NVD) AND LCL NJ ANG/USMC OPS ONLY. OT BY NOTAM. ALZ EXTENDED HRS FOR SCHEDULED ACFT ONLY. ALZ MUST BE SCHEDULED BY THE FLT CREW AT LEAST 1 DUTY DAY PRIOR TO MSN EXECUTION. CLSD SAT, SUN AND FEDERAL HOLS, EXCEPT FOR SCHEDULED UTA TRNG. NO ACFT OPR WILL BE APV OUTSIDE THESE HRS WO 48 HR PPR.
USAF JB MCGUIRE DIX LAKEHURST
2901 FALCON LANE
MCGUIRE, NJ 08641
Phone: 609-754-2714
AIRFIELD MANAGEMENT
31 ROUNDS RD BLDG 307, STE 201
LAKEHURST, NJ 08733
Phone: 732-323-4995
MILLVILLE FSS (MIV)
Toll Free: 1-800-WX-BRIEF
MIV
--
PCL-127.775, KEY 3 TIMES FOR LIRL, 5 TIMES FOR MIRL, 7 TIMES FOR HIRL. MALSR ARE ON SAME KEY CODE.
N/A
N/A
No
No
None
Landing Rights Airport
None
None
None
None
None

Runway 06/24

5002 ft. x 150 ft.

ASPH
NONE
HIGH
21/F/A/W/T
--
--
--
--
  Runway 06 Runway 24
True Heading 51°231°
Traffic Pattern Left Right
Markings
Markings Condition
Latitude 40° 01' 53"N 40° 02' 25"N
Longitude 74° 21' 24"W 74° 20' 34"W
Elevation 88' 101'
Threshold Crossing Height -- 52 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- P4L
Approach Lights MALS
Centerline Lights
Runway End Identifier Lights

Runway 063/243

3500 ft. x 90 ft.

CONC
NONE

54/R/B/W/T
--
--
--
--
  Runway 063 Runway 243
True Heading 50°231°
Traffic Pattern
Markings
Markings Condition
Latitude 40° 02' 05"N 40° 02' 27"N
Longitude 74° 21' 14"W 74° 20' 40"W
Elevation 86' 100'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 15/33

5001 ft. x 150 ft.

ASPH
NONE

13/F/B/W/T
--
--
--
--
  Runway 15 Runway 33
True Heading 141°321°
Traffic Pattern Right Left
Markings
Markings Condition
Latitude 40° 02' 23"N 40° 01' 44"N
Longitude 74° 21' 37"W 74° 20' 56"W
Elevation 97' 88'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-10SERVICE-LGT-ROTG BCN 110 DEG 2 NM FM ARPT.
A110-12CAUTION: BIRD AND WILDLIFE HAZ. ANCPT CONCENTRATION OF WTR FOWL SEAGULLS AND SML BIRDS BLW 3000 FT. NAVAIR EPIC TWR COMS ARE STRICTLY ADVSY IN NATURE. INFO PROVIDED DOES NOT CONSTITUTE ATC INSTR.
A110-13FUEL: AVBL 1230-2330Z++. JET A WITH FUEL ADDITIVES.
A110-16TRAN ALERT: SVC AVB; 1230-2330Z++ MON-FRI. ADVS PRK NAVY OR ARMY LINE.
A110-17WX OBSERVER ONLY (ASOS AVBL).
A110-18RSTD: PPR FOR ALL TRAN ACFT DSN 624-2758/4147, C732-323-2758/4147.
A110-19TFC PAT: RGT TFC RWY 15 AND 24.
A110-23FIRST 150 FT OF RWY 06/24 CONC, REMAINING 4700 ASPHALT. 180 DEG TURNS RESTRICTED TI CONC PORTIONS OF RWYS ONLY. RWY 06/24 HAS A 150 FT WIDE BY 180 FT LONG COCNC PADS INSTALL AT THE THLD FOR C-17 OPR.
A110-24WHEN ATCT CLSD, FOR CD CTC MC GUIRE APCH AT 609-754-2767.
A110-25RWY 15/33 CLSD TO TRAN ACFT.
A110-26RWY 15/33 USE FOR LCL ASSIGNED ACFT DRG EMERG OR OPR NECESSITY ONLY.
A110-27CAUTION: HELO PAD SPOT 2 NOT ILLUMINATED, HANGER 5 AND HANGER 6 SE OF HELO SPOT 2 OBST LGTS INOP, A/D WIND CONES OBST LGTS INOP RWYS 06 AND 15/33. NO VFR SIGNS AT INT OF RWYS 15/33 AND 06/24. NO AIRFIELD SIGNS AT HELO SPOTS 1/2/3. AIRCREW ARE REQUIRED TO FLW TAXI FR TWR AATM. TREES WITHIN 3000 FT EAST OF APCH RWY 06/24 AND RWY 15/33. UNLGTD OBST/TREES AT APRCH END OF ALL RWYS PENETRATING THE 40:1.
A110-29CAUTION: NMRS HORIZONTAL CRACKS 5 IN WIDE AND 5 IN DEEP STARTING 50 FT EITHER SIDE FM RWY EDGE IN BOARD.
A110-312000 FT TEST FAC RWY 2 NM W CLSD TO TSNT TFC WO PPR & PREVIOUS FAC BRIEF.
A110-30ALTN LNDG ZONE IS GROOVED.
A110-31FOR CSTMS SUPPORT CTC MCGUIRE FLD ATOC AT DSN X650-2231 AT LEAST 24 HRS PRIOR TO SKED ACFT ARR.
A110-33ACTVT RWY 06/24 PCL ON 127.775 WHEN OPER IAW UAO MOU.
A110-34DUR BASH PHASE II, ONE-TIME DEP/ARR AUTH'D +/- 1 HR SR/SS UNDER REAL-TIME BWC. REAL-TIME BWC CAN ONLY BE DETERMINED WHEN THE FIELD CONDITIONS ARE AT LEAST 3000 FT/5 STATUTE MILES AND IF TOWER CAN VISUALLY CONFIRM BWC LESS THAN SEVERE. TAKEOFFS AND LANDINGS ARE NOT AUTHORIZED UNLESS APPROVED BY 305 OG/CC FOR 305 AMW, 514 AMW, AND USAF TRANSIENT AIRCRAFT OR OPERATIONS GROUP COMMANDER SERVICE EQUIVALENT FOR TENANT UNITS. ALFA ALERT ACFT ARE EXEMPT FROM THIS REQUIREMENT. COORD WVRS THRU COMD POST.
A17-M1OPR 1300-0100Z++ MON-FRI. EXT HR 0100-0500Z++ MON-THU FOR SKED ACFT ASSAULT LANDING ZONE (ALZ) NIGHT VISION DEVICE (NVD) AND LCL NJ ANG/USMC OPS ONLY. OT BY NOTAM. ALZ EXTENDED HRS FOR SCHEDULED ACFT ONLY. ALZ MUST BE SCHEDULED BY THE FLT CREW AT LEAST 1 DUTY DAY PRIOR TO MSN EXECUTION. CLSD SAT, SUN AND FEDERAL HOLS, EXCEPT FOR SCHEDULED UTA TRNG. NO ACFT OPR WILL BE APV OUTSIDE THESE HRS WO 48 HR PPR.
A2(JOINT BASE MC GUIRE DIX LAKEHURST)
A81-APTPCL-127.775, KEY 3 TIMES FOR LIRL, 5 TIMES FOR MIRL, 7 TIMES FOR HIRL. MALSR ARE ON SAME KEY CODE.
LAKEHURST MAXFIELD FLD (ICAO: KNEL, IATA: NEL) is a private airport located in LAKEHURST, NJ, US.
