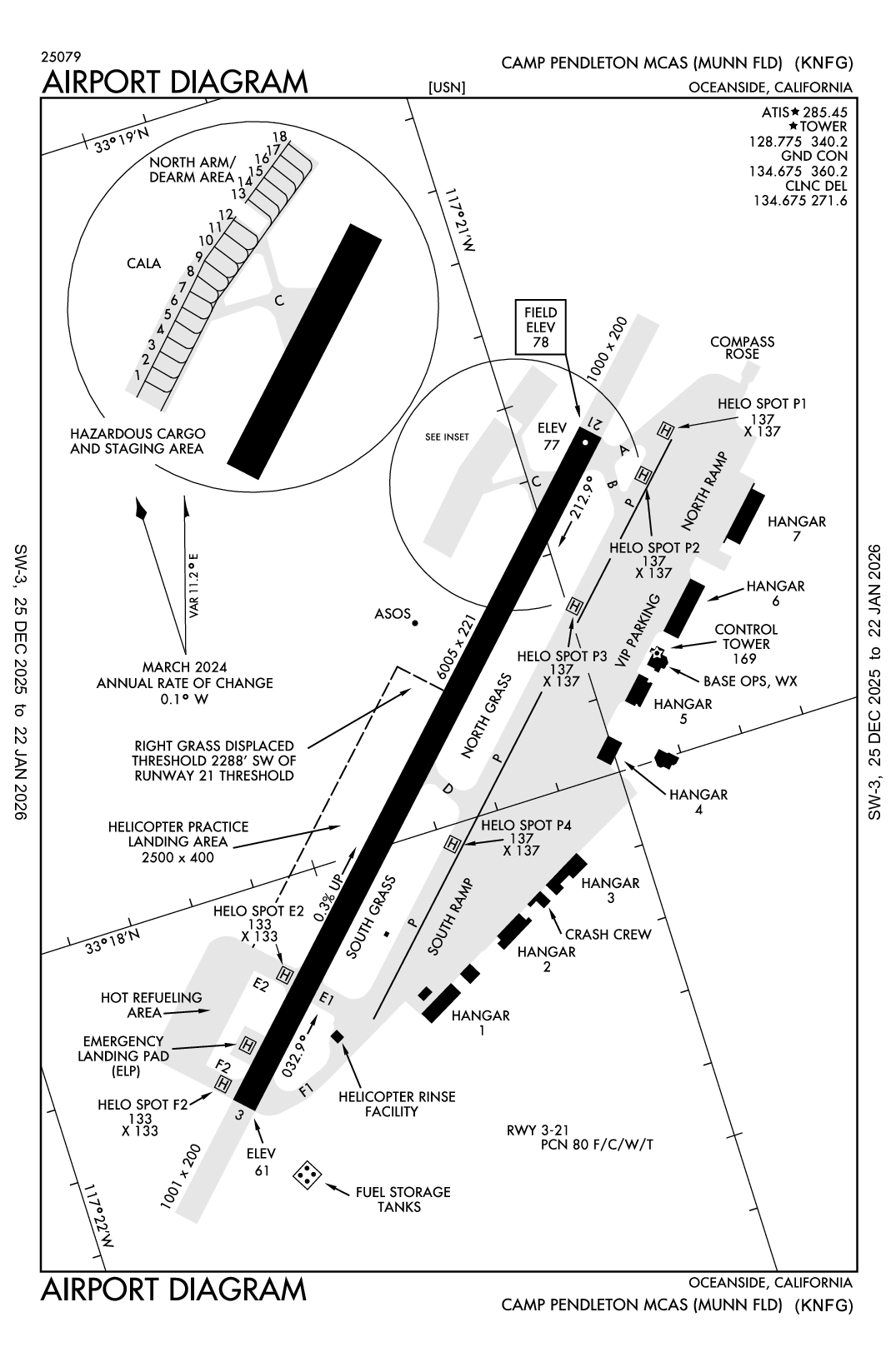

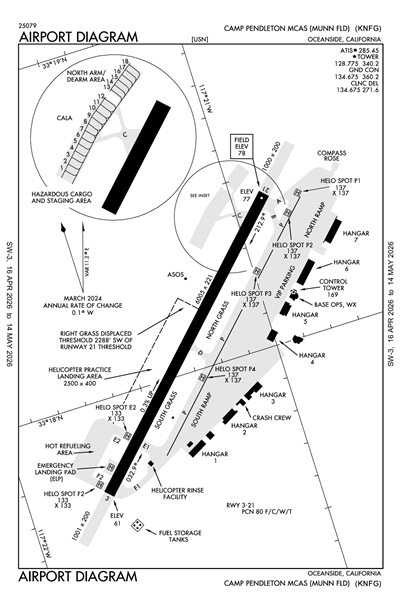

CAMP PENDLETON MCAS (MUNN FLD) - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KNFG
ICAO KNFGIATA NFGLocal NFG
CAMP PENDLETON MCAS (MUNN FLD)
PrivatePVT

6 miles N of OCEANSIDE, CA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
33° 18' 05"N 117° 21' 19"W
Elevation
78' MSL
Pattern Alt
1078' MSL
Mag Variation
11°E
Declination
13°E
Fuel
None Listed
FSS
SAN DIEGO (SAN)
Sectional
LOS ANGELES
ARTCC
LOS ANGELES (ZLA)
Data Effective
6/11/26-7/9/26
KNFG VFR
2:52 PM PDT
Clear
10sm
76°F
58°F
29.90"Hg
240° 9kts
Gusts 15kts
AO2 SLP123 T02440144
METAR KNFG 252152Z 24009G15KT 10SM CLR 24/14 A2990 RMK AO2 SLP123 T02440144
+ Add Your Business

KNFG FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Clearance

Clearance Delivery 134.675

Ground

CAMP PENDLETON GROUND 134.675
1600-0800 MON-THU, 1600-0100Z++ FRI; CLSD SAT, SUN AND HOL.

Tower

CAMP PENDLETON TOWER 128.775
1600-0800 MON-THU, 1600-0100Z++ FRI; CLSD SAT, SUN AND HOL.

Arrival

LEGOZ STAR 127.4

Approach

SOCAL APPROACH 127.3
SOCAL APPROACH 41.95
Secondary

Departure

SOCAL DEPARTURE 127.3

Emergency

Emergency 121.5

Other

CLASS B 127.3
294-332 SAN BLW 7,000 FT
Range Control 123.2
LONG RIFLE

Terminal Area Forecast

KNFG
Thu, 6/25 9:00 AM PDT
Thu, 6/25 9:00 AM PDT - Fri, 6/26 3:00 PM PDT
MVFR
9:00 AM PDT - 2:00 PM PDT
Overcast 2,000'
6sm
29.88"Hg
VRB° 3kts
VFR
2:00 PM PDT - 6:00 PM PDT
Few 3,000'
6sm
29.85"Hg
230° 7kts
Gusts 17kts
MVFR
Becoming 6:00 PM PDT - 10:00 PM PDT
Broken 3,000'
Scattered 1,500'
6sm
29.85"Hg
VRB° 3kts
MVFR
10:00 PM PDT - 6:00 AM PDT
Showers in vicinity
Overcast 1,500'
6sm
29.88"Hg
VRB° 3kts
MVFR
Becoming 6:00 AM PDT - 2:00 PM PDT
Broken 1,500'
6sm
29.97"Hg
200° 5kts
VFR
2:00 PM PDT - 3:00 PM PDT
Few 3,000'
6sm
29.82"Hg
220° 7kts
Gusts 17kts
TAF KNFG 251600Z 2516/2622 VRB03KT 9999 OVC020 QNH2988INS
   FM252100 23007G17KT 9999 FEW030 QNH2984INS
   BECMG 2601/2603 VRB03KT 9999 SCT015 BKN030 QNH2986INS
   FM260500 VRB03KT 9999 VCSH OVC015 QNH2987INS
   BECMG 2613/2614 20005KT 9999 NSW BKN015 QNH2998INS
   FM262100 22007G17KT 9999 FEW030 QNH2983INS TX23/2521Z TN17/2613Z
KNFG
EffectiveExpiresCategoryNOTAM
Military
6/25/26
2103Z
7/2/26
2230Z
MCAS CAMP PENDLETON WILL BE HAVING FULL QUIET HOURS ON JULY 2ND FROM 2100Z-2200Z(1400L-1500L). ISO HMLAT-303 R&A.
6/25/26
1933Z
7/7/26
0800Z
MCAS CAMP PENDLETON WILL BE CLOSED FROM 3-6 JULY 2026 ISO INDEPENDENCE DAY 96.
6/25/26
1928Z
7/31/26
0700Z
AIRFIELD IS UNLIT TO SUPPORT NVG OPERATIONS ON THURSDAY 23 JULY 2026, 0356-0800Z (2056-0100L). FRIDAY 24 JULY 2026, 0356-0800Z (2056-0100L). SATURDAY 25 JULY 2026, 0356-0800Z (2056-0100L). MONDAY 27 JULY 2026, 0353-0800Z (2053-0100L). TUESDAY 28 JULY 2026, 0352-0800Z (2052-0100L). WEDNESDAY 29 JULY 2026, 0351-0800Z (2051-0100L). THURSDAY 30 JULY 2026, 0350-0800Z (2050-0100L).
6/25/26
1925Z
8/1/26
1700Z
M0145/26 NOTAMN Q) ZLA/QFAXX/IV/NBO/A/000/999/3318N11721W005 A) KNFG B) 2606251925 C) 2608011700 E) MCAS CAMP PENDLETON WILL BE HAVING MODIFIED AIRFIELD HOURS 24 JULY 2026 FROM 1500-0700Z (0800-0000L) ISO HMLA 775. 25 JULY 2026 FROM 2200-0700Z (1500L-0000L) ISO HMLA 775. 26 JULY 2026 FROM 1500-0000Z (0800-1700L) ISO HMLA 775.
6/25/26
1923Z
8/1/26
1700Z
AIRFIELD HOURS FOR MCAS CAMP PENDLETON STARTING JULY 2026 WILL BE FROM 1600Z (0900L) TO 0800Z (0100L) FROM MON-THU, 1500Z (0800L) TO 0000Z (1700L) FRI. CLOSED ON SAT-SUN.
6/25/26
1839Z
6/29/26
1900Z
CALA CONSTRUCTION UNTIL FURTHER NOTICE.
6/25/26
1837Z
7/16/26
0700Z
M0142/26 NOTAMN Q) ZLA/QFAXX/IV/NBO/A/000/999/3318N11721W005 A) KNFG B) 2606251837 C) 2607160700 E) TXWY C2 CLSD 30 JUN TO 15 JUL
6/25/26
1836Z
6/28/26
1836Z
M0141/26 NOTAMC M0140/26
6/24/26
1730Z
6/25/26
2330Z
TXWY F1 CLSD 1200-2300Z 25 JUN
6/24/26
1608Z
6/27/26
1608Z
M0138/26 NOTAMC M0130/26
6/24/26
1608Z
7/31/26
0900Z
UTLZ TXYWY E2 IN AND OUT OF HOT REFUELING UFN.
6/24/26
1606Z
7/31/26
0900Z
TaxiwayTAXIWAY F2 CLSD UFN.
6/23/26
1607Z
6/30/26
2230Z
MCAS CAMP PENDLETON WILL BE HAVING MOD QH NORTH 25 AREA ON JUNE 30 FROM 2100Z (1400L)-2200Z (1500L). ISO MWSS-372 COC.
6/18/26
1726Z
6/26/26
2230Z
MCAS CAMP PENDLETON WILL HAVE FULL QUIET HOURS ON JUNE 26, 2026 FROM 2100Z-2200Z (1400L-1500L) ISO HMLA-369 COC.
6/18/26
1703Z
6/26/26
1615Z
MCAS CAMP PENDLETON WILL HAVE MOD WEST QUEIT HOURS ON JUNE 26, 2026 FROM 1430Z-1600Z (0730L-0900L). ISO 1ST MARDIV COLORS CEREMONY.
6/17/26
2349Z
9/14/26
2359Z
PAR RWY 21: MISSED APPROACH MINIMUM CLIMB RATE 305 FT/NM TO 1500.TACAN Z RWY 21: FIX CASPO IF/IAF ALTITUDE AT OR ABOVE 5000, HOLDING ALTITUDE 5000.
6/9/26
1913Z
7/18/26
0700Z
TAXI IN AND OUT OF HOT PITS UNDER POSITIVE CONTROL 10 JUN TO 17 JUL
5/27/26
2354Z
7/1/26
0800Z
M0113/26 NOTAMN Q) ZLA/QFAXX/IV/NBO/A/000/999/3318N11721W005 A) KNFG B) 2605272354 C) 2607010800 E) AIRFIELD IS UNLIT TO SUPPORT NVG OPERATIONS ON MONDAY 01 JUNE 2026, 0441-0800Z (2141-0100L). MONDAY 29 JUNE 2026, 0327-0800Z (2027-0100L). TUESDAY 30 JUNE 2026, 0327-0800Z (2027-0100L).
5/27/26
2352Z
7/1/26
0800Z
AIRFIELD HOURS FOR MCAS CAMP PENDLETON STARTING JUNE 2026 WILL BE FROM 1600Z (0900L) TO 0800Z (0100L) FROM MON-THU, 1500Z (0800L) UNTIL 0000Z (1700L) FRI. CLOSED ON SAT-SUN.
5/27/26
2349Z
7/1/26
0800Z
M0111/26 NOTAMN Q) ZLA/QFAXX/IV/NBO/A/000/999/3318N11721W005 A) KNFG B) 2605272349 C) 2607010800 E) MCAS CAMP PENDLETON WILL BE HAVING MODIFIED AIRFIELD HOURS 06 JUNE 2026 FROM 1900-0800Z (1200-0100L) ISO HMLA 775. 07 JUNE 2026 FROM 1900-0800Z (1200-0100L) ISO HMLA 775. 12 JUNE 2026 FROM 1500-0600Z (0800-2300L) ISO HMLA 775. 13 JUNE 2026 FROM 1500-0500Z (0800-2200L) ISO HMLA 775. 17 JUNE 2026 FROM 1400-0800Z (0730-0100L) ISO VIP.
5/15/26
1649Z
8/13/26
1600Z
NO TRANS AC RON PRKG AVAIL 16 MAR TO 31 DEC 26 DUE TO CONST
5/15/26
1648Z
8/13/26
1600Z
AC LARGER THAN C130 PRKG NA 16 MAR TO 31 DEC 26 DUE TO CONST
Yes
MON-THUR 1600-0800Z
FRI 1600-0100Z++
CLSD SAT, SUN AND HOL. FREQ OPR HR MOD AND NGT EXER RY RSTD, CK BY CALLING MCAS FLT CLNC AT 760-725-8016. MCAS FLT CLNC MANNED 1 HR PRIOR OPR HR DSN 365-8016/3804, C760-725-8016/3804. HI DENSITY TFC IN CLASS D AIRSPACE 1900-2300Z++, TENANT ACFT HAVE PRIORITY FOR LCL PAT OPR. SEE FLIP AP/1 SUPPLEMENTARY ARPT INFO.
US NAVY
OCEANOGRAPHIC OFC - CODE 3142
WASHINGTON, DC 20373
N/A
SAN DIEGO FSS (SAN)
Toll Free: 1-800-WX-BRIEF
NFG
--
PCL ON TOWER 128.775 AND 340.2. WHEN TWR CLSD, ACTVT SALSF RWY 21; PAPI RWY 03 & 21; HIRL RWY 03/21 - 128.775.
N/A
N/A
No
No
None
No
None
None
None
None
None

Runway 03/21

6005 ft. x 221 ft.

ASPH
NONE
HIGH
80/F/C/W/T
--
--
--
--
  Runway 03 Runway 21
True Heading 44°224°
Traffic Pattern Right
Markings
Markings Condition
Latitude 33° 17' 43"N 33° 18' 26"N
Longitude 117° 21' 43"W 117° 20' 54"W
Elevation 61' 77'
Threshold Crossing Height 69 ft. AGL 54 ft. AGL
Visual Glide Path Angle 4° 3.6°
Visual Slope Indicator P4R P4L
Approach Lights SALSF
Centerline Lights No No
Runway End Identifier Lights No No
A110-10MISC: WX FCST AVBL 2 HR PN.
A110-11CAUTION: NUMEROUS HAZ TO FLT/GND OPR. EXTV VFR TFC IN CLASS D AIRSPACE. HI DENSITY TFC IN CLASS D AIRSPACE 1900-2300Z++. TENANT ACFT HAVE PRIORITY FOR LCL PAT OPR. SEE FLIP AP/1 SUPPLEMENTARY ARPT INFO.
A110-12HELIPADS P1, P2, P3, P4 DIMENSIONS 137 FT BY 137 FT. E2 AND F2 DIMENSIONS 133 FT BY 133 FT.
A110-13LCL-BASED AND NON-TENANT ACFT ARE AUTH TO CONDUCT ONE CLSD FLD FULL STOP ARR AND/OR ONE CLSD FLD DEP.
A110-14FOR CD WHEN ATCT CLSD CTC SOCAL APCH AT 800-448-3724.
A110-15CAUTION: HELO SPOT P2 CLSD. DUE TO APN LOADING, RDCD WINGTIP SEPN AVBL ON TWY P FOR ACFT C-130 AND LRGR.
A110-2FUEL: J5.
A110-3TRAN ALERT: NO AMC FLEET SVC AVBL. ALCE TEAM RQR FOR ALL AMC FLT. LTD TRAN SVC, NO TIE-DOWN, OIL/LABORATORY ANALYSIS OR TRAN MAINT SVC AVBL. NO SHUTTLE SVC AVBL. ALL VIP ACFT CTC AIRFIELD OPS ON PTD 15 MIN PRIOR TO ARR. TRAN CREWS RESPONSIBLE FOR COLD RFL OF THEIR OWN ACFT AND PRVD THEIR OWN NOZZLE OPERATOR.
A110-5RSTD: HVY ACFT, FULL STOP LDG ONLY. FOR USE OF MCB RANGE FACILITIES (LZ/DZ/CAL SITE/VSTOL, ETC.) CTC MCB RANGE CON SKED DSN 365-4219/3510, C760-725-4219/3510.
A110-6NS ABTMT - AVOID OVFT MCB RANCH HOUSE LCTD 2000' NE APCH END RWY 21.
A110-8RSTD: PPR 24 HR PN EXE FOR HOT REFUL OR PAT WORK, AG AND CSTMS SVC ARE AVBL UPON REQ WITH 48 HRS NTC. MCAS FLT CLNC DSN 365-8016/8026, C760-725-8016/8026, 1600-0100Z++MON-FRI. LTD RAMP SPACE, ACFT PPR STRICTLY ENFORCED FOR ALL PAX, PARTS, CARGO AND TRAN ACFT.
A17-M5CLSD SAT, SUN AND HOL. FREQ OPR HR MOD AND NGT EXER RY RSTD, CK BY CALLING MCAS FLT CLNC AT 760-725-8016. MCAS FLT CLNC MANNED 1 HR PRIOR OPR HR DSN 365-8016/3804, C760-725-8016/3804. HI DENSITY TFC IN CLASS D AIRSPACE 1900-2300Z++, TENANT ACFT HAVE PRIORITY FOR LCL PAT OPR. SEE FLIP AP/1 SUPPLEMENTARY ARPT INFO.
A81-APTPCL ON TOWER 128.775 AND 340.2. WHEN TWR CLSD, ACTVT SALSF RWY 21; PAPI RWY 03 & 21; HIRL RWY 03/21 - 128.775.
E147TFC PAT: RGT TFC RY 21. F/W 1100 FT, R/W 600 FT, RISING TERRAIN ALL QUAD TO 3200 FT. ALL ACFT USE LDG LGT IN TFC PAT AFTER SS AND IN IMC.
CAMP PENDLETON MCAS (MUNN FLD) (ICAO: KNFG, IATA: NFG) is a private airport located in OCEANSIDE, CA, US.
