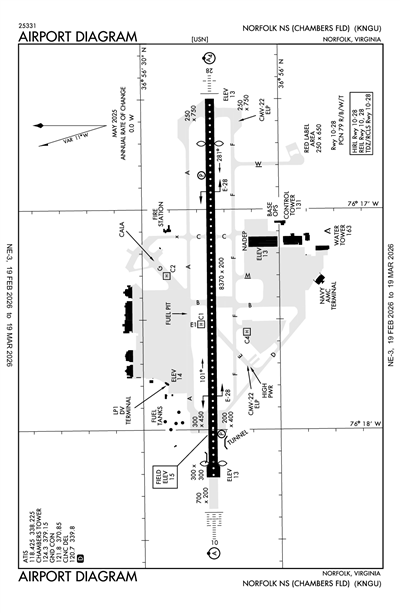

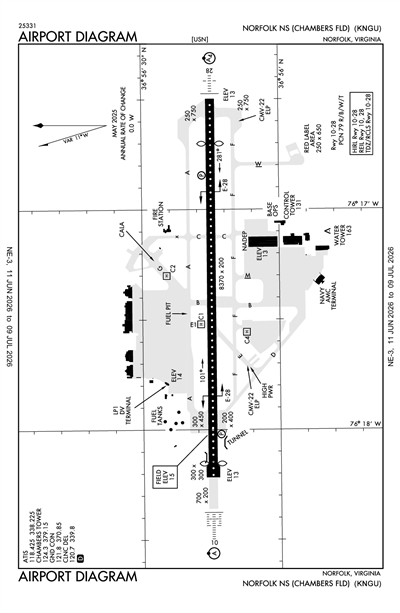

NORFOLK NS (CHAMBERS FLD) - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KNGU
NORFOLK NS (CHAMBERS FLD)
PrivatePVT

0 miles NW of NORFOLK, VA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
36° 56' 15"N 76° 17' 21"W
15' MSL
1015' MSL
10W
None Listed
LEESBURG (DCA)
WASHINGTON
WASHINGTON (ZDC)
12/25/25-1/22/26
KNGU VFR
8:59 PM EST
Overcast 25,000'
Broken 18,000'
Few 4,000'
10sm
66°F
57°F
30.18"Hg
210° 9kts
AO2 SLP219 T01890139
METAR KNGU 100159Z 21009KT 10SM FEW040 BKN180 OVC250 19/14 A3018 RMK AO2 SLP219 T01890139
+ Add Your Business

KNGU FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- --

ATIS

ATIS
 118.425

Clearance Delivery

CD/P
 120.7

Emergency

EMERG
 121.5

Ground

GND/P
 121.8

Tower

LCL/P
 124.3
LCL/P
NAVY NORFOLK HELIN
 126.375

Other

AMC/ATOC
 130.65
BASE OPS
 126.2

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

Hotspot

  • No Documents

Standard Term. Arrival

Instrument Approach

Terminal Area Forecast

KNGU
Fri, 1/9 5:57 PM EST
Fri, 1/9 6:00 PM EST - Sat, 1/10 6:00 PM EST
VFR
6:00 PM EST - 12:00 AM EST
Broken 25,000'
Broken 5,000'
6sm
30.12"Hg
200° 6kts
VFR
12:00 AM EST - 4:00 AM EST
Showers in vicinity
Overcast 4,000'
6sm
30.09"Hg
VRB° 4kts
MVFR
Temporary 12:00 AM EST - 4:00 AM EST
Light Showers and Rain and Mist
Overcast 3,000'
3.73sm
200° 7kts
IFR
4:00 AM EST - 10:00 AM EST
Light Showers and Rain and Mist
Overcast 2,000'
Scattered 600'
2.98sm
30.00"Hg
VRB° 3kts
LIFR
Temporary 4:00 AM EST - 10:00 AM EST
Showers and Rain and Mist
Overcast 1,500'
Broken 600'
0.99sm
Calm
IFR
10:00 AM EST - 4:00 PM EST
Light Showers and Rain and Mist
Overcast 600'
3.73sm
29.91"Hg
190° 9kts
Gusts 15kts
IFR
Temporary 10:00 AM EST - 4:00 PM EST
Showers and Rain and Mist
No Clouds
1.99sm
Calm
MVFR
4:00 PM EST - 6:00 PM EST
Showers and Rain and Mist
Overcast 1,500'
3.73sm
29.85"Hg
200° 12kts
Gusts 20kts
TAF KNGU 0923/1023 20006KT 9999 BKN050 BKN250 QNH3011INS
   FM100500 VRB04KT 9999 VCSH OVC040 QNH3010INS
   TEMPO 1005/1009 20007KT 6000 -SHRA BR OVC030
   FM100900 VRB03KT 4800 -SHRA BR SCT006 OVC020 QNH3000INS
   TEMPO 1009/1015 1600 SHRA BR BKN006 OVC015
   FM101500 19009G15KT 6000 -SHRA BR OVC006 QNH2990INS
   TEMPO 1015/1021 3200 SHRA BR
   FM102100 20012G20KT 6000 SHRA BR OVC015 QNH2985INS TX21/1019Z TN13/1010Z FN20004
KNGU
EffectiveExpiresCategoryNOTAM
Military
1/16/26
1900Z
1/16/26
2100Z
UAS OPS IVO N & S ISLANDS, SFC-250' AGL. PRIDE TWO DEP AND POINT ALPHA ARE UNAVAILABLE.
1/15/26
1300Z
1/15/26
2000Z
UAS OPS IVO CRANEY ISLAND, SFC-400' AGL. TERMINAL BLVD AND PIER TRANSITIONS ARE UNAVAILABLE.
1/14/26
1900Z
1/14/26
2100Z
UAS OPS IVO N & S ISLANDS, SFC-250' AGL. PRIDE TWO DEP AND POINT ALPHA ARE UNAVAILABLE.
1/14/26
1500Z
1/14/26
2000Z
UAS OPS IVO FORT MONROE, SFC-400' AGL.
1/14/26
1300Z
1/14/26
2000Z
UAS OPS IVO CRANEY ISLAND, SFC-400' AGL. TERMINAL BLVD AND PIER TRANSITIONS ARE UNAVAILABLE.
1/13/26
1500Z
1/13/26
2000Z
UAS OPS IVO FORT MONROE, SFC-400' AGL.
1/13/26
1400Z
1/13/26
1900Z
UAS OPS IVO LAMBERT'S POINT PIERS, SFC-200' AGL.
1/13/26
1300Z
1/13/26
2000Z
UAS OPS IVO CRANEY ISLAND, SFC-400' AGL. TERMINAL BLVD AND PIER TRANSITIONS ARE UNAVAILABLE.
1/12/26
1900Z
1/12/26
2100Z
UAS OPS IVO N & S ISLANDS, SFC-250' AGL. PRIDE TWO DEP AND POINT ALPHA ARE UNAVAILABLE.
1/12/26
1530Z
1/12/26
1630Z
UAS OPS IVO N & S ISLANDS, SFC-250' AGL. PRIDE TWO DEP AND POINT ALPHA ARE UNAVAILABLE.
1/11/26
1300Z
1/11/26
1500Z
UAS OPS 2.75 NM S NGU, SFC-200' AGL
1/10/26
1200Z
1/10/26
1600Z
OBST PART 2 OF 2: LARGE VESSEL CHANNEL TRANSIT AFFECTING MULTIPLE APPROACHES. CIRCLING APPROACHES NOT AUTHORIZED. HI-TACAN Y RWY 10 S-10* CHANGED FROM CAT CDE 520-1 506 (600-1) TO CAT CDE 640-1 3/8 626 (700-1 3/8). *WHEN ALS INOP, INCREASE CAT CDE VIS TO 1 3/8 MILE TO *WHEN ALS INOP, INCREASE CAT CDE VIS TO 1 3/4 MILE. ILS OR LOC/DME RWY 10 S-LOC 10** CAT AB 440-1/2 426 (500-1/2), CAT CDE 440-3/4 426 (500-3/4) CHANGED TO CAT AB 640-3/4 626 (700-3/4), CAT CDE 640-1 3/8 626 (700-1 3/8). WHEN ALS INOP, INCREASE CAT AB VIS TO 1 MILE, CAT CDE VIS TO 1 1/4 MILE TO WHEN ALS INOP, INCREASE CAT AB VIS TO 1 MILE, CAT CDE VIS TO 1 3/4 MILE. ASR RWY 10 CAT AB 720-1/2 706 (800-1/2) CHANGED TO CAT AB 720-3/4 706 (800-3/4). CIRCLING ASR RWY 28 CHANGED FROM CAT B 540-1 525 (600-1), CAT C 540-1 ½ 525 (600-1 ½), CAT DE 580-2 565 (600-2) TO CAT B 680-1 665 (700-1), CAT C 680-1 ¾ 665 (700-1 ¾), CAT D 660-2 645 (700-2), CAT E 660-2 1/4 645 (700-2 1/4).
1/10/26
1200Z
1/10/26
1600Z
OBS PART 1 OF 2: LARGE VESSEL CHANNEL TRANSIT AFFECTING MULTIPLE APPROACHES. CIRCLING APPROACHES NOT AUTHORIZED. TACAN Z RWY 10 S-10* CHANGED FROM CAT AB 520-1/2 506 (600-1/2), CAT CD 520-1 506 (600-1) TO CAT AB 640-3/4 626 (700-3/4); CAT CD 640-1 3/8 626 (700-1 3/8). *WHEN ALS INOP, INCREASE CAT AB VIS TO 1 MILE, CAT CD VIS TO 1 3/8 MILE TO *WHEN ALS INOP, INCREASE CAT AB VIS TO 1 MILE, CAT CD VIS TO 1 3/4 MILE. RNAV(GPS) RWY 10 LNAV/VNAV DA** CHANGED FROM CAT ABCDE 500-1 486 (500-1) TO CAT ABCDE 640-1 3/8 626 (700-1 3/8). ** WHEN ALS INOP, INCREASE CAT ABCDE VIS TO 1 ¾ MILE. LNAV MDA*** CHANGED FROM CAT AB 500-1/2 486 (500-1/2), CAT CDE 500-1 486 (500-1) TO CAT AB 640-3/4 626 (700-3/4), CAT CDE 640-1 3/8 626 (700-1 3/8). *** WHEN ALS INOP, INCREASE CAT AB VIS TO 1, CAT CDE VIS TO 1 3/4 MIL. PAR WO GS RWY 10 CAT AB 440-1/2 426 (500-1/2), CAT CDE 440-3/4 426 (500-3/4) CHANGED TO CAT AB 640-3/4 626 (700-3/4), CAT CDE 640-1 3/8 626 (700-1 3/8). WHEN ALS INOP, INCREASE CAT AB VIS TO 1 MILE, CAT CD VIS TO 1 1/4 MILE TO WHEN ALS INOP, INCREASE CAT AB VIS TO 1 MILE, CAT CD VIS TO 1 3/4 MILE.
1/9/26
2100Z
1/9/26
2300Z
UAS OPS 4.5 NM S NGU, SFC-100? AGL
1/9/26
2015Z
1/9/26
2345Z
HELIPAD HOTEL ONE (H1) RESERVED FOR VERTREP OPERATIONS
1/9/26
2011Z
1/12/26
2011Z
M0024/26 NOTAMC M0006/26
1/9/26
2011Z
1/12/26
2011Z
M0023/26 NOTAMC M0005/26
1/9/26
1729Z
2/5/26
1300Z
PAR OTS
12/31/25
1610Z
3/20/26
1600Z
LP AREA RAMP NORTH PERIPHERAL TAXI LANE OBSTRUSTED BY CONSTRUCTION AND GSE.
12/31/25
1605Z
3/20/26
1600Z
EAST LINE CLOSED TO AIRCRAFT.
12/31/25
1603Z
3/20/26
1600Z
TaxiwayTWY B NORTH AND TWY CHARLIE NORTH CLOSED FOR CONSTRUCTION.
12/31/25
1557Z
3/20/26
1600Z
HELIPAD SIERRA 4 (S4) CLOSED.
12/30/25
1649Z
3/30/26
1700Z
OBST 200 FT CRANE .5 NM NW OF KNGU. RNAV (GPS) RWY 10 LPV APPROACH NOT AUTHORIZED.
12/23/25
1215Z
3/10/26
1400Z
Taxiway!KNGU M1567/25 NGU TWY A CLSD FROM EAST OF TWY ECHO ONE (E-1) TO THE APPROACH END OF RWY 28 FOR CONSTRUCTION. 2512231215-2603101400
12/23/25
1214Z
1/30/26
1300Z
Runway!KNGU M1566/25 NGU RWY 10 OLS LEFT SIDE U/S 2512231214-2601301300
12/23/25
1213Z
3/10/26
1400Z
RunwayRWY 10: DUE TO CONSTRUCTION, ALL A/C UTILIZING THE RWY 10 HAMMERHEAD AREA FOR DEPATURE POSITIONING SHALL ONLY MAKE RIGHT HAND TURNS ON THE RUNWAY.
12/22/25
1300Z
3/18/26
2300Z
TaxiwayTWY A E2/C2 HOTPIT LOCATED IN HAMMERHEAD, NE CORNER OF TWY A. NO LEFT HAND TURNS OFF RY 10 DEPARTURE END, EXCEPT FOR AUTHORIZED REFUEL AIRCRAFT. HOT REFUELING HOURS FROM SUNRISE TO SUNSET WITH PRIOR COORDINATION.
12/5/25
1817Z
3/5/26
1745Z
HELIPAD CHARLIE 4(C4) CLSD
12/5/25
1816Z
3/5/26
1745Z
TaxiwayTWY G CLSD, HELIPAD CHARLIE 2 (C2) CLSD, LP35 WASH RACK, GOLF CALA AREA CLSD DUE TO CONSTRUCTTION MARKED BY LIGHTED BARRICADES.
12/5/25
1756Z
3/5/26
1745Z
RunwayRWY 28 RNAV AND PAR WEATHER MINIMUMS ARE 500/1 DUE TO TREES IN THE APPROACH CORRIDOR OF RWY 28
11/28/25
1515Z
1/30/26
1300Z
CRANES RAISED TO 175-260 FT MSL IVO HRBT AND WILLOUGHBY BAY FLAGGED AND LIGHTED
Yes
ALL
CLSD 0400Z FOURTH THU NOV - 1200Z FOURTH FRI NOV, CLSD 1900Z 24 DEC - 1200Z 26 DEC, CLSD 1900Z 31 DEC - 1200Z 2 JAN.
U.S. NAVY
OCEANOGRAPHIC OFC-CODE 3142
WASHINGTON, DC 20373
COMMANDING OFFICER
NAVAL AIR STATION
NORFOLK, VA 23511
LEESBURG FSS (DCA)
Toll Free: 1-800-WX-BRIEF
NGU
--
AVBL ONLY DURING HRS OF OPERATION.
N/A
N/A
No
No
None
NoNOT an Airport of Entry
None
None
None
High & Low Pressure
None

Runway 10/28

8370 ft. x 200 ft.

ASPH
GRVD
HIGH
56 /R/B/W/T
--
--
--
--
  Runway 10 Runway 28
True Heading 90°270°
Traffic Pattern Left Right
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 36° 56' 15"N 36° 56' 15"N
Longitude 76° 18' 13"W 76° 16' 30"W
Elevation 13' 12'
Threshold Crossing Height 35 ft. AGL 36 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4R P4R
Approach Lights ALSF2 SSALF
Centerline Lights Yes Yes
Runway End Identifier Lights Yes Yes
A110-1AOE.
A110-10CAUTION: EXTV FISH SPOTTER ACFT ACT (SENG GENERAL AVIATION ACFT) UPWARDS FR 1500 FT OVER CHESAPEAKE BAY AND ADJ COASTAL WATERS. EXTV VFR TFC OPR W OF CHAMBERS CLASS D AND NORFOLK CLASS C AIRSPACE. BIRD HAZ.
A110-11TFC PAT: R TFC RWY 28. BASIC F/W/VFR MIN 1000 FT AND 3 NM.
A110-12NS ABTMT: NO PRACTICE APCH 0400-1200Z++ MON-SAT; 0400-1800Z++ SUN. OT BY NOTAM. NO COPTER OVFT WILLOUGHBY SPIT EXC VIA PT XRAY (CHAMBERS TACAN R-042/1.5 DME) OR PT YANKEE (CHAMBERS TACAN R-009/1.8 DME) AT 500 FT.
A110-13CSTMS/AG/IMG: CSTMS AVBL WITH 2 HR PN. AG AVBL 1300-2400Z++ MON-FRI. IMG AVBL 1300-2100Z++ MON-FRI. AG/IMG AVBL OT ON OVERTIME BASIS ONLY, PRIOR ARNG RQR.
A110-14MISC: RWY 10/28 GROOVED.
A110-15CAUTION: ARR/DEP TCAS EQUIPPED ACFT SHOULD EXPECT NUMEROUS TCAS ALERTS FROM SHIP TRANSPONDER HARBORED OR TRANSITING INTO/OUT OF THE CHESAPEAKE AND COASTAL WATERS.
A110-16ARR/DEP TCAS EQUIPED ACFT SHOULD EXPECT NUMEROUS TCAS ALERTS FROM SHIP TRANSPONDER OR TRANSMITTING INTO/OUT OF THE CHESAPEAKE AND COASTAL WATERS.
A110-17CAUTION - DO NOT MISTAKE NORFOLK INTL 5 NM SE FOR CHAMBERS FIELD, WHILE INBD ON TACAN/RNAV RWY 28 APCHS. CHAMBERS FIELD HAS A SINGLE RWY; NORFOLK INTL HAS INTERSECTING RWYS.
A110-18RSTD - PPR FOR NON CHAMBERS FIELD BASED ACFT. DSN 262-3419/3429 C757-322-3419/3429.
A110-19AMC/ATOC DSN 341-9926/7/8, C757-341-9926/7/8. ACFT UTILIZING AMC TRML CTC ATOC/AMC TRML 15 MIN PRIOR ARR WITH LOAD RPT. ACFT OVERSEAS CTC AMC/ATOC VIA FONE PATCH 2 HR PRIOR ARR FOR CSTM. ALL OTHER ACFT, CTC BASE OPS 15 MIN PRIR ARR.
A110-20MISC- FLT PLANS FOR NS NORFOLK, CHAMBERS FLD, AND NAS OCEANA SHOULD BE FAXED TO DSN 565-9680, C757-445-9680, OR EMAILED TO W_CNI_NRFK_NSNORFOLK_N32_ATC_USERS@NAVY.MIL. TO CFM RECEIPT OF FLT PLANS CALL NS NORFOLK, CHAMBERS FLD FLT PLANNING SUPERVISOR AT DSN 262-3419/3429, C757-322-3419/3429.
A110-21CAUTION - RWY 28 MULTIPLE CRANES 1.2 NM TO 1.3 NM FM DER 1600 FT L TO 4000 FT R OF CNTRLN, 260 FT MSL.
A110-22FOR CIVIL ACFT LNDG PERMIT (CALP) INFO CTC AFLD MGR C757-322-3419/3429.
A110-23ILS/TACAN/RADAR - ILS OR LOC/DME RWY 10 - BC UNUSED. ILS AND TACAN NO NOTAM MP WED 1230-1630Z++. RADAR - SEE TERMINAL FLIP FOR RADAR MINIMA.
A110-3A-GEAR: AVOID CNTRLN LGT RWY 10/28 DUR CABLE ENGAGEMENT TO PREVENT TAILHOOK SKIP. DIST RWY 28 MEASURED FR DISPL THR. E-28(B) IN RAISED POSN AT DEP END OF RWY NMLLY. SHORTFLD GEAR AVBL WITH 20 MIN PN.
A110-4JASU:(NC-10C) (NC-8A/A1) (NCPP-105 CTC AIR OPS DUTY OFFICER TO ENSURE AVBL).
A110-5FUEL: NO TRAN COPTER HOT PIT WO PRIOR COORD WITH HOST SQUADRON. J5.
A110-6FLUID: ADI SP PRESAIR LHOX LOX.
A110-7OIL: UNAVBL.
A110-8TRAN ALERT: LTD TRAN MAINT AVBL WKEND ONLY 1200-2000Z++. TRAN MAINT UNAVBL OT. 2 HR PN RQR FOR LOX. LAVATORY SVC UNAVBL FOR C-130 ACFT. POTABLE WATER UNAVBL. NO TRAN WORK/MSN PLANNING/BRIEFING SPACES OR COMSEC STOR FOR DETS.
A110-9RSTD: TWY B CLSD S OF TWY F AND TWY D CLSD E OF TWY S UFN.
NORFOLK NS (CHAMBERS FLD) (ICAO: KNGU, IATA: NGU) is a private airport located in NORFOLK, VA.
