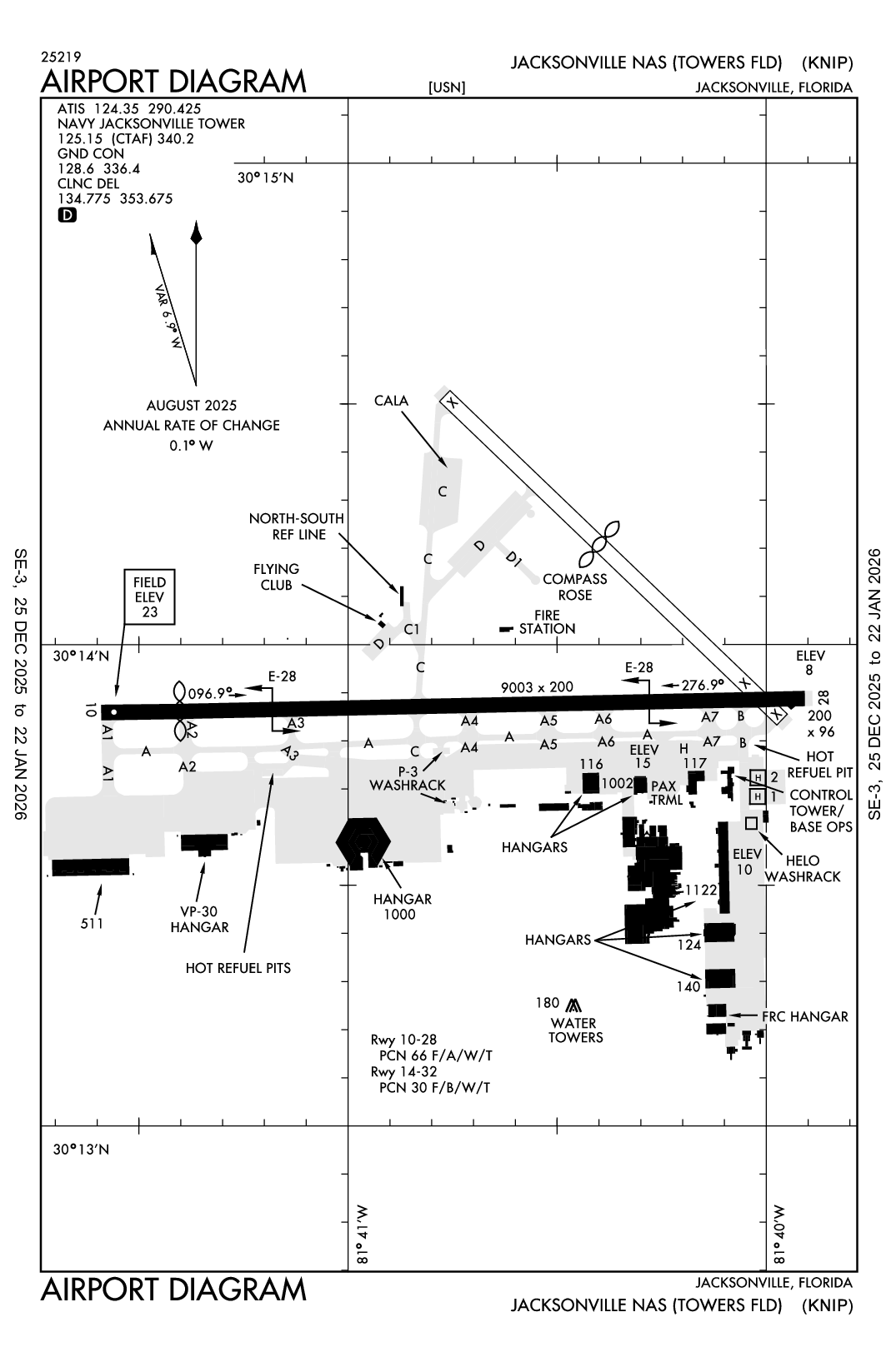

JACKSONVILLE NAS (TOWERS FLD) - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KNIP
ICAO KNIPIATA NIPLocal NIP
JACKSONVILLE NAS (TOWERS FLD)
PrivatePVT

4 miles S of JACKSONVILLE, FL, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
30° 14' 01"N 81° 40' 34"W
Elevation
23' MSL
Pattern Alt
1023' MSL
Mag Variation
7°W
Declination
6°W
Fuel
JP-5
FSS
GAINESVILLE (GNV)
Sectional
JACKSONVILLE
ARTCC
JACKSONVILLE (ZJX)
Data Effective
9/3/26-10/1/26
KNIP VFR
2:53 PM EDT
Broken 25,000'
Broken 12,000'
Scattered 3,000'
10sm
88°F
76°F
30.00"Hg
130° 3kts
AO2 RAB05E23 SLP155 T2 SET P0001 T03110244
METAR KNIP 121853Z AUTO 13003KT 10SM SCT030 BKN120 BKN250 31/24 A3000 RMK AO2 RAB05E23 SLP155 T2 SET P0001 T03110244
+ Add Your Business

KNIP FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 124.35
AWOS-3 119.275

Common

CTAF 125.15

Ground

NAVY JACKSONVILLE GROUND 128.6
24 HRS. SEE FLIP AP/1 SUPPLEMENT ARPT INFO. CLOSURES PUBLISHED VIA NOTAM.

Tower

NAVY JACKSONVILLE TOWER 125.15
24 HRS. SEE FLIP AP/1 SUPPLEMENT ARPT INFO. CLOSURES PUBLISHED VIA NOTAM.

Arrival

ALCRN STAR 127.0

Approach

JACKSONVILLE APPROACH 127.775
JACKSONVILLE APPROACH 127.775

Departure

JACKSONVILLE DEPARTURE 127.775

Emergency

Emergency 121.5

Terminal Area Forecast

KNIP
Sat, 9/12 11:00 AM EDT
Sat, 9/12 11:00 AM EDT - Sun, 9/13 11:00 AM EDT
VFR
11:00 AM EDT - 2:00 PM EDT
Scattered 25,000'
Few 10,000'
Few 3,500'
6sm
29.97"Hg
VRB° 4kts
VFR
2:00 PM EDT - 12:00 AM EDT
Thunderstorm in vicinity
Broken 25,000'
Broken 10,000'
Broken 4,000'
6sm
29.94"Hg
180° 8kts
IFR
Temporary 6:00 PM EDT - 11:00 PM EDT
Thunderstorm and Rain and Mist
Overcast 8,000'
Broken 3,000'
Few 1,000'
1.99sm
VRB° 15kts
Gusts 30kts
VFR
12:00 AM EDT - 5:00 AM EDT
Showers in vicinity
Overcast 20,000'
Broken 15,000'
Few 3,000'
6sm
29.97"Hg
210° 7kts
IFR
Temporary 12:00 AM EDT - 5:00 AM EDT
Heavy Showers and Rain
Overcast 12,000'
Broken 3,000'
2.98sm
Calm
MVFR
Becoming 5:00 AM EDT - 11:00 AM EDT
Mist
Overcast 22,000'
Broken 1,500'
Scattered 800'
5.59sm
29.97"Hg
VRB° 5kts
TAF KNIP 121500Z 1215/1315 VRB04KT 9999 FEW035 FEW100 SCT250 QNH2997INS
   FM121800 18008KT 9999 VCTS BKN040CB BKN100 BKN250 QNH2994INS
   TEMPO 1222/1303 VRB15G30KT 3200 TSRA BR FEW010 BKN030CB OVC080
   FM130400 21007KT 9999 VCSH FEW030 BKN150 OVC200 QNH2996INS
   TEMPO 1304/1309 4800 +SHRA BKN030 OVC120
   BECMG 1309/1311 VRB05KT 9000 BR SCT008 BKN015 OVC220 QNH2998INS TX34/1220Z TN24/1312Z FN00291
KNIP
EffectiveExpiresCategoryNOTAM
Domestic
9/16/26
1300Z
9/18/26
2100Z
!NIP 09/001 NIP AIRSPACE FLTCK ACFT OPS WI AN AREA DEFINED AS 5NM RADIUS OF NIP SFC-3500FT AGL ACFT CS FLC69 2609161300-2609182100
Military
9/17/26
1300Z
9/18/26
2100Z
TACAN OTS.
9/15/26
1200Z
9/15/26
1600Z
AIRPORT SURVEILLANCE RADAR UNAVAILABLE. NO PAR OR ASR APPROACHES AVAILABLE.
9/14/26
1400Z
9/14/26
1500Z
QUIET HOURS 1400Z-1500Z.THE FOLLOWING RESTRICTIONS APPLY IN THE VICINITY OF THE FOLLOWING HANGARS, BUILDINGS AND ASSOCIATED APRONS:1122, 124, 140, 868, 873, 777, 770: NORMAL OPERATIONS ON RUNWAY 10/28. NO TAKE-OFFS OR LANDINGS ON ANY HELIPAD. NO AIRCRAFT TAXIING ON THE SEAWALL 10 MINUTES PRIOR. NO GSE MOVEMENT ON THE SEAWALL OR USE TO INCLUDE A/C, POWER OR AIR CARTS. NO HOT REFUELING, MAINTENANCE TURNS, HIGH POWER TURNS, APU TURNS OR ENGINE STARTS ON THE SEAWALL.
9/12/26
1500Z
9/12/26
1600Z
QUIET HOURS 1500Z-1600Z DUE TO CEREMONY IN HANGAR 1000.THE FOLLOWING RESTRICTIONS APPLY IN THE VICINITY OF THE FOLLOWING HANGARS, BUILDINGS AND ASSOCIATED APRONS: 30, 116, 511, 1000: NO OPERATIONS ON RUNWAY 10/28, OR HELIPADS 1 AND 2. NO AIRCRAFT TAXIING 10 MINUTES PRIOR. NO GSE AND FIRE TRUCK MOVEMENT TO INCLUDE AC CARTS AND AIR CARTS. NO HOT REFUELING, MAINTENANCE TURNS, HIGH POWER TURNS, APU TURNS OR ENGINE STARTS.
9/12/26
1251Z
9/15/26
1251Z
M0399/26 NOTAMC M0378/26
9/12/26
1239Z
9/15/26
1239Z
M0398/26 NOTAMC M0327/26
9/12/26
1239Z
9/15/26
1239Z
M0397/26 NOTAMC M0396/26 Q) ZJX/QFAXX/IV/NBO/A/000/999/3014N08140W005 A) KNIP B) 2609121239 E) TWY ALFA FROM CHARLIE TO ALFA FOUR CLSD. CANCELED
9/11/26
1747Z
9/14/26
1747Z
M0395/26 NOTAMC M0392/26
9/10/26
2016Z
9/13/26
2016Z
M0393/26 NOTAMC M0383/26
9/10/26
2014Z
9/13/26
2014Z
M0391/26 NOTAMC M0370/26
9/10/26
1958Z
9/13/26
1958Z
M0389/26 NOTAMC M0388/26
9/10/26
1950Z
9/13/26
1950Z
M0387/26 NOTAMC M0385/26
9/10/26
1746Z
9/13/26
1746Z
M0384/26 NOTAMC M0382/26
9/10/26
1435Z
9/13/26
1435Z
M0381/26 NOTAMC M0380/26
9/10/26
1400Z
9/13/26
1400Z
M0379/26 NOTAMC M0376/26
9/1/26
1105Z
11/29/26
2359Z
PAPIS OTS UFN.
8/31/26
1549Z
11/27/26
1059Z
AerodromeAERODROME CLOSED TOWER OPS NOT AUTHORIZED DAILY FROM 1000Z-1059Z FOR OPENING CHECKS.
6/23/26
1903Z
9/17/26
2359Z
NEW PUBLISHED HOURS MONDAY THROUGH SATURDAY 1100Z - 0300Z.
Yes
1200-0400Z
OPR 1200-0400Z (DT 1100-0300) DLY. CLSD FEDERAL HOLS; OT BY NOTAM.
US NAVY
OCEANOGRAPHIC OFC-CODE 3142
WASHINGTON, DC 20373
COMMANDING OFFICER
NAVAL AIR STATION
JACKSONVILLE, FL 32212
GAINESVILLE FSS (GNV)
Toll Free: 1-800-WX-BRIEF
NIP
--
ACTIVATE-ALSF-1 RWY 10; SALSF RWY 28; PAPI RWY 10 & 28; HIRL RWY 10/28 - 134.775.
N/A
N/A
No
No
None
No
None
None
None
None
None

Runway 10/28

9003 ft. x 200 ft.
ASPH
Fair
NONE
HIGH
66/F/A/W/T
--
--
--
--
  Runway 10 Runway 28
True Heading 90°270°
Traffic Pattern
Markings PIR PIR
Markings Condition FAIR FAIR
Latitude 30° 13' 54"N 30° 13' 54"N
Longitude 81° 41' 35"W 81° 39' 52"W
Elevation 22' 8'
Threshold Crossing Height 51 ft. AGL 62 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4R
Approach Lights ALSF1 ALSF1
Centerline Lights Yes Yes
Runway End Identifier Lights Yes Yes

Runway 14/32

5978 ft. x 200 ft.
ASPH
Fair
NONE
HIGH

--
--
--
--
  Runway 14 Runway 32
True Heading 135°315°
Traffic Pattern
Markings PIR PIR
Markings Condition FAIR FAIR
Latitude 30° 14' 33"N 30° 13' 52"N
Longitude 81° 40' 44"W 81° 39' 55"W
Elevation 12' 7'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights No No
A110-12JASU: 1(NCPP-105) 2(NC-8)
A110-14FLUID: LOCAL SQUADRONS CTC CRYOGENIC PLANT FOR LOX SVC, DSN 942-3818, C904-542-3818, 1200-2030Z++ MON-FRI. LOX SERVICE IS NOT AVAILABLE FOR TRANSIENT AIRCRAFT.
A110-16TRANS ALERT: LTD TRAN MAINT, SVC AND SPACE. ACFT STAIRS AVBL 1230-0300Z++ DLY WITH 24 HR NTC.
A110-17RSTD: TRAN JET ACFT VFR TGL NA WO CRS RULES BRF. ALL ACFT CTC FLT PLNG 310.2, 134.775 15 MIN PRIOR TO LDG.
A110-18CAUTION: EXER EXTREME VIGILANCE DUR IFR APCH RWY 10 IN VMC DUE TO GENERAL AVIATION ACFT VICINITY CECIL FLD.
A110-19CAUTION: UNSHIELDED LGT AT BALLFIELD NIP 216/2.4 NM ON RWY 10 APCH.
A110-2048 HR PPR NTC REQ EXC AIREVAC, JOSAC, NALO, AND LIFEFLTS, CTC BASEOPS DSN 942-5211, C904-542-2511. BOQ DSN 942-3138/3427/3139.
A110-22NS ABTMT: STOP LDG ONLY MON-SAT BTN 0300-1300Z++ & SUN BTN 0300-1700Z++.
A110-23CSTMS/AG/IMG: ACFT RQR INSPECTION CTC AFLD MGR DSN 942-3176, C904-542-3176 AT LEAST 48 HRS PRIOR TO ARR TO COORD INSPECTION SETUP.
A110-24MISC: VIP ACFT CTC BASE OPS PRIOR LDG.
A110-25CAUTION: TO PRECLUDE TAIL HOOK SKIP DURG A-GEAR ENGAGEMENT, AVOID RWY 10/28 CNTRLN LGTS LCTD 24 INCHES SOUTH OF RWY CNTRLN. MAX SAFE OFF-CNTR ARRESTMENT 40 FT.
A110-26RSTD: AFLD CLSD 2ND WED OF EV MONTH FOR AFLD MAINT FR 1200-1600Z++.
A110-27RSTD: PPR FOR ALL TRAN ACFT EXC AIREVAC AND LIFEFLTS, CTC AFLD MGR 48 HR PRIOR TO ARR FOR PPR NR. PPR & CALP REQ WILL CALL DSN 942-3176, C904-542-3176. BOQ DSN 942-3138/3427/3139.
A110-28MISC: CTC NAVAL ATLANTIC MET FAC JACKSONVILLE FOR WX ADVSY OR WX FCST DSN 942-2541, C904-542-2541.
A110-31CAUTION: MAT AREAS N OF RWY 10/28 NOT AUTHORIZED FOR ACFT USE.
A110-32CAUTION: EXTREME BIRD HAZ DUR SUMMER MONTHS. CTC TWR FOR CURRENT BASH COND.
A110-33CAUTION: SKYDIVING AND GLIDER OPERATIONS , SFC TO 10,000 FT, 7 MILES, IN VICINITY OF HERLONG ARPT, BTN SR & SS.
A110-34MISC: AIRCREWS ARE RESPONSIBLE FOR THEIR ON/OFF BASE TRANSPORTATION. AIRCREWS COORDINATE FOR CLASSIFIED MATERIAL STORGE WITH NCTAMSLANT AT DSN 942-3777 24 HR NTC.
A110-36MISC: WX FCST SVC AVBL 0900-0100Z++ MON-FRI. ALL OTHER HOURS WX OBSERVER ONLY. CTC FWC-N AVN CP JAX AT DSN 942-2535 C904-542-2535. CTC NAVAL AVAITION FCST CNTR FOR WX ADVSY OR WX FCST DSN 564-2594, C757-444-2594 DURING OTHER HRS.
A110-37JASU -1(NC-10) 1 (MSU-200NAVIA/U47A-5(HUFFER) QLFD AIRCREW RQRD.
A110-38AMC TRML-HRS 1230-0300++ MON-FRI.
A110-39A-GEAR: RWY 10-28 A-G RIGGED UPON REQ 15 MIN NTC FOR ARRESTMENT ON RWY 10-28.
A17-M5OPR 1200-0400Z (DT 1100-0300) DLY. CLSD FEDERAL HOLS; OT BY NOTAM.
A40-10/28FOR ACFT OPR IAW NASJAXINST 3710.1.
A43-10OPTICAL LANDING SYSTEM (OLS) & WAVE-OFF
A43-28OPTICAL LANDING SYSTEM (OLS) & WAVE-OFF
A49-32OLS & WAVE-OFF
A70-J5J5 FUELS DIV DSN 942-3906, C 904-542-3906
A81-APTACTIVATE-ALSF-1 RWY 10; SALSF RWY 28; PAPI RWY 10 & 28; HIRL RWY 10/28 - 134.775.
E147TRAN JET ACFT EXP RGT TFC RWY 10.
E60-10_E28HOOK E28(B) (2190 FT)
E60-14_E28HOOK E28(B) 1229 FT)
E60-28_E28HOOK E28(B) (1995 FT)
JACKSONVILLE NAS (TOWERS FLD) (ICAO: KNIP, IATA: NIP) is a private airport located in JACKSONVILLE, FL, US.
