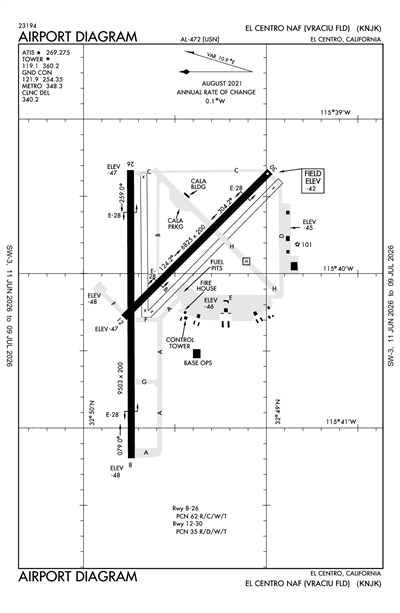

EL CENTRO NAF (VRACIU FLD) - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KNJK
EL CENTRO NAF (VRACIU FLD)
PrivatePVT

6 miles NW of EL CENTRO, CA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
32° 49' 36"N 115° 40' 07"W
-43' MSL
957' MSL
11E
None Listed
SAN DIEGO (SAN)
PHOENIX
LOS ANGELES (ZLA)
1/22/26-2/19/26
KNJK VFR
6:56 AM PST
Broken 24,000'
Scattered 12,000'
10sm
62°F
34°F
29.92"Hg
310° 7kts
SLP148 T01670011 53005
METAR KNJK 131456Z 31007KT 10SM SCT120 BKN240 17/01 A2992 RMK SLP148 T01670011 53005
+ Add Your Business

KNJK FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Ground

EL CENTRO GROUND 121.9
1500-0700Z++ MON-THU; 1500-0200Z++ FRI; 1500-2300Z++ SAT; CLSD SUN AND HOL.

Tower

EL CENTRO TOWER 119.1
1500-0700Z++ MON-THU; 1500-0200Z++ FRI; 1500-2300Z++ SAT; CLSD SUN AND HOL.

Center

YUMA CENTER 118.0
HIGH, USE: CD/P.
YUMA CENTER 132.275
LOW/HIGH, APCH/DEP SVC PRVDD BY YUMA CERAP (ZYL) ON FREQS 132.275/292.2 (EL CENTRO RCAG).

Emergency

Emergency 121.5

Terminal Area Forecast

KNJK
Fri, 2/13 7:33 AM PST
Fri, 2/13 7:00 AM PST - Sat, 2/14 7:00 AM PST
VFR
7:00 AM PST - 8:00 AM PST
Broken 20,000'
Scattered 12,000'
Few 6,500'
6sm
29.91"Hg
310° 6kts
VFR
Becoming 8:00 AM PST - 4:00 PM PST
Broken 22,000'
Scattered 15,000'
Few 12,000'
6sm
29.88"Hg
340° 8kts
VFR
Becoming 4:00 PM PST - 10:00 PM PST
Scattered 25,000'
Few 18,000'
Few 15,000'
6sm
29.94"Hg
VRB° 6kts
VFR
10:00 PM PST - 7:00 AM PST
Scattered 20,000'
Few 15,000'
6sm
29.97"Hg
270° 6kts
TAF KNJK 1315/1415 31006KT 9999 FEW065 SCT120 BKN200 620908 QNH2992INS
   BECMG 1316/1318 34008KT 9999 FEW120 SCT150 BKN220 621007 QNH2988INS
   BECMG 1400/1402 VRB06KT 9999 FEW150 FEW180 SCT250 600000 QNH2993INS
   FM140600 27006KT 9999 FEW150 SCT200 QNH2997INS TX25/1322Z TN09/1414Z FS30196
KNJK
EffectiveExpiresCategoryNOTAM
Military
2/6/26
2041Z
2/27/26
2200Z
RunwayRWY 08 OPTICAL LANDING SYSTEM DOWN UFN.
1/31/26
2154Z
2/26/26
2231Z
AerodromeAERODROME AEROBATIC AREA DEFINED AS 4.3NM RADIUS OF KNJK LATERAL CONFINES OF DELTA AIRSPACE UP TO 10,000FT WILL BE CLOSED DUE TO AEROBATIC ACTIVITY ON THURSDAY 26 FEB 2026 FROM 1600Z-1730Z AND 2100Z-2230Z. KIPL TRAFFIC EXERCISE CAUTION; AEROBATIC ACTIVITY MAY SPILLOUT IN THE VICINITY OF KIPL. ALL NON-PARTICIPATING AIRCRAFT SHALL REMAIN OUTSIDE OF KNJK AIRSPACE. NO GROUND MOVMENT WILL BE AUTHORIZED.
1/31/26
2153Z
2/14/26
2231Z
AerodromeAERODROME AEROBATIC AREA DEFINED AS 4.3NM RADIUS OF KNJK LATERAL CONFINES OF DELTA AIRSPACE UP TO 10,000FT WILL BE CLOSED DUE TO AEROBATIC ACTIVITY ON SATURDAY 14 FEB 2026 FROM 1600Z-1730Z AND 2100Z-2230Z. KIPL TRAFFIC EXERCISE CAUTION; AEROBATIC ACTIVITY MAY SPILLOUT IN THE VICINITY OF KIPL. ALL NON-PARTICIPATING AIRCRAFT SHALL REMAIN OUTSIDE OF KNJK AIRSPACE. NO GROUND MOVMENT WILL BE AUTHORIZED.
1/31/26
2153Z
2/19/26
2131Z
AerodromeAERODROME AEROBATIC AREA DEFINED AS 4.3NM RADIUS OF KNJK LATERAL CONFINES OF DELTA AIRSPACE UP TO 10,000FT WILL BE CLOSED DUE TO AEROBATIC ACTIVITY ON THURSDAY 19 FEB 2026 FROM 1600Z-1730Z AND 2100Z-2230Z. KIPL TRAFFIC EXERCISE CAUTION; AEROBATIC ACTIVITY MAY SPILLOUT IN THE VICINITY OF KIPL. ALL NON-PARTICIPATING AIRCRAFT SHALL REMAIN OUTSIDE OF KNJK AIRSPACE. NO GROUND MOVMENT WILL BE AUTHORIZED.
1/31/26
2153Z
2/21/26
2231Z
AerodromeAERODROME AEROBATIC AREA DEFINED AS 4.3NM RADIUS OF KNJK LATERAL CONFINES OF DELTA AIRSPACE UP TO 10,000FT WILL BE CLOSED DUE TO AEROBATIC ACTIVITY ON SATURDAY 21 FEB 2026 FROM 1600Z-1730Z AND 2100Z-2230Z. KIPL TRAFFIC EXERCISE CAUTION; AEROBATIC ACTIVITY MAY SPILLOUT IN THE VICINITY OF KIPL. ALL NON-PARTICIPATING AIRCRAFT SHALL REMAIN OUTSIDE OF KNJK AIRSPACE. NO GROUND MOVMENT WILL BE AUTHORIZED.
1/31/26
2144Z
2/28/26
2231Z
AerodromeAERODROME AEROBATIC AREA DEFINED AS 4.3NM RADIUS OF KNJK LATERAL CONFINES OF DELTA AIRSPACE UP TO 10,000FT WILL BE CLOSED DUE TO AEROBATIC ACTIVITY ON SATURDAY 28 FEB 2026 FROM 1600Z-1730Z AND 2100Z-2230Z. KIPL TRAFFIC EXERCISE CAUTION; AEROBATIC ACTIVITY MAY SPILLOUT IN THE VICINITY OF KIPL. ALL NON-PARTICIPATING AIRCRAFT SHALL REMAIN OUTSIDE OF KNJK AIRSPACE. NO GROUND MOVMENT WILL BE AUTHORIZED.
1/23/26
1633Z
4/23/26
1459Z
AerodromeAERODROME NJK APPROACH FREQUENCY 292.2 OR 132.27
1/6/26
1947Z
3/16/26
0600Z
AerodromeAERODROME EXPECT DELAYS DURING BLUE ANGELS DEPARTURE AND ARRIVALS MON-SAT
1/6/26
1826Z
3/20/26
0001Z
AerodromeAERODROME OBST DASR RADIO ANTENNA OBSTRUCTION LIGHT OTS 1/2 MILE SOUTH OF TAXIWAY GOLF UP TO 113 FEET
12/3/25
1520Z
3/2/26
2359Z
AerodromeAERODROME UHF AND VHF PILOT CONTROLLED LIGHTING UNAVALIBLE UFN.
Yes
MON-THU 1500-0700Z++
FRI 1500-0200Z++
SAT 1500-2300Z++
CLSD SUN AND HOL.
US NAVY
OCEANOGRAPHIC OFC - CODE 3142
WASHINGTON, DC 20373
BASE OPS

CA
Phone: 760-339-2601
SAN DIEGO FSS (SAN)
Toll Free: 1-800-WX-BRIEF
NJK
--
AVBL ONLY DURING HRS OF OPERATION.
N/A
N/A
No
No
None
No
None
None
High & Low Pressure
High & Low Pressure
None

Runway 08/26

9503 ft. x 200 ft.

PEM
NONE
HIGH
62/R/C/W/T
--
--
--
--
  Runway 08 Runway 26
True Heading 90°270°
Traffic Pattern
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 32° 49' 45"N 32° 49' 45"N
Longitude 115° 41' 14"W 115° 39' 22"W
Elevation -48' -46'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights

Runway 12/30

6825 ft. x 200 ft.

PEM
NONE
HIGH
35/R/D/W/T
--
--
--
--
  Runway 12 Runway 30
True Heading 135°315°
Traffic Pattern
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 32° 49' 47"N 32° 48' 59"N
Longitude 115° 40' 20"W 115° 39' 23"W
Elevation -47' -42'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights
A110-11SERVICE - LGT - CARRIER DECK LGT AVBL RWY 08-26 AND 30.
A110-12JASU - 1(RCPT-105) 1(NC8) (WELLS AIR START SYS).
A110-13FUEL - TRAN PILOTS EXP UP TO 2 HR DELAY WO PRIOR ARNG DSN 658-2425, C760-339-2425. - HOT REFUEL AVBL MOST ACFT 1630-0430Z++ MON-THU; 1600-0200Z++ FRI; 1630-2300Z++ SAT; CLSD SUN AND HOL. HOT REFUL HR SUBJ TO SHORT NTC CHG, REFER TO NOTAM. J8
A110-14FLUID - HPOX LOX
A110-15OIL - O-128-156
A110-16TRAN ALERT- NO TRAN SVC 0700-1500Z++. TRAN MAINT EXTREMELY LTD. TRAN ACFT INBD WITH ORDNANCE ADV TWR ON INITIAL CTC. TRAN ACFT INBD WITH ORDNANCE FOR HOT REFUL MUST SAFE THEIR ACFT PRIOR TO HOTPITTING, T-LINE CANNOT SAFETY OR PIN TRAN ACFT. LTD SVC AVBL FOR LARGE PAX ACFT RQR 48 HR NTC DSN 658-2655.
A110-18CAUTION - INBD ACFT USE EXTREME CAUTION TO AVOID R2510 LCTD 5 NM NW DUE TO A/G WEAPONS OPR AND PRCHT DROPS. EXTREME MID-AIR POTENTIAL DUE TO HI DENSITY VFR GEN AVN TFC AND CROP DUSTERS IN VCNTY. AVOID IMPERIAL CO ARPT 4.5 NM E UNCTL, BLW 3000' AGL.
A110-19CAUTION - BIRD ACT MID DEC TO MID MAR SR-SS WITHIN THE ADJ FLD LCTD E AND W OF THE ARPT. PJE ARE CONDUCTED ON REG BASIS OFF NJK TACAN 170/10 OR IPL VORTAC 240/12.
A110-20TFC PAT - DENSE FLD CARRIER LDG PRACTICE TFC ALL HR. REDUCED RWY SEPARATION STD IN EFF USN/USMC ACFT.
A110-21NS ABTMT - AVOID OVFT HSG LCTD SW OF TWR AND FUEL FARM LCTD IMMED SW APCH END RWY 30. AVOID OVFT TOWN OF EL CENTRO APRX 5 NM E, BLW 5000' AGL. NUMEROUS CATTLE FEED LOTS LCTD THRU-OUT AREA, AVOID OVFT AT LO ALT.
A110-22MISC - ACFT INBD MAKE INITIAL CTC WITH TWR 15 NM OR SOONER. ATCT IN A NON-RADAR ENVIRONMENT WITH HI VOLUME OF AIR TFC. IMPROVED FRESNEL LENS OLS AVBL RWY 08 AND 26.
A110-23RSTD: ALL CIV ACFT AND ALL ACFT THAT INTEND TO RON REQUIRE 72 HR PPR, DSN 658-2601, C760-339-2601 DUR SKED FIELD HRS.
A110-24FUEL - JAA/F24 AVBL
A110-25CTC AIRFIELD MGR/CIVIL ACFT LANDING PERMIT MGR FOR PERMIT INFO C760-339-2616, DSN 658-2616.
A110-26FOR CD WHEN ATCT CLSD CTC YUMA CERAP AT 928-269-9569.
A17-M3CLSD SUN AND HOL.
A49-08OLS
A49-26OLS
A81-APTAVBL ONLY DURING HRS OF OPERATION.
E60-08_E28HOOK E28(B) (1485')
E60-12_E28HOOK E28(B) (1570')
E60-26_E28HOOK E28(B) (1500')
E60-30_E28HOOK E28(B) (1246')
EL CENTRO NAF (VRACIU FLD) (ICAO: KNJK, IATA: NJK) is a private airport located in EL CENTRO, CA, US.
