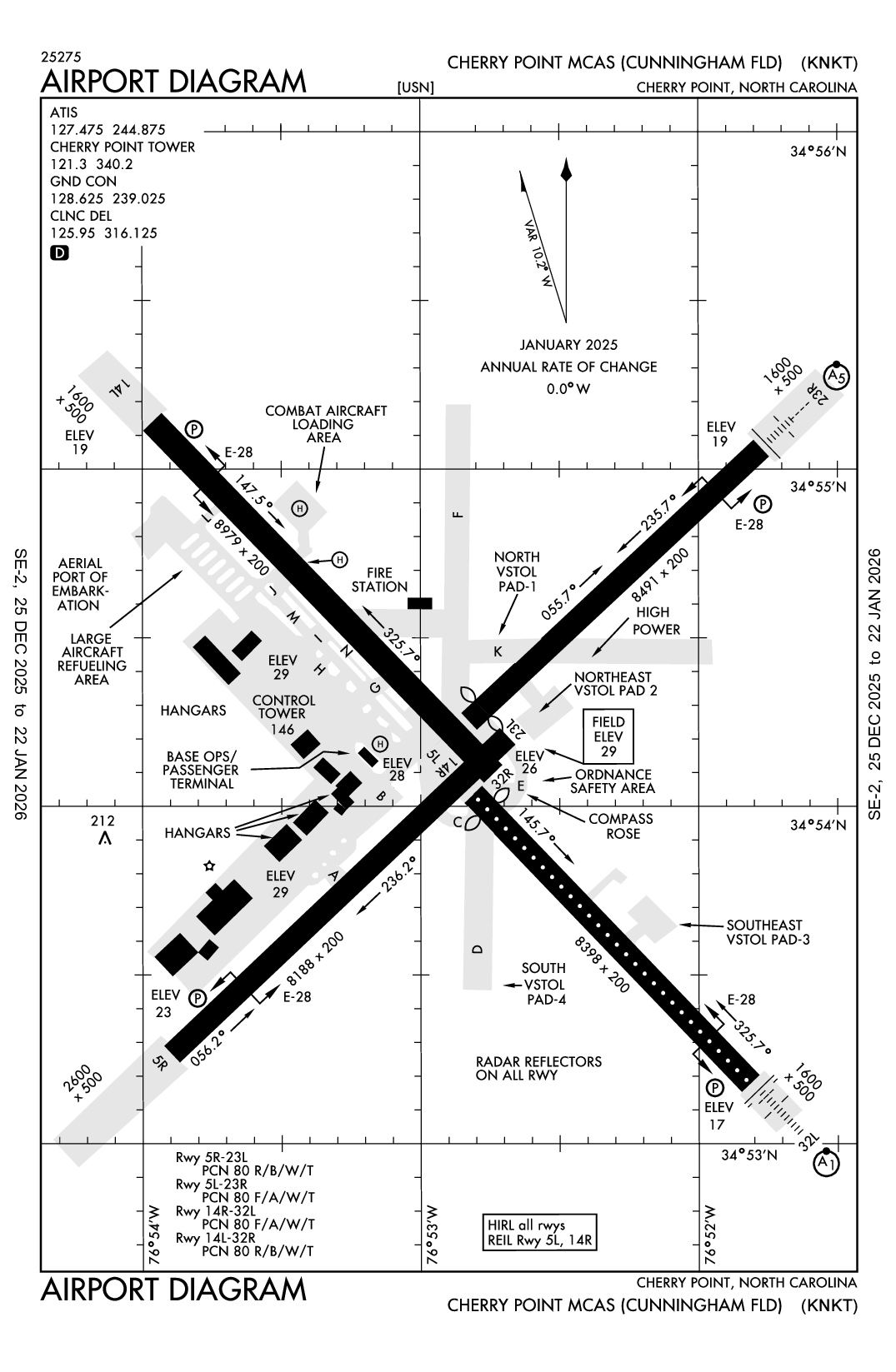

CHERRY POINT MCAS (CUNNINGHAM FLD) - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KNKT
ICAO KNKTLocal NKT
CHERRY POINT MCAS (CUNNINGHAM FLD)
PrivatePVT

2 miles NE of CHERRY POINT, NC, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
34° 54' 11"N 76° 52' 51"W
Elevation
29' MSL
Pattern Alt
1029' MSL
Mag Variation
10°W
Declination
9°W
Fuel
100LL, JP-5
FSS
RALEIGH (RDU)
Sectional
CHARLOTTE
ARTCC
WASHINGTON (ZDC)
Data Effective
2/19/26-3/19/26
KNKT VFR
8:55 AM EDT
Broken 5,500'
10sm
63°F
58°F
30.22"Hg
110° 5kts
AO2 SLP231 T01720144
METAR KNKT 151255Z 11005KT 10SM BKN055 17/14 A3022 RMK AO2 SLP231 T01720144
+ Add Your Business

KNKT FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 127.475

Clearance

Clearance Delivery 125.95

Ground

CHERRY POINT GROUND 128.625

Tower

CHERRY POINT TOWER 121.3

Approach

CHERRY POINT APPROACH 119.35
Initial Contact - (W)
CHERRY POINT APPROACH 119.75
Initial Contact - EAST ABV 3000 FT
CHERRY POINT APPROACH 124.1
(H)
CHERRY POINT APPROACH 132.575
Initial Contact - EAST 3000 FT & BLW

Departure

CHERRY POINT DEPARTURE 119.35
Initial Contact - (W)
CHERRY POINT DEPARTURE 119.75
Initial Contact - EAST ABV 3000 FT
CHERRY POINT DEPARTURE 124.1
(H)
CHERRY POINT DEPARTURE 124.1
CHERRY POINT DEPARTURE 132.575
Initial Contact - EAST 3000 FT & BLW

Operations

Operations 126.2

Emergency

Emergency 121.5

Terminal Area Forecast

KNKT
Sun, 3/15 4:56 AM EDT
Sun, 3/15 5:00 AM EDT - Mon, 3/16 5:00 AM EDT
MVFR
5:00 AM EDT - 9:00 AM EDT
Broken 3,000'
6sm
30.18"Hg
VRB° 6kts
VFR
9:00 AM EDT - 12:00 PM EDT
Scattered 3,000'
6sm
30.15"Hg
110° 10kts
Gusts 25kts
MVFR
Becoming 12:00 PM EDT - 8:30 PM EDT
Broken 3,000'
Scattered 2,000'
6sm
29.97"Hg
150° 15kts
Gusts 30kts
IFR
Temporary 2:00 PM EDT - 8:00 PM EDT
Showers and Rain and Mist
Overcast 3,000'
Broken 1,000'
2.98sm
Calm
MVFR
8:30 PM EDT - 5:00 AM EDT
Overcast 7,000'
Broken 3,000'
6sm
29.79"Hg
180° 10kts
Gusts 20kts
TAF KNKT 1509/1609 VRB06KT 9999 BKN030 QNH3018INS
   FM151300 11010G25KT 9999 SCT030 QNH3015INS
   BECMG 1516/1518 15015G30KT 9999 SCT020 BKN030 QNH2996INS
   TEMPO 1518/1600 4800 SHRA BR BKN010 OVC030
   FM160030 18010G20KT 9999 BKN030 OVC070 QNH2980INS TX22/1518Z TN13/1509Z
KNKT
EffectiveExpiresCategoryNOTAM
Military
2/26/26
1829Z
5/15/26
2359Z
AerodromeAERODROME VTL-1 (NORTH PAD) CLOSED.
2/26/26
1827Z
4/23/26
2359Z
RunwayRWY 32L APCH LIGHTING SYSTEM UNSERVICEABLE
2/26/26
1826Z
4/23/26
2359Z
OBSTACLE ERECTED FLAGGED AND LIGHTED CRANE AT 34.8986444,-76.9071917 APPX 120FT AGL
2/13/26
2109Z
3/31/26
2359Z
TaxiwayTWY J CLSD SOUTH OF HOTEL TO C5 , 747 AND LARGER AIRCRAFT
2/13/26
2106Z
3/31/26
2359Z
AerodromeAERODROME DEICING SERVICES NOT AVAILABLE FOR C-5 ACFT
2/10/26
1616Z
4/24/26
2359Z
NOTAMS RELATED TO PARAOPS * UAS OPS * TWR/OBS LIGHTING MAY BE FOUND AT HTTPS://WWW.DAIP.JCS.MIL/DAIP/MOBILE/INDEX FLIGHT PATH SEARCH * OR * HTTPS://WWW.DAIP.JCS.MIL/DAIP/MOBILE/INDEX,/VIEW/ARBRFG TO SEARCH FOR YOUR AREA OF INTEREST.
2/10/26
1600Z
3/27/26
2359Z
TaxiwayTWY I EDGE LIGHTS U/S
2/5/26
1625Z
4/17/26
2200Z
F35 ACFT VERTICAL LANDINGS AUTHORIZED ON NE PAD AND SOUTH PAD ONLY.
Yes
ALL
US NAVY
OCEANOGRAPHIC OFC-CODE 3142
WASHINGTON, DC 20373
COMMANDING OFFICER
MARINE CORPS AIR STATION
CHERRY POINT, NC 28533
Phone: 252-466-2233
RALEIGH FSS (RDU)
Toll Free: 1-800-WX-BRIEF
NKT
--
AVBL ONLY DURING HRS OF OPERATION.
N/A
N/A
No
No
None
No
None
None
None
High & Low Pressure
None

Runway 05L/23R

8489 ft. x 196 ft.

ASPH
NONE
HIGH
80/F/A/W/T
--
--
--
--
  Runway 05L Runway 23R
True Heading 45°225°
Traffic Pattern
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 34° 54' 08"N 34° 55' 06"N
Longitude 76° 52' 58"W 76° 51' 45"W
Elevation 24' 18'
Threshold Crossing Height -- 71 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes

Runway 05R/23L

8189 ft. x 200 ft.

ASPH
NONE
HIGH
80/R/B/W/T
--
--
--
--
  Runway 05R Runway 23L
True Heading 45°225°
Traffic Pattern
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 34° 53' 17"N 34° 54' 14"N
Longitude 76° 53' 52"W 76° 52' 42"W
Elevation 22' 26'
Threshold Crossing Height 73 ft. AGL --
Visual Glide Path Angle 3° --
Visual Slope Indicator P4L --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 14L/32R

8978 ft. x 200 ft.

ASPH
NONE
HIGH
80/R/B/W/T
--
--
--
--
  Runway 14L Runway 32R
True Heading 136°316°
Traffic Pattern
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 34° 55' 11"N 34° 54' 07"N
Longitude 76° 53' 60"W 76° 52' 44"W
Elevation 19' 27'
Threshold Crossing Height 72 ft. AGL --
Visual Glide Path Angle 3° --
Visual Slope Indicator P4L --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 14R/32L

8397 ft. x 200 ft.

ASPH
NONE
HIGH
80/F/A/W/T
--
--
--
--
  Runway 14R Runway 32L
True Heading 136°316°
Traffic Pattern
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 34° 54' 11"N 34° 53' 12"N
Longitude 76° 52' 57"W 76° 51' 46"W
Elevation 25' 17'
Threshold Crossing Height -- 78 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- P4L
Approach Lights ALSF1
Centerline Lights Yes Yes
Runway End Identifier Lights
A110-11PPR WKENDS CTC OPNS DUTY OFFICER; V582-3632/5025.
A110-13LGT: PORTABLE LGT-MOBILE FLOOD LGT.
A110-14A-GEAR: ALL E-28(B) IN RAISED POSN EXC ON LDG RWY. RQR 15 MIN PN.
A110-15JASU: 2 WORKING DAYS PN RQR. 2(GTC-85) 1(NCPP-105)
A110-16FLUID: SP PRESAIR HPOX LOX DE-ICE.
A110-17TRAN ALERT: LTD TRAN MAINT AVBL 1200-2100Z++ MON-FRI. NO LAVATORY SVC AVBL.
A110-18SEE FLIP AP/1 SUPPLEMENTARY ARPT RMK.
A110-19RSTD: MIN 24HR NOTICE PPR ALL TRAN ACFT. CALL BASE OPS DSN 582-2233/4334, C252-466-2233/4334. FLT PLANNING/BASE OPS OPR 24 HR EXCEPT FEDERAL HOLIDAYS, EXP CLOSURE OR REDUCED SVCS PER NOTAM. ALL RWY AND TWY, EXC TWY A AND C, WILL SUPPORT ALL ACFT AT ALL WT.
A110-20CAUTION: EXTV STU JET TRNG (V/STOL) VCNTY ARPT. TRAN ACFT EXP STR-IN FULL STOP LDG ONLY DUR PEAK STU TRNG PERIODS. BIRD HAZ OCT-APR. DRAINAGE DITCHES PARL ALL RWY. WILDLIFE HAZ ON ARPT, ESPECIALLY SS-SR. OBST APRX 200 FT NEAR NKT R-205/3.
A110-21TFC PAT: LDG/TAXI LGT RQR ALL LDG. REDUCED RWY SEPARATION IN EFF FOR USN/USMC ACFT.
A110-22CSTMS/AG/IMG: CSTMS, AG AVBL WITH 24 HR PN. REF FCG FOR DETAILS. ACFT ARR FROM OVERSEAS CTC OPS VIA FONE PATCH 252-466-2233 MIN 2 HR PRIOR TO ARR FOR CSTMS.
A110-23MISC: 24 HR PN RQR OF ALL DV CODES, CTC BASE OPS DSN 582-2233, C252-466-2233. ALL ACFT WITH PAX/CARGO/DV MUST CTC PTD 20 MIN PRIOR TO LDG. ATC TERMINOLOGY - CENTERMAT - IS DEFINED AS THE CNTR OF AFLD WHERE THE FOUR TWYS INT, RATED FOR ALL ACFT WHEEL WEIGHTS.
A110-25TSNT ALERT: PPR MIN 24 HRS IN ADV. TRAN ACFT WITH INERT ORDNANCE, HOT PIT REFUEL LTD TO F18, USAF F15, F16, AND A10 ACFT ONLY IAW CHERRY POINT AIROPS MAN.
A110-26CAUTION: OBSTACLE UNLIT TWR AT NKT200006 549 FT.
A110-27ACFT RESTRICTED FM TAXIING ON TWY K BTN RWY 23R & TEST CELL. TOWING OPERATIONS ONLY.
A110-28MIN 24 HR NTC IF ANTI-ICING/DE-ICING SVC RQR, CTC TRAN ACFT DSN 582-3232, C252-466-3232.
A110-29RWY 05L/23R HAS A Y AMP-3 ALZ PAINTED ON RWY. RWY 14R/32L HAS W AMP-3 ALZ PAINTED ON RWY.
A110-8ALL ACFT ENROUTE TO CHERRY POINT MCAS RQRG SERVICING CONTACT BASE OPS WITH REQUEST.
A110-9AIRCRAFT STRUCTURAL DE-ICING AVAILABLE.
A70-100LLFUEL: HOT PIT RFL AVBL.
A81-APTAVBL ONLY DURING HRS OF OPERATION.
E147TPA: 1000 FT AGL, OVHD PAT ALT 1500 FT AGL.
E60-05R_E28HOOK E28(B) (1500 FT)
E60-14L_E5HOOK E28(B) (1500 FT)
E60-23R_E28HOOK E28(B) (2438 FT).
E60-32L_E28HOOK E28(B) (1500 FT)
CHERRY POINT MCAS (CUNNINGHAM FLD) (ICAO: KNKT, IATA: NKT) is a private airport located in CHERRY POINT, NC, US.
