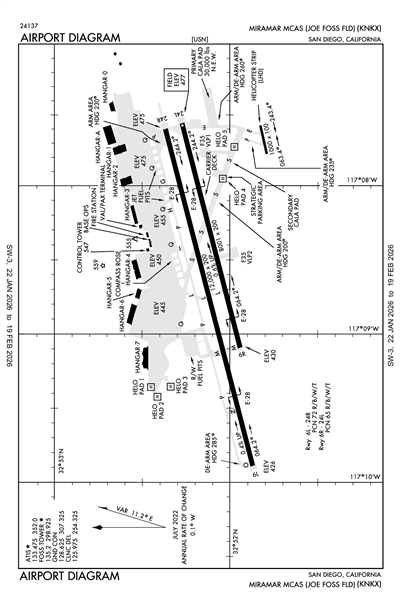

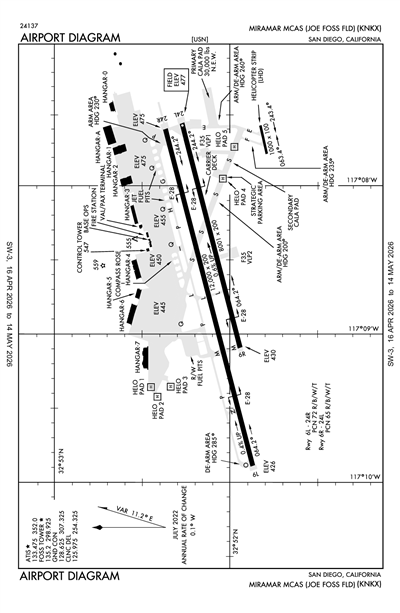

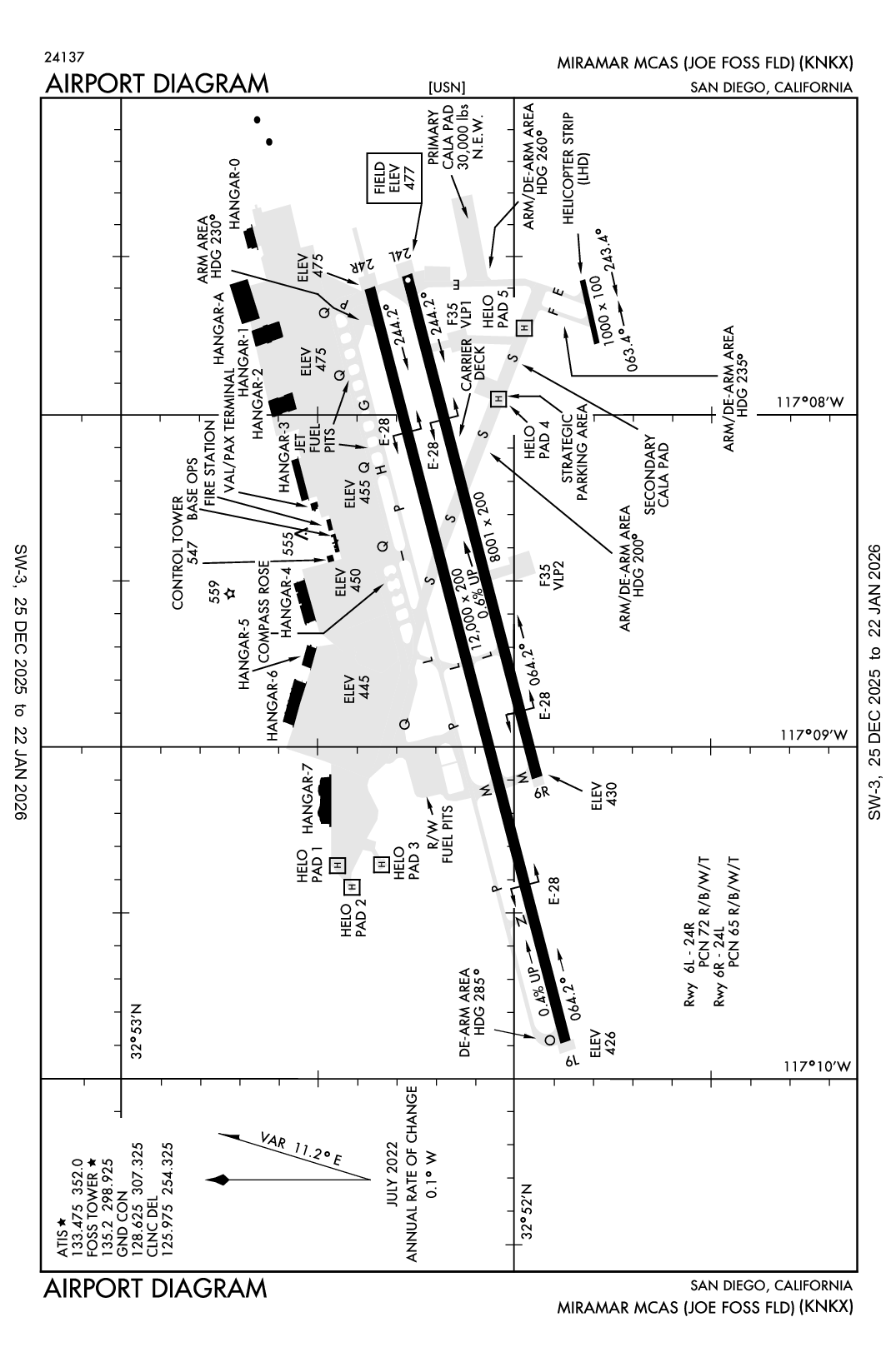

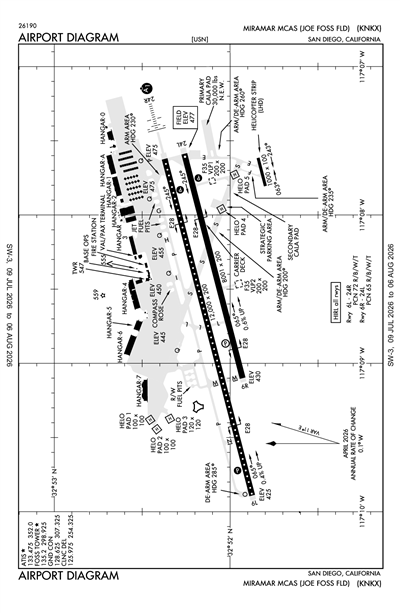

MIRAMAR MCAS (JOE FOSS FLD) - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KNKX
ICAO KNKXIATA NKXLocal NKX
MIRAMAR MCAS (JOE FOSS FLD)
PrivatePVT

3 miles N of SAN DIEGO, CA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
32° 52' 07"N 117° 08' 35"W
Elevation
477' MSL
Pattern Alt
1477' MSL
Mag Variation
11°E
Declination
12°E
Fuel
None Listed
FSS
SAN DIEGO (SAN)
Sectional
LOS ANGELES
ARTCC
LOS ANGELES (ZLA)
Data Effective
10/1/26-10/29/26
KNKX MVFR
8:55 PM PDT
Broken 3,000'
7sm
59°F
55°F
30.00"Hg
Calm
AO2 SLP154 T01500128 $
METAR KNKX 230355Z 00000KT 7SM BKN030 15/13 A3000 RMK AO2 SLP154 T01500128 $
+ Add Your Business

KNKX FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 133.475

Clearance

Clearance Delivery 125.975

Ground

MIRAMAR GROUND 128.625
1530-0800Z MON-THU; 1630-0200Z++ FRI; CLSD SAT; 2200-0200Z++SUN. FLD CLSD NATL HOLS.

Tower

MIRAMAR TOWER 135.2
1530-0800Z MON-THU; 1630-0200Z++ FRI; CLSD SAT; 2200-0200Z++SUN. FLD CLSD NATL HOLS.

Approach

SOCAL APPROACH 132.2

Departure

SOCAL DEPARTURE 119.6
WEST
SOCAL DEPARTURE 132.2
EAST

Other

CLASS B 132.2
029-061 SAN 14,000 FT & BLW
CLASS B 132.2
333-028 SAN 7,000 FT-11,000 FT

Terminal Area Forecast

KNKX
Thu, 10/22 5:00 PM PDT
Thu, 10/22 5:00 PM PDT - Fri, 10/23 11:00 PM PDT
VFR
5:00 PM PDT - 10:00 PM PDT
Broken 4,000'
6sm
29.97"Hg
270° 10kts
Gusts 20kts
VFR
10:00 PM PDT - 12:30 PM PDT
Broken 4,000'
6sm
30.00"Hg
VRB° 4kts
MVFR
Temporary 2:00 AM PDT - 8:00 AM PDT
Rain
Overcast 1,500'
N/A
Calm
MVFR
12:30 PM PDT - 2:00 PM PDT
Broken 1,500'
6sm
30.00"Hg
260° 10kts
MVFR
2:00 PM PDT - 9:00 PM PDT
Broken 3,000'
6sm
29.94"Hg
260° 10kts
VFR
Becoming 9:00 PM PDT - 11:00 PM PDT
Scattered 3,000'
6sm
29.94"Hg
VRB° 5kts
TAF KNKX 230000Z 2300/2406 27010G20KT 9999 BKN040 QNH2996INS
   FM230500 VRB04KT 9999 BKN040 QNH3001INS
   TEMPO 2309/2315 RA OVC015
   FM231930 26010KT 9999 BKN015 QNH3000INS
   FM232100 26010KT 9999 BKN030 QNH2995INS
   BECMG 2404/2406 VRB05KT 9999 SCT030 QNH2993INS TX21/2319Z TN14/2314Z
KNKX
EffectiveExpiresCategoryNOTAM
Military
10/22/26
2017Z
10/25/26
0600Z
EXCEPTION TO STANDARD AIRFIELD HOURS FOR OCT: FRI, 23 OCT 1530-0600Z AND SUN, 25 OCT 2100-0600Z. AIRFIELD HOURS ARE SUBJECT TO CHANGE UPON FLIGHT OPS COMPLETION AND ARE OPEN TO BOTH TENANT AND TRANSIENT PPR APPROVED AIRCRAFT.
10/22/26
0235Z
10/25/26
0235Z
M0243/26 NOTAMC M0241/26
10/22/26
0234Z
10/25/26
0234Z
M0242/26 NOTAMC M0238/26
10/21/26
2304Z
10/29/26
2303Z
RNAV (GPS) RWY 24R LPV DA CAT ABCD: 878-3/4 403 (500-3/4) LNAV/VNAV DA CAT A: 941-1 466 (500-1) CAT B: 952-1 477 (500-1) CAT C: 960-1 485 (500-1) CAT D: 971-1 496 (500-1) LNAV MDA CAT AB: 1120-1/2 645 (700-1/2) CAT CD: 1120-1 3/8 645 (700-1 3/8) VDP: 1.84 NM TO RW24R LPV: WHEN ALS INOP, INCREASE VIS TO 1 1/8 MILES. LNAV/VNAV: WHEN ALS INOP, INCREASE VIS TO 1 3/8 MILES. LNAV: WHEN ALS INOP, INCREASE CAT AB VIS TO 1 MILE; CAT CD VIS TO 1 7/8 MILES.
10/21/26
2303Z
10/29/26
2303Z
ILS Y OR LOC Y RWY 24R/ILS Z OR LOC Z RWY 24R S-ILS 24R CAT ABCDE: 878-¾ 403 (500-¾) S-LOC 24R CAT AB: 1040-½ 565 (600-½) CAT CDE: 1040-1¼ 565 (600-1¼) SIDESTEP 24L CAT AB: 1080-1 603 (700-1) CAT C: 1080-1¾ 603 (700-1¾) CAT D: 1080-2 603 (700-2) CAT E: 1080-2¼ 603 (700-2¼) VDP: NKX 3 DME/I-NKX 1.8 DME S-ILS 24R: WHEN ALS INOP, INCREASE VIS TO 1 1/8 MILES. S-LOC 24R: WHEN ALS INOP, INCREASE CAT AB VIS TO 1 MILE; CAT CDE VIS TO 1 5/8 MILES.
10/21/26
1829Z
11/21/26
1829Z
VLP 1 OPEN. AIRCRAFT MUST TAXI AND EXIT SOUTH ONLY DUE TO CONSTRUCTION ON RWY 24L. NORTH TAXI ROUTE CLOSED. VLP 2 CLOSED.
10/21/26
1826Z
10/24/26
1826Z
L0189/26 NOTAMC L0183/26
10/20/26
1818Z
11/20/26
0200Z
PILOT CONTROL LIGHTING (PCL) FOR RWY 24R/6L OTS FOR MAINTENANCE AND NEW INSTALLATION. NO PCL EXIST FOR RWY 24L/6R.
10/20/26
1817Z
11/20/26
0200Z
WAVE OFF LIGHTS FOR RWY 24R/24L OTS FOR MAINTENANCE AND NEW INSTALLATION.
10/20/26
1815Z
11/20/26
0200Z
RunwayRWY 24L/6R CLOSED FROM 21 OCT - 20 NOV DUE TO ELECTRICAL UPGRADES AND CONSTRUCTION.
10/20/26
1812Z
10/23/26
1812Z
M0237/26 NOTAMC M0230/26
10/20/26
1812Z
10/23/26
1812Z
L0186/26 NOTAMC L0184/26
10/20/26
1810Z
10/23/26
1810Z
M0235/26 NOTAMC M0224/26
10/20/26
1810Z
11/20/26
0200Z
RunwayRWY 24R/6L SINGLE RWY OPS IN EFFECT FROM 21 OCT - 20 NOV. APPROACH END ARRESTING GEAR DE-RIGGED REQUIRING 3-5 RESPONSE TIME. DEPARTURE END ARRESTING GEAR FULLY RIGGED. PLAN AHEAD FOR FUEL IN CASE OF ANY AIRCRAFT EMERGENCIES OR DIVERTS.
10/20/26
1808Z
10/23/26
1808Z
M0233/26 NOTAMC M0231/26
10/14/26
2220Z
11/14/26
2220Z
PAPA TWY LIGHTS OTS BETWEEN ECHO AND SIERRA TWYS. LIGHT CARTS IN USE OFF SHOULDERS OF TWY. PLEASE USE CAUTION.
9/29/26
2003Z
10/29/26
0800Z
LIMA TWY NORTH OF PAPA TWY IS CLOSED DUE TO AIRFIELD LIGHTING CONSTRUCTION.
9/29/26
1959Z
10/29/26
0800Z
SIERRA TWY NORTH OF RWY 24L TO PAPA TWY IS CLOSED DUE TO AIRFIELD LIGHTING CONSTRUCTION.
9/29/26
1509Z
10/29/26
1500Z
ALL CIRCLING EXCEPT ASR Y RWY 6L AND TACAN Y RWY24R/HI-TACAN Z RWY 24R: CAT AB 1120-1 643 (700-1) CAT C 1300-2 ½ 823 (900-2½) CAT D 1500-3 1023 (1100-3) CAT E 1500-3 1023 (1100-3).
9/29/26
1508Z
10/29/26
1500Z
V0099/26 NOTAMN Q) ZLA/QXXXX/IV/NBO/A/000/999/3252N11708W005 A) KNKX B) 2609291508 C) 2610291500 E) TACAN Y RWY 24R/HI-TACAN Z RWY 24R: CAT AB 1180-½ 705 (800-½) CAT CDE 1180-1 5/8 705 (800-1 5/8) CIRCLING CAT AB 1180-1 703 (800-1) CAT C 1180-2 703 (800-2) CAT D 1320-2¾ 843 (900-2¾) CAT E 1500-3 1023 (1100-3). WHEN ALS INOP INCREASE CAT AB VIS TO 1 MILE; CAT CDE VIS TO 2 MILES.
9/16/26
1434Z
10/29/26
1159Z
RNAV (GPS) RWY 24L LNAV/VNAV DA CAT A: 941-1 3/8 464 (500-1 3/8) CAT B: 952-1 3/8 475 (500-1 3/8) CAT C: 960-1 3/8 483 (500-1 3/8) CAT D: 971-1 3/8 494 (500-1 3/8) LNAV MDA CAT AB: 1120-1 643 (700-1) CAT CD: 1120-1 7/8 643 (700-1 7/8).
Yes
MON-THU 1530-0800Z
FRI 1630-0200Z++
SAT CLSD
SUN 2200-0200Z++
HOL CLSD
US NAVY
OCEANOGRAPHIC OFC - CODE 3142
WASHINGTON, DC 20373
COMMANDING OFFICER
MARINE CORPS AIR STATION MIRAMAR
SAN DIEGO, CA 92145
SAN DIEGO FSS (SAN)
Toll Free: 1-800-WX-BRIEF
NKX
--
ACTVT ALSF-1 RWY 24R; PAPI RWYS 6L, 24R & 24L; HIRL & CL RWY 06L/24R - 298.925 OR 135.2.
N/A
N/A
No
No
None
No
None
None
None
None
None

Runway 06L/24R

12000 ft. x 200 ft.

CONC
NONE
HIGH
72/R/B/W/T
--
--
--
--
  Runway 06L Runway 24R
True Heading 75°255°
Traffic Pattern
Markings
Markings Condition
Latitude 32° 51' 52"N 32° 52' 22"N
Longitude 117° 09' 53"W 117° 07' 37"W
Elevation 425' 475'
Threshold Crossing Height 52 ft. AGL 59 ft. AGL
Visual Glide Path Angle 3° 3.2°
Visual Slope Indicator P4L P4L
Approach Lights ALSF1
Centerline Lights Yes Yes
Runway End Identifier Lights

Runway 06R/24L

8001 ft. x 200 ft.

PEM
NONE
HIGH
65/R/B/W/T
--
--
--
--
  Runway 06R Runway 24L
True Heading 75°255°
Traffic Pattern
Markings
Markings Condition
Latitude 32° 51' 56"N 32° 52' 16"N
Longitude 117° 09' 06"W 117° 07' 35"W
Elevation 430' 477'
Threshold Crossing Height 55 ft. AGL 49 ft. AGL
Visual Glide Path Angle 3° 3.2°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights
A110-25CAUTION: WATER ON THE RUBBER BUILD-UP AREAS OF THE RWY MAY PRODUCE POOR TRACTION AND/OR BA AND STANDING WATER ON RWY MAY PRODUCE HYDROPLANING COND.
A110-26NS ABTMT: STRICTLY ENFORCED, MANDATORY PRO AND CRS RULES. ALL TRAN ACFT MUST REVIEW AND SIGN NOISE ABATEMENT FORM WITH FLT PLANNING.
A110-27CAUTION: HIGH MID-AIR POTENTIAL, EXER EXTREME VIGILANCE.
A110-28CAUTION: ALL ACFT ARR/DEP VFR VIA CORRIDOR RULES TO/FR COASTLINE ARE ADZD TO EXER EXTREME CTN TO AVOID HANG GLDR ACT NEAR TORRY PINES GOLF CRS, NKX R-283/5 DME.
A110-31CAUTION: EXTSV GEN AVIATION TFC ALL ALTS, ALL DRCT NEAR AFLD. HIGH VOLUME OF CIV VFR TFC ALONG THE COAST W OF AFLD.
A110-33MISC: ORDNANCE, LIVE OR INERT, NOT PMTD TO RMN ON RON TSNT ACFT.
A110-34SERVICE-LGT: PAPI RRP NOT COINCIDENTAL WITH PAR RY 24L & RY 24R. PAPI UNITS FOR RY 06R/L ARE OPTIMIZED FOR HGT GROUP 2 TYPE ACFT.
A110-35A-GEAR: SHORT FLD A-GEAR RWY 24R NML DE-RIGGED.
A110-37FUEL: J5
A110-38FLUID: SP LHOX LOX.
A110-39OIL: O-148-156.
A110-40TRAN ALERT: NO AMC FLEET SVC AVBL. ALCE TEAM RQR FOR ALL AMC FLT. LTD TRAN SVC, NO TIE-DOWN, OIL/LABORATORY ANALYSIS OR TRAN MAINT SVC AVBL.
A110-46JASU: (A/M47A-4) (NC-10A1) (NC-10C)
A110-47TRAN ALERT: NO SHUTTLE SVC AVBL. ALL VIP ACFT CTC AIRFIELD OPS ON PTD 15 MIN PRIOR TO ARR.
A110-48RSTD (1 OF 3): PPR FOR ALL TSNT ACFT AND TRANSCOM/JOSAC/NALO ARE RQRD TO CTC VISITING ACFT LINE DSN 307-4284, C858-307-4284 (PPR RSTRD TO 30 MIN BFR/AFT APVD TIME; PPR NOT VALID OUTSIDE OF THIS WINDOW AND MUST BE RE-COORDD TO ARR).
A110-49RSTD (2 OF 3): FOR STAGING (LCL TRNG FLT) OR HIGH VISIBILITY EVENTS (VIP M7 AND ABOVE, MEDEVAC W/BATTLE PATIENTS, OIF/OEF HOMECOMING, HR/ANGEL FLIGHTS ETC.) ARE REQUIRED TO NOTIFY AIROPS 1HR PRIOR TO ARRIVAL DUE TO 3DMAW CG AND STATION CO COORDINATION.
A110-50RSTD (3 OF 3): PLEASE CTC THE OPS DUTY OFFICER AT DSN 307-4277/4284, C858-307-4277/4284.
A110-51TFC PAT: REDUCED RWY SEPARATION STD IN EFF USN/USMC ACFT. OPR ON PARL RWY 700' APART. MULTI PRACTICE APCH RY 06L/R NOT AUTH. RADAR VECTORS TO FINAL APCH EXP STEEP DESCENT.
A110-52AIRFIELD OPRG HRS ARE SUBJECT TO CHANGE; CHECK NOTAMS OR CTC AIRFIELD OPERATIONS TO VERIFY HRS. PILOTS FILING MCAS MIRAMAR AS AN ALTN OR EMERG DIVERT ARE ADVISED TO CALL AIRFIELD OPERATIONS TO VERIFY OPRG HRS.
A110-53CLOSED FIELD OPNS (CFO) ARE RSTRD AND RQR PPR.
A110-54FOR CD WHEN ATCT CLSD CTC SOCAL APCH AT 800-448-3724.
A110-55TFC PAT: GEN AVN ACFT AUTH TO CONDUCT PAR APCH SUN. APCH SHALL BE IN VFR CONDS TO A LOW APCH ONLY. ACFT NOT AUTH TO LAND FOR SCV EXC IN CASE OF EMERG.
A49-06LOLS
A49-06ROLS
A49-24LOLS
A49-24RSF, OLS
A81-APTACTVT ALSF-1 RWY 24R; PAPI RWYS 6L, 24R & 24L; HIRL & CL RWY 06L/24R - 298.925 OR 135.2.
E60-06L_E28HOOK E28(B) (2490')
E60-06R_E28HOOK E28(B) (1052')
E60-24L_E28HOOK E28(B) (2301')
E60-24R_E28HOOK E28(B) (2300')
MIRAMAR MCAS (JOE FOSS FLD) (ICAO: KNKX, IATA: NKX) is a private airport located in SAN DIEGO, CA, US.
