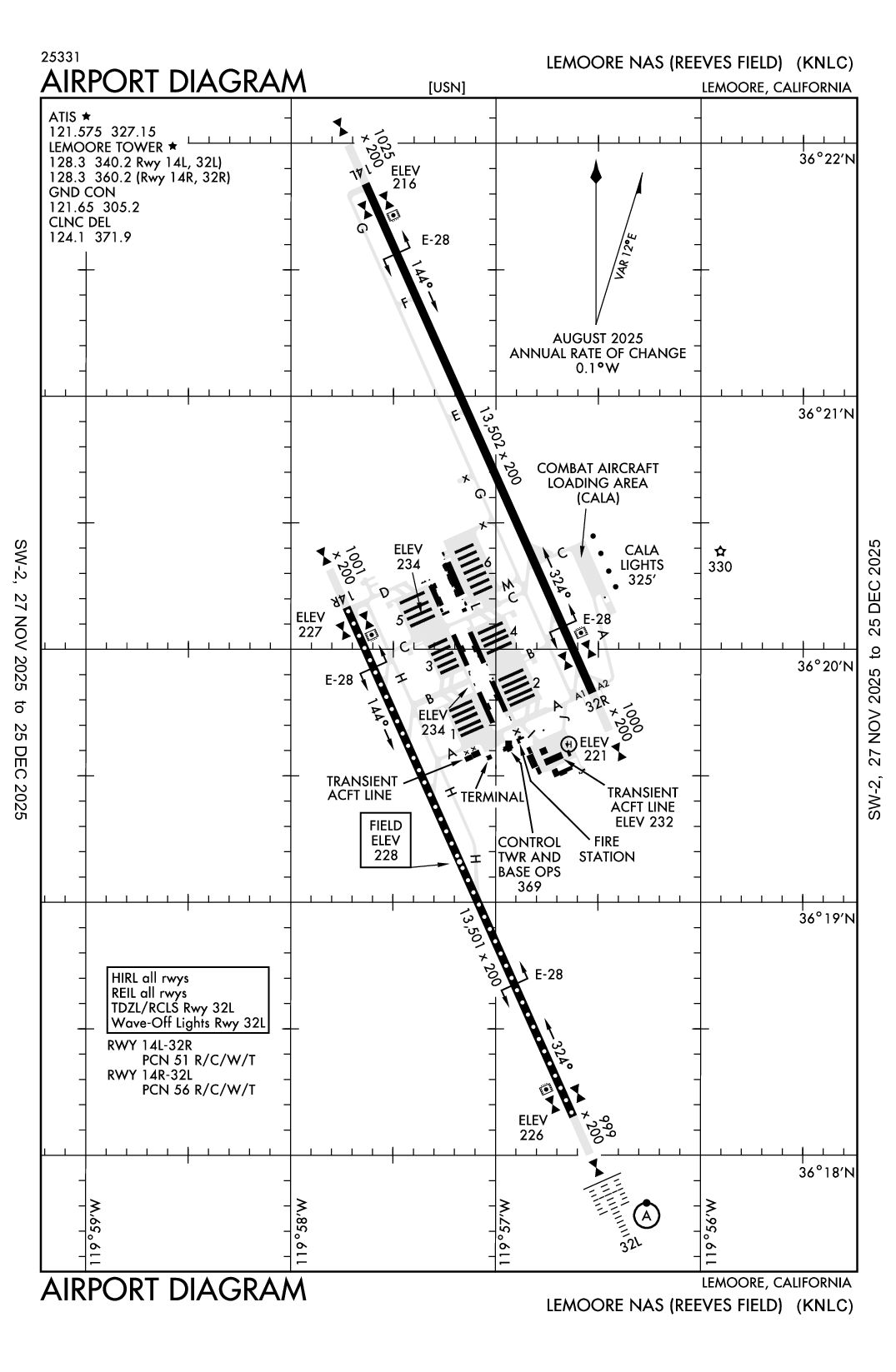

LEMOORE NAS (REEVES FLD) - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KNLC
LEMOORE NAS (REEVES FLD)
PrivatePVT

7 miles W of LEMOORE, CA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
36° 19' 59"N 119° 57' 08"W
228' MSL
1228' MSL
12E
None Listed
RANCHO MURIETA (RIU)
SAN FRANCISCO
OAKLAND (ZOA)
1/22/26-2/19/26
KNLC LIFR
11:56 PM PST
Fog
Obscured 100'
0.25sm
41°F
41°F
30.14"Hg
330° 4kts
AO2 SLP207 T00500050 401720044 RVRNO $
METAR KNLC 010756Z AUTO 33004KT M1/4SM FG VV001 05/05 A3014 RMK AO2 SLP207 T00500050 401720044 RVRNO $
+ Add Your Business

KNLC FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

Advisory 134.225
MOA ADZY
ATIS 121.575
AWOS-3 121.575
(559) 998-2336, AWOS-3 BROADCAST OVER NLC ATIS 121.575

Clearance

Clearance Delivery 124.1

Ground

LEMOORE GROUND 121.65
1600-0800Z++ MON-FRI, 1800-0200Z++ SAT-SUN

Tower

LEMOORE TOWER 128.3
1600-0800Z++ MON-FRI, 1800-0200Z++ SAT-SUN

Approach

LEMOORE APPROACH 118.15
SOUTH
LEMOORE APPROACH 124.1
NORTH

Departure

LEMOORE DEPARTURE 118.15
RWY 14L, 14R
LEMOORE DEPARTURE 124.1
RWY 32L, 32R

Emergency

Emergency 121.5

Terminal Area Forecast

KVIS (27nm)
Sat, 1/31 9:49 PM PST
Sat, 1/31 10:00 PM PST - Sun, 2/1 10:00 PM PST
LIFR
Temporary 10:00 PM PST - 1:00 AM PST
Fog
Broken 200'
0.5sm
Calm
IFR
10:00 PM PST - 1:00 AM PST
Mist
Sky Clear
1sm
080° 3kts
LIFR
1:00 AM PST - 12:00 PM PST
Fog
Obscured
0.25sm
Calm
IFR
12:00 PM PST - 1:00 PM PST
Mist
Scattered 25,000'
2sm
250° 2kts
MVFR
1:00 PM PST - 7:00 PM PST
Haze and Mist
Few 25,000'
4sm
310° 3kts
IFR
7:00 PM PST - 9:00 PM PST
Mist
Sky Clear
1.5sm
300° 2kts
LIFR
9:00 PM PST - 10:00 PM PST
Fog
Sky Clear
0.25sm
290° 2kts
TAF KVIS 010549Z 0106/0206 08003KT 1SM BR SKC
   TEMPO 0106/0109 1/2SM FG BKN002
   FM010900 00000KT 1/4SM FG VV002
   FM012000 25002KT 2SM BR SCT250
   FM012100 31003KT 4SM HZ BR FEW250
   FM020300 30002KT 1 1/2SM BR SKC
   FM020500 29002KT 1/4SM FG SKC
KNLC
EffectiveExpiresCategoryNOTAM
Domestic
2/5/26
1700Z
2/5/26
2359Z
!NLC 01/003 NLC AIRSPACE FLTCK ACFT OPS WI AN AREA DEFINED AS 5NM RADIUS OF NLC SFC-3500FT AGL ACFT CS FLC69 2602051700-2602052359
Military
1/30/26
1655Z
2/2/26
0600Z
AerodromeAERODROME AIRFIELD HOURS DEVIATING FROM PUBLISHED HOURS IN IFR SUPPLEMENT AS FOLLOWS: SATURDAY 31JAN26 CLSD, SUNDAY 01FEB26 1600L-2000L (0000Z-0400Z).
1/29/26
2010Z
2/27/26
1600Z
Apron!KNLC M0026/26 NLC APRON CALA EDGE LGT U/S 2601292010-2602271600
1/20/26
1619Z
4/20/26
1600Z
RunwayRWY 14L/32R FOLLOWING RWY DISTANCE REMAINING SIGNS MISSING: 2/11 BOARD WEST, 4/9 BOARD WEST, 5/8 BOARD WEST, 6 BOARD WEST (14L ONLY), 7/6 BOARD WEST, AND 9/4 WEST
1/20/26
1609Z
2/3/26
1600Z
Taxiway!KNLC M0022/26 NLC TWY D EDGE LGTS U/S 2601201609-2602031600
12/30/25
1846Z
2/28/26
2359Z
AerodromeAERODROME APPROACH MINIMUMS FOR RNAV (GPS) RWY 14R CHANGE LNAV/VNAV DA FOR CAT A TO 604-1, 376, (400-1). APPROACH MINIMUMS FOR RNAV (GPS) RWY 14R CHANGE LNAV/VNAV DA FOR CAT B TO 615-1 1/8, 387, (400-1 1/8). APPROACH MINIMUMS FOR RNAV (GPS) RWY 14R CHANGE LNAV/VNAV DA FOR CAT C TO 623-1 1/8, 395, (400-1 1/8). APPROACH MINIMUMS FOR RNAV (GPS) RWY 14R CHANGE LNAV/VNAV DA FOR CAT D TO 634-1 1/8, 406, (500-1 1/8). APPROACH MINIMUMS FOR RNAV (GPS) RWY 14R CHANGE LNAV MDA FOR CAT AB TO 820-1, 592, (600-1). APPROACH MINIMUMS FOR RNAV (GPS) RWY 14R CHANGE LNAV MDA FOR CAT CD TO 820-1 3/4, 592, (600-1 3/4). APPROACH MINIMUMS FOR RNAV (GPS) RWY 14R CHANGE CIRCLING FROM RNAV (GPS) RWY 14R FOR CAT AB TO 820-1, 592, (600-1). APPROACH MINIMUMS FOR RNAV (GPS) RWY 14R CHANGE CIRCLING FROM RNAV (GPS) RWY 14R FOR CAT C TO 820-1 3/4, 592, (600-1 3/4). APPROACH MINIMUMS FOR RNAV (GPS) RWY 14R CHANGE CIRCLING FROM RNAV (GPS) RWY 14R FOR CAT D TO 820-2, 592, (600-2). APPROACH MINIMUMS FOR RNAV (GPS) RWY 14R CHANGE CIRCLING FROM ALL IAPS EXCEPT FOR RNAV (GPS) RWY 14R FOR CAT AB TO 780-1, 552, (600-1). APPROACH MINIMUMS FOR RNAV (GPS) RWY 14R CHANGE CIRCLING FROM ALL IAPS EXCEPT FOR RNAV (GPS) RWY 14R FOR CAT C TO 780-1 1/2, 592, (600-1 1/2). OBSTACLE NOTE: TEMPORARY CRANE 200 AGL/423 MSL (2024-AWP-12551-OE AND 2024-AWP-12618-OE).
12/30/25
1826Z
2/28/26
2359Z
Obstruction!KNLC M0449/25 NLC OBST CRANE 362030N1195721W (.6NM N NLC) 423FT MSL
(200FT AGL) FLAGGED AND LGTD 2512301826-2602282359
12/30/25
1812Z
3/29/26
2359Z
Taxiway!KNLC M0448/25 NLC TWY D WORK IN PROGRESS CONST ADJ NORTHEAST EDGE FENCE 30FT NORTH OF CENTERLINE. LGTD AND BARRICADED. 2512301812-2603292359
12/1/25
1636Z
3/1/26
0800Z
Taxiway!KNLC M0407/25 NLC TWY G EDGE LGTS AT TWY G NOT STD WITHIN CONST AREAD 2512011636-2603010800
12/1/25
1634Z
3/1/26
0800Z
Taxiway!KNLC M0406/25 NLC TWY G CONST AREA ADJ WEST EDGE AND EAST EDGE OF TWY G LGTD AND BARRICADED 2512011634-2603010800
Yes
MON-THU 1600-0800Z++
FRI 1600-0200Z++
SAT-SUN 1800-0200Z++
(0201-0800Z++ VIA NOTAM)
FIELD HOURS SUBJECT TO CHANGE VIA NOTAM. SEE FLIP AP/1 SUPPLEMENTARY ARPT RMK FOR HOL SKED.
US NAVY
OCEANOGRAPHIC OFC - CODE 3142
WASHINGTON, DC 20373
COMMANDING OFFICER
NAVAL AIR STATION
LEMOORE, CA 93245
RANCHO MURIETA FSS (RIU)
Toll Free: 1-800-WX-BRIEF
NLC
--
AVBL ONLY DURING HRS OF OPERATION.
ROT BCN NOT OPR WHEN ARPT CLSD.
N/A
N/A
No
No
None
No
None
None
None
None
None

Runway 14L/32R

13502 ft. x 200 ft.

CONC
NONE
HIGH
51/R/C/W/T
--
--
--
--
  Runway 14L Runway 32R
True Heading 156°336°
Traffic Pattern
Markings
Markings Condition
Latitude 36° 21' 51"N 36° 19' 49"N
Longitude 119° 57' 39"W 119° 56' 31"W
Elevation 216' 221'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 14R/32L

13501 ft. x 200 ft.

CONC
NONE
HIGH
56/R/C/W/T
--
--
--
--
  Runway 14R Runway 32L
True Heading 156°336°
Traffic Pattern
Markings
Markings Condition
Latitude 36° 20' 09"N 36° 18' 08"N
Longitude 119° 57' 44"W 119° 56' 37"W
Elevation 227' 226'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights ALSF2
Centerline Lights Yes Yes
Runway End Identifier Lights Yes Yes
A110-10FLUID: SP PRESAIR OXRB (LOX AVBL 1600-2400Z++ MON-FRI ONLY.)
A110-11TRAN ALERT: LTD TRAN SVC/MAINT AVBL DUR ARPT OPR HR. HI-SPEED FUEL LANES NOT AVBL TO TRAN ACFT.
A110-12RSTD: PPR/AIREVAC C559-364-6620. CIV ACFT LDG PMT (CALP) RQRD DSN 949-1727, C559-998-1727. BASE ACES REQ RQRD FOR NON-MIL TSNT DSN 949-3386, C559-998-3386. PRIOR COORD OR FLT ADVSY RQRD FOR AMC AND SKED AIRLIFTS. 24 HR PN RQRD FOR ACFT WITH HAZ CARGO.
A110-13CAUTION: BIRD HAZ. HI INTS JET OPR 25 NM RAD 0-15,000' MON-FRI. BLACK TOP AREAS ADJ TO TWY AND HGR FOR EROSION CTL ONLY, WILL NOT SUPPORT ACFT.
A110-14TFC PAT: HVY ACFT EXECUTING PRACTICE INST APCH LTD TO LO APCH. REDUCED RWY SEPARATION STD IN EFF USN/USMC ACFT.
A110-17OIL: O-128-133-156.
A110-21SERVICE LGT - CARRIER DECK LGT RWY 14L AND RWY 32L
A110-22MISC: PRIOR COORD REQ FOR PRACTICE INST APCH DSN 949-1099 C559-998-1099.
A110-8JASU: 2(GTC-85) 2(NC-5) 2(NC-8) 1(NCPP-105).
A110-9FUEL: J5.
A17-H5(0201-0800Z++ VIA NOTAM)
A17-M1FIELD HOURS SUBJECT TO CHANGE VIA NOTAM. SEE FLIP AP/1 SUPPLEMENTARY ARPT RMK FOR HOL SKED.
A49-14LOLS
A49-14ROLS
A49-32LSF, OLS, WAVE-OFF
A49-32ROLS
A81-APTAVBL ONLY DURING HRS OF OPERATION.
A81-BCNROT BCN NOT OPR WHEN ARPT CLSD.
E60-14L_E28HOOK E28(B) (1849')
E60-14R_E28HOOK E28(B) (1600')
E60-32L_E28HOOK E28(B) (3495')
E60-32R_E28HOOK E28(B) (1756')
LEMOORE NAS (REEVES FLD) (ICAO: KNLC, IATA: NLC) is a private airport located in LEMOORE, CA, US.
