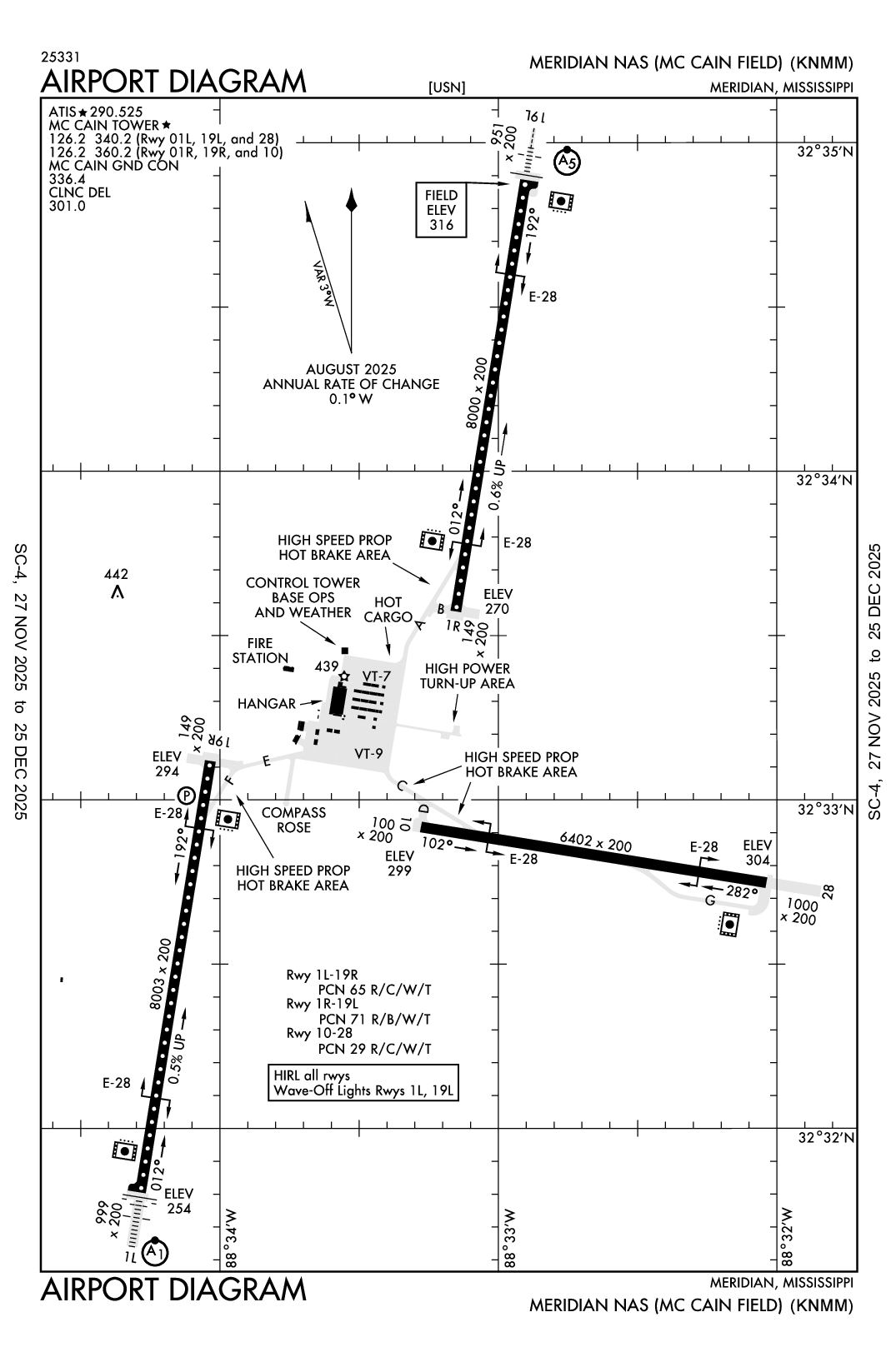

MERIDIAN NAS (MC CAIN FLD) - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KNMM
ICAO KNMMLocal NMM
MERIDIAN NAS (MC CAIN FLD)
PrivatePVT

11 miles NE of MERIDIAN, MS, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
32° 33' 13"N 88° 33' 19"W
Elevation
316' MSL
Pattern Alt
1216' MSL
Mag Variation
2°W
Declination
2°W
Fuel
JET A+, CILI, 100LL, JP-8
FSS
GREENWOOD (GWO)
Sectional
MEMPHIS
ARTCC
MEMPHIS (ZME)
Data Effective
6/11/26-7/9/26
KNMM VFR
5:30 PM CDT
Thunderstorm
Broken 11,000'
Broken 7,000'
Scattered 3,200'
8sm
78°F
75°F
30.04"Hg
180° 6kts
AO2 RAE10 PRESRR OCNL LTGICCGCA VC SE-SW TS MOV S-SE T1 SET P0000 T02560239
SPECI KNMM 252230Z 18006KT 8SM TS SCT032CB BKN070 BKN110 26/24 A3004 RMK AO2 RAE10 PRESRR OCNL LTGICCGCA VC SE-SW TS MOV S-SE T1 SET P0000 T02560239
+ Add Your Business

KNMM FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Tower

MC CAIN TOWER 126.2
OPR 1300-0500Z++ MON-THUR; 1300-2300Z++ FRI, CLSD SAT, SUN & HOLS EXC BY NOTAM. .

Approach

MERIDIAN APPROACH 120.5
SOUTH
MERIDIAN APPROACH 120.95
WEST
MERIDIAN APPROACH 121.275
Initial Contact - EAST

Departure

MERIDIAN DEPARTURE 124.8
SOUTH

Center

MERIDIAN CENTER 125.975
LOW, APCH/DEP SVC PRVDD BY MEMPHIS ARTCC (ZME) ON FREQS 125.975/351.7 (MERIDIAN RCAG) WHEN MERIDIAN APCH CTL CLSD

Emergency

Emergency 121.5

Terminal Area Forecast

KNMM
Thu, 6/25 9:00 AM CDT
Thu, 6/25 10:00 AM CDT - Fri, 6/26 10:00 AM CDT
VFR
10:00 AM CDT - 1:00 PM CDT
Broken 15,000'
Scattered 6,000'
Few 800'
6sm
30.06"Hg
VRB° 6kts
VFR
Becoming 1:00 PM CDT - 8:00 PM CDT
Thunderstorm in vicinity
Broken 10,000'
Scattered 5,000'
Few 2,500'
6sm
29.94"Hg
VRB° 5kts
IFR
Temporary 3:00 PM CDT - 8:00 PM CDT
Thunderstorm and Rain
Overcast 3,000'
Broken 1,000'
1.99sm
VRB° 10kts
Gusts 22kts
VFR
Becoming 8:00 PM CDT - 10:00 AM CDT
Broken 6,000'
Scattered 2,000'
6sm
29.94"Hg
VRB° 6kts
TAF KNMM 251400Z 2515/2615 VRB06KT 9999 FEW008 SCT060 BKN150 QNH3005INS
   BECMG 2518/2520 VRB05KT 9999 VCTS FEW025CB SCT050 BKN100 QNH2993INS
   TEMPO 2520/2601 VRB10G22KT 3200 TSRA BKN010CB OVC030
   BECMG 2601/2603 VRB06KT 9999 NSW SCT020 BKN060 QNH2995INS AUTOMATED SENSOR METWATCH 2605 TIL 2611 TX31/2521Z TN23/2610Z FN20082
KNMM
EffectiveExpiresCategoryNOTAM
Military
6/26/26
1445Z
6/26/26
1630Z
AerodromeAERODROME QUIET HOURS IN EFFECT
6/26/26
1200Z
6/26/26
1700Z
AerodromeAERODROME KNJW RWY 14/32 CLSD FOR MAINTENANCE
6/26/26
1100Z
6/26/26
1600Z
M0381/26 NOTAMN Q) ZME/QXXXX/IV/NBO/A/000/999/3233N08833W005 A) KNMM B) 2606261100 C) 2606261600 E) AERODROME ILS OTS
6/25/26
2108Z
6/28/26
2108Z
M0383/26 NOTAMC M0371/26
6/25/26
1628Z
6/28/26
1628Z
M0380/26 NOTAMC M0379/26
6/25/26
1452Z
6/28/26
1452Z
M0378/26 NOTAMC M0377/26
6/25/26
0310Z
6/25/26
0430Z
Aerodrome!KNMM M0376/26 NMM AD AIRPORT CLSD CLASS D SVC NOT AVBL CTC MERIDIAN APP AT 120.95 OR 276.4 2606250310-2606250430
6/22/26
1926Z
6/25/26
1926Z
M0372/26 NOTAMC M0368/26 Q) ZME/QFAXX/IV/NBO/A/000/999/3233N08833W005 A) KNMM B) 2606221926 E) AERODROME KNJW RWY 14/32 CLSD FOR MAINTENANCE CANCELED
6/5/26
1317Z
9/2/26
2200Z
Services!KNMM M0338/26 NMM SVC ATIS 275.8 VICE N/A FOR KNJW 2606051317-2609022200
5/28/26
1919Z
8/26/26
0430Z
RunwayRWY 01R STANDARD WITH MINIMUM CLIMB OF 260 FT/NM TO 700 FT OR 300-1 1/2 OR STANDARD AND CROSSING DER 51 FT ABOVE DER ELEV CLEARS TAKEOFF MINIMUMS OBSTACLES.
5/28/26
1918Z
8/26/26
0430Z
RunwayRWY 01R , HDGS AS ASSIGNED BY ATC, REQUIRES MIN CLIMB OF 260 FT/NM TO 700 FT.
5/28/26
1916Z
8/26/26
0430Z
RunwayRWY 19L TAKEOFF MINIMUMS, STANDARD.
Yes
MON-THUR 1300-0400++
FRI 1200-2200Z++
CLSD SAT, SUN AND HOL EXC BY NOTAM.
US NAVY
OCEANOGRAPHIC OFC-CODE 3142
WASHINGTON, DC 20373
COMMANDING OFFICER
NAVAL AIR STATION
MERIDIAN, MS 39301
Phone: 601 6792470/2505
GREENWOOD FSS (GWO)
Toll Free: 1-800-WX-BRIEF
NMM
--
AVBL ONLY DURING HRS OF OPERATION.
N/A
N/A
No
No
None
No
None
None
None
None
None

Runway 01L/19R

8003 ft. x 200 ft.

CONC
NONE
HIGH
65/R/C/W/T
--
--
--
--
  Runway 01L Runway 19R
True Heading 9°189°
Traffic Pattern
Markings
Markings Condition FAIR FAIR
Latitude 32° 31' 49"N 32° 33' 08"N
Longitude 88° 34' 16"W 88° 34' 01"W
Elevation 254' 294'
Threshold Crossing Height -- 40 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator NSTD P4R
Approach Lights ALSF1
Centerline Lights Yes Yes
Runway End Identifier Lights

Runway 01R/19L

8000 ft. x 200 ft.

CONC
NONE
HIGH
71/R/C/W/T
--
--
--
--
  Runway 01R Runway 19L
True Heading 9°189°
Traffic Pattern
Markings
Markings Condition FAIR FAIR
Latitude 32° 33' 35"N 32° 34' 53"N
Longitude 88° 33' 09"W 88° 32' 54"W
Elevation 270' 316'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- NSTD
Approach Lights MALSR
Centerline Lights Yes Yes
Runway End Identifier Lights

Runway 10/28

6402 ft. x 200 ft.

CONC
NONE
HIGH
29/R/C/W/T
--
--
--
--
  Runway 10 Runway 28
True Heading 99°279°
Traffic Pattern
Markings
Markings Condition
Latitude 32° 32' 56"N 32° 32' 46"N
Longitude 88° 33' 16"W 88° 32' 02"W
Elevation 299' 304'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-10LGT: PORTABLE OLS AVBL RWY 01L, 01R, 19L, 19R AND 28.
A110-11JASU: 2(NC-8A) (GTC-85) 1(NCPP-105)
A110-15TRAN ALERT: SVC AVBL 1300-0500Z++ MON-THU, 1300-2300Z++ FRI. DRAG CHUTE REPACK UNAVBL.
A110-16RSTD: ALL ACFT RQR PPR, CTC BASE OPS DSN 637-2470/2505, C601-679-2470/2505. PPR GOOD FOR +/- 1 HR PPR TIME. FOR CALP PROCESSING CTC AFM VIA BASE OPS.
A110-17CAUTION: RWY 19L & 19R HAVE 1 PERCENT DOWN GRAD FIRST 6000 FT.WILDLIFE IN VCNTY ALL RWY. MAT AND TWY S OF HGR NOT VIS FR TWR. INTS STU JET TRNG DUR FLD OPR HR.
A110-18TFC PAT: BRK ALT 1400 FT MSL. TRAN ACFT EXPC VISUAL APCH. VFR ACFT CTC MERIDIAN APP WITHIN 25 NM.
A110-19MISC: RAMP ELEV 283 FT. EXP ARR/DEP DLY EXTSV STU TRNG. NO CLASSIFIED MATERIALS AVBL.
A110-20BASE OPS 1300-0500Z MON-THUR; 1300-2300Z FRI, CLSD SAT, SUN & HOLS EXCP BY NOTAM. .
A110-21SCHEDULING POINT: 187 FW, AL ANG. LOCATION: MONTGOMERY, AL. DSN: 358-9255 C334-394-7255.
A110-23TRANS ALERT: LTD AIRSTART CAPABILITIES FOR TRAN ACFT. CTC 601-679-2342 TO VERIFY STATUS PRIOR TO REQ PPR.
A110-24SERVICE: A-GEAR NORMALLY RIGGED ON ALL RWYS.
A110-25FOR CD WHEN UNA VIA FREQ CTC MERIDIAN APCH 601-679-3691, WHEN MERIDIAN APCH CLSD CTC MEMPHIS ARTCC AT 901-368-8453/8449.
A16OPNS DUTY OFF (ODO) ON AUTOVON 446-2470.
A17-D2CLSD SAT, SUN AND HOL EXC BY NOTAM.
A43-01LOPTICAL LANDING SYSTEM & WAVE-OFF.
A43-01ROPTICAL LANDING SYSTEM.
A43-19LOPTICAL LANDING SYSTEM & WAVE-OFF.
A70-100LLSVC AVBL DURING AIRFIELD HRS OF OPS. EXPECT 1 HR REFUEL DELAYS.
A81-APTAVBL ONLY DURING HRS OF OPERATION.
E60-01L_E28HOOK E28(B) (1750')
E60-01R_E28HOOK E28(B) (1250')
E60-10_E28HOOK E28(B) (1250')
E60-19L_E28HOOK E28(B) (1748')
E60-19R_E28HOOK E28(B) (1251')
E60-28_E28HOOK E28(B) (1250')
MERIDIAN NAS (MC CAIN FLD) (ICAO: KNMM, IATA: NMM) is a private airport located in MERIDIAN, MS, US.
