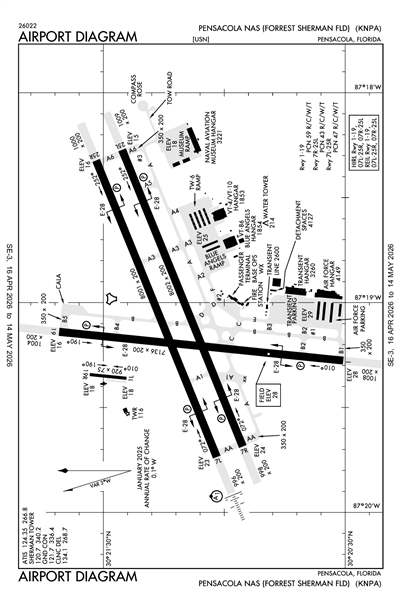

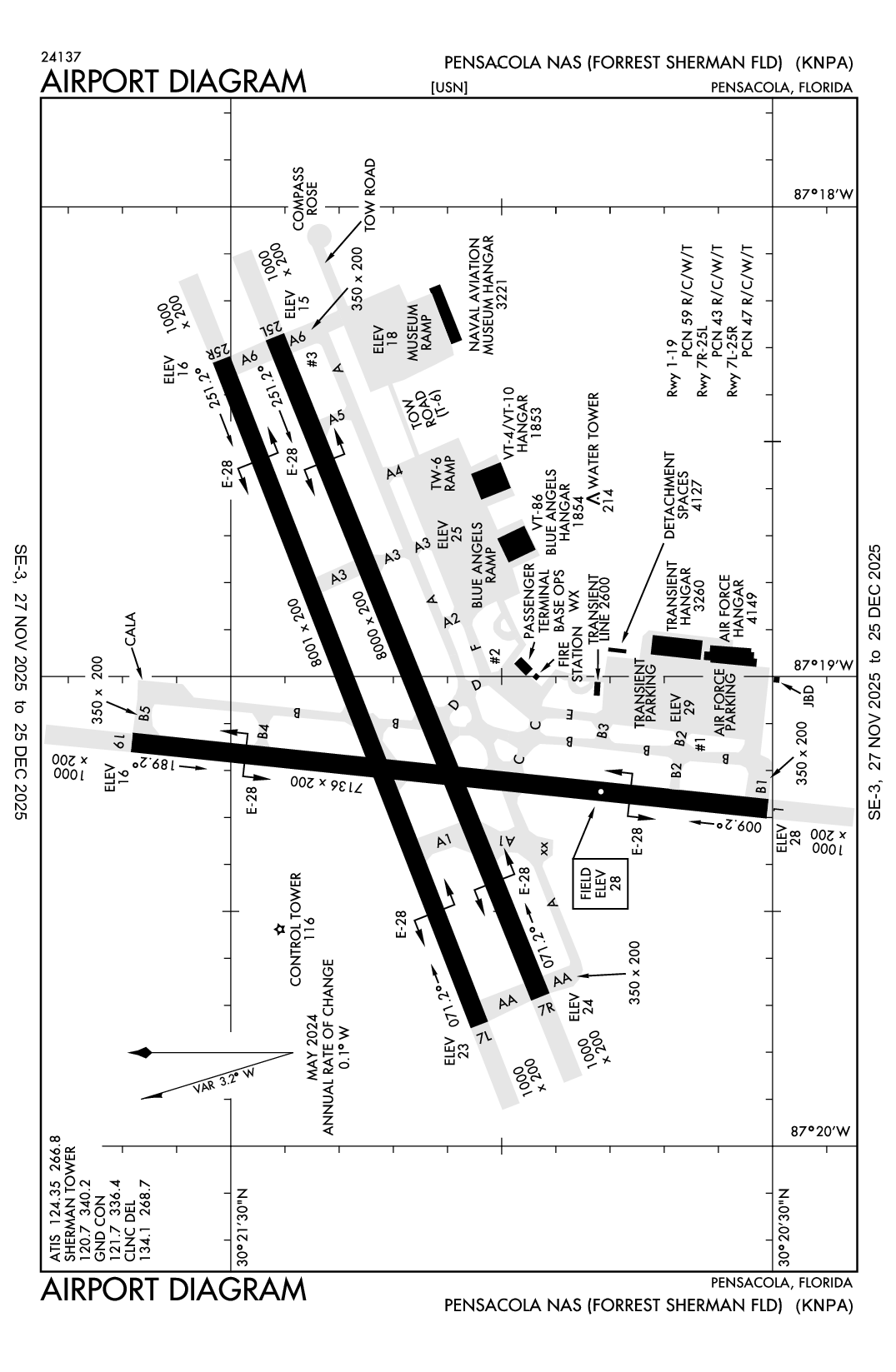

PENSACOLA NAS (FORREST SHERMAN FLD) - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KNPA
ICAO KNPAIATA NPALocal NPA
PENSACOLA NAS (FORREST SHERMAN FLD)
PrivatePVT

6 miles SW of PENSACOLA, FL, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
30° 21' 12"N 87° 19' 05"W
Elevation
28' MSL
Pattern Alt
1028' MSL
Mag Variation
3°W
Declination
3°W
Fuel
None Listed
FSS
GAINESVILLE (GNV)
Sectional
NEW ORLEANS
ARTCC
JACKSONVILLE (ZJX)
Data Effective
5/14/26-6/11/26
KNPA VFR
6:56 PM CDT
Scattered 25,000'
10sm
75°F
58°F
30.04"Hg
200° 6kts
AO2 SLP174 T02390144 10261 20239 55001 $
METAR KNPA 152356Z 20006KT 10SM SCT250 24/14 A3004 RMK AO2 SLP174 T02390144 10261 20239 55001 $
+ Add Your Business

KNPA FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 124.35
Hours: 1300-0300Z++ MON-FRI; CLSD SAT; 2100-0230Z++ SUN, HOL BY NOTAM.

Clearance

Clearance Delivery 134.1
DEP ACFT CTC CLNC DEL PRIOR TAXI.

Ground

SHERMAN GROUND 121.7
1300-0300Z++ MON-FRI; CLSD SAT; 2100-0230Z++ SUN, HOL BY NOTAM.

Tower

SHERMAN TOWER 120.7
1300-0300Z++ MON-FRI; CLSD SAT; 2100-0230Z++ SUN, HOL BY NOTAM.

Approach

PENSACOLA APPROACH 120.65
PENSACOLA APPROACH 120.65

Departure

PENSACOLA DEPARTURE 120.65
PENSACOLA DEPARTURE 120.65

Other

CLASS C 120.65

Terminal Area Forecast

KNPA
Fri, 5/15 6:21 PM CDT
Fri, 5/15 6:00 PM CDT - Sat, 5/16 6:00 PM CDT
VFR
6:00 PM CDT - 8:00 PM CDT
Scattered 25,000'
6sm
30.00"Hg
190° 9kts
VFR
8:00 PM CDT - 7:00 AM CDT
Scattered 25,000'
6sm
30.00"Hg
VRB° 3kts
VFR
7:00 AM CDT - 2:00 PM CDT
Scattered 25,000'
6sm
30.06"Hg
120° 5kts
VFR
2:00 PM CDT - 6:00 PM CDT
Broken 25,000'
Few 4,500'
6sm
30.00"Hg
180° 11kts
TAF KNPA 1523/1623 19009KT 9999 SCT250 QNH3000INS
   FM160100 VRB03KT 9999 SCT250 QNH2999INS
   FM161200 12005KT 9999 SCT250 QNH3005INS
   FM161900 18011KT 9999 FEW045 BKN250 QNH2999INS LAST NO AMDS AFT 1523 NEXT 1807 AUTOMATED SENSOR METWATCH 1603 TIL 1614 TX28/1620Z TN15/1612Z FN20034
KNPA
EffectiveExpiresCategoryNOTAM
Military
5/17/26
1200Z
5/17/26
1800Z
AerodromeAERODROME TACAN OTS FROM 0700L TO 1300L
5/12/26
2155Z
8/10/26
2155Z
TRANSIENT ALERT SERVICES ARE LIMITED TO 0700 - 1430 L (1200 - 1930 Z)
5/12/26
2153Z
5/15/26
2153Z
M0127/26 NOTAMC M0122/26
5/12/26
2152Z
5/15/26
2152Z
M0125/26 NOTAMC M0120/26
5/12/26
2152Z
5/15/26
2152Z
M0124/26 NOTAMC M0123/26
5/12/26
2125Z
5/15/26
2125Z
M0121/26 NOTAMC M0118/26
5/12/26
2056Z
5/15/26
2056Z
M0119/26 NOTAMC M0105/26
5/7/26
1959Z
8/5/26
1450Z
RunwayRWY 01 IN THE EVENT OF OVERRUN UTILIZE CAUTION DUE TO BROKEN ASPHALT ON LAST 500 FEET.
5/7/26
1957Z
8/5/26
1450Z
TaxiwayTWY A6 IS CLOSED BETWEEN ALPHA AND TOW RD.
5/7/26
1954Z
8/5/26
1450Z
AerodromeAERODROME SINK HOLES THROUGHOUT THE AIRFIELD IN THE LATERAL SAFETY AREAS OF TAXIWAYS AND RUNWAYS MARKED BY CONES. UTILIZE CAUTION.
4/21/26
1620Z
7/20/26
1620Z
CIRCLING, NO CIRCLING TO ANY RWY; DUE TO OBSTACLE HEIGHT CHANGE.
4/21/26
1610Z
7/20/26
1610Z
RNAV (GPS) RWY 25R, LNAV/VNAV CAT ABCD 520-1 3/8 499 (500-1 3/8) LNAV CAT AB 520-1 499 (500-1); CAT CD 520-1 3/8 499 (500-1 3/8)
4/21/26
1610Z
7/20/26
1610Z
TACAN Y RWY 7R, S-7R CAT AB 480-1 455 (500-1); CAT CDE 480-1 3/8 455 (500-1 3/8)
4/21/26
1610Z
7/20/26
1610Z
TACAN Y RWY 19, S-19 CAT AB 480-1 458 (500-1); CAT CDE 480-1 3/8 458 (500-1 3/8).
4/21/26
1610Z
7/20/26
1610Z
TACAN Y RWY 25L, S-25L CAT A 520-1 498 (500-1); CAT CDE 520-1 3/8 498 (500-1 3/8)
4/21/26
1600Z
7/20/26
1600Z
ASR RWY 25L, S ? 25L CAT AB 520-1 498 (500-1) CAT CDE 520-1 3/8 498 (500-1 3/8) SIDESTEP CAT AB 520-1 498 (500-1) CAT C 520-1½ 499 (500-1½) CAT DE 520-2 498 (500-2)
4/21/26
1600Z
7/20/26
1600Z
ASR RWY 25R, S-25R CAT AB 520-1 499 (500-1) CAT CDE 520-1 3/8 499 (500-1 3/8).
4/21/26
1600Z
7/20/26
1600Z
HI TACAN Z RWY 7L, S-7L CAT CDE 480-7/8 457 (500-7/8) WHEN ALS INOP, INCREASE VIS TO 1 3/8.
4/21/26
1600Z
7/20/26
1600Z
HI TACAN Z RWY 7R, S-7R CAT CDE 480-1 3/8 455 (500-1 3/8) WHEN ALS INOP, INCREASE VIS TO 1 3/8.
4/21/26
1600Z
7/20/26
1600Z
RNAV (GPS) RWY 25L, LNAV/VNAV CAT ABCD 460-1¼ 438 (500-1¼) LNAV CAT AB 520-1 3/8 498 (500-1 3/8); CAT CD 520-1 3/8 498 (500-1 3/8).
Yes
MAR-NOV MON-FRI 1200-0300Z
SAT CLSD
SUN 2100-0230Z++
NOV-MAR 1300-0300Z
HOL BY NOTAM. SEE FLIP AP/1 SUPPLEMENTARY ARPT RMK.
US NAVY
OCEANOGRAPHIC OFC-CODE 3142
WASHINGTON, DC 20373
COMMANDING OFFICER
NAVAL AIR STATION
PENSACOLA, FL 32508
Phone: 850-452-2735
GAINESVILLE FSS (GNV)
Toll Free: 1-800-WX-BRIEF
NPA
--
AVBL ONLY DURING HRS OF OPERATION.
N/A
N/A
No
No
None
No
None
None
None
None
None

Runway 01/19

7136 ft. x 200 ft.

ASPH
NONE
HIGH
59/R/C/W/T
--
--
--
--
  Runway 01 Runway 19
True Heading 6°186°
Traffic Pattern
Markings
Markings Condition
Latitude 30° 20' 31"N 30° 21' 41"N
Longitude 87° 19' 18"W 87° 19' 09"W
Elevation 28' 16'
Threshold Crossing Height 55 ft. AGL 55 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 07L/25R

8001 ft. x 200 ft.

ASPH
NONE
HIGH
47/R/C/W/T
--
--
--
--
  Runway 07L Runway 25R
True Heading 68°248°
Traffic Pattern
Markings
Markings Condition
Latitude 30° 21' 03"N 30° 21' 32"N
Longitude 87° 19' 45"W 87° 18' 20"W
Elevation 23' 16'
Threshold Crossing Height 56 ft. AGL 56 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights ALSF1
Centerline Lights
Runway End Identifier Lights Yes

Runway 07R/25L

8000 ft. x 200 ft.

ASPH
NONE
HIGH
43/R/C/W/T
--
--
--
--
  Runway 07R Runway 25L
True Heading 68°248°
Traffic Pattern
Markings
Markings Condition
Latitude 30° 20' 56"N 30° 21' 26"N
Longitude 87° 19' 42"W 87° 18' 17"W
Elevation 24' 15'
Threshold Crossing Height 55 ft. AGL 52 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-10TFC PAT: LDG/TAXI LGT RQR ALL LDG WHEN WX COND PERMIT. WHEELS WATCH NOT ON STN. SEE MANDATORY IFR ARR PRO-FLIP AP/1 SUPPLEMENTARY ARPT RMK. REDUCED RWY SEPARATION STD IN EFF CNATRA ACFT ONLY. MULTIPLE APCH SEVERELY LTD DUR SINGLE RWY OPR.
A110-11NS ABTMT: REQ ALL ACFT REMAIN AT OR ABV 500' AND 0.5 NM OFF-SHORE FR NAVARRE BEACH TO W OF JOHNSON BEACH DUE TO NESTING OF PROTECTED SPECIES APR-OCT.
A110-12CSTMS/AG/IMG: CSTMS, AG AVBL IF PRIOR ARNG MADE WITH MIN 48 HR ADVANCE NTC.
A110-14CAUTION: EXPECT SIMULTANEOUS OPR DUR DUAL RY OPERATIONS. PONDING OCCURS AFTER MODERATE TO HVY RAIN AT ALL RY INT AND HOLD SHORT AREAS. RY 7L-R/25L-R GROOVED. RY 1/19 NOT GROOVED.
A110-15MISC- SECTOR CONTROL PENSACOLA, FL KNPA (CALL SIGN SEABREEZE) C850-452-2041, SKEDS HOURS 1200-2100Z++ MON-FRI, MAR-NOV; 1300-2200Z MON-FRI; NOV-MAR. (R) CTL SVC AND SKED PROVIDED IN W155 TO ALL MIL AND DESIGNATED CIV AIR OPR. ALL ACFT OPR IN W155 SHALL BE SKED, CHECK IN/OUT ON PRIM FREQ AND REMAIN IN CONTINUOUS RDO COM WITH SEABREEZE OR WITH THE MIL RADAR UNIT/FAC SPECIFICALLY AUTH BY SEABREEZE TO PROVIDE CTL/CONTAINMENT SVC. ACFT OPR BLW 3500- MAY NOT RECEIVE RADAR SVC DUE TO LIMITED RADAR/RADIO COVERAGE. FOR DETAILED WARNING OP AREA SKED/USE PRO, CTC SECTOR CONTROL PENSACOLA. SEABREEZE - (PRIM)-(E) (127.45 351.625) 348.0 3102.4 6835.4 H-5D, L18E, F. FLT PLANS FOR NAS PENSACOLA CAN BE SUBMITTED TO BASE OPS VIA FAX AT C850-452-8105 OR E-MAIL: CNIC_SE_PNSC_NPA_BASE_OPS@US.NAVY.MIL. TO CONFIRM RECEIPT OF FLT PLANS CTC FLT PLANNING DISPATCHER C850-452-2265/2041. KNPA ASOS DIAL-IN C850-452-3040.
A110-16ACFT EXP TO CONDUCT OPR FR SHERMAN FLD CTC FLEET LIAISON OFFICE DSN 459-4333, C850-452-4333 FOR SKED.
A110-17CIV ACFT LDG PMT CTC DEPUTY AIR OPS OFFICER DSN:459-2547 C:850-452-2547.
A110-18RSTD - B-52 OPS PROH. PPR REQ FOR ALL TRANSIENT AIRCRAFT. PPR VALID PLUS OR MINUS 30 MIN. OF APPRVD TIME NOT TO EXCEED BEYOND NORMAL AIRFLD CLOSURE TIME. FAILURE TO ARRIVE WITHIN THE ASSIGNED WINDOW MAY RESULT IN DENIAL OF LANDING CLEARANCE., CTC TRAN LINE DSN 850-459-2672, C850-452-2672.
A110-2A-GEAR: 15 MIN NTC FOR SHORT FIELD ARRESTMENT.
A110-3JASU - 2(NC-10) 2(MSU-200)
A110-4FUEL: JET A++
A110-5FLUID - SP LHOX LOX OXRB ACFT NITROGEN AND OX SVCG AVBL MAR-NOV 1200-0300Z, MON-FRI, NOV-MAR 1300-0300Z, CLSD SAT-SUN, OPEN BY NOTAM, AND HOL BY NOTAM.
A110-6OIL: O-128-148-156
A110-7TRAN SVC AVBL, CTC FOR HOURS, CLSD SAT-SUN, HOL BY NOTAM ; OT NO TRAN ACFT AUTH.
A17-M1HOL BY NOTAM. SEE FLIP AP/1 SUPPLEMENTARY ARPT RMK.
A81-APTAVBL ONLY DURING HRS OF OPERATION.
A86FSS-GAINESVILLE GNV- NOTAM PNS
E60-01_E5HOOK E28(B)(1554')
E60-07L_E5HOOK E28(B) (1200')
E60-07R_E5HOOK E28(B) (1300')
E60-19_E5HOOK E28(B) (1100')
E60-25L_E5HOOK E28(B) (1450')
E60-25R_E5HOOK E28(B) (1300')
PENSACOLA NAS (FORREST SHERMAN FLD) (ICAO: KNPA, IATA: NPA) is a private airport located in PENSACOLA, FL, US.
