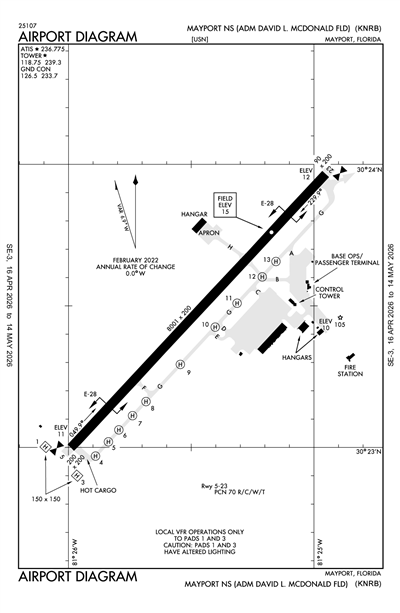

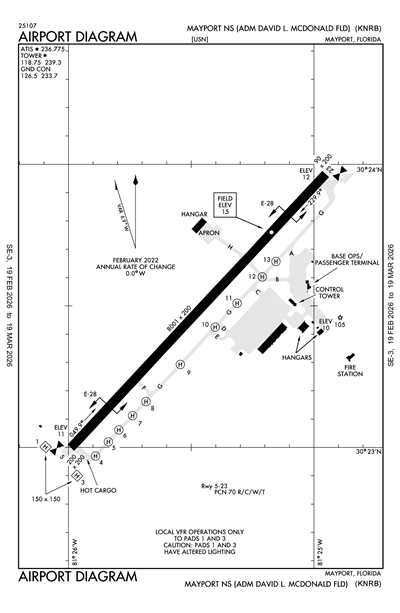

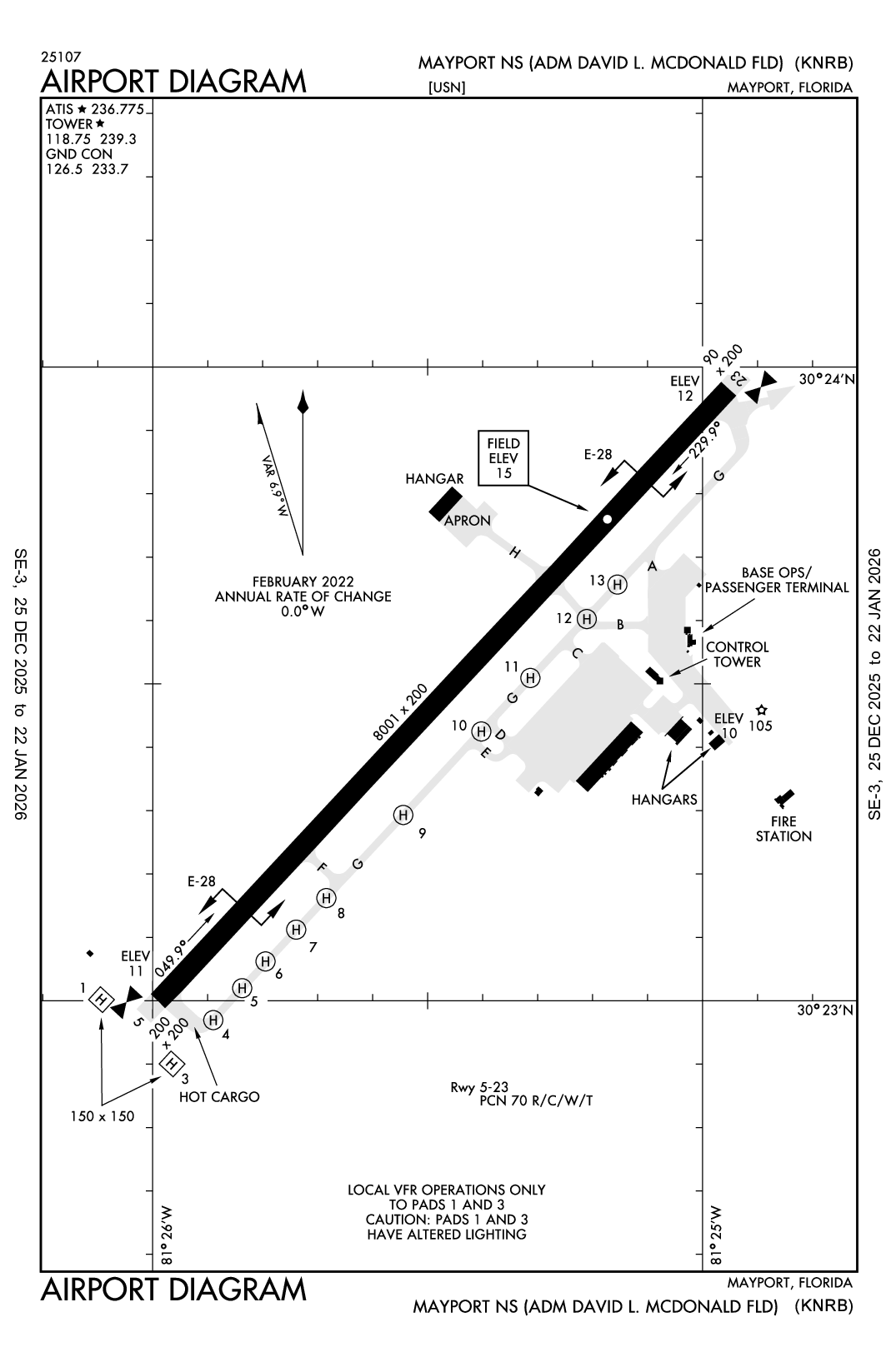

MAYPORT NS (ADM DAVID L MCDONALD FLD) - Airport Diagram

KNRB

ICAO KNRBIATA NRBLocal NRB

MAYPORT NS (ADM DAVID L MCDONALD FLD)

PrivatePVT

1 miles NW of MAYPORT, FL, US

View on Map

Status

Operational

Coordinates

30° 23' 29"N 81° 25' 28"W

Elevation

15' MSL

Pattern Alt

1015' MSL

Mag Variation

7°W

Declination

6°W

Fuel

JP-5

FSS

GAINESVILLE (GNV)

Sectional

JACKSONVILLE

ARTCC

JACKSONVILLE (ZJX)

Data Effective

2/19/26-3/19/26

KNRB VFR

10:07 AM EDT RAW

Scattered 1,900'

Viz

10sm

Temp

75°F

Dew

70°F

Pres

30.03"Hg

Wind

160° 8kts

RMK

AO2 T02390211 $

SPECI KNRB 151407Z AUTO 16008KT 10SM SCT019 24/21 A3003 RMK AO2 T02390211 $

Add Your Business

KNRB FBOs

No FBOs (Fixed Base Operators) are listed for this airport.

Your Information

Business

Ground

NAVY MAYPORT GROUND	126.5
1300-0400Z (DT 1200-0400) MON-THU; 1300-2300Z++ FRI; CLSD SAT, SUN AND FEDERAL HOLS.

Tower

NAVY MAYPORT TOWER	118.75
1300-0400Z (DT 1200-0400) MON-THU; 1300-2300Z++ FRI; CLSD SAT, SUN AND FEDERAL HOLS.

Arrival

ALCRN STAR

127.0

Approach

JACKSONVILLE APPROACH

124.9

Departure

JACKSONVILLE DEPARTURE

124.9

Emergency

121.5

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

AIRPORT DIAGRAM

Airport Minimums

Arrival Procedures

Instrument Approach

Terminal Area Forecast

KCRG (6nm)

RAW

Reported

Sun, 3/15 9:30 AM EDT

Valid

Sun, 3/15 10:00 AM EDT - Mon, 3/16 8:00 AM EDT

MVFR

10:00 AM EDT - 11:00 AM EDT

Broken 2,000'
Broken 1,200'
Scattered 500'

Viz

6sm

Wind

170° 9kts

VFR

11:00 AM EDT - 1:00 PM EDT

Broken 3,500'
Scattered 2,500'

Viz

6sm

Wind

180° 11kts

Gusts 16kts

VFR

1:00 PM EDT - 12:30 AM EDT

Showers in vicinity

Broken 12,000'
Broken 7,000'
Scattered 2,500'

Viz

6sm

Wind

190° 12kts

Gusts 18kts

MVFR

6:00 PM EDT - 11:00 PM EDT

Heavy Thunderstorm and Rain and Mist

Overcast 4,000'
Broken 2,500'
Broken 1,500'

Viz

3sm

Wind

VRB° 20kts

Gusts 30kts

MVFR

12:30 AM EDT - 3:00 AM EDT

Showers in vicinity

Broken 7,000'
Broken 4,000'
Broken 2,500'

Viz

6sm

Wind

180° 9kts

IFR

3:00 AM EDT - 8:00 AM EDT

Overcast 1,500'
Broken 900'

Viz

6sm

Wind

170° 6kts

TAF KCRG 151330Z 1514/1612 17009KT P6SM SCT005 BKN012 BKN020
   FM151500 18011G16KT P6SM SCT025 BKN035
   FM151700 19012G18KT P6SM VCSH SCT025 BKN070 BKN120
   PROB30 1522/1603 VRB20G30KT 3SM +TSRA BR BKN015 BKN025CB OVC040
   FM160430 18009KT P6SM VCSH BKN025 BKN040 BKN070
   FM160700 17006KT P6SM BKN009 OVC015

KNRB

Effective	Expires	Category	NOTAM
Military
3/16/26 1200Z	3/23/26 1200Z	Aerodrome	AERODROME PAD 1 CLOSED.
3/13/26 2359Z	3/16/26 0353Z	Aerodrome	AERODROME RADAR SERVICES UNAVAILABLE. DASR OTS.
3/6/26 2200Z	4/1/26 2359Z	Aerodrome	AERODROME LIVE BURN TRAINING IN THE VICINITY OF THE TRANSIENT RAMP
3/2/26 1623Z	4/15/26 2200Z	Aerodrome	AERODROME COPTER PAR RWY 5 UNAVAILABLE FOR MAINTENANCE
3/2/26 1616Z	4/15/26 2359Z	Aerodrome	AERODROME ROTATING BEACON OTS.
2/5/26 2047Z	4/20/26 0700Z	Aerodrome	AERODROME MULTIPLE RAISED CRANES IN THE VICINITY OF THE MAYPORT BASIN AT OR BELOW 250 FEET.
2/5/26 2046Z	4/20/26 0700Z	Aerodrome	AERODROME INCREASED BIRD ACTIVITY AROUND THE TACAN POND.

ATC Tower

Yes

Attendance

MON-THU 1300-0400Z (DT 1200-0400)
FRI 1300-2300Z
CLSD SAT, SUN & FEDERAL HOLS UNLESS OTRW NOTAM.

Owner

US NAVY
OCEANOGRAPHIC OFC-CODE 3142
WASHINGTON, DC 20373

Manager

TEG MCNEAL
NAVAL AIR STATION
MAYPORT, FL 32228
Phone: 904-270-7126

FSS

GAINESVILLE FSS (GNV)
Toll Free: 1-800-WX-BRIEF

NOTAM

NRB

Light Schedule

Lights

AVBL DURG AFLD OPS HRS.

Beacon

N/A

Wind Indicator

N/A

Segmented Cir.

Landing Fee

Parking

None

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

Airframe Repair

None

Pwrplant Repair

None

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

None

Runway 05/23

Dimensions

8001 ft. x 200 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

HIGH

Pavement Class

70/R/C/W/T

Single Wheel

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 05	Runway 23
True Heading	43°	223°
Traffic Pattern		Right
Markings	PIR	PIR
Markings Condition	GOOD	GOOD
Latitude	30° 22' 60"N	30° 23' 58"N
Longitude	81° 25' 59"W	81° 24' 57"W
Elevation	11'	12'
Threshold Crossing Height	48 ft. AGL	48 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4L	P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights	Yes	Yes

A110-1	JASU: 1(NC-8) 1(GTC-85) 1(A/NCPP-105).
A110-12	MISC: CLASS D AIRSPACE AND CLASS E AIRSPACE 700 FT AND BELOW EFF 1200-0400Z++ (DT 1100-0400Z) SPECIAL LOCAL OPS 0400-0700Z++ MON-THU; 1300-2300Z++(DT 1200-2200Z) FRI; CLSD SAT, SUN, AND HOL. OTHER TIMES CLASS G AIRSPACE 700 FT AND BELOW. JACKSONVILLE CLASS E AIRSPACE 700 FT AND ABV EFF CONT.
A110-14	CAUTION: EXP SIMUL SAME DRCTN OPS DURG DUAL RWY OPS.
A110-16	FOR CD CTC JACKSONVILLE APCH AT 904-741-0284.
A110-17	TRAN ALERT: GND TRANSPORTATION UNAVBL FOR AIRCREW OR PAX.
A110-18	MISC: FOR CIV ACFT LDG PMT (CALP) REQ CTC AIRFIELD MGMT C904-445-8326.
A110-19	FIRE EQUIP (PG4): 1500 GAL STRYKER (242) EQUIPPED WITH A 210 GAL FOAM TANK AND 500 LBS. OF HALON, 2-1250 GPM PUMPERS WITH 750 GALS OF WATER, 1-2000 GPM ARL APPARATUS WITH 500 GALS OF WATER, 1 ADVND LIFE SUPPORT TRNSP AMBULANCE, 1 HEAVY RSCU TRUCK WITH HAZMAT AND TECHNICAL RSCU RESP CAPABILITIES, 1 HAZMAT DECONTAMINATION TRAILER, 1 AIR CART FOR RE-FILLING AIR BOTTLES, 2 UTILITY TRUCKS, 1 COMMAN D VEHICLE.
A110-20	ELECTRONIC MAINT (PG3): GND PWR UNITS: 12 EXTERNAL GND START UNITS (ALL PERM UNITS ON H-60 RAMP)
A110-21	SNOW REMOVAL EQUIP (PG4): 1-15,000 LB FORKLIFT.
A110-3	TSNT/HUNG ORDNANCE/DIVERT ALERT; ORGANIC AIR-LAUNCHED WEAPONS SAFING CPBLY NA; TSNT MAINT NA; LIMITED TSNT PRK AVBL.
A110-4	RSTD: 24 HR PPR/CIVIL ACFT LNDG PERMIT; PCN EXCEEDING 34 RQR 72 HR PPR - BASE OPS DSN 270-6130/31, C904-270-6130/31. PARTICIPATING ACFT ONLY DURG SPL LCL OPS.
A110-5	CAUTION: LGT TO HVY BIRD ACT ON AND IN VCNTY OF ARPT. VESSELS WITH MASTS TO 196 FT FQTLY BERTHED 800 FT LEFT OF RWY 23 THLD. LARGE VESSELS WITH MASTS UP TO 150 FT FQTLY TRANSIT THE RIVER CHAN ADJ TO APCH END RWY 23 DUR FINAL APCH.
A110-6	CAUTION: EXER VIGILANCE DURG RWY 05 OPS DUE TO EXTSV CTLD/UNCTLD ACFT INVOF CRAIG MUNI ARPT. PADS 1 & 3 HAVE ALTERED LGT & APVD FOR LCL BASED ACFT ONLY.
A110-7	TFC PAT: R TFC RWY 23 & L TFC RW 05. SIMULTANEOUS LDG/DEP BTN HEL CONDUCTED ON PARL TWY LCTD 325 FT FM RWY 05/23.
A110-8	NS ABTMT: MAYPORT VILLAGE AND N BANK OF ST JOHNS RIVER ARE NOISE SENSITIVE. NO XW/BASE TURNS BTN TWY BRAVO-FOXTROT.
A110-9	CSTMS/AG/IMG: AVBL DURG AFLD HRS WITH 24 HR PPR.
A17-M1	CLSD SAT, SUN & FEDERAL HOLS UNLESS OTRW NOTAM.
A70-J5	AFT HR FUEL NA; TSNT HEL HOT RFL CTC BASE OPS 904-270-6130/DSN 270-6130; COORD RFL TIMES HSM-40 ODO - 904-270-6332/DSN 960-6332 (DIAL 0 & REQ MAINT CTL); FIXED WING HOT RFL NA.
A81-APT	AVBL DURG AFLD OPS HRS.
A86	FSS-GAINESVILLE GNV-NOTAM JAX.
E60-05_E28	HOOK E28(B) (1200 FT). 30 MIN NOTICE FOR ARSTMT UNLESS FLD IN DIV STS.
E60-23_E28	HOOK E28(B) (1186 FT). 30 MIN NOTICE FOR ARSTMT UNLESS FLD IN DIV STS.
E79	CUSTOMS/AGRICULTURE/IMG AVBL FOR ACFT WITH 30 PSGRS OR LESS; MON-FRI EXCP HOLS 0800-1700. OTHER TIMES 48 HR PPR.

MAYPORT NS (ADM DAVID L MCDONALD FLD) (ICAO: KNRB, IATA: NRB) is a private airport located in MAYPORT, FL, US.
