TWENTYNINE PALMS SELF - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KNXP
TWENTYNINE PALMS SELF
PrivatePVT

9 miles NW of TWENTYNINE PALMS, CA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
34° 17' 46"N 116° 09' 44"W
2051' MSL
3051' MSL
11E
None Listed
RIVERSIDE (RAL)
LOS ANGELES
LOS ANGELES (ZLA)
12/25/25-1/22/26
KNXP VFR
12:54 AM PST
Clear
10sm
50°F
34°F
30.00"Hg
300° 15kts
Gusts 27kts
AO2 PK WND 29029/0842 SLP138 T01000011 58004
METAR KNXP 080854Z AUTO 30015G27KT 10SM CLR 10/01 A3000 RMK AO2 PK WND 29029/0842 SLP138 T01000011 58004
+ Add Your Business

KNXP FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- --

No communication frequencies available for this airport.

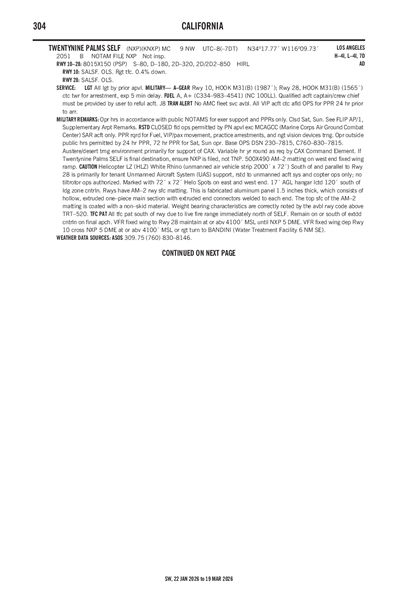

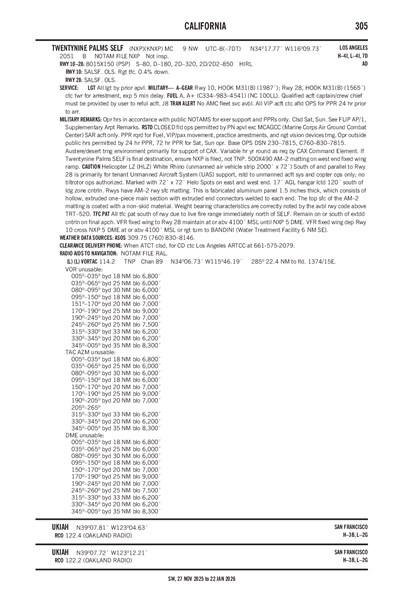

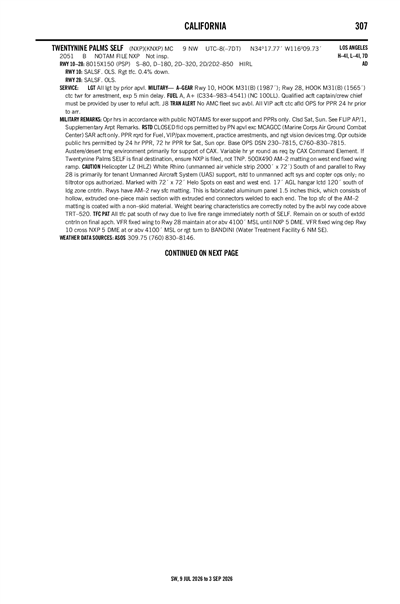

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

KNXP
Thu, 1/8 12:51 AM PST
Thu, 1/8 1:00 AM PST - Fri, 1/9 1:00 AM PST
VFR
1:00 AM PST - 7:00 AM PST
Sky Clear
6sm
29.88"Hg
300° 6kts
Moderate, Clear Air, Occasional: 9,000 - 14,000'
Moderate, Clear Air, Occasional: 9,000 - 9,000'
VFR
Becoming 7:00 AM PST - 9:00 AM PST
Sky Clear
6sm
29.97"Hg
290° 10kts
Gusts 20kts
Moderate, Clear Air, Occasional: 9,000 - 14,000'
Moderate, Clear Air, Occasional: 9,000 - 9,000'
VFR
9:00 AM PST - 4:00 PM PST
Sky Clear
6sm
30.00"Hg
290° 20kts
Gusts 30kts
Moderate, Clear Air, Occasional: 9,000 - 9,000'
Moderate, Clear Air, Occasional: 9,000 - 14,000'
VFR
Temporary 10:00 AM PST - 4:00 PM PST
No Clouds
N/A
290° 30kts
Gusts 40kts
VFR
Becoming 4:00 PM PST - 1:00 AM PST
Sky Clear
6sm
30.06"Hg
310° 18kts
Gusts 25kts
Moderate, Clear Air, Occasional: 9,000 - 9,000'
Moderate, Clear Air, Occasional: 9,000 - 14,000'
TAF KNXP 0809/0909 30006KT 9999 SKC 520009 520905 521809 522709 QNH2989INS
   BECMG 0815/0817 29010G20KT 9999 SKC 520009 520905 521809 522709 QNH2997INS
   FM081700 29020G30KT 9999 SKC 520009 520905 521809 522709 QNH3001INS
   TEMPO 0818/0900 29030G40KT
   BECMG 0900/0902 31018G25KT 9999 SKC 520009 520905 521809 522709 QNH3005INS TX13/0823Z TN06/0815Z
KNXP
EffectiveExpiresCategoryNOTAM
Military
1/5/26
2352Z
4/3/26
2359Z
RunwayRWY 10/28 ARRESTING GEAR NOT AVAILABLE AT THE SELF OUTSIDE OF SLTE
1/5/26
2350Z
1/8/26
2350Z
M0002/26 NOTAMC M0001/26
10/30/25
0519Z
1/30/26
2359Z
Apron!KNXP M0035/25 NXP APRON HELO RAMP CLSD (EAST RAMP) TO ALL FIXED WING AND MV-22 OPERATIONS DUE TO CURRENT SURFACE CONDITIONS. ROTARY WING OPERATIONS STILL PERMITTED. 2510300519-2601302359
No
ALL
OPR HRS IAW PUBL NOTAMS FOR EXER SPT AND PPRS ONLY. SEE FLIP AP/1 SUPPLEMENTARY ARPT RMK.
US NAVY
OCEANOGRAPHIC OFC CODE 3142
WASHINGTON, DC 20373
N/A
RIVERSIDE FSS (RAL)
Toll Free: 1-800-WX-BRIEF
NXP
--
ALL LGTG BY PRIOR APVL.
ALL LGTG BY PRIOR APVL.
N/A
Yes
No
No
None
No
None
None
None
None
None

Runway 10/28

8015 ft. x 150 ft.

PSP
NONE
HIGH

80,000lbs
180,000lbs
320,000lbs
850,000lbs
  Runway 10 Runway 28
True Heading 112°292°
Traffic Pattern Right Left
Markings
Markings Condition
Latitude 34° 18' 01"N 34° 17' 31"N
Longitude 116° 10' 28"W 116° 08' 59"W
Elevation 2,051' 2,018'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights SALSF SALSF
Centerline Lights
Runway End Identifier Lights No No
A110-10RSTD: CLSD FLD OPR PERM BY PN APVL EXC MCAGCC SAR ACFT. PPR REQ FOR FUEL, VIP/PAX MOVEMENT, PRACTICE ARRESTMENTS, AND NVD TRNG. OPR OUTSIDE PUBL HR PERMS 24 HR PPR AND 72 HR PPR SAT AND SUN. BASE OPS DSN 230-7815,C760-830-7815.
A110-16LGT: ALL LGT BY PRIOR APVL.
A110-17A-GEAR: RWY 10, HOOK M31(B) (1987'); RWY 28, HOOK M31(B) (1565'); CTC TWR FOR ARRESTMENT, EXP 5 MIN DELAY.
A110-18FUEL: QUALIFIED ACFT CAPTAIN/CREW CHIEF MUST BE PROVIDED BY USER TO REFUL ACFT. J8.
A110-19TRAN ALERT: NO AMC FLEET SVC AVBL. ALL VIP ACFT CTC AIRFIELD OPS FOR PPR 24 HOURS PRIOR TO ARR.
A110-27CAUTION: HELICOPTER LZ (HLZ) WHITE RHINO (UAS STRIP 2000' X 72') S OF AND PARALLEL TO RWY 28 IS PRIM FOR TENANT UAS SUPPORT, RSTD TO UAS AND COPTER OPS ONLY; NO TILTROTOR OPS AUTH. MRKD WITH 72' X 72' HELO SPOTS ON E AND W END. 17' AGL HGR LCTD 120 FT S OF LZ CNTRLN.
A110-28CAUTION: RYS HAVE AM-2 RY SFC MATTING. THIS IS FABRICATED ALUMINUM PANEL 1.5" THICK, WHICH CONSISTS OF HOLLOW, EXTRUDED, ONE-PIECE MAIN SEC WITH EXTRUDED END CONNECTORS WELDED TO EA END. THE TOP SFC OF AM-2 MATTING IS COATED WITH A NON-SKID MATERIAL.
A110-29CAUTION: THE TOP SFC OF AM-2 MATTING IS COATED WITH A NON-SKID MATERIAL. WT BRG CHARACTERISTICS ARE CORRECTLY NOTED BY THE AVBL RWY CODE ABV TRT520.
A110-30TFC PAT: ALL TFC PAT S OF RWY DUE TO LIVE FIRE RANGE IMMEDIATELY N OF SELF. REMAIN ON OR S OF EXTN RWY CNTRLINE ON FINAL APCH. VFR F/W TO RWY 28 MAINTAIN AT OR ABV 4100' MSL UNTIL NXP 5 DME. VFR F/W DEPARTURES RWY10 CROSS NXP 5 DME AT OR ABV 4100' MSL OR RIGHT TURN TO BANDINI (WATER TREATMENT FACILITY 6 NM SE).
A110-33BEARING STRENGTH RWY 10/28: S80 T180 ST175 TT320 TDT850 TRT520.
A110-34MISC: CLASS D AIRSPACE EFF NOTAM ONLY, OT CLASS G.
A110-35500 FT BY 490 FT AM-2 MATTING ON WEST END F/W RAMP.
A110-36WHEN ATCT CLSD, FOR CD CTC LOS ANGELES ARTCC AT 661-575-2079.
A110-7RSTD: AUSTERE/ DESERT TRNG ENVIRONMENT PRIM FOR SUPPORT OF CAX. VARIABLE HR YR ROUND AS REQ BY CAX COMD ELEMENT. IF TWENTYNINE PALMS SELF IS FINAL DESTN, ENSURE NXP IS FILED, NOT TNP.
TWENTYNINE PALMS SELF (ICAO: KNXP, IATA: NXP) is a private airport located in TWENTYNINE PALMS, CA.
