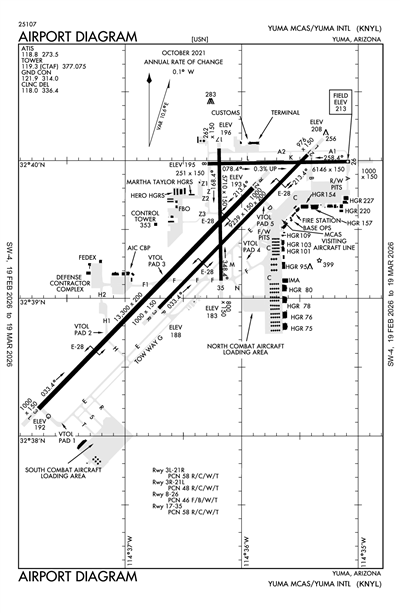

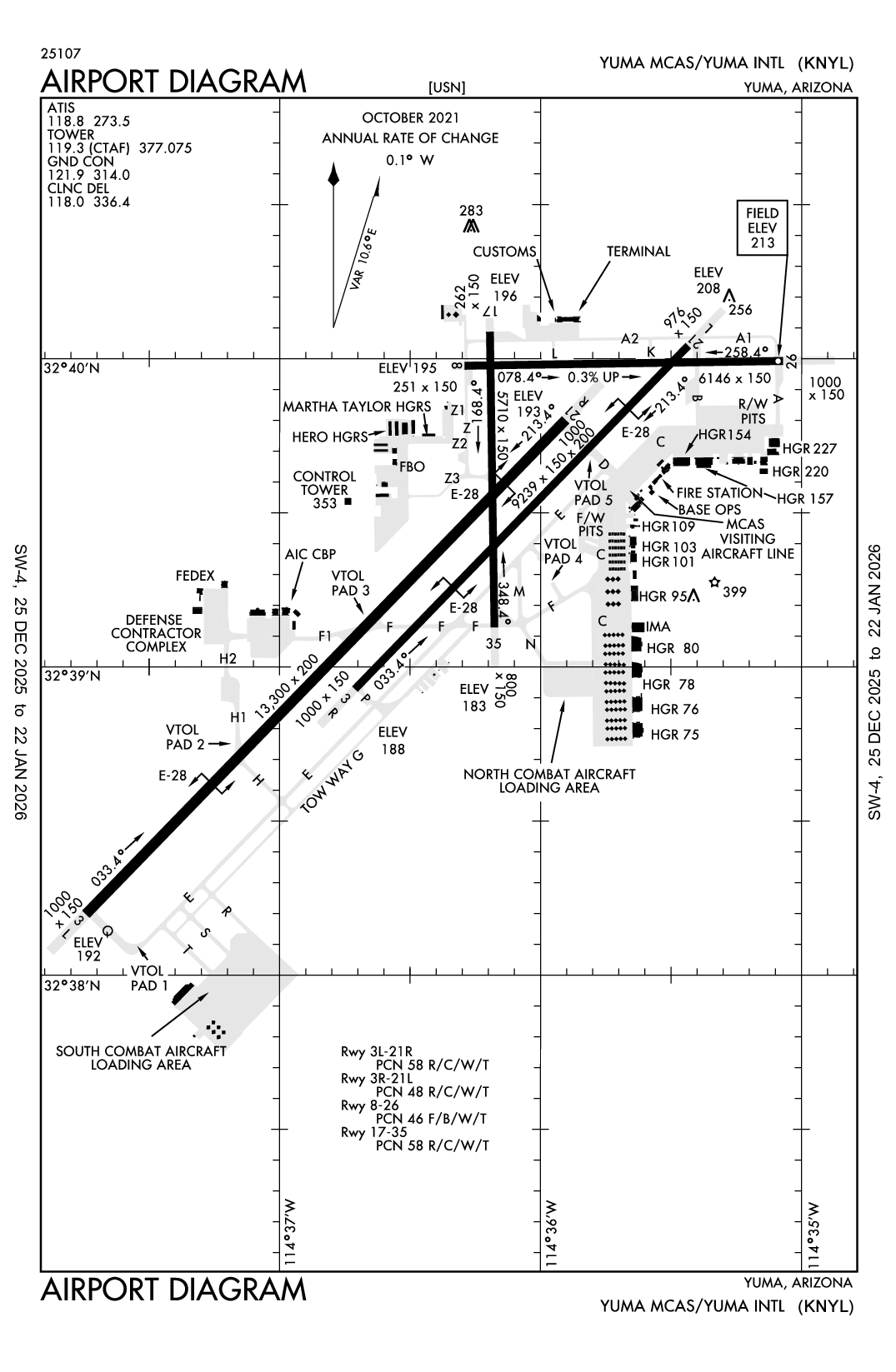

YUMA MCAS/YUMA INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KNYL
ICAO KNYLIATA YUMLocal NYL
YUMA MCAS/YUMA INTL
PublicPUB

3 miles S of YUMA, AZ, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
32° 39' 24"N 114° 36' 22"W
Elevation
213' MSL
Pattern Alt
1213' MSL
Mag Variation
10°E
Declination
13°E
Fuel
JET A, JET A (FSII), 100
FSS
PRESCOTT (PRC)
Sectional
PHOENIX
ARTCC
LOS ANGELES (ZLA)
Data Effective
3/19/26-4/16/26
KNYL VFR
11:57 PM MST
Clear
10sm
67°F
26°F
29.93"Hg
Calm
AO2 SLP134 T01941033 403220167 $
METAR KNYL 050657Z AUTO 00000KT 10SM CLR 19/M03 A2993 RMK AO2 SLP134 T01941033 403220167 $
+ Add Your Business

KNYL FBOs

Promote Listing
Million Air Yuma
UNICOM: 131.225
Phone: (928) 247-9571
No Rating Available
0 Reviews (Read | Sign In To Write)
World Fuel
As of 3/16
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 5.03 6.87
Full Serve 7.38 7.47
Fuel Notes
Prices include tax
Radio 131.225 or call ahead for availability and pricing of fuel.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 118.8
ASOS YUMA IN SUPPORT OF TRAINING FOR AVIATION OPERATIONS ABOARD MCAS YUMA.; NWS PHX SERVES YUMA.; ASOS TO PROVIDE LOCAL USE DATA FOR USMC TRAINING PURPOSES.; ASOS INSTALLED AT AUXILIARY LANDING FIELD BY USMC.

Common

CTAF 119.3
WHEN ATCT CLSD ACTVT HIRL RWY 08/26 & 17/35; TWYS A, A1, A2, B, C, L, Z - CTAF.
UNICOM 122.95

Ground

YUMA GROUND 121.9
1430-0600Z DLY, CLSD HOL. MIL AVN OPS NOT AUTHORIZED 1430-1500Z DLY DUE TO AFLD MAINT.

Tower

YUMA TOWER 119.3
1430-0600Z DLY, CLSD HOL. MIL AVN OPS NOT AUTHORIZED 1430-1500Z DLY DUE TO AFLD MAINT.

Center

YUMA CENTER 118.0
HIGH, USE: CD/P.; APCH CTL SVC PRVVD BY YUMA CERAP ON 124.7/371.975 (YUMA RCAG). DEP CTL SVC PRVDD BY YUMA CERAP ON 125.5/282.325 (YUMA/A RCAG).
YUMA CENTER 124.7
LOW/HIGH, USE: APCH/P; VFR ADVISORY.; APCH CTL SVC PRVVD BY YUMA CERAP ON 124.7/371.975 (YUMA RCAG). DEP CTL SVC PRVDD BY YUMA CERAP ON 125.5/282.325 (YUMA/A RCAG).
YUMA CENTER 125.55
LOW/HIGH, USE: DEP/P.; APCH CTL SVC PRVVD BY YUMA CERAP ON 124.7/371.975 (YUMA RCAG). DEP CTL SVC PRVDD BY YUMA CERAP ON 125.5/282.325 (YUMA/A RCAG).

Flight Service

Flight Service 122.2
(PRC)

Emergency

Emergency 121.5

Military

PMSV METRO 120.7
PMSV METRO 120.725

Terminal Area Forecast

KNYL
Sat, 4/4 9:00 PM MST
Sat, 4/4 8:00 PM MST - Sun, 4/5 8:00 PM MST
VFR
8:00 PM MST - 3:00 AM MST
Sky Clear
6sm
29.91"Hg
340° 8kts
VFR
Becoming 3:00 AM MST - 11:00 AM MST
Sky Clear
6sm
29.91"Hg
020° 5kts
VFR
11:00 AM MST - 8:00 PM MST
Sky Clear
6sm
29.85"Hg
320° 5kts
TAF KNYL 050400Z 0503/0603 34008KT 9999 SKC QNH2992INS
   BECMG 0510/0512 02005KT 9999 SKC QNH2992INS
   FM051800 32005KT 9999 SKC QNH2985INS TX34/0522Z TN16/0513Z
KNYL
EffectiveExpiresCategoryNOTAM
Domestic
4/4/26
1646Z
8/2/26
1646Z
!NYL 04/003 NYL OBST TOWER LGT (ASR 1216332) 324548.50N1145017.40W (13.5NM WNW NYL) 544.0FT (317.9FT AGL) U/S 2604041646-2608021646
4/4/26
0232Z
5/19/26
0232Z
!NYL 04/002 NYL OBST TOWER LGT (ASR 1295464) 323930.00N1144232.80W (5.2NM W NYL) 204.1FT (90.2FT AGL) U/S 2604040232-2605190232
4/3/26
0526Z
4/18/26
0426Z
!NYL 04/001 NYL OBST TOWER LGT (ASR 1269979) 323551.70N1144005.40W (4.7NM SW NYL) 280.8FT (107.9FT AGL) U/S 2604030526-2604180426
3/11/26
2255Z
9/30/26
0600Z
!NYL 03/016 NYL AIRSPACE SEE BZA 03/047 UAS 2603112255-2609300600
3/9/26
1854Z
12/31/26
2359Z
Runway!NYL 03/011 NYL RWY 35 RWY END ID LGT U/S 2603091854-2612312359
3/2/26
1532Z
12/31/26
2359Z
Runway!NYL 03/001 NYL RWY 17 PAPI U/S 2603021532-2612312359
2/24/26
1600Z
12/31/27
1430Z
Runway!NYL 02/037 NYL RWY 03L/21R CLSD EXC MIL ACFT, MED EVAC, PART 121 OPS, 24HR PPR 928-941-2396 FOR PART 91 AND PART 135 OPS 2602241600-2712311430
2/19/26
1509Z
12/31/26
2359Z
Runway!NYL 02/028 NYL RWY 17/35 CLSD EXC TAX 2602191509-2612312359
2/11/26
1644Z
12/31/26
2359Z
Runway!NYL 02/020 NYL RWY 08/26 CLSD TO E75L AND E75S ACFT 2602111644-2612312359
2/11/26
1513Z
12/31/27
1430Z
Runway!NYL 02/017 NYL RWY 03R/21L CLSD EXC MIL ACFT, MED EVAC, PART 121, 24HR PPR 928-941-2396 FOR PART 91 AND PART 135 2602111513-2712311430
Military
4/9/26
2300Z
4/9/26
2330Z
LARGE CONCENTRATION OF LOALT MIL ACFT OPS WI MCAS YUMA CL D SPC AREA. NON-PTCP ACFT EXP DLYS OR RESTRICTIONS TO REQ OPS.
4/9/26
2200Z
4/9/26
2245Z
LARGE CONCENTRATION OF LOALT MIL ACFT OPS WI MCAS YUMA CL D SPC AREA. NON-PTCP ACFT EXP DLYS OR RESTRICTIONS TO REQ OPS.
4/8/26
1330Z
4/9/26
0001Z
RANGE 5 FACILITY LOCATED WITHIN THE R-2301W. EOD OPERATIONS WILL HAVE A VERTICAL HAZARD UP TO 2000 FT AGL AND WITHIN 1000 METER RADIUS OF CENTERPOINT MGRS 11S QR 36882 95590, LAT/LONG N 32.472321 W -114.479461, APPROXIMATELY 14.5 NM SOUTHEAST OF MCAS YUMA. EOD WILL BE CONDUCTING TRAINING ON APRIL 8TH, 2026. POC: MSGT PAWLOSKI 928-269-2788 ALTERNATE POC: LEG IRON 269-7080.
4/6/26
1430Z
4/12/26
0600Z
M-31 GEAR ON RWY 21R/3L WILL BE DERIGGED AND ONLY RIGGED FOR PLANNED/EMERG ARRESTMENTS FOR WTI.
4/5/26
1430Z
4/6/26
0600Z
WIP MEN & EQUIP LCTD 6000FT FR APCH END OF RWY 3L.
4/5/26
0700Z
4/9/26
0600Z
CRANE 90FT AGL.7SM ENE RWY 21 APCH.
4/4/26
1415Z
4/5/26
0600Z
SVC TWR OPN CLASS D SVC AVBL.
3/23/26
1430Z
4/25/26
0600Z
CAUTION; HIGH VOLUME OF MILITARY ACFT IN THE VICINITY OF MCAS YUMA. HIGH VOLUME OF MILITARY ACFT TRANSITING BETWEEN R-2507/CHOCOLATE MOUNTAIN AERIAL GUNNERY RANGE AND MCAS YUMA/YUMA INTERNATIONAL AIRPORT TO INCLUDE LOW ALTITUDE AIRCRAFT OPERATING IVO THE VR-1266, VR-1267, VR-1267A AND VR-1268 MILITARY TRAINING ROUTES. AIRCRAFT USING THESE ROUTES SHOULD MAKE AN ADVISORY CALL ON THE HELO TACS COMMON FREQUENCY 263.65 PRIOR TO ENTRY AT POINT A.
3/21/26
1430Z
4/30/26
0600Z
IMA RAMP RESERVED FOR WTI
3/21/26
1430Z
4/30/26
0600Z
TaxiwayTWY N CLSD. ARRIVALS/DEPARTURES AUTHORIZED FOR SMALL HELICOPTERS ONLY.
3/18/26
1729Z
4/20/26
1430Z
THE YUMA 1 DEPARTURE ROUTE DESCRIPTION FOR RUNWAY 21L AND 21R IS MISSING. TAKEOFF RWY 21L/21R: CLIMBING RIGHT TURN TO 340° TO 2100 THENCE. "TAKEOFF RWY 26: CLIMBING RIGHT TURN HEADING 300° TO 3300 THENCE."
1/22/26
1430Z
4/20/26
1430Z
THE MOHAK 5, PICACHO 5, AND ARGUS 5 SIDS HAVE ALL BEEN TERMINATED AND REPLACED BY THE YUMA 1 DEPARTURE. THE HEEDS 3, AND CARGO 1 NON-RADAR DEPARTURES HAVE BEEN TERMINATED AND REPLACED BY THE BARD 1 NON-RADAR DEPARTURE
1/22/26
1430Z
4/20/26
1430Z
THE BARD 1 DEPARTURE ROUTE DESCRIPTIONS FOR RUNWAY 21L, 21R AND 26 ARE INCORRECT. THEY SHOULD READ: ?CLIMB TO 800, THEN CLIMBING RIGHT TURN DIRECT BZA VORTAC?
Yes
ALL
MIL AVN OPS NA 1430-1500Z DLY. VAL/TRANS SVC ABVL MON-FRI 1500-0600Z, CLSD SAT-SUN, HOL.
USMC & YUMA CO ARPT AUTH
2356 E O'NEILL ST, BLDG 153
YUMA, AZ 85369
Phone: 928-269-3327
GREGORY MCSHANE
2356 E O'NEILL ST, BLDG 153
YUMA, AZ 85369
Phone: 928-269-3327
PRESCOTT FSS (PRC)
Toll Free: 1-800-WX-BRIEF
NYL
--
WHEN ATCT CLSD ACTVT HIRL RWY 08/26 & 17/35; TWYS A, A1, A2, B, C, L, Z - CTAF.
N/A
Yes - Lighted
No
No
Tie-Down
NOT a Landing Rights Airport
Airport of Entry
Minor
Minor
High & Low Pressure
High & Low Pressure
Air Freight
Air Ambulance
Avionics
Charter Service
Pilot Instruction
Aircraft Rental

Runway 03L/21R

13300 ft. x 200 ft.
CONC
Good
NONE
HIGH
58/R/C/W/T
103,000lbs
200,000lbs
400,000lbs
--
  Runway 03L Runway 21R
True Heading 44°224°
Traffic Pattern Right Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 32° 38' 12"N 32° 39' 47"N
Longitude 114° 37' 46"W 114° 35' 58"W
Elevation 193' 193'
Threshold Crossing Height 53 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights No No
Runway End Identifier Lights Yes

Runway 03R/21L

9240 ft. x 150 ft.
ASPH CONC
Good
NONE
HIGH
48/R/C/W/T
162,000lbs
200,000lbs
400,000lbs
--
  Runway 03R Runway 21L
True Heading 44°224°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 32° 38' 55"N 32° 40' 01"N
Longitude 114° 36' 45"W 114° 35' 30"W
Elevation 188' 208'
Threshold Crossing Height 50 ft. AGL 51 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes

Runway 08/26

6146 ft. x 150 ft.
ASPH
Good
NONE
HIGH
46/F/B/W/T
63,000lbs
137,000lbs
206,000lbs
--
  Runway 08 Runway 26
True Heading 89°269°
Traffic Pattern Right
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 32° 39' 57"N 32° 39' 58"N
Longitude 114° 36' 20"W 114° 35' 08"W
Elevation 195' 213'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 17/35

5710 ft. x 150 ft.
ASPH CONC
Good
NONE
HIGH
58/R/C/W/T
72,000lbs
171,000lbs
255,000lbs
--
  Runway 17 Runway 35
True Heading 179°359°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 32° 40' 04"N 32° 39' 07"N
Longitude 114° 36' 15"W 114° 36' 14"W
Elevation 196' 182'
Threshold Crossing Height 40 ft. AGL --
Visual Glide Path Angle 3° --
Visual Slope Indicator P4L --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No Yes
A110-10CTN: JOINT USE CIVIL/MIL ARPT; GEN AVN & ACR OPR VFR ENTER ATA AT 1200 FT WHEN ASGN RWY 08/26 OR 17/35.
A110-11HEL ENTER ARPT TFC AREA AT TFC PAT ALT 1200 FT THEN DESCEND TO 700 FT PRIOR TO ALL RWYS.
A110-12PART 77 OBSTRNS-RADAR TWR E, POLES NEAR RWY 17.
A110-2CTN: TFC PAT RWY 03L/R & 21L/R OVERLAP TFC PAT RWY 08/26 & 17/35.
A110-22JASU: 1(NC-10) 1(NCPP-105)
A110-23FLUID: LOX LHNIT LPOX
A110-24FUEL - F-24(MIL)-AVBL O/R FOR SHIPBOUND ACFT. F-24(MIL). A, A+ (FBO: 928-247-9571; 131.225, AVBL MON-FRI 1300-0400Z, SAT-SUN 1300-0100Z, OT 1 HR MIN PN). (NC-100).
A110-25OIL - O-156
A110-27RSTD: FLT CLNC MANNED DURG MIL OPS HR - D269-2326/2323/2077, C928-269-2326/2323/2077. TSNT 24 HR PPR - D269-2445/2760, C928-269-2445/2760. AV8B VSTOL TRNG TO RWY 03/21 MAY HAVE PRIORITY MON-FRI OVER MIL PRAC APCH.
A110-29MIL USE: ILS RADAR; SEE TERMINAL FLIP FOR RADAR MINIMA.
A110-3976 FT STWY RWY 03R; 1000 FT STWY RWY 21L; 1000 FT STWY RWY 03L; 1000 FT STWY RWY 21R; 1000 FT STWY RWY 08; 251 FT STWY RWY 26; 800 FT STWY RWY 17; 262 FT STWY RWY 35.
A110-3124 HR PPR FOR ALL TSNT FR VAL C928-269-2445, D269-2445. 24 HR PPR ALL TSNT UTILIZING MIL RAMP; D951-2445/2760, C928-269-2445/2760. MIL ACFT REQ TO RWY 03/21 MAY HAVE PRIORITY MON-SAT OVER PRACTICE APCHS.
A110-34MILITARY USE: VHF/DF
A110-35MISC: AMBULANCE OPS BTN 0500-1300Z NEEDING GND ACCESS - CIVIL ARPT AUTH C928-941-2396 OR 376-5868.
A110-36US CUSTOMS PORT OF ENTRY - 928-344-9572 OR 928- 314-1295.
A110-37CIVIL ARPT OPS - 928-726-5882 EXTN 2161 OR 928-941-2396
A110-41TWY A2 PCN 33/F/B/W/T, TWY K PCN 30/G/B/W/T, TWY L PCN 33/F/B/W/T, TWY Z PCN 33/F/B/W/T
A110-42ROTARY WING ACFT RECOVERY NA TO VTOL PAD-4.
A110-47CTN: AVOID OVFT MEXICAN BORDER 7 NM W, JET TRNG OPS INVOF. HIGH VOLUME LCL AREA OPS ON UHF; VHF OPS EXER CTN & STRICT COMPLIANCE TO ATC INSTR.
A110-48AVOID OVFT OF MCAS YUMA INFRASTRUCTURE E OF MAIN APRON.
A110-50OPS HR APPLIES TO MIL INCLG YUMA INTL & FBO; AFT HR TWO WEEK PPR IN WRITING - 928-269-3327/D269-3327.
A110-51FOD RSTRN: HVY/WIDE BODY ARR/DEP RWY 03L/21R ONLY; MCAS YUMA S MAIN PRKG APN/VAL BACK TAX RWY 03L/21R THEN TWY D; YUMA INTL/MILLION AIR YUMA FBO DEF CONTRR CMPLX PRKG APN BACK TAX RWY 03L/21R THEN TWY H1 OR F1. OTR RWY OR TWY NA. HVY/WIDE BODY ENG RUNUPS ON RWY NA EXC USAF 1/2.
A110-52ARFF NA AFT OPS HR EXC SKED PART 121 ACR.
A110-53FOR CD CTC YUMA CERAP AT 928-269-9569.
A110-55F/W, R/W & F35 RAPID RFL HOT PIT AVBL DURG ATCT HR WITH 24 HR PPR - 928-247-9571 OR 131.225; 2 ACFT SIMUL OPS AVBL; ADZ ATC & PROCD TO S RAMP OFF TWY Z3.
A110-56MCAS BASE OPS - D269-7050/2077. MIL OPS 1430-0600Z DLY; CLSD HOL.
A110-6GEN AVN & ACR VFR DEP FLY RWY HDG MNTN 1200 FT UNTIL OUTSIDE ATA UNLESS OTRW APVD BY TWR.
A110-8MIL JET OPS FM 4000-3000 FT MSL DESCENDING TO 1700 FT MSL WI 6 NM SW STRAIGHT-IN RWY 03L & 03R & WI 6 NM NE STRAIGHT-IN RWY 21R & 21L.
A14GLADYS BROWN
A16ALT: 928-726-5882. MIL APCH SUPERVISOR - 928-269-2326.
A17-H6MIL AVN OPS NA 1430-1500Z DLY. VAL/TRANS SVC ABVL MON-FRI 1500-0600Z, CLSD SAT-SUN, HOL.
A58-0818 FT WINDSOCK 130 FT L OF RWY END.
A58-1717 FT WINDSOCK 140 FT L 100 FT FM END.
A58-3514 FT WINDSOCK 110 FT L 90 FT FM RWY END .
A70-100ON CALL H24.
A76-AFRTINSTR FREQ 123.30.
A81-APTWHEN ATCT CLSD ACTVT HIRL RWY 08/26 & 17/35; TWYS A, A1, A2, B, C, L, Z - CTAF.
E111ESTABLISHED PRIOR TO 5/15/59.
E147TPA RWY 03L/R RIGHT TRAFFIC 1700 FT; RWY 21L/R LEFT TRAFFIC 1700FT. INITIAL ALT FOR OVERHEAD 4000 FT 6NM. INITIAL ALT FOR STRAIGHT-IN 3000 FT 6NM. COPTER - 700 FT FOR ANY RWY.
E60-03L_E28HOOK E28(B) (3495 FT)
E60-03R_E28HOOK E28(B) (2725 FT)
E60-21L_E28HOOK E28(B) (1675 FT)
E60-21R_E28HOOK E28(B) (1699 FT)
YUMA MCAS/YUMA INTL (ICAO: KNYL, IATA: NYL) is a public airport located in YUMA, AZ, US.
