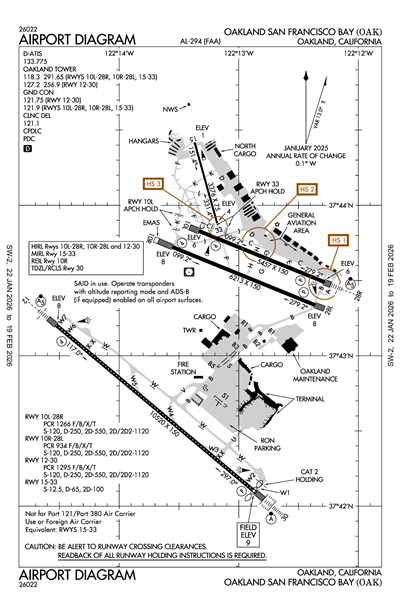

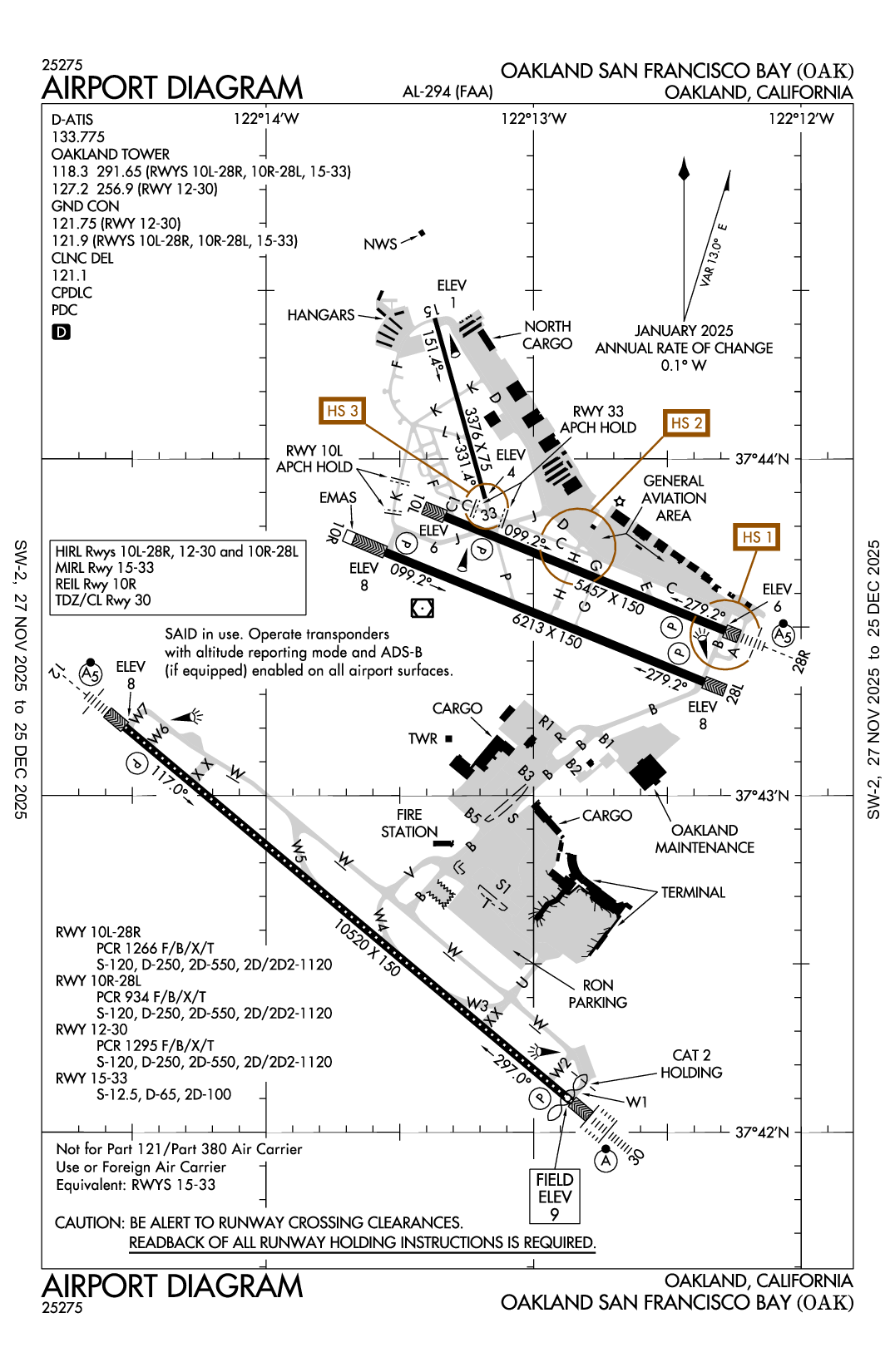

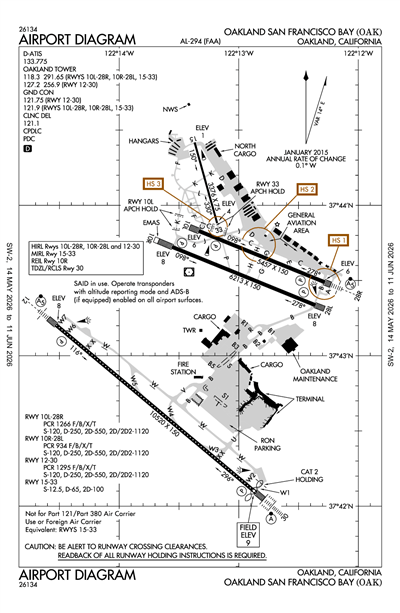

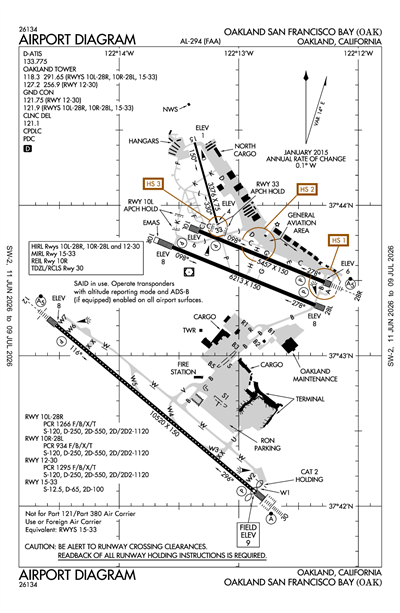

OAKLAND SAN FRANCISCO BAY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KOAK
ICAO KOAKIATA OAKLocal OAK
OAKLAND SAN FRANCISCO BAY
PublicPUB

4 miles S of OAKLAND, CA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
37° 43' 17"N 122° 13' 16"W
Elevation
9' MSL
Pattern Alt
1009' MSL
Mag Variation
13°E
Declination
14°E
Fuel
JET A, 100LL
FSS
OAKLAND (OAK)
Sectional
SAN FRANCISCO
ARTCC
OAKLAND (ZOA)
Data Effective
10/1/26-10/29/26
KOAK VFR
9:53 PM PDT
Broken 8,000'
Scattered 2,400'
Few 1,100'
10sm
59°F
54°F
29.97"Hg
300° 7kts
AO2 SLP147 T01500122 $
METAR KOAK 230453Z 30007KT 10SM FEW011 SCT024 BKN080 15/12 A2997 RMK AO2 SLP147 T01500122 $
+ Add Your Business

KOAK FBOs

Promote Listing
KaiserAir
UNICOM: 129.75
Phone: (510) 569-9622
No Rating Available
0 Reviews (Read | Sign In To Write)
World Fuel
As of 10/21
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 8.59 8.69 8.78
Fuel Notes
Prices include tax
Promote Listing
Signature Aviation
ASRI: 130.575
Phone: (510) 633-1266
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 10/21
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 8.45 9.22
Fuel Notes
Prices include tax
Clear 4 Take Off
Phone: (954) 415-9065
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

Digital ATIS 133.775
(510) 635-5850
ASOS (510) 214-1776

Common

UNICOM 122.95

Clearance

Clearance Delivery 121.1

Ground

OAKLAND GROUND 121.75
RWY 12/30
OAKLAND GROUND 121.9
RWY 10L/28R, 10R/28L, 15/33

Tower

OAKLAND TOWER 118.3
RWY 10L/28R, 10R/28L, 15/33
OAKLAND TOWER 127.2
RWY 12/30
OAKLAND TOWER 124.9
Secondary

Arrival

AANET STAR 125.35
EMZOH STAR 124.525
OAKES STAR 124.8
PANOCHE STAR 124.525
WNDSR STAR 120.9

Approach

NORCAL APPROACH 125.35
Initial Contact - EAST
NORCAL APPROACH 125.35
Initial Contact - RWY 28L/R
NORCAL APPROACH 128.325
NORCAL APPROACH 135.1
WEST
NORCAL APPROACH 133.95
Secondary
NORCAL APPROACH 134.5
Secondary

Departure

CNDEL DP 135.1
COAST DP 135.1
HUSSH DP 120.9
KATFH DP 135.1
MARINA DP 120.9
NIMITZ DP 127.0
NORCAL DEPARTURE 120.9
NW
NORCAL DEPARTURE 135.1
WEST
NUEVO DP 135.1
OAKLAND DP 120.9
QUAKE DP 135.1
SALAD DP 120.9
SCAGGS ISLAND DP 120.9
SILENT DP 120.9
SKYLINE DP 135.1
SUNNE DP 135.1

Other

CLASS C 120.9
NW
CLASS C 125.35
EAST
CLASS C 127.0
NORTH
CLASS C 133.95
SOUTH
CLASS C 135.1
WEST

Terminal Area Forecast

KOAK
Thu, 10/22 8:02 PM PDT
Thu, 10/22 8:00 PM PDT - Fri, 10/23 11:00 PM PDT
MVFR
8:00 PM PDT - 11:00 PM PDT
Showers in vicinity
Broken 1,500'
Scattered 1,300'
6sm
280° 13kts
MVFR
11:00 PM PDT - 3:00 AM PDT
Overcast 1,500'
6sm
270° 8kts
MVFR
3:00 AM PDT - 10:00 AM PDT
Overcast 1,200'
6sm
130° 4kts
VFR
10:00 AM PDT - 2:00 PM PDT
Scattered 2,000'
6sm
290° 5kts
VFR
2:00 PM PDT - 8:00 PM PDT
Sky Clear
6sm
290° 10kts
VFR
8:00 PM PDT - 11:00 PM PDT
Few 2,500'
6sm
310° 5kts
TAF KOAK 230302Z 2303/2406 28013KT P6SM VCSH SCT013 BKN015
   FM230600 27008KT P6SM OVC015
   FM231000 13004KT P6SM OVC012
   FM231700 29005KT P6SM SCT020
   FM232100 29010KT P6SM SKC
   FM240300 31005KT P6SM FEW025
KOAK
EffectiveExpiresCategoryNOTAM
Domestic
10/22/26
2257Z
1/22/27
2359Z
!OAK 10/260 OAK OBST TOWER LGT (ASR 1023253) 374736.00N1222451.00W (10.2NM WNW OAK) 703.7FT (358.3FT AGL) U/S 2610222257-2701222359
10/22/26
1042Z
10/23/26
1042Z
Runway!OAK 10/256 OAK RWY 33 FICON 5/5/5 100 PCT WET OBS AT 2610221042. 2610221042-2610231042
10/22/26
1041Z
10/23/26
1041Z
Runway!OAK 10/255 OAK RWY 28R FICON 5/5/5 100 PCT WET OBS AT 2610221041. 2610221041-2610231041
10/22/26
1041Z
10/23/26
1041Z
Runway!OAK 10/254 OAK RWY 28L FICON 5/5/5 100 PCT WET OBS AT 2610221040. 2610221041-2610231041
10/22/26
1040Z
10/23/26
1040Z
Runway!OAK 10/253 OAK RWY 30 FICON 5/5/5 100 PCT WET OBS AT 2610221040. 2610221040-2610231040
10/22/26
0027Z
!OAK 10/250 OAK COM REMOTE COM OUTLET 122.5 DECOMMISSIONED 2610220027-PERM
10/14/26
0533Z
10/30/26
0001Z
!OAK 10/166 OAK TWY B1 EDGE MARKINGS NOT STD 2610140533-2610300001
10/14/26
0532Z
10/30/26
0001Z
!OAK 10/165 OAK TWY B1 CL MARKINGS NOT STD 2610140532-2610300001
10/12/26
1728Z
11/2/26
2359Z
!OAK 10/141 OAK TWY B1 CL MARKINGS FOR TXL B1 NOT STD 2610121728-2611022359
10/12/26
1507Z
11/2/26
2359Z
!OAK 10/139 OAK TWY W2 SFC PAINTED HLDG PSN SIGNS NOT STD 2610121507-2611022359
10/8/26
1828Z
12/11/26
0001Z
!OAK 10/089 OAK TWY B HLDG PSN MARKINGS BTN TWY A AND APCH END RWY 28L NOT STD 2610081828-2612110001
10/8/26
1820Z
12/10/26
0001Z
!OAK 10/088 OAK TWY P HLDG PSN MARKINGS AT RWY 28L NOT STD 2610081820-2612100001
10/2/26
1541Z
!OAK 10/012 OAK SVC PCL RWY 28R PAPI U/S 2610021541-2610302359EST
7/22/26
2338Z
12/31/26
2359Z
!OAK 07/282 OAK OBST TOWER LGT (ASR 1056741) 374932.70N1221843.60W (7.7NM NW OAK) 219.2FT (213.9FT AGL) U/S 2607222338-2612312359
7/22/26
2338Z
12/31/26
2359Z
!OAK 07/281 OAK OBST TOWER LGT (ASR 1056742) 374933.90N1221841.00W (7.7NM NW OAK) 219.2FT (214.9FT AGL) U/S 2607222338-2612312359
7/22/26
2336Z
12/31/26
2359Z
!OAK 07/279 OAK OBST TOWER LGT (ASR 1056743) 374935.10N1221838.40W (7.7NM NW OAK) 219.2FT (216.9FT AGL) U/S 2607222336-2612312359
6/20/26
0349Z
11/6/26
2359Z
!OAK 06/215 OAK OBST CRANE (ASN UNKNOWN) 374128N1221101W (1.6NM SE OAK)
145FT (140FT AGL) FLAGGED AND LGTD 2606200349-2611062359
FDC
10/23/26
1700Z
!FDC 6/1734 OAK SID OAKLAND SAN FRANCISCO BAY, OAKLAND, CA.
SILENT THREE DEPARTURE ...
PROCEDURE NA. SFO VOR/DME OUT OF SERVICE 2610231700-2610232000EST
10/23/26
1700Z
!FDC 6/1733 OAK IAP OAKLAND SAN FRANCISCO BAY, OAKLAND, CA.
VOR RWY 10R, AMDT 10A...
DME REQUIRED EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
SFO VOR/DME OUT OF SERVICE. 2610231700-2610232000EST
10/20/26
1404Z
!FDC 6/0679 OAK SID OAKLAND SAN FRANCISCO BAY, OAKLAND, CA.
NIMITZ SIX DEPARTURE ...
DEPARTURE PROCEDURE LOST COMMUNICATIONS NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
SAU VOR/DME OUT OF SERVICE. 2610201404-2610302000EST
10/20/26
1403Z
!FDC 6/0678 OAK SID OAKLAND SAN FRANCISCO BAY, OAKLAND, CA.
NUEVO EIGHT DEPARTURE ...
DEPARTURE PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
SAU VOR/DME OUT OF SERVICE. 2610201403-2610302000EST
10/20/26
1358Z
10/30/26
2000Z
!FDC 6/0668 OAK IAP OAKLAND SAN FRANCISCO BAY, OAKLAND, CA.
ILS OR LOC RWY 30, AMDT 32...
ILS RWY 30 (SA CAT I), AMDT 32...
ILS RWY 30 (CAT II-III), AMDT 32...
MISSED APPROACH: CLIMB TO 4000 THEN RIGHT TURN DIRECT OAK VOR/DME AND HOLD NW, RT, 120.00 INBOUND,
SAU VOR/DME OUT OF SERVICE. 2610201358-2610302000EST
9/24/26
1521Z
5/6/27
1521Z
!FDC 6/5325 OAK PART 1 OF 2 ODP OAKLAND SAN FRANCISCO BAY, OAKLAND, CA. TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 7... ADD TAKEOFF OBSTACLE NOTES: RWY 15, TEMPORARY CRANE 4226FT FROM DER, 823FT RIGHT OF CENTERLINE, 125FT AGL/129FT MSL (2022-AWP-3447-NRA), TEMPORARY CONST EQUIP 1113FT FROM DER, 491FT RIGHT OF CENTERLINE, 30FT AGL/37FT MSL (2023-AWP-3806-NRA). RWY 28R, CONST EQUIP BEGINNING 815FT FROM DER, 404FT RIGHT OF CENTERLINE, 35FT AGL/37FT MSL (2022-AWP-4822 THRU 4825-NRA).RWY 30, TEMPORARY CRANES STARTING 95FT FROM DER, 565FT LEFT OF CENTERLINE, UP TO 40FT AGL/58 FT MSL (2025-AWP-3315 THRU 3351-NRA). CONST EQUIP BEGINNING 266FT FROM DER, 531FT RIGHT OF CENTERLINE, UP TO 48FT AGL/58FT MSL (2020-AWP-2531/2532/2533/2534/2535/2536/2539/2540/2541/2542/2543-NR A). CONST EQUIP BEGINNING 201FT FROM DER, 493FT LEFT OF CENTERLINE, UP TO 36FT AGL/50FT MSL (2020-AWP-2466/2467/2468/2469/2470/2473/2474/2476-NRA), CONST EQUIP BEGINNING 406FT FROM DER, 423FT RIGHT OF CENTERLINE, UP TO 36FT AGL/48FT MSL (2020-AWP-2488/2489/2490/2491/2492/2537/2538-NRA). CONST EQUIP BEGINNING 458FT FROM DER, 457FT LEFT OF CENTERLINE, UP TO 36FT AGL/48FT MSL (2020-AWP-2475/2483/2484/2498-NRA). CONST EQUIP BEGINNING 498FT 2609241521-2705061521EST END PART 1 OF 2
!FDC 6/5325 OAK PART 2 OF 2 FROM DER, LEFT AND RIGHT OF CENTERLINE, UP TO ALL OTHER DATA REMAINS AS PUBLISHED. OAKLAND SAN FRANCISCO BAY, OAKLAND, CA. 36FT AGL/48FT MSL (2020-AWP-2479/2480/2481/2485/2486/2487/2493/2494/2495/2496/2497-NR A). ALL OTHER DATA REMAINS AS PUBLISHED. 2609241521-2705061521EST END PART 2 OF 2
7/20/26
1830Z
!FDC 6/7047 OAK IAP OAKLAND SAN FRANCISCO BAY, OAKLAND, CA.
ILS OR LOC RWY 28R, AMDT 38...
SIDESTEP 28L: MDA 500/HAT 491 ALL CATS.LNAV MDA 500/HAT 493 ALL CATS, UNLESS ADVISED BY ATC THE CRANE DOWN.
TEMPORARY CRANE, UP TO 190 MSL, STARTING AT 1.5NM SE OF RWY 28L (2025-AWP-12780-OE).
2607201830-2610311830EST
7/20/26
1830Z
!FDC 6/7046 OAK IAP OAKLAND SAN FRANCISCO BAY, OAKLAND, CA.
RNAV (GPS) Y RWY 28L, AMDT 5...
LNAV MDA 500/HAT 491 ALL CATS, UNLESS ADVISED BY ATC THE CRANE DOWN.
TEMPORARY CRANE, UP TO 190 MSL, STARTING AT 1.5NM SE OF RWY 28L (2025-AWP-12780-OE).
2607201830-2610311830EST
7/20/26
1829Z
!FDC 6/7045 OAK IAP OAKLAND SAN FRANCISCO BAY, OAKLAND, CA.
RNAV (GPS) Y RWY 28R, AMDT 4...
LNAV MDA 500/HAT 493 ALL CATS, UNLESS ADVISED BY ATC THE CRANE DOWN.
TEMPORARY CRANE, UP TO 190 MSL, STARTING AT 1.7NM SE OF RWY 28R (2025-AWP-12780-OE).
2607201829-2610311829EST
7/6/26
1950Z
!FDC 6/3209 OAK IAP OAKLAND SAN FRANCISCO BAY, OAKLAND, CA.
RNAV (RNP) Z RWY 28R, AMDT 3...
RNP 0.11 DA 314/HAT 307 ALL CATS. TEMPORARY CRANE 179 MSL 920FT SE OF OAK AIRPORT (2025-AWP-411-NRA).
2607061950-2701062000EST
7/1/26
1437Z
!FDC 6/2394 OAK IAP OAKLAND SAN FRANCISCO BAY, OAKLAND, CA.
ILS OR LOC RWY 28R, AMDT 38...
S-ILS 28R DA* 257/HAT 250 ALL CATS. DISREGARD NOTE: *RVR 1800 AUTHORIZED WITH USE OF FD OR AP OR HUD TO DA. TEMPORARY CONSTRUCTION EQUIPMENT UP TO 36 MSL 754FT SE OF RWY 28R (2023-AWP-3809/3810-NRA).
2607011437-2702101437EST
7/1/26
1434Z
!FDC 6/2393 OAK IAP OAKLAND SAN FRANCISCO BAY, OAKLAND, CA.
RNAV (GPS) Y RWY 28R, AMDT 4...
LPV DA* 257/HAT 250 ALL CATS. DISREGARD NOTE: *RVR 1800 AUTHORIZED WITH USE OF FD OR AP OR HUD TO DA. TEMPORARY CONSTRUCTION EQUIPMENT UP TO 36 MSL 754FT SE OF RWY 28R (2023-AWP-3809/3810-NRA).
2607011434-2702101434EST
Yes
ALL
PORT OF OAKLAND
530 WATER ST.
OAKLAND, CA 94607
Phone: 510-563-3300
MATT DAVIS
OAKLAND INTL ARPT, 1 AIRPORT DRIVE
OAKLAND, CA 94621
Phone: 510-563-6436
OAKLAND FSS (OAK)
Toll Free: 1-800-WX-BRIEF
OAK
--
--
N/A
Yes - Lighted
No
Yes
Tie-Down
Landing Rights Airport
NOT an Airport of Entry
Major
Major
High & Low Pressure
High & Low Pressure
Air Freight
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 10L/28R

5457 ft. x 150 ft.
ASPH
Good
GRVD
HIGH
1266/F/B/X/T
120,000lbs
250,000lbs
550,000lbs
1,120,000lbs
  Runway 10L Runway 28R
True Heading 112°292°
Traffic Pattern Left Right
Markings NPI PIR
Markings Condition GOOD GOOD
Latitude 37° 43' 50"N 37° 43' 29"N
Longitude 122° 13' 20"W 122° 12' 17"W
Elevation 6' 6'
Threshold Crossing Height 50 ft. AGL 51 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4R P4L
Approach Lights MALSR
Centerline Lights No No
Runway End Identifier Lights No No

Runway 10R/28L

6213 ft. x 150 ft.
ASPH
Good
GRVD
HIGH
934/F/B/X/T
120,000lbs
250,000lbs
550,000lbs
1,120,000lbs
  Runway 10R Runway 28L
True Heading 112°292°
Traffic Pattern Left
Markings NPI PIR
Markings Condition GOOD GOOD
Latitude 37° 43' 43"N 37° 43' 20"N
Longitude 122° 13' 33"W 122° 12' 22"W
Elevation 8' 8'
Threshold Crossing Height 50 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4R
Approach Lights
Centerline Lights No
Runway End Identifier Lights Yes No

Runway 12/30

10520 ft. x 150 ft.
ASPH
Good
GRVD
HIGH
1295/F/B/X/T
120,000lbs
250,000lbs
550,000lbs
1,120,000lbs
  Runway 12 Runway 30
True Heading 130°310°
Traffic Pattern Right Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 37° 43' 12"N 37° 42' 05"N
Longitude 122° 14' 32"W 122° 12' 51"W
Elevation 8' 9'
Threshold Crossing Height 70 ft. AGL 71 ft. AGL
Visual Glide Path Angle 2.75° 3°
Visual Slope Indicator P4R P4L
Approach Lights MALSR ALSF2
Centerline Lights Yes Yes
Runway End Identifier Lights No No

Runway 15/33

3376 ft. x 75 ft.
ASPH
Good
NONE
MED

12,000lbs
65,000lbs
100,000lbs
--
  Runway 15 Runway 33
True Heading 164°344°
Traffic Pattern Left Right
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 37° 44' 25"N 37° 43' 53"N
Longitude 122° 13' 22"W 122° 13' 11"W
Elevation 1' 4'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-1BIRDS ON & INVOF ARPT.
A110-11RWYS 30, 28R AND RWY 28L DIST RMNG SIGNS L SIDE.
A110-12FOR NOISE ABATEMENT INFO CTC NOISE ABATEMENT OFC AT 510-563-6463 OR VISIT ARPT WEBSITE.
A110-2024 HR NOISE ABATEMENT PROC: TBJT AND TURBOFAN PWRD ACFT, TURBOROPS OVER 17000 LBS, FOUR-ENG RECIPROCATING PWRD ACFT, AND SURPLUS MIL ACFT OVER 12500 LBS SHOULD USE RWY 12/30.
A110-22TWY A, E, G, H BTN RWY 28R AND TWY C MAX ACFT WT 150,000 LBS.
A110-23TWY G & H BTN RWY 28L & 28R: MAX ACFT WT 12,500 LBS.
A110-24TWY P MAX ACFT WT 116,000 LBS SINGLE; 190,000 LBS DUAL; 305,000 LBS DUAL TANDEM; 735,000 LBS DOUBLE DUAL TANDEM.
A110-25TWY C BTN RWY 28R & TWY G AND TWYS B, J, AND D MAX ACFT WT 861,000 LBS.
A110-26TWY C BTN TWY G & J MAX ACFT WEIGHT 90,000 LBS SINGLE; 144,000 LBS DUAL; 257,000 LBS TANDEM.
A110-27TWY C BTN TWY J & F MAX ACFT WEIGHT 76,000 LBS SINGLE; 115,000 LBS DUAL; 257,000 LBS TANDEM (DUAL TANDEM NA).
A110-28TWY K BTN TWY D & INT TWYS F, L, K MAX ACFT WEIGHT 56,000 LBS SINGLE; 70,000 LBS DUAL; 130,000 LBS TANDEM.
A110-29TWY K BTN TWY J AND INT TWYS F, L, K MAX ACFT WT 33000 LBS SINGLE; 45000 LBS DUAL; TANDEM NA.
A110-3400 FT BY 220 FT BLAST PAD RWY 12 AND RWY 30.
A110-30UNDERLIES CLASS B ASP, BE AWARE OF SPEEDS ON ARR AND DEP.
A110-6NOISE ABATEMENT PROCS N/A IN EMERGS OR WHENEVER RWY 12/30 IS UNAVBL DUE TO MAINT, SAFETY, WINDS OR WX.
A110-7ACFT WITH EXPERIMENTAL OR LTD CERTIF HAVING OVER 1000 HORSEPOWER OR 4000 LBS ARE RSTRD TO RWY 12/30.
A110-9100 FT LGTD MICROWAVE ANT TWR LCTD 1320 FT WSW OF OAK VORTAC; S OF UPWIND END OF RWY 28L.
A14OPERATIONS - DARRON EVANS, OPNS SUPERINTENDENT (510)563-6432, CELL: (510) 715-6286 24HR OPERATIONS (510) 563-3361.
A24LDG FEE IN EFCT 24 HRS/DAY, CTC AIRFIELD OPS (510) 563-3361.
A30-15/33RWY 15/33 NOT AVBL FOR PART 121/PART 380 OPS WITH SKED PAX CARRYING OPS MORE THAN 9 PAX SEATS AND NON-SKED PAX CARRYING OPS MORE THAN 30 PAX SEATS.
E147TFC PAT ALT RWY 28L 606' MSL; RWY 28R 1006' MSL.
E60-28L_EMASENGINEERED MATERIALS ARRESTING SYSTEM (EMAS) 162 FT IN LENGTH BY 154 FT IN WIDTH LCTD AT THE DER 28L.
OAKLAND SAN FRANCISCO BAY (ICAO: KOAK, IATA: OAK) is a public airport located in OAKLAND, CA, US.
