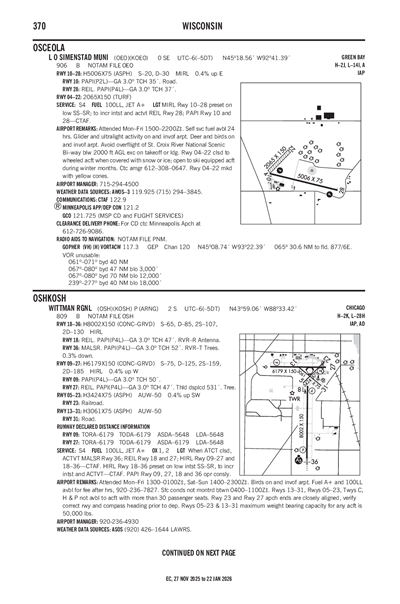

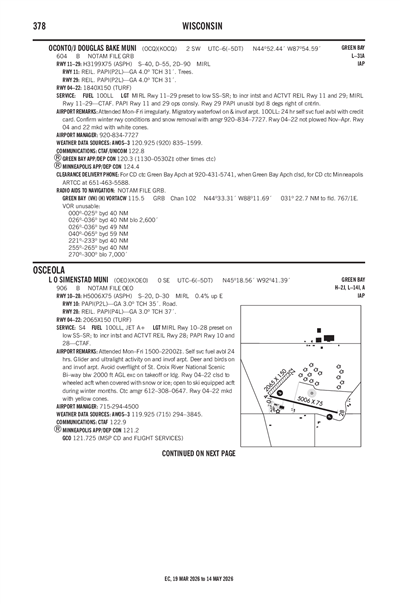

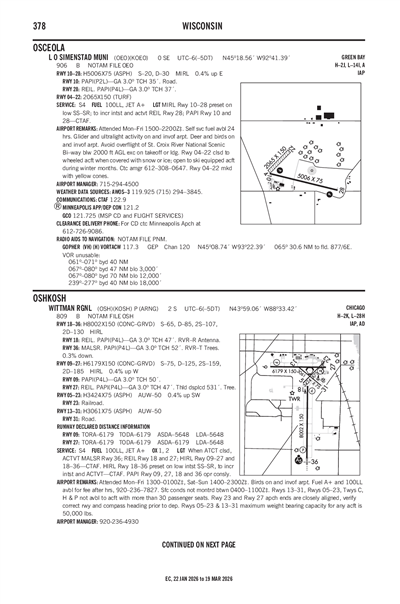

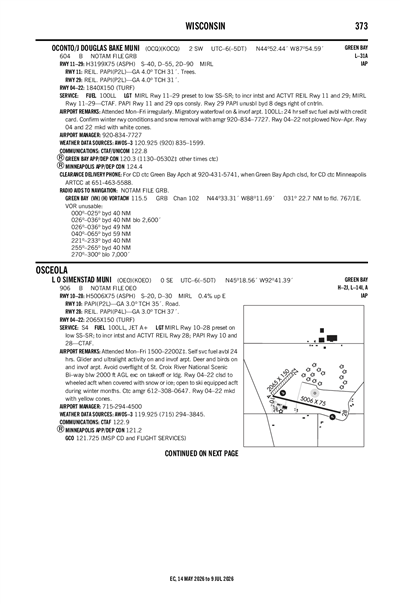

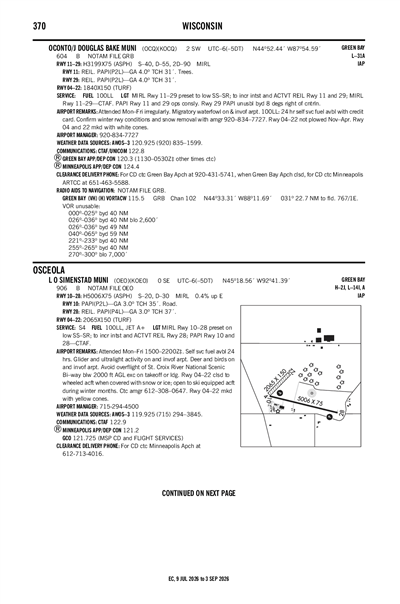

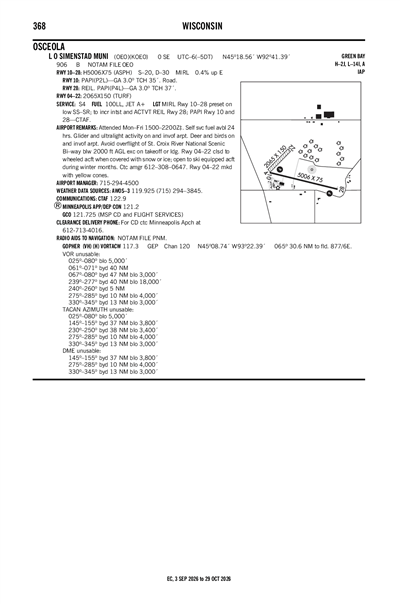

L O SIMENSTAD MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KOEO
ICAO KOEOIATA OEOLocal OEO
L O SIMENSTAD MUNI
PublicPUB

0 miles SE of OSCEOLA, WI, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
45° 18' 34"N 92° 41' 24"W
Elevation
906' MSL
Pattern Alt
1906' MSL
Mag Variation
0°
Declination
1°E
Fuel
JET A (FSII), 100LL
FSS
GREEN BAY (GRB)
Sectional
GREEN BAY
ARTCC
MINNEAPOLIS (ZMP)
Data Effective
10/1/26-10/29/26
KOEO VFR
9:35 PM CDT
Broken 11,000'
10sm
50°F
46°F
30.31"Hg
Calm
AO2 T01000076
METAR KOEO 030235Z AUTO 00000KT 10SM BKN110 10/08 A3031 RMK AO2 T01000076
+ Add Your Business

KOEO FBOs

Promote Listing
Osceola AeroSport
UNICOM: 122.9
Phone: (715) 294-4500
Other: (715) 417-2610
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 9/29
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 6.20
Full Serve 6.20 6.00
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 119.925
(715) 294-3845

Common

CTAF 122.9
MIRL RWY 10/28 PRESET TO LOW SS-SR; TO INCR INTST AND ACTVT REIL RWY 28; PAPI RWY 10 & 28 - CTAF.

Arrival

TWOLF STAR 126.95

Approach

MINNEAPOLIS APPROACH 121.2

Departure

MINNEAPOLIS DEPARTURE 121.2

Flight Service

Ground Communication Outlet 121.725
GCO AVBL ON FREQ 121.725 MSP CD & FLT SVCS.

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KRNH (12nm)
Fri, 10/2 6:39 PM CDT
Fri, 10/2 7:00 PM CDT - Sat, 10/3 7:00 PM CDT
VFR
7:00 PM CDT - 6:00 AM CDT
Scattered 25,000'
6sm
VRB° 3kts
VFR
6:00 AM CDT - 9:00 AM CDT
Broken 12,000'
6sm
150° 7kts
VFR
9:00 AM CDT - 12:00 PM CDT
Broken 12,000'
6sm
170° 10kts
Gusts 18kts
VFR
12:00 PM CDT - 4:00 PM CDT
Broken 11,000'
6sm
180° 14kts
Gusts 22kts
VFR
4:00 PM CDT - 7:00 PM CDT
Broken 10,000'
6sm
200° 12kts
Gusts 20kts
VFR
4:00 PM CDT - 7:00 PM CDT
Light Showers and Rain
Broken 5,000'
6sm
Calm
TAF KRNH 022339Z 0300/0324 VRB03KT P6SM SCT250
   FM031100 15007KT P6SM BKN120
   FM031400 17010G18KT P6SM BKN120
   FM031700 18014G22KT P6SM BKN110
   FM032100 20012G20KT P6SM BKN100
   PROB30 0321/0324 6SM -SHRA BKN050
KOEO
EffectiveExpiresCategoryNOTAM
Domestic
9/28/26
1510Z
10/29/26
2359Z
!OEO 09/008 OEO SVC AUTOMATED WX BCST SYSTEM T/DP/WX NOT AVBL 2609281510-2610292359
FDC
9/14/26
1506Z
!FDC 6/2847 OEO IAP L O SIMENSTAD MUNI, OSCEOLA, WI. RNAV (GPS) RWY 10, ORIG-B... RNAV (GPS) RWY 28, AMDT 1B... CIRCLING CAT A MDA 1440/HAA 534, TEMPORARY CRANE 1081 MSL, 5373FT NE OF OEO AIRPORT (2026-AGL-5284-OE). 2609141506-2704261506EST
9/2/26
2136Z
!FDC 6/0559 OEO IAP L O SIMENSTAD MUNI, OSCEOLA, WI.
RNAV (GPS) RWY 28, AMDT 1B...
LPV DA 1156/HAT 250 ALL CATS, VIS ALL CATS 1. LNAV/VNAV DA 1232/HAT 326 ALL CATS, VIS ALL CATS 1. CIRCLING CAT D MDA 1540/HAA 634.
2609022136-2809022136EST
9/2/26
2136Z
!FDC 6/0558 OEO IAP L O SIMENSTAD MUNI, OSCEOLA, WI.
RNAV (GPS) RWY 10, ORIG-B...
LPV VIS 1 ALL CATS. LNAV MDA 1380/HAT 483 ALL CATS. VDP 1.42 NM TO RW10. CIRCLING CAT D MDA 1540/HAA 634.
2609022136-2809022136EST
No
MON-FRI 0900-1600
VILLAGE OF OSCEOLA
PO BOX 217
OSCEOLA, WI 54020
Phone: 715-294-3498
RICHARD JOHNSON
PO BOX 643
OSCEOLA, WI 54020
Phone: 715-294-4500
GREEN BAY FSS (GRB)
Toll Free: 1-800-WX-BRIEF
OEO
--
MIRL RWY 10/28 PRESET TO LOW SS-SR; TO INCR INTST AND ACTVT REIL RWY 28; PAPI RWY 10 & 28 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Pilot Instruction
Aircraft Rental

Runway 04/22

2065 ft. x 150 ft.
TURF
Fair
NONE


--
--
--
--
  Runway 04 Runway 22
True Heading 45°225°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 45° 18' 37"N 45° 18' 51"N
Longitude 92° 41' 51"W 92° 41' 31"W
Elevation 882' 881'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 10/28

5006 ft. x 75 ft.
ASPH
Good
NONE
MED

20,000lbs
30,000lbs
--
--
  Runway 10 Runway 28
True Heading 104°284°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 45° 18' 35"N 45° 18' 24"N
Longitude 92° 41' 51"W 92° 40' 43"W
Elevation 884' 905'
Threshold Crossing Height 35 ft. AGL 37 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No Yes
A110-1RWY 04/22 CLSD TO WHEELED ACFT WHEN COVERED WITH SNOW OR ICE; OPEN TO SKI EQUIPPED ACFT WINTER MONTHS. CTC AMGR 612-308-0647.
A110-11GLIDER & ULTRALIGHT ACTIVITY ON & INVOF ARPT.
A110-12DEER & BIRDS ON & INVOF ARPT.
A110-13FOR CD CTC MINNEAPOLIS APCH AT 612-713-4016.
A110-7GCO AVBL ON FREQ 121.725 MSP CD & FLT SVCS.
A110-8AVOID OVERFLIGHT OF ST CROIX RIVER NATIONAL SCENIC BI-WAY BLW 2000 FT AGL EXC ON TAKEOFF OR LDG.
A15EMAIL ADDRESS: RJOHNSON@OSCEOLAAERO.COM (ALL LOWER CASE)
A42-04_MARKMKD WITH YELLOW CONES.
A42-22_MARKMKD WITH YELLOW CONES.
A70-100LLSELF SVC FUEL AVBL 24 HRS.
A81-APTMIRL RWY 10/28 PRESET TO LOW SS-SR; TO INCR INTST AND ACTVT REIL RWY 28; PAPI RWY 10 & 28 - CTAF.
L O SIMENSTAD MUNI (ICAO: KOEO, IATA: OEO) is a public airport located in OSCEOLA, WI, US.
