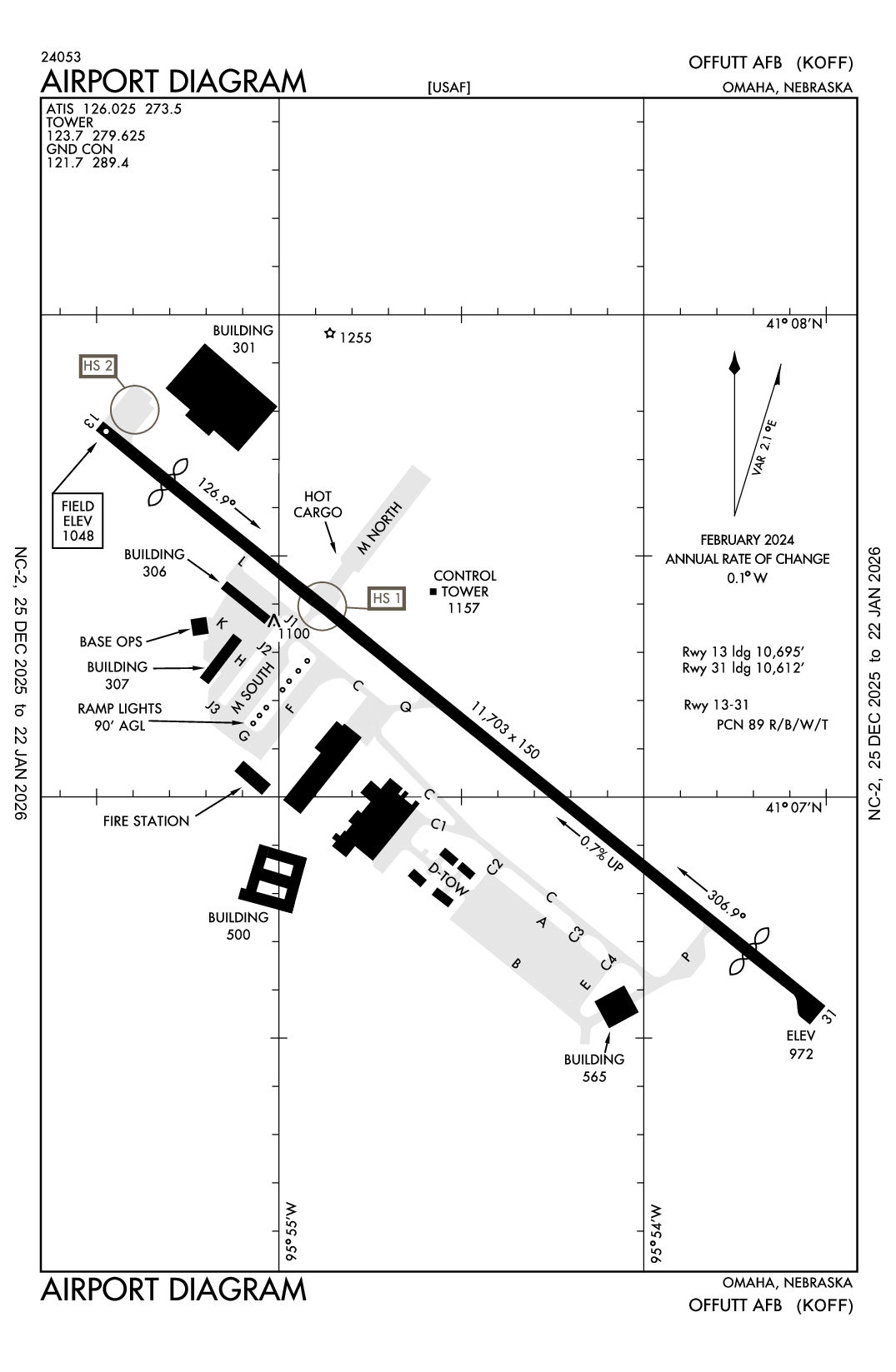

OFFUTT AFB - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KOFF
ICAO KOFFIATA OFFLocal OFF
OFFUTT AFB
PrivatePVT

8 miles SE of OMAHA, NE, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
41° 07' 10"N 95° 54' 31"W
Elevation
1048' MSL
Pattern Alt
3548' MSL
Mag Variation
2°E
Declination
2°E
Fuel
100
FSS
COLUMBUS (OLU)
Sectional
OMAHA
ARTCC
MINNEAPOLIS (ZMP)
Data Effective
10/29/26-11/26/26
KOFF VFR
7:55 AM CST
Clear
10sm
28°F
25°F
30.21"Hg
280° 5kts
AO2A SLP244 T10201039 $
METAR KOFF 131355Z 28005KT 10SM CLR M02/M04 A3021 RMK AO2A SLP244 T10201039 $
+ Add Your Business

KOFF FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 126.025

Ground

OFFUTT GROUND 121.7

Tower

OFFUTT TOWER 123.7

Arrival

AANDY STAR 124.5
EAST
AANDY STAR 135.875
WEST
HOWRY STAR 124.5
EAST
HOWRY STAR 135.875
WEST
LANTK STAR 124.5
EAST
LANTK STAR 135.875
WEST
MARWI STAR 124.5
EAST
MARWI STAR 135.875
WEST
TIMMO STAR 124.5
EAST
TIMMO STAR 135.875
WEST

Approach

OMAHA APPROACH 124.5
EAST
OMAHA APPROACH 135.875
Initial Contact - WEST

Departure

OMAHA DEPARTURE 124.5
EAST
OMAHA DEPARTURE 135.875
Initial Contact - WEST

Emergency

Emergency 121.5

Other

CLASS C 124.5
EAST
CLASS C 135.875
WEST

Terminal Area Forecast

KOFF
Fri, 11/13 5:00 AM CST
Fri, 11/13 5:00 AM CST - Sat, 11/14 11:00 AM CST
VFR
5:00 AM CST - 12:00 PM CST
Few 2,500'
6sm
30.18"Hg
360° 9kts
VFR
Becoming 12:00 PM CST - 12:00 AM CST
Sky Clear
6sm
30.15"Hg
VRB° 6kts
MVFR
Becoming 12:00 AM CST - 11:00 AM CST
Broken 1,500'
6sm
30.21"Hg
VRB° 6kts
TAF KOFF 131100Z 1311/1417 36009KT 9999 FEW025 QNH3018INS
   BECMG 1318/1319 VRB06KT 9999 SKC QNH3015INS
   BECMG 1406/1407 VRB06KT 9999 BKN015 QNH3020INS TX04/1321Z TNM03/1311Z
KOFF
EffectiveExpiresCategoryNOTAM
Domestic
10/27/26
0539Z
12/11/26
1139Z
!OFF 10/006 OFF OBST TOWER LGT (ASR 1227300) 410511.40N0954244.70W (9.1NM E OFF) 1261FT (248FT AGL) U/S 2610270539-2612111139
10/27/26
0412Z
12/11/26
1012Z
!OFF 10/005 OFF OBST TOWER LGT (ASR 1227305) 410505.50N0954242.00W (9.2NM E OFF) 1259FT (248FT AGL) U/S 2610270412-2612111012
10/27/26
0248Z
12/11/26
0848Z
!OFF 10/004 OFF OBST TOWER LGT (ASR 1227309) 410505.80N0954248.30W (9.1NM E OFF) 1252FT (248FT AGL) U/S 2610270248-2612110848
10/27/26
0054Z
12/11/26
0654Z
!OFF 10/003 OFF OBST TOWER LGT (ASR 1227308) 410505.60N0954245.10W (9.1NM E OFF) 1255FT (248FT AGL) U/S 2610270054-2612110654
10/24/26
2134Z
12/8/26
2134Z
!OFF 10/002 OFF OBST TOWER LGT (ASR 1227303) 410511.70N0954251.00W (9NM E OFF) 1254FT (248FT AGL) U/S 2610242134-2612082134
Military
10/28/26
1854Z
1/25/27
2359Z
RunwayRWY 13/31 WIND DIRECTION INDICATOR ADJ TO TWY L UNLIT AND OBSTN LIGHT OTS
10/22/26
2031Z
1/1/27
2359Z
ARFF REDUCED LEVEL OF SERVICE FOR CAT 1-9 (C-12, C-37, T-38, E-6, RC-135, C-17, E4B) AND CRITICAL LEVEL OF SERVICE FOR CAT 10 ( VC-25, C-5, B747-800)
10/22/26
1530Z
12/31/26
2359Z
FLEET SERVICES UNAVAILABLE: LAV, WATER, AND ICE ARE AVAILABLE.
10/21/26
1521Z
1/18/27
2359Z
USE CAUTION: MULTIPLE CRANES ERECTED DAILY M-F FROM 0630-1730L MAX HEIGHT 270FT AGL LOCATED 2 MILES SOUTH OF RWY 31 THRESHOLD IN THE VACINITY OF LAT/LONG 41.082419N/-95.875061W (PAPILLION WATER TREATMENT PLANT).
9/21/26
1656Z
12/19/26
2359Z
BASH PHASE 2 IN EFFECT USE CAUTION FOR INCREASED MIGRATORY BIRD ACTIVITY
9/14/26
1528Z
12/11/26
2359Z
GROUND TACAN CHECKPOINT AT MIKE SOUTH UNSERVICEABLE.
8/28/26
1501Z
11/25/26
2359Z
RunwayRWY 31 SEQUENCED FLASHING LIGHTS UNSERVICEABLE
8/28/26
1459Z
11/25/26
2359Z
RunwayRWY 13 LOCALIZER MONITORING INTERMITTENT
Yes
MON-FRI 0600-2200
SAT-SUN 0700-1900
USAF
3902D AIR BASE WING/SAC/
OFFUTT AFB, OMAHA, NE 68113
CHIEF OF AFLD MANAGEMENT
3902D AIR BASE WING/SAC/
OFFUTT AFB, OMAHA, NE 68113
Phone: 402-294-2793
COLUMBUS FSS (OLU)
Toll Free: 1-800-WX-BRIEF
OFF
--
--
N/A
Yes
No
No
Hangar
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
Low Pressure
Low Pressure
Cargo Handling

Runway 13/31

11703 ft. x 150 ft.
ASPH CONC
Good
GRVD
HIGH
89/R/B/W/T
--
--
--
--
  Runway 13 Runway 31
True Heading 129°309°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 41° 07' 46"N 41° 06' 33"N
Longitude 95° 55' 30"W 95° 53' 31"W
Elevation 1,048' 972'
Threshold Crossing Height 56 ft. AGL 55 ft. AGL
Visual Glide Path Angle 3° 2.8°
Visual Slope Indicator P4R P4L
Approach Lights ALSF1 ALSF1
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-10JASU: (M32A-86) (AM32A-95).
A110-11FUEL: A++.
A110-12FLUID: W SP PRESAIR LHOX LOX.
A110-13OIL: O-148-156 SOAP.
A110-14TRAN ALERT: OPR MON-FRI 1130-0330Z++, SAT-SUN SBY FOR OFFL BUS ONLY.
A110-22CSTMS/AG/IMG: LCL ACFT COORD WITH CMD POST 2 HR PN DSN 271-325, MIL TRAN ACFT COORD WITH AMOPS 48 HR PN 1200Z++ MON-FRI AT DSN 271-3240.
A110-32PMSV METRO: FULL WX SVC AVBL H24 UNLESS SPECIFIED IN NOTAM. DSN 271-3459, C402-294-3459. REMOTE BRIEF AVBL VIA 15 OWS; DSN 576-9755, C618-256-9755.
A110-40RSTD: ALL ACFT MUST CMPLT 180 DEG TURN AT EOR OR TWY M AND P INT. ACFT WITH DV AND PAX CTC COMD POST AT LEAST 30 MIN PRIOR TO ETA AND WHEN 60 NM OUT.
A110-42CAUTION: GRADIENT FOR RWY 13 .7 % DOWN SLOPE; RWY 13 HAS HI EMBANKMENT APCH END TURB & HI VRBL CROSSWINDS DURING S TO SW SFC WINDS. NMRS LGT ACFT AT MILLARD ARPT ON APCH FOR RWY 13.
A110-44TFC PAT: ALL PATS ARE S OF RWY CNTRLN;
A110-45MISC: AFLD MGMT ISSUES NO COMSEC FOR TRANS CREWS. 55 WG COMD POST WILL PROVIDE TEMP STORAGE OF SECRET AND TOP SECRET. AM OPS DSN 271-3207/3240, C402-294-3207/3240, FAX DSN 272-4175, C402-232-4175.
A110-46RSTD: PPR, MIN 24 HR NTC RQR AND NO MORE THAN 14 DAYS PRIOR, CTC AM OPS.
A110-48CAUTION: ARRIVALS - RAILROAD/VEHICLE ROAD PENETRATE RWY 31 APCH LIGHT PLANE.
A110-52CSTMS/AG/IMG: LCL ACFT COORD WITH CMD POST 2 HR PN DSN 271-3725, MIL TRANS ACFT COORD WITH AMOPS 48 HR PN 1200-2100Z+ MON-FRI AT DSN 271-3240.
A110-54MISC: RQR ALT CK PT SIGN MISG FOR ARPT ELEV BEING 76 FT GTR THAN RWY 31 END ELEV.
A110-55MISC: RWY END 31 ELEV IS 973 FT, 76 FT BLW FLD ELEV.
A110-56MISC: BIRD HAZ POTENTIAL EXISTS. BIRD MIGRATION.
A110-57TRAN ALERT: EXP UP TO 2 HR FUEL DELAY FOR ALL TRAN ACFT.
A110-58CAUTION: MOWERS ADJ TO MOVEMENT AREA APR-OCT.
A110-59CAUTION: RWY COND CODE (RWY CC) NOT RPTD.
A110-60RSTD: DUE TO OBST, C5 AND 747-8 ACFT ARE NOT AUTHORIZED BYD VFR HOLD LINE ON NW HAMMERHEAD; ACFT MUST COMPLETE 180- TURN WITHIN 355 FT BTN RWY CNTRLN AND VFR HOLD POSN MRK.
A110-61CAUTION: RWY 13 - ONLY ROLLING TKOFS PMTD PRIOR TO THR UNLESS APVD BY AFLD MGMT WITH ATC CDN. RC/WC-135 STATIC / STATIC ROLLING TKOFS APVD ABEAM NW HH EAST TWY LEAD-IN LINE, 11336 FT TKOF DIST AVBL.
A110-7USE CNTR 150 FT OF RWY 13/31, 75 FT EDGES NOT STRESSED FOR ACFT OVER 100,000 LBS.
A30A-13FST 2025 FT CONC, NEXT 1742 FT TO TWY M HAS 75 FT WIDE CONC MID WITH ASPH EDGES.
A30A-31FST 2100 FT CONC, MID 5834 FT FM TWY M-TWY P ASPH.
A33-13/31_SURFSFC TYPE: PEM
A49-13RWY 13 ALSF 1 NSTD : RWY 13 MISSING TWO LGT BARS DUE TO OFF BASE ROAD AND RR.
A49-31RWY 31 ALSF 1 NSTD : RWY 31 HAS AN ADDNL LGT BAR.
A57-3150+-1 FROM DSPLCD THR.
A70-100F18 FUEL NOT FOR SALE TO PUBLIC.
E147TPA: VFR RECTANGULAR TFC PAT 2500 FT MSL, OVHD TFC PAT 3000 FT MSL, OVHD TFC RMN WI 5 NM.
E80ACFT ARR FM FOREIGN AREAS CONFIRM ETA & CSTMS RQR ONE HR PRIOR NTC THRU FSS.
OFFUTT AFB (ICAO: KOFF, IATA: OFF) is a private airport located in OMAHA, NE, US.
