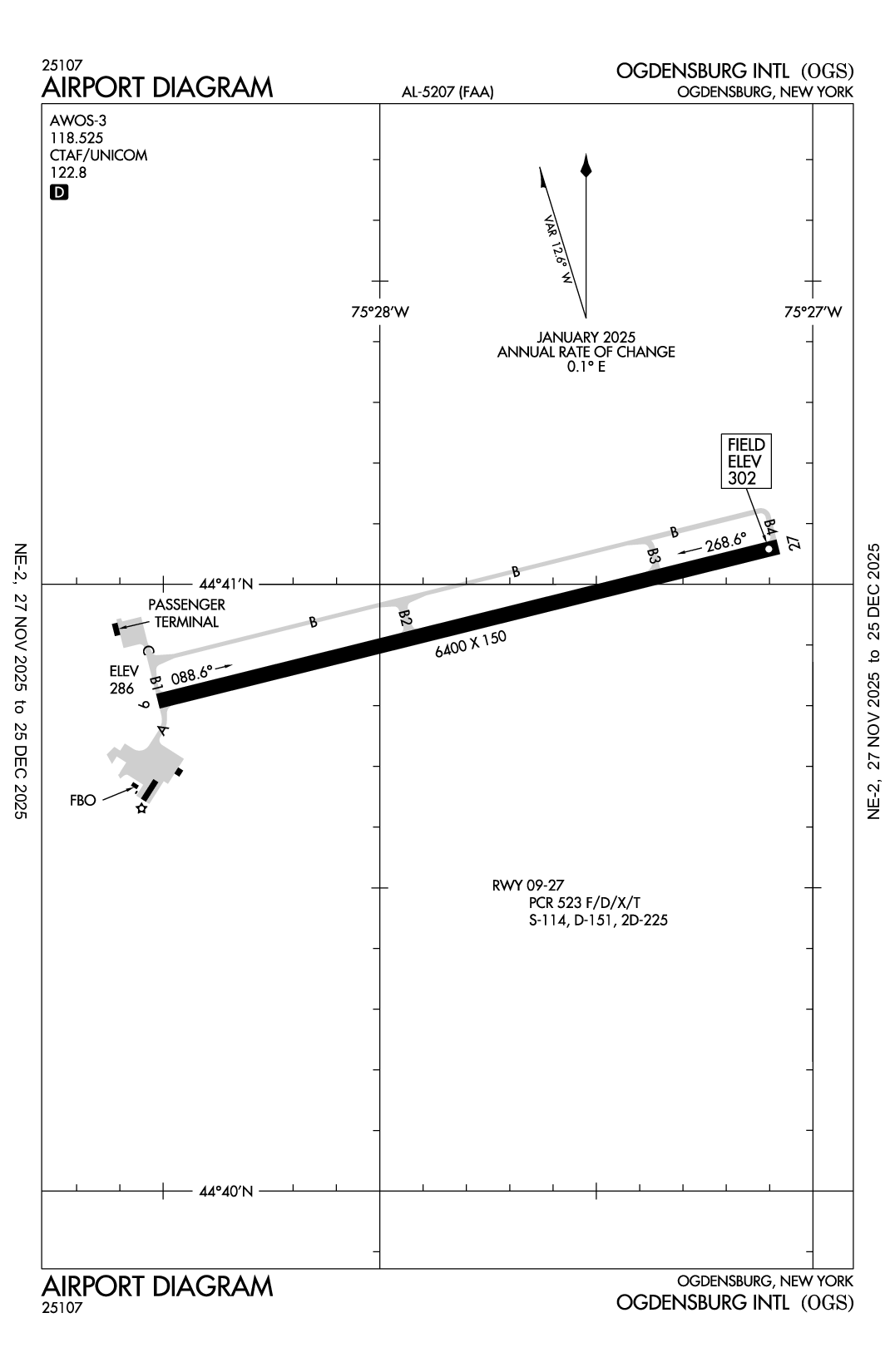

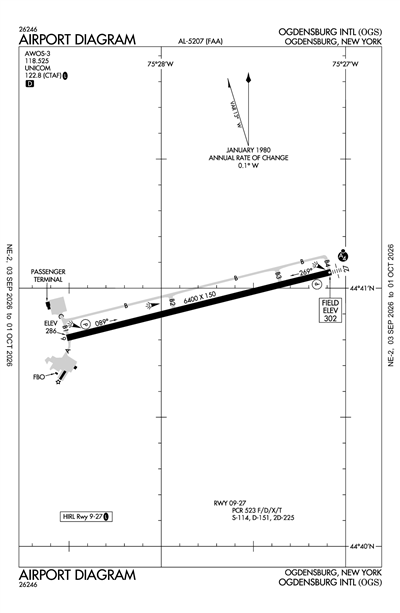

OGDENSBURG INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KOGS
OGDENSBURG INTL
PublicPUB

2 miles SE of OGDENSBURG, NY
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
44° 40' 56"N 75° 27' 48"W
302' MSL
1302' MSL
13W
Jet A, 100LL
BURLINGTON (BTV)
MONTREAL
BOSTON (ZBW)
4/18/24-5/16/24
KOGS VFR
3:55 AM EDT
Clear
10sm
39°F
25°F
29.98"Hg
190° 8kts
AO2
KOGS 230755Z AUTO 19008KT 10SM CLR 04/M04 A2998 RMK AO2
List Your Business

KOGS FBOs, Flight Schools and Ground Support

Promote Listing
Ogdensburg Bridge & Port Authority
Freq: 122.8
Phone: (315) 393-4721
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 3/27
 100LL Jet A Jet A+ Mogas UL94
Self Serve
Full Serve 6.25 6.50 6.50

KOGS Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KOGS Hotels

No hotels are listed for this airport.

KOGS Restaurants

No restaurants are listed for this airport.

KOGS Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3

AWOS-3
315-393-8982
 118.525

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KMSS (30nm)
Tue, 4/23 1:20 AM EDT
Tue, 4/23 2:00 AM EDT - Wed, 4/24 2:00 AM EDT
VFR
2:00 AM EDT - 7:00 AM EDT
Sky Clear
6sm
190° 8kts
Shear 210° 40kts @ 2000'
VFR
7:00 AM EDT - 10:00 AM EDT
Few 20,000'
6sm
200° 10kts
VFR
10:00 AM EDT - 8:00 PM EDT
Scattered 20,000'
6sm
210° 15kts
Gusts 25kts
VFR
8:00 PM EDT - 10:00 PM EDT
Showers in vicinity
Overcast 10,000'
6sm
210° 11kts
VFR
10:00 PM EDT - 2:00 AM EDT
Light Rain
Overcast 4,000'
6sm
220° 7kts
KMSS 230520Z 2306/2406 19008KT P6SM SKC WS020/21040KT
   FM231100 20010KT P6SM FEW200
   FM231400 21015G25KT P6SM SCT200
   FM240000 21011KT P6SM VCSH OVC100
   FM240200 22007KT P6SM -RA OVC040
KOGS
Domestic
3/16/241946Z !OGS 03/011 OGS OBST TOWER LGT (ASR 1006744) 443443.00N0753050.00W (6.7NM SSW OGS) 692.3FT (301.8FT AGL) U/S 2403161946-2407162359
7/30/222103Z !OGS 07/020 OGS NAV ILS RWY 27 OGIVE LOM U/S 2207302103-2404302130
FDC
3/15/241846Z !FDC 4/7856 OGS IAP OGDENSBURG INTL, OGDENSBURG, NY.
RNAV (GPS) RWY 9, AMDT 1A...
DELETE PROFILE NOTE: *LNAV ONLY. DELETE ASTERISK IN PROFILE VIEW AT
MIMDE 2.10 NM TO RW09 1000. DELETE ASTERISK IN PROFILE VIEW FROM
VDP AT 1.26 NM TO RW09. DELETE PLANVIEW NOTE: PROCEDURE NA FOR
ARRIVAL AT WILRD ON V29 SOUTHWEST BOUND. CHART PLANVIEW NOTE:
PROCEDURE NA FOR ARRIVALS AT WILRD ON T391 SOUTHWEST BOUND.
ALTERNATE MINIMUMS: STANDARD - CAT D 800-2 1/4, NA WHEN LOCAL
WEATHER NOT AVAILABLE. DELETE PBN REQUIREMENTS: RNP APCH. PBN
REQUIREMENTS NOTE: RNP APCH - GPS.
THIS IS RNAV (GPS) RWY 9, AMDT 1B. 2403151846-PERM
3/15/241843Z !FDC 4/7854 OGS IAP OGDENSBURG INTL, OGDENSBURG, NY.
RNAV (GPS) RWY 27, AMDT 2...
CHART PROFILE NOTE: VGSI AND RNAV GLIDEPATH NOT COINCIDENT. DELETE
PROFILE NOTE: *LNAV ONLY. DELETE ASTERISK IN PROFILE VIEW AT WOROS
2.70 NM TO RW27 1200. DELETE ASTERISK IN PROFILE VIEW FROM VDP AT
1.11 NM TO RW27. DELETE PLANVIEW NOTE: PROCEDURE NA FOR ARRIVALS AT
SSENA ON T391 EASTBOUND AND ARRIVALS AT LETUS ON V29 WESTBOUND.
CHART PLANVIEW NOTE: PROCEDURE NA FOR ARRIVALS AT SSENA ON T391-739
EASTBOUND, AND ARRIVALS AT LETUS ON T391 WESTBOUND. DELETE PBN
REQUIREMENTS: RNP APCH. PBN REQUIREMENTS NOTE: RNP APCH - GPS.
THIS IS RNAV (GPS) RWY 27, AMDT 2A. 2403151843-PERM
10/27/231228Z !FDC 3/2735 OGS IAP OGDENSBURG INTL, OGDENSBURG, NY.
LOC RWY 27, AMDT 4A...
S-27 MDA 760/HAT 458 ALL CATS, VISIBILITY CATS C/D 1 3/8. VDP AT I-OGS 2.45 DME; DISTANCE VDP TO THLD 1.29 NM. PLANVIEW NOTE: RADAR OR RNP RNAV-GPS REQUIRED TO DEFINE LETUS.
2310271228-2510271226EST
6/9/222029Z !FDC 2/6632 OGS IAP OGDENSBURG INTL, OGDENSBURG, NY.
LOC RWY 27, AMDT 4A...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS.
OGIVE (OG) LOM OUT OF SERVICE.
2206092029-2406092029EST
No
NOV 15 - APR 14 0600-2030
APR 15 - NOV 14 0730-2030
FOR ATTENDANT AFT 2000 CALL 315-869-2676.
OGDENSBURG BRIDGE & PORT
BRIDGE PLAZA
OGDENSBURG, NY 13669
Phone: 315-393-4080
CHARLIE GARRELTS
5840 STATE HWY 812
OGDENSBURG, NY 13669
Phone: (315) 869-2676
BURLINGTON FSS (BTV)
Toll Free: 1-800-WX-BRIEF
OGS
--
ACTVT MALSF RWY 27; PAPI RWY 09 & 27; HIRL RWY 09/27; TWY LGTS - CTAF.
N/A
Yes - Lighted
No
Yes
Tie-Down
NOT a Landing Rights Airport
Airport of Entry
6
0
0
2
0
0
None
None
None
None
Pilot Instruction
Aircraft Rental

Runway 09/27

6400 ft. x 150 ft.
ASPH
Excellent
GRVD
HIGH

114,000lbs
151,000lbs
225,000lbs
--
  Runway 09 Runway 27
True Heading 76°256°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 44° 40' 48"N 44° 41' 04"N
Longitude 75° 28' 31"W 75° 27' 05"W
Elevation 286' 302'
Threshold Crossing Height 46 ft. AGL 45 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSF
Centerline Lights
Runway End Identifier Lights No
A110-1BIRDS & DEER ON & INVOF ARPT.
A110-2FOR CD IF UNA TO CTC ON FSS FREQ, CTC BOSTON ARTCC AT 603-879-6859 .
A110-3RWY/TWY/APN COND NOT MONITORED OUTSIDE NML ATTENDANCE HRS.
OGDENSBURG INTL (ICAO: KOGS, IATA: OGS) is a public airport located in OGDENSBURG, NY.
