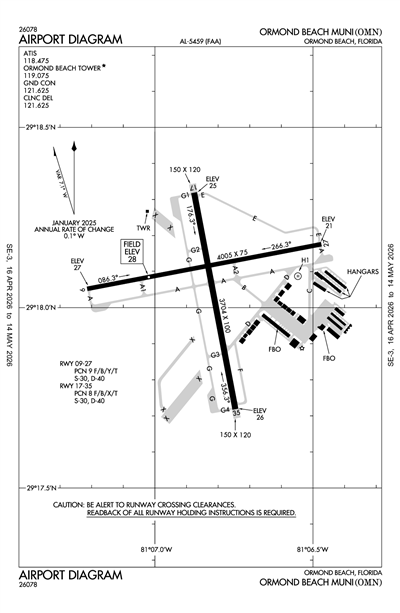

ORMOND BEACH MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KOMN
ICAO KOMNLocal OMN
ORMOND BEACH MUNI
PublicPUB

3 miles NW of ORMOND BEACH, FL, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
29° 18' 04"N 81° 06' 50"W
Elevation
28' MSL
Pattern Alt
1028' MSL
Mag Variation
7°W
Declination
6°W
Fuel
JET A, 100LL
FSS
SAINT PETERSBURG (PIE)
Sectional
JACKSONVILLE
ARTCC
JACKSONVILLE (ZJX)
Data Effective
3/19/26-4/16/26
KOMN VFR
2:50 PM EDT
Clear
7sm
77°F
61°F
30.16"Hg
120° 12kts
METAR KOMN 151850Z 12012KT 7SM CLR 25/16 A3016
+ Add Your Business

KOMN FBOs

Promote Listing
Sunrise Aviation
UNICOM: 123.05
Phone: (386) 677-5724
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 3/29
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 5.81
Full Serve 6.55 6.75
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 118.475
AWOS-3 118.475
(386) 615-7084

Common

CTAF 119.075
ACTVT REIL RWY 09, 17, 27, & 35; PAPI RWY 09, 17, 27, & 35; MIRL RWYS 09/27 & 17/35 - CTAF.
UNICOM 123.05

Clearance

Clearance Delivery 121.625

Ground

ORMOND BEACH GROUND 121.625
0700-1900

Tower

ORMOND BEACH TOWER 119.075
0700-1900

Arrival

TTHOR STAR 118.85

Approach

DAYTONA APPROACH 125.8

Departure

DAYTONA DEPARTURE 125.8

Flight Service

Flight Service 122.1
(PIE)
Flight Service 122.4
(PIE)

Other

CLASS C 125.8

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Arrival Procedures

Instrument Approach

Terminal Area Forecast

KDAB (8nm)
Wed, 4/15 1:20 PM EDT
Wed, 4/15 2:00 PM EDT - Thu, 4/16 2:00 PM EDT
VFR
2:00 PM EDT - 8:00 PM EDT
Few 3,500'
6sm
100° 9kts
VFR
8:00 PM EDT - 12:00 PM EDT
Sky Clear
6sm
VRB° 3kts
VFR
12:00 PM EDT - 2:00 PM EDT
Few 3,500'
6sm
100° 6kts
TAF KDAB 151720Z 1518/1618 10009KT P6SM FEW035
   FM160000 VRB03KT P6SM SKC
   FM161600 10006KT P6SM FEW035
KOMN
EffectiveExpiresCategoryNOTAM
Domestic
4/14/26
2300Z
5/14/26
1100Z
!OMN 04/011 OMN SVC AUTOMATED WX BCST SYSTEM U/S DLY 2300-1100 2604142300-2605141100
4/13/26
1100Z
4/16/26
1530Z
!OMN 04/008 OMN AIRSPACE UAS WI AN AREA DEFINED AS 292556N0810832W
(4.0NM SE FIN) TO 292617N0810627W (5.5NM ESE FIN) TO 293948N0811239W
(11.9NM N FIN) TO 293940N0811318W (11.8NM N FIN) TO POINT OF ORIGIN
SFC-150FT AGL MON-THU 1100-1530 2604131100-2604161530
4/13/26
0731Z
4/28/26
0631Z
!OMN 04/009 OMN OBST TOWER LGT (ASR 1061168) 291533.70N0810751.60W (2.7NM SSW OMN) 344.8FT (321.9FT AGL) U/S 2604130731-2604280631
3/9/26
1724Z
4/30/26
2359Z
!OMN 03/007 OMN APRON HELIPAD CLSD 2603091724-2604302359
12/15/25
1404Z
Runway!OMN 12/013 OMN RWY 27 RWY END ID LGT U/S 2512151404-2606152111EST
12/15/25
1403Z
Runway!OMN 12/012 OMN RWY 09 RWY END ID LGT U/S 2512151403-2606152111EST
10/8/15
1147Z
!OMN 10/003 OMN OBST TOWER LGT (ASR UNKNOWN) 285752.53N0813143.92W (13.5NM NW OMN) UNKNOWN (450FT AGL) OUT OF SERVICE 1510081147-PERM
FDC
9/26/25
1203Z
!FDC 5/0854 OMN IAP ORMOND BEACH MUNI, ORMOND BEACH, FL.
RNAV (GPS) RWY 17, AMDT 1B...
RNAV (GPS) RWY 9, AMDT 1D...
LPV AND LNAV/VNAV MINIMUMS NA.
2509261203-2709261203EST
Yes
0700-1900
CITY OF ORMOND BEACH
PO BOX 277
ORMOND BEACH, FL 32175
Phone: 386-676-3201
BRIAN RADEMACHER
P.O. BOX 277
ORMOND BEACH, FL 32175
Phone: 386-676-3266
SAINT PETERSBURG FSS (PIE)
Toll Free: 1-800-WX-BRIEF
OMN
--
ACTVT REIL RWY 09, 17, 27, & 35; PAPI RWY 09, 17, 27, & 35; MIRL RWYS 09/27 & 17/35 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales
Annual Surveying

Runway 09/27

4005 ft. x 75 ft.
ASPH
Good
GRVD
MED
9/F/B/Y/T
30,000lbs
40,000lbs
--
--
  Runway 09 Runway 27
True Heading 79°259°
Traffic Pattern Left Right
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 29° 18' 03"N 29° 18' 11"N
Longitude 81° 07' 13"W 81° 06' 28"W
Elevation 27' 21'
Threshold Crossing Height 48 ft. AGL 47 ft. AGL
Visual Glide Path Angle 3.4° 3.4°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 17/35

3704 ft. x 100 ft.
ASPH
Fair
NONE
MED
8/F/B/X/T
30,000lbs
40,000lbs
--
--
  Runway 17 Runway 35
True Heading 169°349°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition POOR POOR
Latitude 29° 18' 19"N 29° 17' 43"N
Longitude 81° 06' 53"W 81° 06' 45"W
Elevation 25' 26'
Threshold Crossing Height 51 ft. AGL 37 ft. AGL
Visual Glide Path Angle 3.5° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway H1

86 ft. x 86 ft.
CONC
Good
NONE
PERI

--
--
--
--
  Runway H1 Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings BSC
Markings Condition FAIR
Latitude 29° 18' 05"N N/A
Longitude 81° 06' 33"W N/A
Elevation 21' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A11CTC PERSON: JOYCE SHANAHAN 386-676-3200
A110-1TWY PTNS CRACKED WITH GRASS.
A110-2NOISE ABATEMENT PROC IN EFCT - 386-615-7019.
A110-3PRIM SFCS 500 FT WIDE WITH 7:1 TRSN SFC ON SIDES; TREES IN ALL TRSN SFCS AT APCH END.
A110-4LINE OF SIGHT OBSTN BTN RWY 09/27 AND RWY 17/35.
A110-6DEER ON & INVOF ARPT.
A110-7FOR CD OR TO CNL IFR WHEN ATCT IS CLSD CTC DAB APCH AT 386-226-3939.
A14ARPT PHYS ADS: 770 ARPT RD. ORMOND BEACH, FL 32174. 386-676-3267
A30A-09UNLGTD OBSTNS IN APCH; 52 FT TREES 1245 FT BFR AER.
A30A-17UNLGTD OBSTNS IN APCH; 50 FT TREES 1200 FT BFR AER.
A30A-27UNLGTD OBSTNS IN APCH; 43 FT TREES 840 FT BFR AER.
A42-17_CONDRWY 17 MARKINGS DISCOLORED AND IN POOR COND.
A42-35_CONDRWY 35 MARKINGS DISCOLORED AND IN POOR COND.
A57-09APCH SLP 14:1 TO AER. APCH SLP 20:1 TO AER.
A57-17APCH SLP 20:1 TO AER. APCH SLP 21:1 TO AER.
A81-APTACTVT REIL RWY 09, 17, 27, & 35; PAPI RWY 09, 17, 27, & 35; MIRL RWYS 09/27 & 17/35 - CTAF.
ORMOND BEACH MUNI (ICAO: KOMN, IATA: OMN) is a public airport located in ORMOND BEACH, FL, US.
