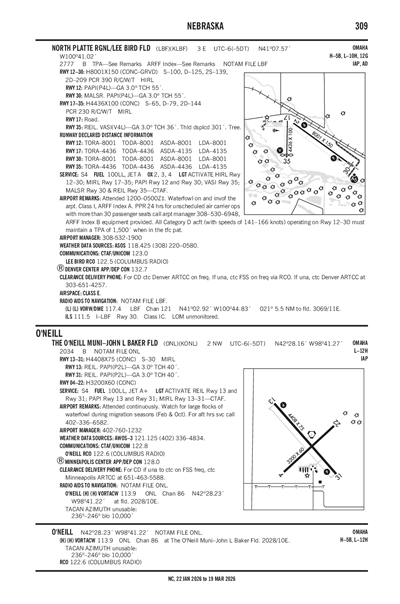

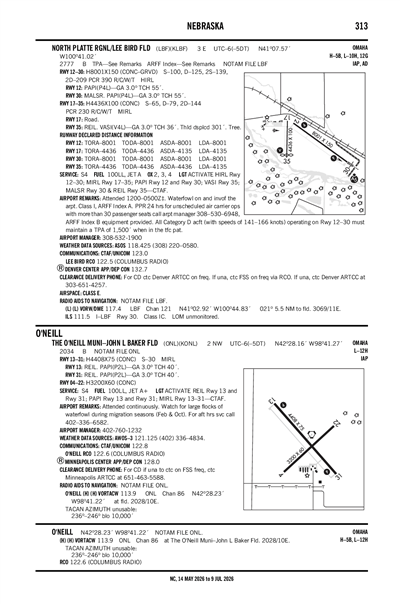

THE O'NEILL MUNI-JOHN L BAKER FLD - Airport Diagram

KONL

ICAO KONLIATA ONLLocal ONL

THE O'NEILL MUNI-JOHN L BAKER FLD

PublicPUB

2 miles NW of O'NEILL, NE, US

View on Map

Status

Operational

Coordinates

42° 28' 10"N 98° 41' 16"W

Elevation

2034' MSL

Pattern Alt

3034' MSL

Mag Variation

4°E

Declination

9°E

Fuel

JET A (FSII), 100LL

FSS

COLUMBUS (OLU)

Sectional

OMAHA

ARTCC

MINNEAPOLIS (ZMP)

Data Effective

2/19/26-3/19/26

KONL LIFR

8:15 AM CDT RAW

Overcast 300'

Viz

N/A

Temp

21°F

Dew

19°F

Pres

29.86"Hg

Wind

340° 24kts

Gusts 32kts

RMK

AO2 T10601073 PWINO

METAR KONL 151315Z AUTO 34024G32KT OVC003 M06/M07 A2986 RMK AO2 T10601073 PWINO

Add Your Business

KONL FBOs

Promote Listing

O'Neill Municipal Airport

UNICOM: 122.8

Phone: (402) 336-3377

Other: (432) 207-0742

0 Reviews (Read | Sign In To Write)

Avfuel

As of 2/24	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve	5.15		4.28
Full Serve

Fuel Notes

Prices include tax

Your Information

Business

Weather and Advisory

AWOS-3	121.125
(402) 336-4834

Common

CTAF	122.8
ACTVT REIL RWYS 13 & 31; PAPI RWYS 13 & 31; MIRL RWY 13/31 - CTAF.
UNICOM	122.8

Center

MINNEAPOLIS CENTER	128.0
LOW, APCH/DEP SVC PRVDD BY MINNEAPOLIS ARTCC ON FREQS 128.0/257.95 (O'NEILL RCAG).

Flight Service

Flight Service	122.6
(OLU)

FAA A/FD Pages

FAA A/FD Page

Airport Minimums

Instrument Approach

Terminal Area Forecast

KOFK (63nm)

RAW

Reported

Sun, 3/15 6:20 AM CDT

Valid

Sun, 3/15 7:00 AM CDT - Mon, 3/16 7:00 AM CDT

IFR

7:00 AM CDT - 10:00 AM CDT

Light Snow

Overcast 1,000'

Viz

2sm

Wind

340° 26kts

Gusts 38kts

LIFR

10:00 AM CDT - 4:00 PM CDT

Heavy Snow and Blowing Snow

Overcast 1,000'

Viz

0.25sm

Wind

340° 31kts

Gusts 49kts

MVFR

4:00 PM CDT - 6:00 PM CDT

Blowing Snow

Broken 2,500'

Viz

5sm

Wind

330° 31kts

Gusts 49kts

VFR

6:00 PM CDT - 2:00 AM CDT

Broken 15,000'
Scattered 2,500'

Viz

6sm

Wind

330° 29kts

Gusts 45kts

VFR

2:00 AM CDT - 7:00 AM CDT

Few 15,000'

Viz

6sm

Wind

330° 22kts

Gusts 35kts

TAF KOFK 151120Z 1512/1612 34026G38KT 2SM -SN OVC010
   FM151500 34031G49KT 1/4SM +SN BLSN OVC010
   FM152100 33031G49KT 5SM BLSN BKN025
   FM152300 33029G45KT P6SM SCT025 BKN150
   FM160700 33022G35KT P6SM FEW150

KONL

Effective	Expires	NOTAM
Domestic
3/3/26 2050Z	5/3/26 2359Z	!ONL 03/002 ONL OBST TOWER LGT (ASR 1257424) 422722.60N0983721.80W (3.0NM ESE ONL) 2378.6FT (389.8FT AGL) U/S 2603032050-2605032359
2/27/26 0255Z	3/26/26 2359Z	!ONL 02/006 ONL OBST TOWER LGT (ASR 1041789) 422700.00N0983653.00W (3.4NM ESE ONL) 2332.7FT (365.8FT AGL) U/S 2602270255-2603262359

ATC Tower

Attendance

ALL
FOR AFT HRS SVC CALL 402-336-6582.

Owner

O'NEILL AIRPORT AUTHORITY
87204 JOHN L. BAKER ROAD
O'NEILL, NE 68763
Phone: (402) 336-3377

Manager

CORY JOHNSON
87204 JOHN L BAKER ROAD
O'NEILL, NE 68763
Phone: 402-760-1232

FSS

COLUMBUS FSS (OLU)
Toll Free: 1-800-WX-BRIEF

NOTAM

ONL

Light Schedule

Lights

ACTVT REIL RWYS 13 & 31; PAPI RWYS 13 & 31; MIRL RWY 13/31 - CTAF.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Yes

Landing Fee

Parking

Hanger, Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

Airframe Repair

Major

Pwrplant Repair

Major

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

Crop Dusting
Pilot Instruction
Aircraft Rental

Runway 04/22

Dimensions

3200 ft. x 60 ft.

Surface Type

Surface Cond

CONC

Treatment

NONE

Rwy Edge Lgts

Pavement Class

Single Wheel

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 04	Runway 22
True Heading	48°	228°
Traffic Pattern
Markings	NPI	NPI
Markings Condition	GOOD	GOOD
Latitude	42° 27' 56"N	42° 28' 18"N
Longitude	98° 41' 30"W	98° 40' 59"W
Elevation	2,034'	2,029'
Threshold Crossing Height	--	--
Visual Glide Path Angle	--	--
Visual Slope Indicator	--	--
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 13/31

Dimensions

4408 ft. x 75 ft.

Surface Type

CONC

Surface Cond

Excellent

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

30,000lbs

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 13	Runway 31
True Heading	139°	319°
Traffic Pattern	Left	Left
Markings	NPI	NPI
Markings Condition	GOOD	GOOD
Latitude	42° 28' 28"N	42° 27' 55"N
Longitude	98° 41' 36"W	98° 40' 58"W
Elevation	2,032'	2,032'
Threshold Crossing Height	40 ft. AGL	40 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P2L	P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights	Yes	Yes

A11	BARTON BECKER, CHAIRMAN OF ARPT AUTHORITY.
A110-1	WATCH FOR LRG FLOCKS OF WATERFOWL DRG MIGRATION SEASONS (FEBRUARY AND OCTOBER)
A110-2	FOR CD IF UNA TO CTC ON FSS FREQ, CTC MINNEAPOLIS ARTCC AT 651-463-5588.
A17-M1	FOR AFT HRS SVC CALL 402-336-6582.
A81-APT	ACTVT REIL RWYS 13 & 31; PAPI RWYS 13 & 31; MIRL RWY 13/31 - CTAF.

THE O'NEILL MUNI-JOHN L BAKER FLD (ICAO: KONL, IATA: ONL) is a public airport located in O'NEILL, NE, US.
