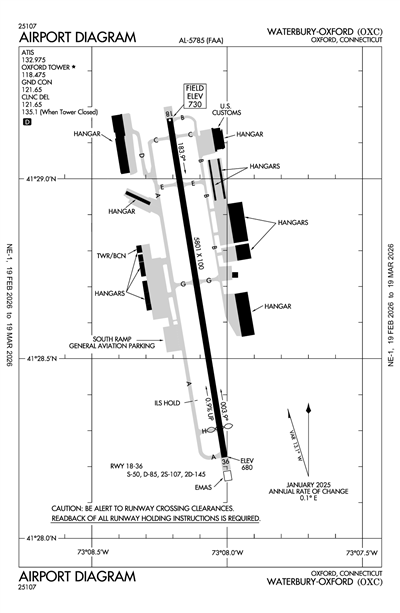

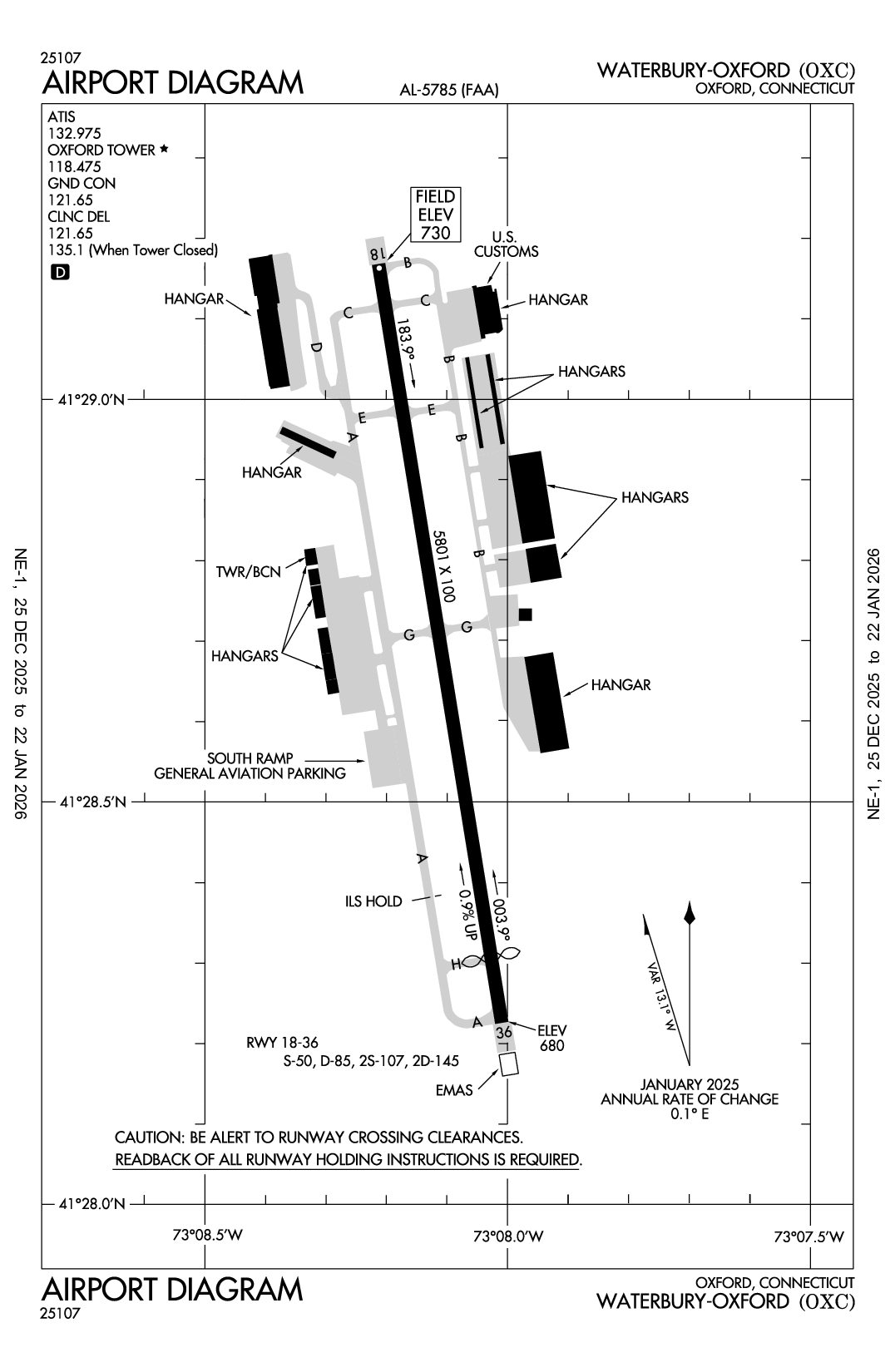

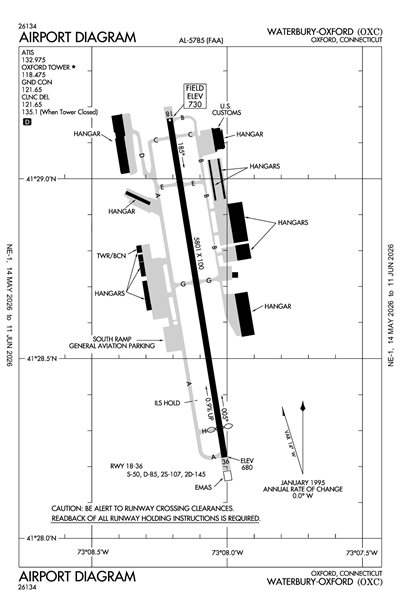

WATERBURY-OXFORD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KOXC
ICAO KOXCIATA OXCLocal OXC
WATERBURY-OXFORD
PublicPUB

3 miles N of OXFORD, CT, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
41° 28' 42"N 73° 08' 07"W
Elevation
730' MSL
Pattern Alt
1730' MSL
Mag Variation
13°W
Declination
14°W
Fuel
JET A, 100LL
FSS
BRIDGEPORT (BDR)
Sectional
NEW YORK
ARTCC
BOSTON (ZBW)
Data Effective
2/19/26-3/19/26
KOXC VFR
11:56 AM EDT
Overcast 6,500'
10sm
39°F
17°F
30.46"Hg
130° 10kts
AO2 SLP334 T00391083 $
METAR KOXC 151556Z 13010KT 10SM OVC065 04/M08 A3046 RMK AO2 SLP334 T00391083 $
+ Add Your Business

KOXC FBOs

Promote Listing
Clay Lacy Aviation
UNICOM: 122.95
Phone: (203) 264-0605
No Rating Available
0 Reviews (Read | Sign In To Write)
World Fuel
As of 3/3
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 7.00
Promote Listing
Atlantic Aviation
UNICOM: 122.95
Phone: (203) 264-6525
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 2/28
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 7.65 7.58
Fuel Notes
Prices include tax

KOXC Aircraft Service & Maintenance

Promote Listing
Tradewind Aviation LLC
Phone: (203) 267-3305
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 132.975
(203) 262-1190
AWOS-3PT 132.975
(203) 262-1190

Common

CTAF 118.475
ACTVT REIL RWY 36; PAPI RWYS 18 & 36; HIRL RWY 18/36 - CTAF.
UNICOM 122.95

Clearance

Clearance Delivery 121.65
Clearance Delivery 135.1
WHEN OXC TWR CLSD

Ground

OXFORD GROUND 121.65
0600-2100

Tower

OXFORD TOWER 118.475
0600-2100

Arrival

DENNA STAR 124.075

Approach

NEW YORK APPROACH 124.075
NEW YORK APPROACH 135.1
Secondary

Departure

NEW YORK DEPARTURE 124.075
NEW YORK DEPARTURE 135.1
Secondary

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Arrival Procedures

Instrument Approach

Terminal Area Forecast

KBDR (19nm)
Sun, 3/15 10:31 AM EDT
Sun, 3/15 11:00 AM EDT - Mon, 3/16 8:00 AM EDT
VFR
11:00 AM EDT - 12:00 PM EDT
Broken 12,000'
6sm
080° 8kts
VFR
12:00 PM EDT - 4:00 PM EDT
Broken 15,000'
6sm
120° 9kts
VFR
4:00 PM EDT - 12:00 AM EDT
Broken 20,000'
Scattered 8,000'
6sm
120° 11kts
MVFR
12:00 AM EDT - 4:00 AM EDT
Overcast 3,000'
Scattered 1,500'
6sm
100° 10kts
MVFR
Temporary 1:00 AM EDT - 4:00 AM EDT
Light Rain
Overcast 3,000'
Broken 1,500'
6sm
Calm
IFR
4:00 AM EDT - 8:00 AM EDT
Showers and Rain and Mist
Overcast 600'
2sm
120° 15kts
Gusts 26kts
TAF KBDR 151431Z 1515/1612 08008KT P6SM BKN120
   FM151600 12009KT P6SM BKN150
   FM152000 12011KT P6SM SCT080 BKN200
   FM160400 10010KT P6SM SCT015 OVC030
   TEMPO 1605/1608 6SM -RA BKN015 OVC030
   FM160800 12015G26KT 2SM SHRA BR OVC006 WS020/15055KT
KOXC
EffectiveExpiresCategoryNOTAM
Domestic
3/14/26
2157Z
3/29/26
2157Z
!OXC 03/028 OXC OBST TOWER LGT (ASN 2016-ANE-2806-OE) 412927N0730716W (1.0NM NE OXC) 882FT (94FT AGL) U/S 2603142157-2603292157
3/14/26
2153Z
3/29/26
2153Z
!OXC 03/027 OXC OBST POWER LINE LGT (ASN 2008-ANE-825-OE) 412810N0730752W (0.6NM SSE OXC) 734FT (81FT AGL) U/S 2603142153-2603292153
3/14/26
2152Z
3/29/26
2152Z
!OXC 03/026 OXC OBST POWER LINE LGT (ASN 2016-ANE-2852-OE) 412906N0730725W (0.6NM NE OXC) 903FT (96FT AGL) U/S 2603142152-2603292152
3/14/26
2125Z
3/29/26
2125Z
!OXC 03/025 OXC OBST POWER LINE LGT (ASN 2016-ANE-4733-OE) 412924N0730717W (0.9NM NE OXC) 911FT (96FT AGL) U/S 2603142125-2603292125
3/14/26
2124Z
3/29/26
2124Z
!OXC 03/024 OXC OBST POWER LINE LGT (ASN 2016-ANE-4731-OE) 412913N0730722W (0.8NM NE OXC) 961FT (91FT AGL) U/S 2603142124-2603292124
3/14/26
2123Z
3/29/26
2123Z
!OXC 03/023 OXC OBST POWER LINE LGT (ASN 2016-ANE-2803-OE) 412910N0730724W (0.7NM NE OXC) 951FT (94FT AGL) U/S 2603142123-2603292123
3/12/26
1407Z
3/27/26
1407Z
!OXC 03/022 OXC OBST POWER LINE LGT (ASN 2016-ANE-2344-OE) 412907N0730721W (0.7NM NE OXC) 911FT (81FT AGL) U/S 2603121407-2603271407
3/9/26
1804Z
7/9/26
2359Z
!OXC 03/018 OXC OBST TOWER (ASN 2025-ANE-3861-OE) 412719N0730802W (1.5NM S OXC) 787FT (116FT AGL) NOT LGTD 2603091804-2607092359
3/7/26
0406Z
3/22/26
0406Z
!OXC 03/017 OXC OBST POWER LINE LGT (ASN 2008-ANE-823-OE) 412755N0730758W (0.8NM S OXC) 721FT (81FT AGL) U/S 2603070406-2603220406
3/7/26
0347Z
3/22/26
0347Z
!OXC 03/016 OXC OBST POWER LINE LGT (ASN 2009-ANE-595-OE) 412802N0730755W (0.7NM SSE OXC) 747FT (84FT AGL) U/S 2603070347-2603220347
3/7/26
0345Z
3/22/26
0345Z
!OXC 03/015 OXC OBST POWER LINE LGT (ASN 2016-ANE-4732-OE) 412919N0730719W (0.9NM NE OXC) 953FT (86FT AGL) U/S 2603070345-2603220345
3/1/26
2242Z
3/16/26
2242Z
!OXC 03/006 OXC OBST TOWER LGT (ASN 2016-ANE-2804-OE) 412916N0730721W (0.8NM NE OXC) 966FT (94FT AGL) U/S 2603012242-2603162242
3/1/26
2237Z
3/16/26
2237Z
!OXC 03/005 OXC OBST POWER LINE LGT (ASN 2023-ANE-1748-OE) 412305N0731012W (5.9NM SSW OXC) 302FT (161FT AGL) U/S 2603012237-2603162237
3/1/26
2207Z
3/16/26
2207Z
!OXC 03/004 OXC OBST POWER LINE LGT (ASN 2016-ANE-2853-OE) 412907N0730725W (0.7NM NE OXC) 926FT (96FT AGL) U/S 2603012207-2603162207
3/1/26
2200Z
3/16/26
2200Z
!OXC 03/003 OXC OBST TOWER LGT (ASN 2016-ANE-2805-OE) 412921N0730719W (0.9NM NE OXC) 950FT (94FT AGL) U/S 2603012200-2603162200
2/5/26
0818Z
3/22/26
0709Z
!OXC 02/008 OXC OBST TOWER LGT (ASN 2022-ANE-6038-OE) 412816N0730719W (1NM SE OXC) 611FT (201FT AGL) U/S 2602050818-2603220709
FDC
3/13/26
1200Z
!FDC 6/7876 OXC IAP WATERBURY-OXFORD, OXFORD, CT.
RNAV (GPS) RWY 36, AMDT 4...
WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE DXR ALTIMETER SETTING: INCREASE LPV DA TO 1049 FEET AND ALL VISIBILITIES 1/4 SM; INCREASE LNAV/VNAV DA TO 1175 FEET AND ALL VISIBILITIES 3/8 SM; INCREASE ALL MDAS 80 FEET AND LNAV VISIBILITY CATS C AND D 1/8 SM, AND CIRCLING VISIBILITY CATS C AND D 1/4 SM. OXC AWOS OTS.
2603131200-2603200432EST
3/13/26
1200Z
!FDC 6/7875 OXC IAP WATERBURY-OXFORD, OXFORD, CT.
RNAV (GPS) RWY 18, AMDT 4...
WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE DXR ALTIMETER SETTING: INCREASE LPV DA TO 1218 FEET AND ALL VISIBILITIES 1/4 SM; INCREASE LNAV/VNAV DA TO 1219 FEET AND ALL VISIBILITIES 1/4 SM; INCREASE ALL MDAS 80 FEET AND LNAV VISIBILITY CAT C AND D 3/8 SM, AND CIRCLING VISIBILITY CAT C AND D 1/4 SM. OXC AWOS OTS.
2603131200-2603200432EST
3/13/26
1200Z
!FDC 6/7874 OXC IAP WATERBURY-OXFORD, OXFORD, CT.
ILS OR LOC RWY 36, AMDT 16...
WHEN LOCAL WEATHER NOT RECEIVED, USE DXR ALTIMETER SETTING: INCREASE S-ILS 35 DA TO 1049 AND ALL CATS VISIBILITIES 1/4 SM; INCREASE ALL MDAS 80 FEET AND S-LOC 36 VISIBILITY CAT C AND D 1/8 SM, AND CIRCLING VISIBILITY CAT C AND D 1/4 SM. OXC AWOS OTS.
2603131200-2603200432EST
Yes
ALL
CONNECTICUT AIRPORT AUTHORITY
SUITE 160 334 ELLA GRASSO TURNPIKE
WINDSOR LOCKS, CT 06096
Phone: 860-292-2000
WILLIE MCBRIDE
300 CHRISTIAN ST
OXFORD, CT 06478
Phone: 203-264-8010
BRIDGEPORT FSS (BDR)
Toll Free: 1-800-WX-BRIEF
OXC
--
ACTVT REIL RWY 36; PAPI RWYS 18 & 36; HIRL RWY 18/36 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Avionics
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 18/36

5801 ft. x 100 ft.
ASPH
Excellent
GRVD
HIGH

50,000lbs
85,000lbs
145,000lbs
--
  Runway 18 Runway 36
True Heading 171°351°
Traffic Pattern Right Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 41° 29' 10"N 41° 28' 14"N
Longitude 73° 08' 13"W 73° 08' 01"W
Elevation 730' 680'
Threshold Crossing Height 47 ft. AGL 56 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights No Yes
A110-1TGLS & PLAS PROHIBITED 2300-0700.
A110-100(E94) SAWRS.
A110-101TWY B, SOUTH OF TWY G, REFLECTORS ONLY.
A110-103FOR CD WHEN TWR CLSD CTC NEW YORK APCH AT 516-683-2449.
A110-104STEEP DROP OFF AFT SAFETY AREA NORTH & SOUTH OF TWY A.
A110-2PLA RWY 36 NA WHEN RWY 18 ACTV.
A110-3ARPT CLSD TO ACR OPS.
A110-4PAEW VCNTY RWY 18/36 SAFETY ZONE SUMMER ONLY SR-SS (MOWING IN PROG DLY).
A110-5RWY 36 CALM WIND RWY.
A110-6748 FT ELEC TRANSMISSION TWRS RUNNING NE TO SW 0.2 MI N OF MID MKR.
A110-7DEER & BIRDS ON & INVOF ARPT.
A24LDG FEE FOR BUS/CORPORATE & REVENUE PRODUCING ACFT.
A43-18LGTS BAFFLED BYD 6 DEGS L OF CNTRLN.
A43-36LGTS BAFFLED DUE TO TREES & PWR LN TWR BYD 5 DEGS R OF CNTRLN.
A56-36PWR LN RUNS DGNLY ACRS THE APCH.
A81-APTACTVT REIL RWY 36; PAPI RWYS 18 & 36; HIRL RWY 18/36 - CTAF.
E147973 FT AGL ACFT UP TO 12500 LBS; 1473 FT AGL ACFT OVR 12500 LBS.
WATERBURY-OXFORD (ICAO: KOXC, IATA: OXC) is a public airport located in OXFORD, CT, US.
