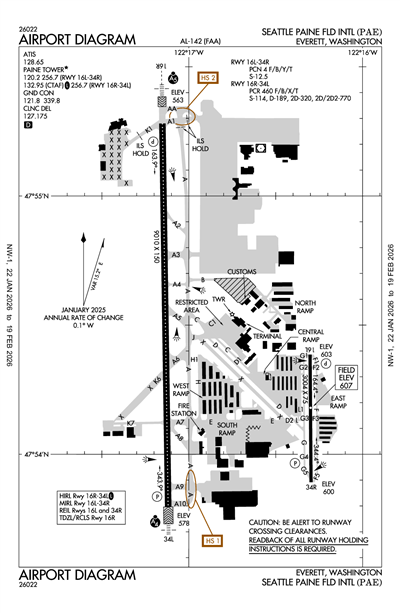

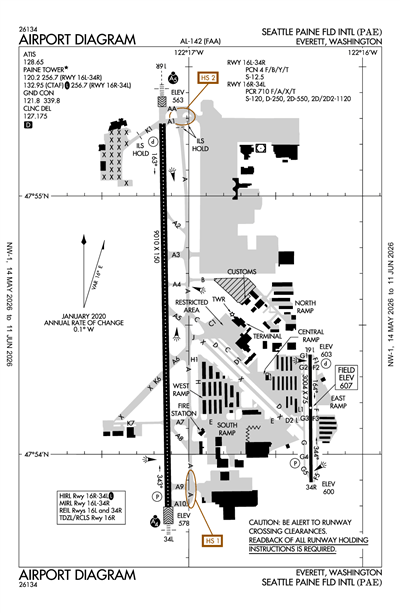

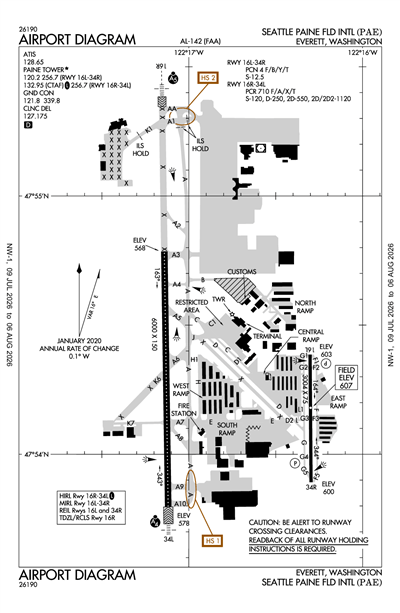

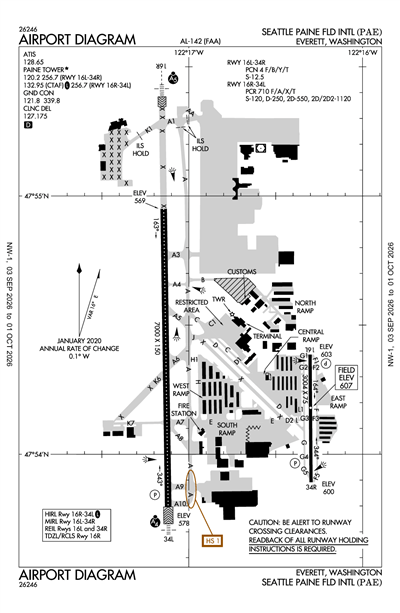

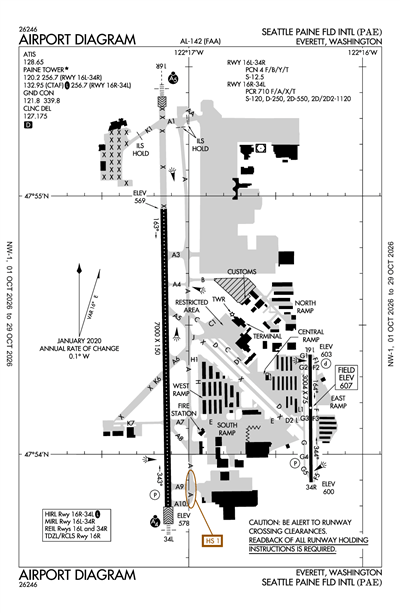

SEATTLE PAINE FLD INTL - Airport Diagram

KPAE

ICAO KPAEIATA PAELocal PAE

SEATTLE PAINE FLD INTL

PublicPUB

6 miles SW of EVERETT, WA, US

View on Map

Status

Operational

Coordinates

47° 54' 18"N 122° 16' 53"W

Elevation

607' MSL

Pattern Alt

1607' MSL

Mag Variation

15°E

Declination

16°E

Fuel

JET A, 100LL

FSS

SEATTLE (SEA)

Sectional

SEATTLE

ARTCC

SEATTLE (ZSE)

Data Effective

9/3/26-10/1/26

KPAE VFR

12:53 PM PDT RAW

Clear

Viz

10sm

Temp

61°F

Dew

51°F

Pres

29.90"Hg

Wind

360° 6kts

RMK

AO2 SLP124 T01610106

METAR KPAE 121953Z 36006KT 10SM CLR 16/11 A2990 RMK AO2 SLP124 T01610106

Add Your Business

KPAE FBOs

Promote Listing

Propeller Aero Services

UNICOM: 122.95

Phone: (425) 341-1474

0 Reviews (Read | Sign In To Write)

Avfuel

As of 9/8	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve	8.03
Full Serve	9.05	7.95	8.07

Fuel Notes

Prices include tax

Regal Air

UNICOM: 123.3

Phone: (425) 353-9123

Fax: (425) 347-4507

0 Reviews (Read | Sign In To Write)

Independent

As of 9/8	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve
Full Serve	8.94

Fuel Notes

Prices include tax

KPAE Aircraft Service & Maintenance

Promote Listing

Crown Aviation Avionics

Phone: (425) 355-4088

Fax: (425) 355-4288

0 Reviews (Read | Sign In To Write)

KPAE Other Aviation Services

Promote Listing

Dynon Avionics

Phone: (425) 402-0433

Fax: (425) 984-1751

0 Reviews (Read | Sign In To Write)

Your Information

Business

Weather and Advisory

ATIS	128.65
(425) 355-9797
ASOS	(425) 355-6192

Common

CTAF	132.95
WHEN ATCT CLSD, ACTVT MALSR RWY 16R; MALSF 34L; HIRL RWY 16R/34L - CTAF. PAPI RWY 34L OPR CONSLY.
UNICOM	122.95

Clearance

Clearance Delivery

127.175

Ground

PAINE GROUND	121.8
0700-2100

Tower

PAINE TOWER	120.2
0700-2100 - RWY 16L/34R
PAINE TOWER	132.95
Initial Contact, 0700-2100 - RWY 16R/34L

Arrival

OLYMPIA STAR

125.6

Approach

SEATTLE APPROACH

128.5

Departure

SEATTLE DEPARTURE

128.5

Operations

34.1

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

AIRPORT DIAGRAM

Airport Minimums

Departure Procedures

PAINE SIX

Instrument Approach

Hotspot

HOT SPOT

Terminal Area Forecast

KPAE

RAW

Reported

Sat, 9/12 10:24 AM PDT

Valid

Sat, 9/12 11:00 AM PDT - Sun, 9/13 11:00 AM PDT

VFR

11:00 AM PDT - 2:00 PM PDT

Broken 15,000'

Viz

6sm

Wind

330° 4kts

VFR

2:00 PM PDT - 8:00 PM PDT

Overcast 12,000'

Viz

6sm

Wind

310° 6kts

VFR

8:00 PM PDT - 2:00 AM PDT

Overcast 12,000'
Broken 7,000'

Viz

6sm

Wind

180° 8kts

MVFR

2:00 AM PDT - 5:00 AM PDT

Light Rain

Overcast 2,500'
Broken 1,500'

Viz

6sm

Wind

180° 8kts

IFR

5:00 AM PDT - 11:00 AM PDT

Light Rain and Mist

Overcast 700'

Viz

4sm

Wind

180° 10kts

TAF KPAE 121724Z 1218/1318 33004KT P6SM BKN150
   FM122100 31006KT P6SM OVC120
   FM130300 18008KT P6SM BKN070 OVC120
   FM130900 18008KT P6SM -RA BKN015 OVC025
   FM131200 18010KT 4SM -RA BR OVC007

KPAE

Effective	Expires	Category	NOTAM
Domestic
9/16/26 1500Z	9/16/26 2300Z		!PAE 09/057 PAE TWY A9 BTN RWY 16R/34L AND TWY A CLSD 2609161500-2609162300
9/13/26 0100Z	10/31/26 1400Z		!PAE 09/067 PAE TWY A1, K1 CLSD EXC ACFT UNDER TOW 2609130100-2610311400
9/12/26 1600Z	9/13/26 2359Z		!PAE 09/060 PAE AIRSPACE UAS WI AN AREA DEFINED AS .5NM RADIUS OF 474048N1215700W (12.4NM S W16) SFC-700FT AGL DLY 1600-2359 2609121600-2609132359
9/12/26 1407Z	9/13/26 0100Z		!PAE 09/069 PAE TWY A1, K1 CLSD 2609121407-2609130100
9/12/26 0300Z	9/12/26 1300Z		!PAE 09/068 PAE AD AP ALL SFC WIP SFC PAINTING 2609120300-2609121300
9/10/26 2242Z	9/14/26 2359Z		!PAE 09/061 PAE SVC PCL RWY 16R/34L REDL U/S FREQ 132.95 2609102242-2609142359
9/8/26 1400Z	9/26/26 0200Z		!PAE 09/005 PAE TWY L1 CLSD 2609081400-2609260200
9/8/26 1400Z	9/26/26 0200Z		!PAE 09/004 PAE TWY L CLSD 2609081400-2609260200
9/8/26 1400Z	9/26/26 0200Z		!PAE 09/003 PAE TWY D BTN TWY D2 AND TWY G CLSD 2609081400-2609260200
9/5/26 1424Z	10/31/26 1400Z	Runway	!PAE 09/035 PAE RWY 16R/34L N 2000FT WIP CONST ADJ 2609051424-2610311400
9/1/26 2014Z	11/30/26 2114Z		!PAE 09/002 PAE OBST TOWER LGT (ASR 1013740) 475241.00N1221436.00W (2.2NM SE PAE) 604.0FT (105.0FT AGL) U/S 2609012014-2611302114
8/29/26 1325Z	10/3/26 0001Z		!PAE 08/069 PAE APRON TXL E E 300FT CLSD 2608291325-2610030001
8/22/26 0000Z	10/22/26 2359Z		!PAE 08/041 PAE AIRSPACE UAS WI AN AREA DEFINED AS 480202N1221120W (7.7NM S AWO) TO 480115N1221330W (7.4NM N PAE) TO 475945N1221421W (5.8NM N PAE) TO 475939N1221250W (6.0NM N PAE) TO 475917N1221250W (5.7NM NNE PAE) TO 475755N1221458W (3.9NM N PAE) TO 475518N1221509W (1.6NM NNE PAE) TO 475320N1221510W (1.5NM ESE PAE) TO 475254N1221417W (2.2NM ESE PAE) TO 475214N1221250W (3.4NM ESE PAE) TO 475332N1221105W (3.4NM WSW S43) TO 475509N1221049W (3.2NM W S43) TO 475700N1221015W (3.9NM WNW S43) TO 480122N1221022W (7.6NM NW S43) TO POINT OF ORIGIN SFC-400FT AGL DLY 0000-2359 2608220000-2610222359
8/3/26 0600Z	10/31/26 1400Z	Runway	!PAE 07/155 PAE RWY 16L/34R OPN TUE-SAT 0600-1400 2608030600-2610311400
8/1/26 0600Z	10/31/26 1400Z	Runway	!PAE 07/154 PAE RWY 16R/34L CLSD SAT TUE WED THU FRI 0600-1400 2608010600-2610311400
7/24/26 0001Z	10/31/26 1400Z		!PAE 07/132 PAE TWY AA CLSD 2607240001-2610311400
7/20/26 1400Z	10/3/26 0001Z		!PAE 07/096 PAE TWY D2 CLSD 2607201400-2610030001
7/10/26 1400Z	10/31/26 1400Z		!PAE 07/044 PAE TWY A BTN TWY A1 AND TWY A3 CLSD 2607101400-2610311400
7/9/26 1632Z	10/31/26 1400Z	Runway	!PAE 07/071 PAE RWY 16R/34L WIP CONST ADJ N END 2607091632-2610311400
7/8/26 0600Z	10/31/26 1400Z	Runway	!PAE 07/066 PAE RWY 16R ALS U/S 2607080600-2610311400
7/8/26 0600Z	10/31/26 1400Z	Runway	!PAE 07/065 PAE RWY 16R PAPI U/S 2607080600-2610311400
7/8/26 0600Z	10/31/26 1400Z		!PAE 07/064 PAE NAV ILS RWY 16R LOC/GP U/S 2607080600-2610311400
7/8/26 0600Z	10/31/26 1400Z	Runway	!PAE 07/040 PAE RWY 16R RTZL U/S 2607080600-2610311400
7/8/26 0600Z	10/31/26 1400Z		!PAE 07/039 PAE TWY A3 ELEVATED RWY GUARD LGT U/S 2607080600-2610311400
7/8/26 0600Z	10/31/26 1400Z		!PAE 07/038 PAE TWY A3 IN PAVEMENT RWY GUARD LGT U/S 2607080600-2610311400
FDC
9/8/26 1612Z			!FDC 6/1688 PAE IAP SEATTLE PAINE FLD INTL, EVERETT, WA. RNAV (GPS) X RWY 16R, AMDT 1... LNAV CATS C/D VIS RVR 6000. 2609081612-2809081612EST
7/9/26 1204Z			!FDC 6/4285 PAE IAP SEATTLE PAINE FLD INTL, EVERETT, WA. ILS Y OR LOC Y RWY 16R, AMDT 23... ILS Z OR LOC Z RWY 16R, AMDT 1A... RNAV (GPS) Y RWY 16R, AMDT 2... RNAV (GPS) Z RWY 16R, AMDT 1... PROCEDURE NA. 2607091204-2807091204EST
5/7/26 1823Z			!FDC 6/8791 PAE IAP SEATTLE PAINE FLD INTL, EVERETT, WA. VOR-A, ORIG... CHART NOTE: RWY 16L HELICOPTER VISIBILITY REDUCTION BELOW 1 SM NOT AUTHORIZED.. 2605071823-2805081823EST

ATC Tower

Yes

Attendance

NOV-APR 0700-2100
MAY-OCT 0700-2100

Owner

SNOHOMISH COUNTY
3000 ROCKEFELLER AVE.
EVERETT, WA 98201
Phone: 425-388-5110

Manager

JOSHUA MARCY
9901 24TH PL. W SUITE A
EVERETT, WA 98204
Phone: 425-388-5125

FSS

SEATTLE FSS (SEA)
Toll Free: 1-800-WX-BRIEF

NOTAM

PAE

Light Schedule

Lights

WHEN ATCT CLSD, ACTVT MALSR RWY 16R; MALSF 34L; HIRL RWY 16R/34L - CTAF. PAPI RWY 34L OPR CONSLY.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Yes

Landing Fee

Yes

Parking

Hanger, Tie-Down

Int'l Operations

Landing Rights Airport
NOT an Airport of Entry

Airframe Repair

Major

Pwrplant Repair

Major

Bottled Oxygen

High Pressure

Bulk Oxygen

High Pressure

Other Services

Air Freight
Avionics
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 16L/34R

Dimensions

3004 ft. x 75 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

4/F/B/Y/T

Single Wheel

12,000lbs

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 16L	Runway 34R
True Heading	180°	360°
Traffic Pattern		Right
Markings	BSC	BSC
Markings Condition	GOOD	GOOD
Latitude	47° 54' 23"N	47° 53' 53"N
Longitude	122° 16' 18"W	122° 16' 18"W
Elevation	603'	600'
Threshold Crossing Height	24 ft. AGL	22 ft. AGL
Visual Glide Path Angle	3.25°	3°
Visual Slope Indicator	P2L	P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights	Yes	Yes

Runway 16R/34L

Dimensions

7000 ft. x 150 ft.

Surface Type

ASPH CONC

Surface Cond

Good

Treatment

GRVD

Rwy Edge Lgts

HIGH

Pavement Class

Single Wheel

120,000lbs

Double Wheel

250,000lbs

Double Tandem

550,000lbs

Dual Dbl Tand

1,120,000lbs

	Runway 16R	Runway 34L
True Heading	179°	359°
Traffic Pattern	Right
Markings	NPI	NPI
Markings Condition	GOOD	GOOD
Latitude	47° 54' 57"N	47° 53' 48"N
Longitude	122° 17' 09"W	122° 17' 07"W
Elevation	569'	578'
Threshold Crossing Height	--	75 ft. AGL
Visual Glide Path Angle	--	3°
Visual Slope Indicator	--	P4L
Approach Lights	MALSR	MALSF
Centerline Lights	Yes	Yes
Runway End Identifier Lights

A110-12	BIRDS ON & INVOF ARPT.
A110-15	ITNRNT DEP OF SML ACFT OVR 250 HORSE PWR RWY 34R.
A110-17	S 1200 FT E EDGE TWY A, TXL E FM SE CORNER OF W HNGRS TO TWY A & TXL H FM NW EDGE OF W HNGRS TO TXL E NOT VSB FM ATCT.
A110-25	TAXILANE E RSTRD TO WINGSPAN LESS THAN 171 FT. ACFT WINGSPAN OF 171 FT OR GREATER ON TAXILANE E, TUG OPS ONLY. EAST 500 FT OF TAXILANE E RSTRD TO WINGSPAN LESS THAN 49 FT.
A110-27	TWY C BTN TRML RAMP & CTL RAMP RSTRD WINGSPAN 68 FT OR LESS. TWY D, F, G & L RSTRD WINGSPAN LESS THAN 49 FT. TWY A4, A5, K7 & B RSTRD WINGSPAN LESS THAN 118 FT. TXL H RSTRD WINGSPAN LESS THAN 49 FT.
A110-28	DIVD FLTS NA EXC EMERG OR PPR - ARPT OPS 425-388-5125.
A110-29	BOEING RAMP ACES PPR - 206-544-5900. BFR TAX TO BOEING RAMP CTC BOEING TWR 123.475 OR 425-342-5900.
A110-3	NOISE SENS ARPT; NOISE ABATEMENT PROC REQ UNLESS DRCTD BY ATCT; ITNRNT ARR & LOW APCH OF SML ACFT OVR 250 HORSE PWR AUZD RWY 16L & 34R. 0500-1500Z++ IF WIND & PER ALLOW ARR RWY 16R; DEP RWY 34L. NOISE ABATEMENT & TFC PROC - 425-388-5125.
A110-30	TWY K1 CLSD UNDER 30000 LB.
A110-31	TSNT HEL EXP LNDG/TKOF TWY B.
A110-32	ARPT CONDS UNMNT 0000-0600.
A110-33	EMERG 121.5 UNMNT BY ATCT. SEATTLE TRACON MNT 121.5 FOR EVERETT PAE.
A110-34	FOR CD WHEN ATCT IS CLSD CTC SEATTLE APCH AT 206-214-4722.
A110-35	TKOF CLNC RWY 16R FULL LEN; ENT RWY VIA TWY A1 UNLESS TWY AA SPECIFIED.
A110-36	LRG ACFT FLY W PAT OVR WTR; SML ACFT FLY E PAT OVR ARPT.
A110-37	CTN: 80 FT LGT POLES SW EDGE BRAVO RAMP.
A110-38	MEDEVAC SVCS ARE CONDUCTED FM THE FBO AT THE BRAVO RAMP.
A110-6	ALERT; RWY 16R/34L CNVGG TFC BASE TO FNL 2100-0700.
A110-7	AVOID LOW LVL OTFC OF BOEING RAMP NE CORNER OF ARPT.
A110-8	TRNG OPS NA AFT 2200 HRS.
A24	LNDG FEE OVR 30000 LB GWT.
A26	CLSD TO UNSKED ACR OPS GTR THAN 30 PAX SEATS 2100-0700; EXC PPR - 425-388-5125.
A30-16L/34R	CLSD 0500-1500Z. AVOID INT DEP. LTD TO HEL 8000 LB OR LESS. RUNUP AREAS NEAR F1, F5, G4 & NON-MOV AREA W OF G1.
A30-16R/34L	WHEN ATCT CLSD INT DEP NA. TGL NA 0700-0900 MON-FRI. RUNUP AREA AT A4.
A33-16R/34L_SURF	FIRST 1000 FT RWY 16R CONC.
A39-16R/34L	PCR VALUE: 710/F/A/X/T
A70-100LL	100LL SELF SVC H24 WITH CREDIT CARD AT CTL RAMP. HEL SELF SVC NA. AFT HR - 425-355-6600.
A81-APT	WHEN ATCT CLSD, ACTVT MALSR RWY 16R; MALSF 34L; HIRL RWY 16R/34L - CTAF. PAPI RWY 34L OPR CONSLY.
E111	ESTABD PRIOR TO 15 MAY 1959.

SEATTLE PAINE FLD INTL (ICAO: KPAE, IATA: PAE) is a public airport located in EVERETT, WA, US.
