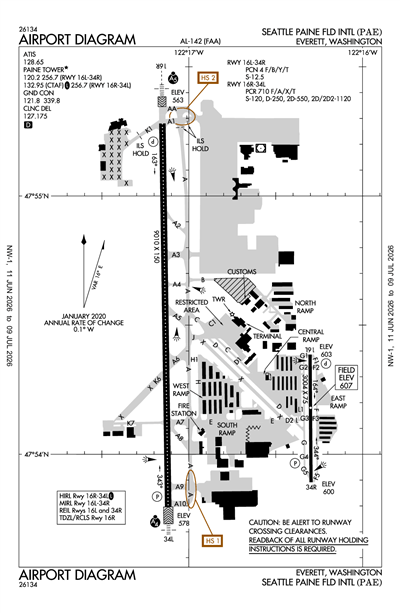

SEATTLE PAINE FLD INTL - Airport Diagram

KPAE

ICAO KPAEIATA PAELocal PAE

SEATTLE PAINE FLD INTL

PublicPUB

6 miles SW of EVERETT, WA, US

View on Map

Status

Operational

Coordinates

47° 54' 14"N 122° 16' 51"W

Elevation

607' MSL

Pattern Alt

1607' MSL

Mag Variation

15°E

Declination

16°E

Fuel

JET A, 100LL

FSS

SEATTLE (SEA)

Sectional

SEATTLE

ARTCC

SEATTLE (ZSE)

Data Effective

8/6/26-9/3/26

KPAE VFR

3:53 PM PDT RAW

Clear

Viz

10sm

Temp

70°F

Dew

53°F

Pres

30.12"Hg

Wind

260° 4kts

RMK

AO2 SLP198 T02110117

METAR KPAE 102253Z 26004KT 10SM CLR 21/12 A3012 RMK AO2 SLP198 T02110117

Add Your Business

KPAE FBOs

Promote Listing

Propeller Aero Services

UNICOM: 122.95

Phone: (425) 341-1474

0 Reviews (Read | Sign In To Write)

Avfuel

As of 8/4	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve	8.12
Full Serve	9.25	7.71	7.83

Fuel Notes

Prices include tax

Regal Air

UNICOM: 123.3

Phone: (425) 353-9123

Fax: (425) 347-4507

0 Reviews (Read | Sign In To Write)

Independent

As of 8/5	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve
Full Serve	9.10

Fuel Notes

Prices include tax

KPAE Aircraft Service & Maintenance

Promote Listing

Crown Aviation Avionics

Phone: (425) 355-4088

Fax: (425) 355-4288

0 Reviews (Read | Sign In To Write)

KPAE Other Aviation Services

Promote Listing

Dynon Avionics

Phone: (425) 402-0433

Fax: (425) 984-1751

0 Reviews (Read | Sign In To Write)

Your Information

Business

Weather and Advisory

ATIS	128.65
(425) 355-9797
ASOS	(425) 355-6192

Common

CTAF	132.95
WHEN ATCT CLSD, ACTVT MALSR RWY 16R; MALSF 34L; HIRL RWY 16R/34L - CTAF. PAPI RWY 34L OPR CONSLY.
UNICOM	122.95

Clearance

Clearance Delivery

127.175

Ground

PAINE GROUND	121.8
0700-2100

Tower

PAINE TOWER	120.2
0700-2100 - RWY 16L/34R
PAINE TOWER	132.95
Initial Contact, 0700-2100 - RWY 16R/34L

Arrival

OLYMPIA STAR

125.6

Approach

SEATTLE APPROACH

128.5

Departure

SEATTLE DEPARTURE

128.5

Operations

34.1

Flight Service

Flight Service	122.2
(SEA)

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

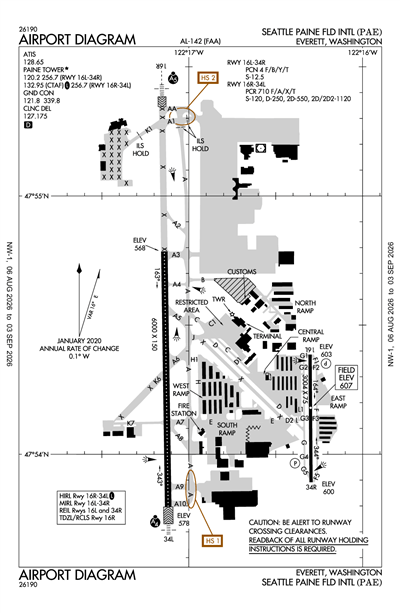

AIRPORT DIAGRAM

Airport Minimums

Departure Procedures

PAINE SIX

Instrument Approach

Hotspot

HOT SPOT

Terminal Area Forecast

KPAE

RAW

Reported

Mon, 8/10 11:16 AM PDT

Valid

Mon, 8/10 11:00 AM PDT - Tue, 8/11 11:00 AM PDT

VFR

11:00 AM PDT - 1:00 PM PDT

Scattered 1,300'

Viz

6sm

Wind

VRB° 4kts

VFR

1:00 PM PDT - 7:00 PM PDT

Scattered 20,000'
Few 1,500'

Viz

6sm

Wind

340° 6kts

VFR

7:00 PM PDT - 5:00 AM PDT

Scattered 20,000'

Viz

6sm

Wind

350° 6kts

IFR

5:00 AM PDT - 11:00 AM PDT

Mist

Broken 500'

Viz

6sm

Wind

010° 3kts

TAF KPAE 101816Z 1018/1118 VRB04KT P6SM SCT013
   FM102000 34006KT P6SM FEW015 SCT200
   FM110200 35006KT P6SM SCT200
   FM111200 01003KT 6SM BR BKN005

KPAE

Effective	Expires	Category	NOTAM
Domestic
8/13/26 1500Z	8/13/26 1900Z	Runway	!PAE 08/015 PAE RWY 16R/34L WIP MAINT 2608131500-2608131900
8/12/26 1500Z	8/12/26 1900Z	Runway	!PAE 08/014 PAE RWY 16R/34L WIP MAINT 2608121500-2608121900
8/12/26 1400Z	8/12/26 2300Z	Runway	!PAE 08/013 PAE RWY 16R/34L WIP GRASS CUTTING ADJ SAFETY AREA 2608121400-2608122300
8/10/26 1413Z	8/10/26 2359Z		!PAE 08/012 PAE TWY F, G, D, L WIP GRASS CUTTING ADJ 2608101413-2608102359
8/10/26 1413Z	8/10/26 2359Z		!PAE 08/011 PAE TWY C BTN TWY J AND CENTRAL RAMP WIP GRASS CUTTING ADJ 2608101413-2608102359
8/4/26 1400Z	10/31/26 1400Z		!PAE 08/006 PAE TWY A1, K1 CLSD EXC AIRCRAFT UNDER TOW 2608041400-2610311400
8/3/26 0600Z	10/31/26 1400Z	Runway	!PAE 07/155 PAE RWY 16L/34R OPN TUE-SAT 0600-1400 2608030600-2610311400
8/1/26 0600Z	10/31/26 1400Z	Runway	!PAE 07/154 PAE RWY 16R/34L CLSD SAT TUE WED THU FRI 0600-1400 2608010600-2610311400
7/24/26 1549Z	10/31/26 1400Z	Runway	!PAE 07/134 PAE RWY 16R/34L RCLL NOT STD 2607241549-2610311400
7/24/26 0001Z	10/31/26 1400Z		!PAE 07/132 PAE TWY AA CLSD 2607240001-2610311400
7/20/26 1400Z	10/3/26 0001Z		!PAE 07/096 PAE TWY D2 CLSD 2607201400-2610030001
7/20/26 1400Z	10/3/26 0001Z		!PAE 07/095 PAE APRON TXL E E 900FT CLSD 2607201400-2610030001
7/10/26 1400Z	10/31/26 1400Z		!PAE 07/044 PAE TWY A BTN TWY A1 AND TWY A3 CLSD 2607101400-2610311400
7/9/26 1936Z	10/31/26 1400Z	Runway	!PAE 07/075 PAE RWY 16R/34L N 3000FT WIP CONST ADJ 2607091936-2610311400
7/9/26 1632Z	10/31/26 1400Z	Runway	!PAE 07/071 PAE RWY 16R/34L WIP CONST ADJ N END 2607091632-2610311400
7/8/26 0600Z	10/31/26 1400Z	Runway	!PAE 07/066 PAE RWY 16R ALS U/S 2607080600-2610311400
7/8/26 0600Z	10/31/26 1400Z	Runway	!PAE 07/065 PAE RWY 16R PAPI U/S 2607080600-2610311400
7/8/26 0600Z	10/31/26 1400Z		!PAE 07/064 PAE NAV ILS RWY 16R LOC/GP U/S 2607080600-2610311400
7/8/26 0600Z	10/31/26 1400Z	Runway	!PAE 07/040 PAE RWY 16R RTZL U/S 2607080600-2610311400
7/8/26 0600Z	10/31/26 1400Z		!PAE 07/039 PAE TWY A3 ELEVATED RWY GUARD LGT U/S 2607080600-2610311400
7/8/26 0600Z	10/31/26 1400Z		!PAE 07/038 PAE TWY A3 IN PAVEMENT RWY GUARD LGT U/S 2607080600-2610311400
7/8/26 0600Z			!PAE 07/012 PAE TWY A2 CLSD 2607080600-PERM
7/4/26 0017Z	10/2/26 0017Z		!PAE 07/047 PAE OBST TOWER LGT (ASR 1013740) 475241.00N1221436.00W (2.4NM SE PAE) 604.0FT (105.0FT AGL) U/S 2607040017-2610020017
6/23/26 0000Z	8/22/26 2359Z		!PAE 06/051 PAE AIRSPACE UAS WI AN AREA DEFINED AS 480202N1221120W (7.7NM S AWO) TO 480115N1221330W (7.2NM N PAE) TO 475945N1221421W (5.6NM N PAE) TO 475939N1221250W (5.9NM NNE PAE) TO 475917N1221250W (5.6NM NNE PAE) TO 475755N1221458W (3.7NM N PAE) TO 475518N1221509W (1.5NM NE PAE) TO 475320N1221510W (1.6NM ESE PAE) TO 475254N1221417W (2.4NM ESE PAE) TO 475214N1221250W (3.5NM ESE PAE) TO 475332N1221105W (3.4NM WSW S43) TO 475509N1221049W (3.2NM W S43) TO 475700N1221015W (3.9NM WNW S43) TO 480122N1221022W (7.6NM NW S43) TO POINT OF ORIGIN SFC-400FT AGL DLY 0000-2359 2606230000-2608222359
FDC
8/11/26 1500Z	8/18/26 1819Z		!FDC 6/3466 PAE IAP SNOHOMISH COUNTY (PAINE FLD), EVERETT, WA. ILS Y OR LOC Y RWY 16R, AMDT 23... ILS Z OR LOC Z RWY 16R, AMDT 1A... ILS Z RWY 16R (SA CAT II) RADAR REQUIRED FOR PROCEDURE ENTRY EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS, CVV VOR OUT OF SERVICE. 2608111500-2608181819EST
7/9/26 1204Z			!FDC 6/4285 PAE IAP SEATTLE PAINE FLD INTL, EVERETT, WA. ILS Y OR LOC Y RWY 16R, AMDT 23... ILS Z OR LOC Z RWY 16R, AMDT 1A... RNAV (GPS) Y RWY 16R, AMDT 2... RNAV (GPS) Z RWY 16R, AMDT 1... PROCEDURE NA. 2607091204-2807091204EST
5/7/26 1823Z			!FDC 6/8791 PAE IAP SEATTLE PAINE FLD INTL, EVERETT, WA. VOR-A, ORIG... CHART NOTE: RWY 16L HELICOPTER VISIBILITY REDUCTION BELOW 1 SM NOT AUTHORIZED.. 2605071823-2805081823EST

ATC Tower

Yes

Attendance

NOV-APR 0700-2100
MAY-OCT 0700-2100

Owner

SNOHOMISH COUNTY
3000 ROCKEFELLER AVE.
EVERETT, WA 98201
Phone: 425-388-5110

Manager

JOSHUA MARCY
9901 24TH PL. W SUITE A
EVERETT, WA 98204
Phone: 425-308-2347

FSS

SEATTLE FSS (SEA)
Toll Free: 1-800-WX-BRIEF

NOTAM

PAE

Light Schedule

Lights

WHEN ATCT CLSD, ACTVT MALSR RWY 16R; MALSF 34L; HIRL RWY 16R/34L - CTAF. PAPI RWY 34L OPR CONSLY.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Yes

Landing Fee

Yes

Parking

Hanger, Tie-Down

Int'l Operations

Landing Rights Airport
NOT an Airport of Entry

Airframe Repair

Major

Pwrplant Repair

Major

Bottled Oxygen

High Pressure

Bulk Oxygen

High Pressure

Other Services

Air Freight
Avionics
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 16L/34R

Dimensions

3004 ft. x 75 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

4/F/B/Y/T

Single Wheel

12,000lbs

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 16L	Runway 34R
True Heading	180°	360°
Traffic Pattern		Right
Markings	BSC	BSC
Markings Condition	GOOD	GOOD
Latitude	47° 54' 23"N	47° 53' 53"N
Longitude	122° 16' 18"W	122° 16' 18"W
Elevation	603'	600'
Threshold Crossing Height	24 ft. AGL	22 ft. AGL
Visual Glide Path Angle	3.25°	3°
Visual Slope Indicator	P2L	P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights	Yes	Yes

Runway 16R/34L

Dimensions

6000 ft. x 150 ft.

Surface Type

ASPH CONC

Surface Cond

Good

Treatment

GRVD

Rwy Edge Lgts

HIGH

Pavement Class

Single Wheel

120,000lbs

Double Wheel

250,000lbs

Double Tandem

550,000lbs

Dual Dbl Tand

1,120,000lbs

	Runway 16R	Runway 34L
True Heading	179°	359°
Traffic Pattern	Right
Markings	PIR	NPI
Markings Condition	GOOD	GOOD
Latitude	47° 54' 47"N	47° 53' 48"N
Longitude	122° 17' 08"W	122° 17' 07"W
Elevation	568'	578'
Threshold Crossing Height	--	75 ft. AGL
Visual Glide Path Angle	--	3°
Visual Slope Indicator	--	P4L
Approach Lights	MALSR	MALSF
Centerline Lights	Yes	Yes
Runway End Identifier Lights

A110-12	BIRDS ON & INVOF ARPT.
A110-15	ITNRNT DEP OF SML ACFT OVR 250 HORSE PWR RWY 34R.
A110-16	TWY A-2 RSTRD TO 30000 LB.
A110-17	S 1200 FT E EDGE TWY A, TXL E FM SE CORNER OF W HNGRS TO TWY A & TXL H FM NW EDGE OF W HNGRS TO TXL E NOT VSB FM ATCT.
A110-25	TAXILANE E RSTRD TO WINGSPAN LESS THAN 171 FT. ACFT WINGSPAN OF 171 FT OR GREATER ON TAXILANE E, TUG OPS ONLY. EAST 500 FT OF TAXILANE E RSTRD TO WINGSPAN LESS THAN 49 FT.
A110-27	TWY C BTN TRML RAMP & CTL RAMP RSTRD WINGSPAN 68 FT OR LESS. TWY D, F, G & L RSTRD WINGSPAN LESS THAN 49 FT. TWY A4, A5, K7 & B RSTRD WINGSPAN LESS THAN 118 FT. TXL H RSTRD WINGSPAN LESS THAN 49 FT.
A110-28	DIVD FLTS NA EXC EMERG OR PPR - ARPT OPS 425-388-5125.
A110-29	BOEING RAMP ACES PPR - 206-544-5900. BFR TAX TO BOEING RAMP CTC BOEING TWR 123.475 OR 425-342-5900.
A110-3	NOISE SENS ARPT; NOISE ABATEMENT PROC REQ UNLESS DRCTD BY ATCT; ITNRNT ARR & LOW APCH OF SML ACFT OVR 250 HORSE PWR AUZD RWY 16L & 34R. 0500-1500Z++ IF WIND & PER ALLOW ARR RWY 16R; DEP RWY 34L. NOISE ABATEMENT & TFC PROC - 425-388-5125.
A110-30	TWY K1 CLSD UNDER 30000 LB.
A110-31	TSNT HEL EXP LNDG/TKOF TWY B.
A110-32	ARPT CONDS UNMNT 0000-0600.
A110-33	EMERG 121.5 UNMNT BY ATCT. SEATTLE TRACON MNT 121.5 FOR EVERETT PAE.
A110-34	FOR CD WHEN ATCT IS CLSD CTC SEATTLE APCH AT 206-214-4722.
A110-35	TKOF CLNC RWY 16R FULL LEN; ENT RWY VIA TWY A1 UNLESS TWY AA SPECIFIED.
A110-36	LRG ACFT FLY W PAT OVR WTR; SML ACFT FLY E PAT OVR ARPT.
A110-37	CTN: 80 FT LGT POLES SW EDGE BRAVO RAMP.
A110-38	MEDEVAC SVCS ARE CONDUCTED FM THE FBO AT THE BRAVO RAMP.
A110-6	ALERT; RWY 16R/34L CNVGG TFC BASE TO FNL 2100-0700.
A110-7	AVOID LOW LVL OTFC OF BOEING RAMP NE CORNER OF ARPT.
A110-8	TRNG OPS NA AFT 2200 HRS.
A24	LNDG FEE OVR 30000 LB GWT.
A26	CLSD TO UNSKED ACR OPS GTR THAN 30 PAX SEATS 2100-0700; EXC PPR - 425-388-5125.
A30-16L/34R	CLSD 0500-1500Z. AVOID INT DEP. LTD TO HEL 8000 LB OR LESS. RUNUP AREAS NEAR F1, F5, G4 & NON-MOV AREA W OF G1.
A30-16R/34L	WHEN ATCT CLSD INT DEP NA. TGL NA 0700-0900 MON-FRI. RUNUP AREA AT A4.
A33-16R/34L_SURF	FIRST 1000 FT RWY 16R CONC.
A39-16R/34L	PCR VALUE: 710/F/A/X/T
A70-100LL	100LL SELF SVC H24 WITH CREDIT CARD AT CTL RAMP. HEL SELF SVC NA. AFT HR - 425-355-6600.
A81-APT	WHEN ATCT CLSD, ACTVT MALSR RWY 16R; MALSF 34L; HIRL RWY 16R/34L - CTAF. PAPI RWY 34L OPR CONSLY.
E111	ESTABD PRIOR TO 15 MAY 1959.

SEATTLE PAINE FLD INTL (ICAO: KPAE, IATA: PAE) is a public airport located in EVERETT, WA, US.
