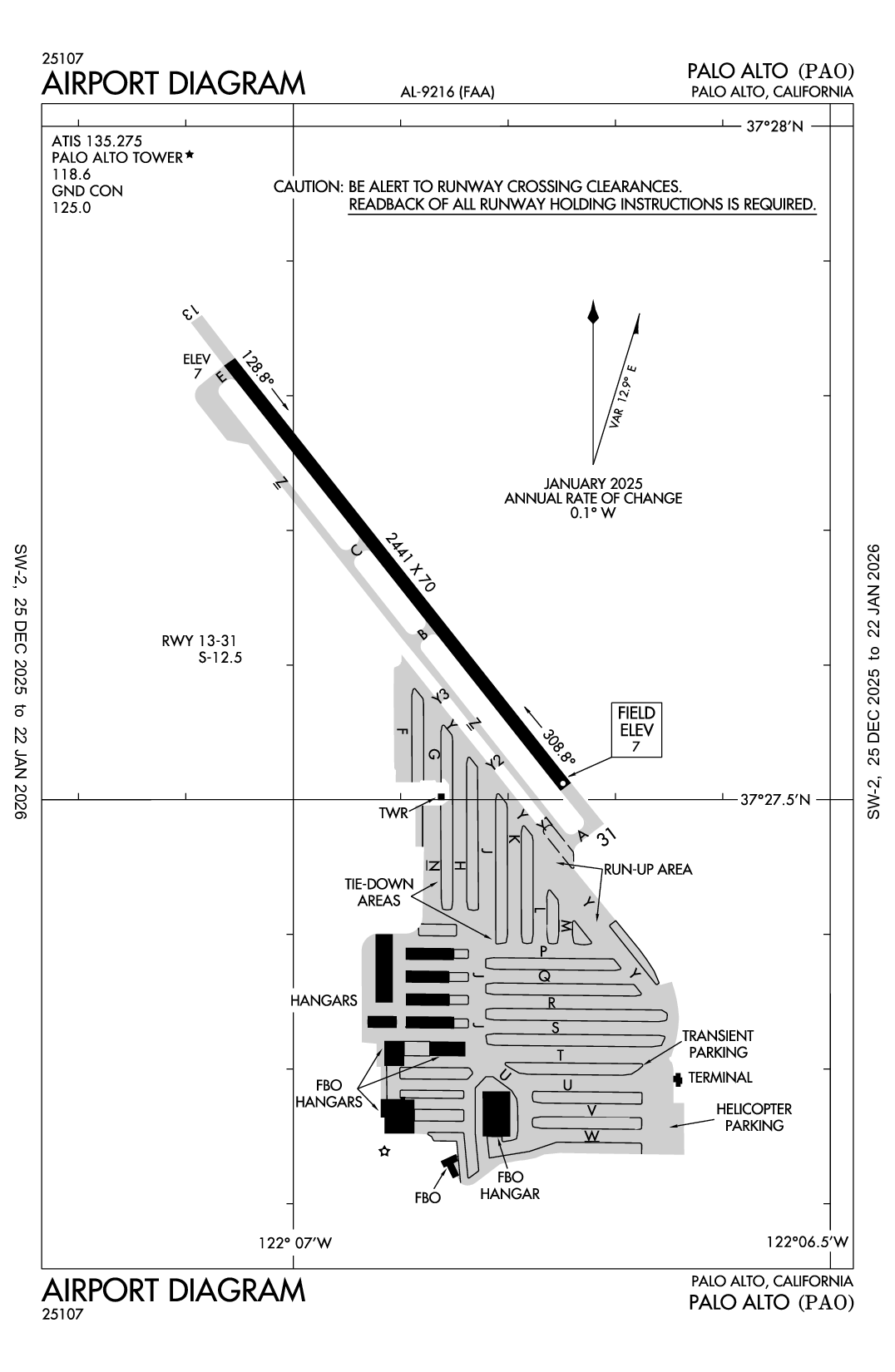

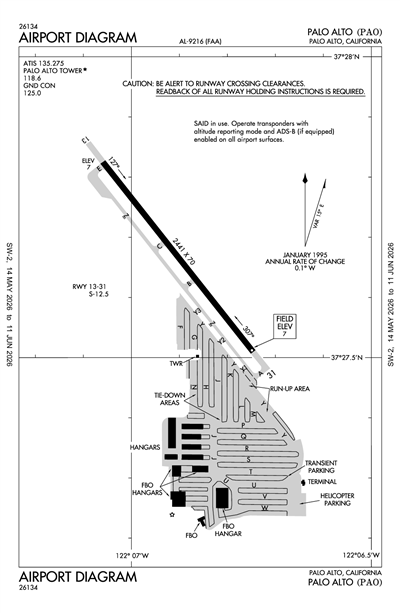

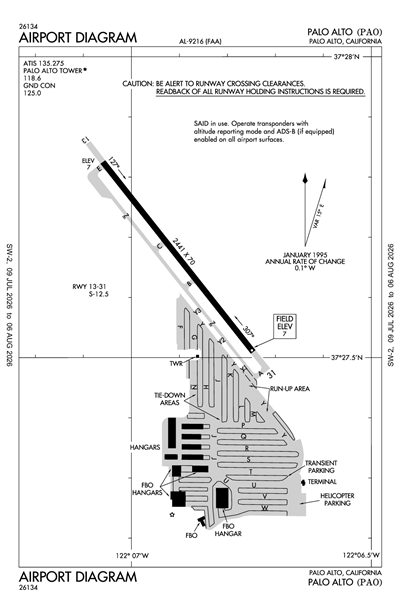

PALO ALTO - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KPAO
ICAO KPAOIATA PAOLocal PAO
PALO ALTO
PublicPUB

0 miles E of PALO ALTO, CA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
37° 27' 40"N 122° 06' 54"W
Elevation
7' MSL
Pattern Alt
1007' MSL
Mag Variation
13°E
Declination
15°E
Fuel
JET A, 100LL
FSS
OAKLAND (OAK)
Sectional
SAN FRANCISCO
ARTCC
OAKLAND (ZOA)
Data Effective
8/6/26-9/3/26
KPAO VFR
1:47 PM PDT
Sky Clear
10sm
72°F
61°F
29.98"Hg
360° 10kts
METAR KPAO 242047Z 36010KT 10SM SKC 22/16 A2998
+ Add Your Business

KPAO FBOs

Promote Listing
Rossi Aircraft
UNICOM: 122.85
Phone: (650) 493-1673
Other: (650) 493-3326
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 7/31
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 8.29
Full Serve 8.40 8.34 8.64
Fuel Notes
Prices include tax

KPAO Aircraft Service & Maintenance

Promote Listing
Aero Works
Phone: (650) 565-0063
No Rating Available
0 Reviews (Read | Sign In To Write)

KPAO Flying Clubs

Promote Listing
West Valley Flying Club
UNICOM: 122.95
Phone: (650) 856-2030
No Rating Available
0 Reviews (Read | Sign In To Write)

KPAO Other Businesses

Promote Listing
Stanford Flying Club
UNICOM: 122.95
Phone: (650) 858-2200
No Rating Available
0 Reviews (Read | Sign In To Write)
Promote Listing
Trade Winds Aviation
UNICOM: 122.95
Phone: (408) 729-5100
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 135.275
(650) 858-0606

Common

CTAF 118.6
UNICOM 122.95

Ground

PALO ALTO GROUND 125.0
0700-2100

Tower

PALO ALTO TOWER 118.6
0700-2100

Approach

NORCAL APPROACH 121.3
NORCAL APPROACH 133.95
Secondary
NORCAL APPROACH 134.5
Secondary

Departure

NORCAL DEPARTURE 121.3

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Instrument Approach

Terminal Area Forecast

KSJC (11nm)
Mon, 8/24 10:34 AM PDT
Mon, 8/24 11:00 AM PDT - Tue, 8/25 11:00 AM PDT
VFR
11:00 AM PDT - 2:00 PM PDT
Few 1,500'
6sm
310° 5kts
VFR
2:00 PM PDT - 9:00 PM PDT
Sky Clear
6sm
310° 10kts
VFR
9:00 PM PDT - 3:00 AM PDT
Few 15,000'
6sm
320° 6kts
MVFR
3:00 AM PDT - 11:00 AM PDT
Broken 1,200'
6sm
320° 3kts
TAF KSJC 241734Z 2418/2518 31005KT P6SM FEW015
   FM242100 31010KT P6SM SKC
   FM250400 32006KT P6SM FEW150
   FM251000 32003KT P6SM BKN012
KPAO
EffectiveExpiresCategoryNOTAM
Domestic
8/24/26
2030Z
8/24/26
2230Z
!PAO 08/024 PAO AIRSPACE UAS WI AN AREA DEFINED AS .8NM RADIUS OF 372508N1220501W (3.1NM SE PAO) SFC-300FT AGL 2608242030-2608242230
8/24/26
1500Z
8/26/26
0400Z
!PAO 08/023 PAO AIRSPACE UNMANNED FREE BALLOON 372515N1220609W (2.8NM SSE PAO) SFC-FL600 NEB 2608241500-2608260400
8/22/26
1626Z
9/30/26
2359Z
Runway!PAO 08/022 PAO RWY 13 RWY END ID LGT U/S 2608221626-2609302359
8/22/26
1625Z
9/30/26
2359Z
!PAO 08/021 PAO AD AP WINDCONE OBST LGT U/S 2608221625-2609302359
8/14/26
1400Z
11/12/26
2230Z
!PAO 08/013 PAO OBST CRANE (ASN 2025-AWP-2795-OE) 372706N1220639W (0.6NM SSE PAO) 151FT (139FT AGL) FLAGGED AND LGTD 2608141400-2611122230
8/14/26
1330Z
11/12/26
2330Z
!PAO 08/012 PAO OBST CRANE (ASN 2025-AWP-2793-OE) 372708N1220635W (0.6NM SSE PAO) 150FT (139FT AGL) FLAGGED AND LGTD DLY 1330-2330 2608141330-2611122330
4/13/26
1500Z
12/31/26
0600Z
!PAO 04/014 PAO AIRSPACE SEE SJC 04/065 UAS DLY 1500-0600 2604131500-2612310600
3/10/26
1429Z
11/1/26
0211Z
!PAO 03/012 PAO AIRSPACE UAS WI AN AREA DEFINED AS .8NM RADIUS OF 372508N1220501W (3NM SE PAO) SFC-300FT AGL TUE-THU SR-SS 2603101429-2611010211
FDC
8/14/26
1330Z
!FDC 6/4899 PAO ODP PALO ALTO, PALO ALTO, CA.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES ORIG-B...
ADD TAKEOFF OBSTACLE NOTE:
RWY 13, TEMPORARY CRANE 2504 FT FROM DER, 811 FT RIGHT OF CENTERLINE, 139 AGL/151 MSL (2025-AWP-2792-OE).
TEMP CRANE 2533 FT FROM DER, 1109 RIGHT OF CENTERLINE, UP TO 139 AGL/151 MSL (2025-AWP-2794-OE). TEMP CRANE, 2279 FT FROM DER, 826 FT RIGHT OF CENTERLINE, UP TO 139 AGL/150 MSL (2025-AWP-2793-OE)
ALL OTHER DATA REMAINS AS PUBLISHED. 2608141330-2611301313EST
7/22/25
1543Z
!FDC 5/2623 PAO IAP PALO ALTO, PALO ALTO, CA.
RNAV (GPS) RWY 31, AMDT 2...
LNAV MDA 560/HAT 553 ALL CATS. CIRCLING MDA 560/HAA 553 ALL CATS. FAS OBST: 255 BUILDING (06-306876) 372325.79N/1220452.86W.
2507221543-2707221543EST
Yes
0600-2000
CITY OF PALO ALTO
250 HAMILTON AVENUE
PALO ALTO, CA 94301
Phone: (650) 329-2444
ANDREW SWANSON
250 HAMILTON AVENUE
PALO ALTO, CA 94301
Phone: (650) 329-2444
OAKLAND FSS (OAK)
Toll Free: 1-800-WX-BRIEF
PAO
--
ARPT LGTS OPERATE CONTINUOUSLY WHEN ATCT CLSD.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
Low Pressure
None
Air Ambulance
Avionics
Charter Service
Glider Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 13/31

2441 ft. x 70 ft.
ASPH
Good
NONE
MED

12,000lbs
--
--
--
  Runway 13 Runway 31
True Heading 142°322°
Traffic Pattern Left Right
Markings BSC NPI
Markings Condition GOOD GOOD
Latitude 37° 27' 50"N 37° 27' 31"N
Longitude 122° 07' 04"W 122° 06' 45"W
Elevation 7' 7'
Threshold Crossing Height 29 ft. AGL 29 ft. AGL
Visual Glide Path Angle 4° 4°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-1+100 FT TRANSMISSION TWRS E OF ARPT.
A110-11ARPT RSTRD BY ARPT OPR TO ACFT WITH MAX CERTD WT OF 12500 LBS OR LESS.
A110-12FOR CD WHEN ATCT IS CLSD CTC NORCAL APCH AT 916-361-3748.
A110-2BIRDS ON AND INVOF AP.
A110-3TPA 1000 FT W & 800 FT E.
A110-4NOISE SENSITIVE AREA SE THRU NW OF ARPT. RCMD ACFT LDG AT PALO ALTO ARPT FLY AT OR ABOVE 1500 FT UNTIL XNG THE BAYSHORE FREEWAY, AND RCMD ACFT DEP RWY 31 TURN 10 DEG RIGHT AFTER TKOF TIL RCHG DUMBARTON AUTO BRIDGE.
A110-5BE ALERT FOR PEDESTRAINS XNG A DIKE ROAD 8 FT HIGH AND 300 FT FROM RWY 13 END.
A110-6CONS PEDESTRIAN/VEHICLE ACT ON ACFT TAXI LANES NOT DESIGNATED AS TWY MOV AREAS.
A110-7ARPT SCTY PRODS IN EFCT.
A110-9ON APCH TO RWY 31 BE ALERT TO POSS STG UPDRAFT FM WIND TUNNEL LCTD ON W SIDE OF MOFFETT FEDERAL AIRFIELD.
A57-13RY 13 +8 FT DIKE 300 FT FROM RY END, OBSTN LGTD.
A57-31RY 31 +5 FT DIKE 230 FT FROM RY END, OBSTN LGTD.
A70-100LLSELF-FUELING AVAILBLE 24/7.
A81-APTARPT LGTS OPERATE CONTINUOUSLY WHEN ATCT CLSD.
PALO ALTO (ICAO: KPAO, IATA: PAO) is a public airport located in PALO ALTO, CA, US.
