KPEA
ICAO KPEALocal PEA
PELLA MUNI
PublicPUB

1 miles W of PELLA, IA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
41° 24' 04"N 92° 56' 45"W
Elevation
885' MSL
Pattern Alt
1701' MSL
Mag Variation
0°
Declination
2°E
Fuel
JET A, 100LL
FSS
FORT DODGE (FOD)
Sectional
CHICAGO
ARTCC
CHICAGO (ZAU)
Data Effective
5/14/26-6/11/26
KPEA VFR
8:55 PM CDT
Light Rain
Overcast 5,000'
Scattered 2,100'
Scattered 1,400'
10sm
71°F
67°F
29.95"Hg
330° 5kts
AO2 T02140194
METAR KPEA 050155Z AUTO 33005KT 10SM -RA SCT014 SCT021 OVC050 21/19 A2995 RMK AO2 T02140194
+ Add Your Business

KPEA FBOs

Promote Listing
Classic Aviation
UNICOM: 122.8
Phone: (641) 628-9393
Fax: (641) 621-9515
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 5/31
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 7.48 6.44
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 118.875
(641) 628-3459

Common

CTAF 122.8
MIRL RWY 16/34 PRESET LOW INTST; TO INCREASE INTST AND ACTVT PAPI RWY 16 & 34; REIL RWYS 16 & 34 - CTAF.
UNICOM 122.8

Approach

DES MOINES APPROACH 123.9

Departure

DES MOINES DEPARTURE 123.9

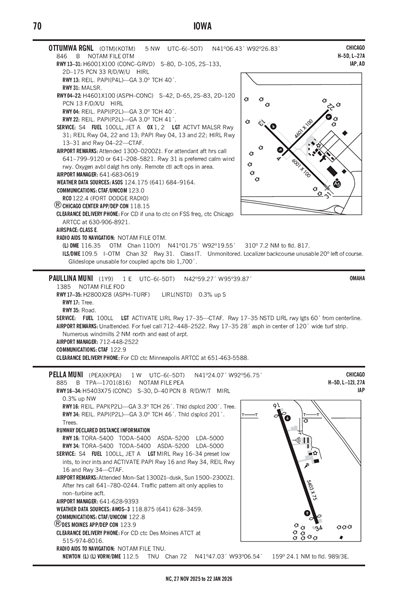

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KOTM (29nm)
Thu, 6/4 6:29 PM CDT
Thu, 6/4 7:00 PM CDT - Fri, 6/5 7:00 PM CDT
VFR
7:00 PM CDT - 9:00 PM CDT
Overcast 10,000'
Scattered 4,500'
6sm
180° 11kts
VFR
9:00 PM CDT - 1:00 AM CDT
Light Showers and Rain
Overcast 7,000'
Scattered 4,000'
Few 2,500'
6sm
170° 8kts
MVFR
Temporary 9:00 PM CDT - 1:00 AM CDT
Light Thunderstorm and Rain
Broken 2,200'
3sm
VRB° 15kts
Gusts 25kts
MVFR
1:00 AM CDT - 7:00 AM CDT
Thunderstorm in vicinity
Overcast 4,000'
Broken 2,700'
Scattered 1,400'
6sm
190° 11kts
Gusts 18kts
MVFR
7:00 AM CDT - 12:00 PM CDT
Overcast 2,200'
Broken 1,200'
6sm
210° 12kts
Gusts 19kts
VFR
12:00 PM CDT - 7:00 PM CDT
Broken 7,000'
Scattered 3,000'
6sm
230° 11kts
Gusts 18kts
TAF KOTM 042329Z 0500/0524 18011KT P6SM SCT045 OVC100
   FM050200 17008KT 6SM -SHRA FEW025 SCT040 OVC070
   TEMPO 0502/0506 VRB15G25KT 3SM -TSRA BKN022CB
   FM050600 19011G18KT P6SM VCTS SCT014CB BKN027 OVC040
   FM051200 21012G19KT P6SM BKN012 OVC022
   FM051700 23011G18KT P6SM SCT030 BKN070
KPEA
EffectiveExpiresCategoryNOTAM
Domestic
5/13/26
1835Z
Runway!PEA 05/001 PEA RWY 34 RWY END ID LGT U/S 2605131835-2611132111EST
1/22/26
1417Z
Runway!PEA 01/001 PEA RWY 16 RWY END ID LGT U/S 2601221417-2607222111EST
FDC
4/14/26
1539Z
!FDC 6/2223 PEA IAP PELLA MUNI, PELLA, IA.
RNAV (GPS) RWY 34, AMDT 1A...
LNAV CAT C VISIBILITY 1 3/8. DELETE NOTE DME/DME RNP-0.3 NA. PBN
REQUIREMENTS NOTE: RNP APCH - GPS. CHANGE ALTIMETER NOTE TO READ:
WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE OXV ALTIMETER
SETTING AND INCREASE ALL MDAS 40 FEET AND CIRCLING VISIBILITY CAT C
1/4 SM. CHART NOTE: VDP NA WHEN USING OXV ALTIMETER SETTING. CHANGE
VISIBILITY REDUCTION BY HELICOPTERS NOTE TO READ: RWY 34 HELICOPTER
VISIBILITY REDUCTION BELOW 3/4 SM NOT AUTHORIZED. DELETE VGSI AND
DESCENT ANGLES NOT COINCIDENT PROFILE NOTE. CHART VDP AT 1.36 NM TO
RW34.
THIS IS RNAV (GPS) RWY 34, AMDT 1B. 2604141539-PERM
4/14/26
1539Z
!FDC 6/2222 PEA IAP PELLA MUNI, PELLA, IA.
RNAV (GPS) RWY 16, AMDT 1A...
LNAV CAT C VISIBILITY 1 3/8. DELETE NOTE DME/DME RNP-0.3 NA. PBN
REQUIREMENTS NOTE: RNP APCH - GPS. CHANGE ALTIMETER NOTE TO READ:
WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE OXV ALTIMETER
SETTING: INCREASE LPV DA TO 1261 FEET; INCREASE LNAV/VNAV DA TO
1317 FEET; INCREASE ALL MDAS 40 FEET AND CIRCLING VISIBILITY CAT C
1/4 SM. CHANGE BARO-VNAV NA NOTE TO READ: BARO-VNAV AND VDP NA WHEN
USING OXV ALTIMETER SETTING. CHANGE FOR UNCOMPENSATED BARO-VNAV
NOTE TO READ: FOR UNCOMPENSATED BARO-VNAV SYSTEMS, LNAV/VNAV NA
BELOW -16C OR ABOVE 54C. CHANGE VISIBILITY REDUCTION BY HELICOPTERS
NOTE TO READ: RWY 16 HELICOPTER VISIBILITY REDUCTION BELOW 3/4 SM
NOT AUTHORIZED. CHART VDP AT 1.28 NM TO RW16.
THIS IS RNAV (GPS) RWY 16, AMDT 1B. 2604141539-PERM
10/25/24
1337Z
!FDC 4/4196 PEA ODP PELLA MUNI, PELLA, IA.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 1...
TAKEOFF OBSTACLE NOTES: RWY 34, TRANSMISSION TOWERS, BEGINNING 1449FT FROM DER, BEGINNING 880 LEFT OF CENTERLINE, UP TO 74 AGL/UP TO 945 MSL (2024-ACE-2734/2735/5465/5466-OE). ALL OTHER DATA REMAINS AS PUBLISHED. 2410251337-2610251337EST
No
MON-SAT 0700-DUSK
SUN 0900-1700
AFTER HRS CALL 641-780-0244.
CITY OF PELLA
717 MAIN
PELLA, IA 50219
Phone: 641-628-4173
SHANE VANDEVOORT
501 WEST 15TH STREET
PELLA, IA 50219
Phone: 641-628-9393
FORT DODGE FSS (FOD)
Toll Free: 1-800-WX-BRIEF
PEA
--
MIRL RWY 16/34 PRESET LOW INTST; TO INCREASE INTST AND ACTVT PAPI RWY 16 & 34; REIL RWYS 16 & 34 - CTAF.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
No
Major
Major
None
None
Pilot Instruction
Aircraft Rental

Runway 16/34

5403 ft. x 75 ft.
CONC
Fair
NONE
MED
8/R/D/W/T
30,000lbs
40,000lbs
--
--
  Runway 16 Runway 34
True Heading 167°347°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 41° 24' 30"N 41° 23' 38"N
Longitude 92° 56' 53"W 92° 56' 37"W
Elevation 885' 870'
Threshold Crossing Height 26 ft. AGL 46 ft. AGL
Visual Glide Path Angle 3.3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-2FOR CD CTC DES MOINES ATCT AT 515-974-8016.
A15EMAIL ADDRESS: SHANE@FLYCLASSICAVIATION.COM (ALL LOWER CASE)
A16CELL PHONE 641-780-0244
A17-M1AFTER HRS CALL 641-780-0244.
A57-16RWY 16 APCH SLP TO DTHR 22:1.
A57-34RWY 34 APCH SLP TO DTHR 21:1.
A81-APTMIRL RWY 16/34 PRESET LOW INTST; TO INCREASE INTST AND ACTVT PAPI RWY 16 & 34; REIL RWYS 16 & 34 - CTAF.
E111PRVDD EACH APCH IS MAINTD FOR MIN 20:1 GLIDE SLOPE AND TRSNL SFC MAINTD FOR 7:1 SLOPE.
E147ONLY APPLIES TO NON-TURBINE ACFT.
PELLA MUNI (ICAO: KPEA, IATA: PEA) is a public airport located in PELLA, IA, US.
