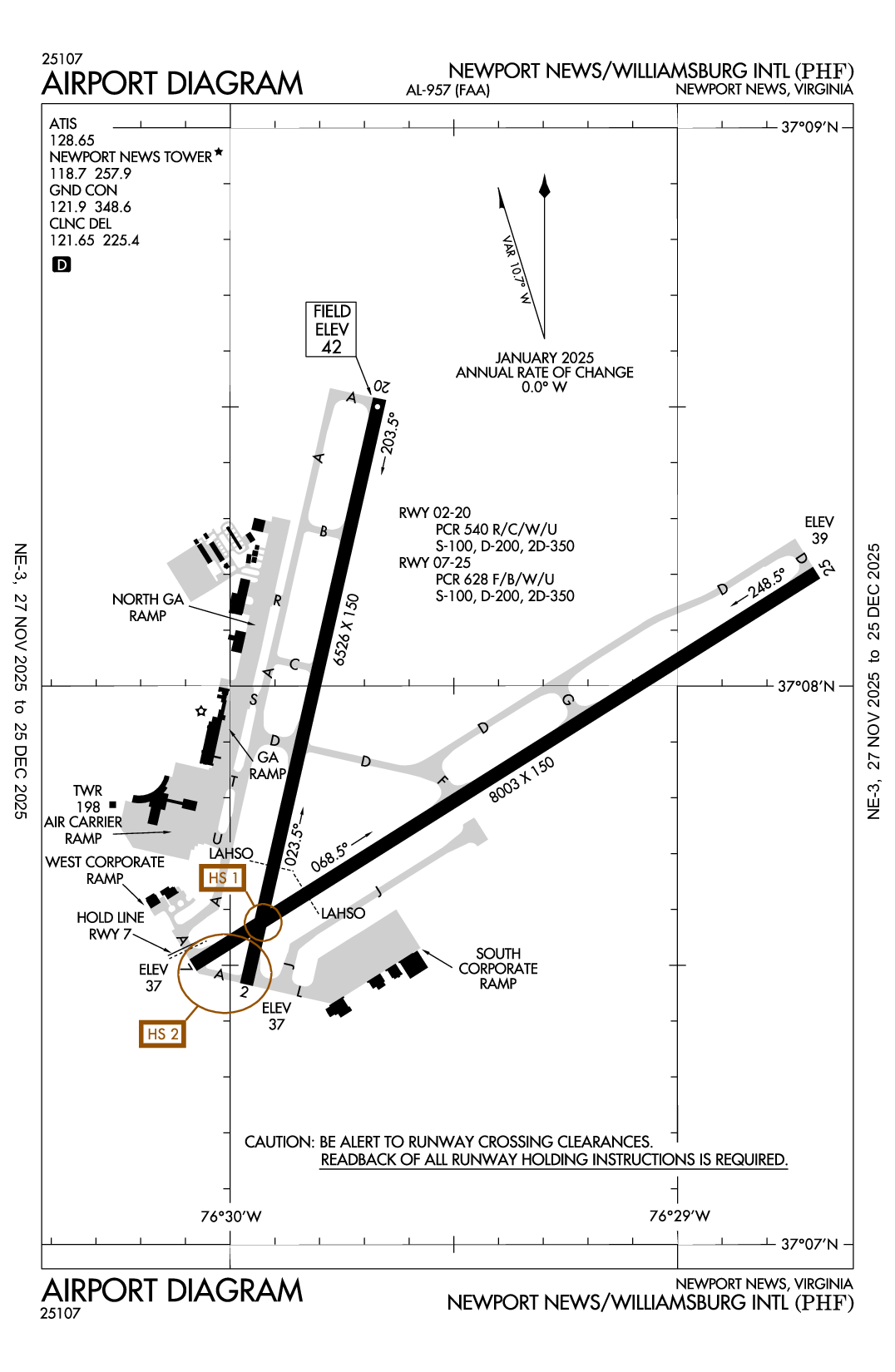

NEWPORT NEWS/WILLIAMSBURG INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KPHF
ICAO KPHFIATA PHFLocal PHF
NEWPORT NEWS/WILLIAMSBURG INTL
PublicPUB

9 miles NW of NEWPORT NEWS, VA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
37° 07' 55"N 76° 29' 35"W
Elevation
42' MSL
Pattern Alt
1042' MSL
Mag Variation
11°W
Declination
9°W
Fuel
JET A, 100LL
FSS
LEESBURG (DCA)
Sectional
WASHINGTON
ARTCC
WASHINGTON (ZDC)
Data Effective
8/6/26-9/3/26
KPHF VFR
1:54 AM EDT
Few 4,000'
9sm
66°F
64°F
29.99"Hg
340° 9kts
AO2 SLP155 T01890178 10250 20189 53002
METAR KPHF 250554Z AUTO 34009KT 9SM FEW040 19/18 A2999 RMK AO2 SLP155 T01890178 10250 20189 53002
+ Add Your Business

KPHF FBOs

Promote Listing
Rick Aviation
UNICOM: 122.95
Phone: (757) 874-6415
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 8/19
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 7.30 7.75
Fuel Notes
Prices include tax
JET-A is premixed with Prist (FSII).
Promote Listing
Atlantic Aviation
UNICOM: 122.95
Phone: (757) 886-5755
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 7/30
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 7.40 9.00
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 128.65
ASOS (757) 874-3682

Common

CTAF 118.7
ACTVT MALSR RWY 07; REIL RWY 20 & 25; PAPI RWY 02, 20 & 25; HIRL RWY 02/20 & 07/25; TWY LGTS - CTAF.; ACFT ARRIVING/DEPARTING NEWPORT NEWS SHOULD ANNOUNCE INTENTIONS ON CTAF WHEN ATCT CLSD.
UNICOM 122.95

Clearance

Clearance Delivery 124.9
WHEN TWR CLSD
NEWPORT NEWS CLEARANCE DELIVERY 121.65

Ground

NEWPORT NEWS GROUND 121.9
0600-2300

Tower

NEWPORT NEWS TOWER 118.7
0600-2300

Arrival

KOHLS STAR 118.9
OUTLA STAR 118.9

Approach

NORFOLK APPROACH 125.7

Departure

NORFOLK DEPARTURE 124.9

Emergency

Emergency 121.5

Terminal Area Forecast

KPHF
Tue, 8/25 1:20 AM EDT
Tue, 8/25 2:00 AM EDT - Wed, 8/26 2:00 AM EDT
VFR
2:00 AM EDT - 6:00 AM EDT
Sky Clear
6sm
VRB° 3kts
VFR
6:00 AM EDT - 6:00 PM EDT
Few 4,500'
6sm
020° 7kts
VFR
6:00 PM EDT - 2:00 AM EDT
Sky Clear
6sm
090° 4kts
TAF KPHF 250520Z 2506/2606 VRB03KT P6SM SKC
   FM251000 02007KT P6SM FEW045
   FM252200 09004KT P6SM SKC
KPHF
EffectiveExpiresCategoryNOTAM
Domestic
8/25/26
0400Z
8/25/26
1000Z
!PHF 08/056 PHF COM REMOTE COM OUTLET 121.5, 243 U/S 2608250400-2608251000
8/25/26
0400Z
8/25/26
1000Z
!PHF 08/055 PHF COM GND COM OUTLET 121.5, 243.0 U/S 2608250400-2608251000
8/23/26
2151Z
12/31/26
0300Z
!PHF 08/059 PHF SVC PCL RWY 25 RWY END ID LGT U/S EXC LOW INTST ON CONS 2608232151-2612310300
8/23/26
0544Z
10/7/26
0601Z
!PHF 08/058 PHF OBST POWER LINE LGT (ASN 2007-AEA-4137-OE) 370009N0762817W (7.9NM S PHF) 290FT (276FT AGL) U/S 2608230544-2610070601
8/20/26
0820Z
9/22/26
1600Z
!PHF 08/050 PHF TWY D BTN TWY G AND APCH END RWY 25 CLSD 2608200820-2609221600
8/14/26
1309Z
8/28/26
2200Z
!PHF 08/040 PHF NAV ILS RWY 07 LOC/GP/DME U/S 2608141309-2608282200
8/14/26
1308Z
8/28/26
2200Z
!PHF 08/039 PHF NAV ILS RWY 25 LOC/GP/DME U/S 2608141308-2608282200
8/12/26
2240Z
9/26/26
2239Z
!PHF 08/038 PHF OBST TOWER LGT (ASN 2024-AEA-1574-OE) 370826N0763616W (5.3NM W PHF) 140FT (134FT AGL) U/S 2608122240-2609262239
8/8/26
0448Z
9/22/26
0601Z
!PHF 08/023 PHF OBST TOWER LGT (ASN 2007-AEA-4140-OE) 365927N0762909W (8.5NM S PHF) 290FT (276FT AGL) U/S 2608080448-2609220601
8/3/26
0419Z
9/17/26
0600Z
!PHF 08/006 PHF OBST POWER LINE LGT (ASN 2007-AEA-4139-OE) 365941N0762852W (8.3NM S PHF) 290FT (276FT AGL) U/S 2608030419-2609170600
8/2/26
2121Z
9/30/26
0200Z
Runway!PHF 08/003 PHF RWY 07 RAI LGT U/S 2608022121-2609300200
7/25/26
1228Z
10/23/26
1228Z
!PHF 07/039 PHF OBST TOWER LGT (ASR 1006907) 371623.00N0762816.00W (8.6NM NE PHF) 310.7FT (297.9FT AGL) U/S 2607251228-2610231228
7/24/26
1114Z
10/24/26
2359Z
!PHF 07/036 PHF OBST TOWER LGT (ASR 1017923) 370424.00N0762840.80W (3.6NM SSE PHF) 264.8FT (239.8FT AGL) U/S 2607241114-2610242359
7/16/26
1356Z
10/16/26
2359Z
!PHF 07/025 PHF OBST TOWER LGT (ASR 1035310) 370429.00N0761731.00W (10.1NM ESE PHF) 509.8FT (503.0FT AGL) U/S 2607161356-2610162359
7/11/26
0040Z
10/9/26
0040Z
!PHF 07/012 PHF OBST TOWER LGT (ASR 1026429) 371709.00N0763049.00W (9.3NM N PHF) 539.0FT (503.9FT AGL) U/S 2607110040-2610090040
7/9/26
2053Z
9/30/26
2000Z
!PHF 07/009 PHF OBST CRANE (ASN 2025-AEA-8555-OE) 370740N0763039W (0.9NM WSW PHF) 176FT (143FT AGL) FLAGGED AND LGTD 2607092053-2609302000
7/9/26
2051Z
9/30/26
2000Z
!PHF 07/008 PHF OBST CRANE (ASN 2025-AEA-8554-OE) 370745N0763032W (0.8NM WSW PHF) 176FT (143FT AGL) FLAGGED AND LGTD 2607092051-2609302000
7/9/26
2050Z
9/30/26
2000Z
!PHF 07/007 PHF OBST CRANE (ASN 2025-AEA-8553-OE) 370731N0763030W (0.8NM WSW PHF) 173FT (143FT AGL) FLAGGED AND LGTD 2607092050-2609302000
7/9/26
2047Z
9/30/26
2000Z
!PHF 07/006 PHF OBST CRANE (ASN 2025-AEA-8552-OE) 370735N0763025W (0.8NM WSW PHF) 171FT (143FT AGL) FLAGGED AND LGTD 2607092047-2609302000
6/30/26
1303Z
9/29/26
0400Z
!PHF 06/063 PHF OBST TOWER LGT (ASR 1064793) 370146.00N0762235.00W (8.2NM SE PHF) 510.2FT (495.1FT AGL) U/S 2606301303-2609290400
6/24/26
0329Z
10/22/26
0329Z
!PHF 06/045 PHF OBST TOWER LGT (ASR 1017529) 371232.00N0763234.40W (5.2NM NNW PHF) 403.9FT (334.0FT AGL) U/S 2606240329-2610220329
6/16/26
1156Z
9/16/26
2359Z
!PHF 06/030 PHF OBST TOWER LGT (ASR 1017442) 365717.00N0763747.00W (12.7NM SSW PHF) 537.1FT (502.0FT AGL) U/S 2606161156-2609162359
6/14/26
2305Z
9/12/26
2305Z
!PHF 06/025 PHF OBST TOWER LGT (ASR 1003908) 370056.00N0762302.00W (8.6NM SE PHF) 360.6FT (343.8FT AGL) U/S 2606142305-2609122305
5/31/26
1403Z
9/1/26
2359Z
!PHF 05/039 PHF OBST TOWER LGT (ASR 1017920) 371233.70N0763232.20W (5.2NM NNW PHF) 564.0FT (499.0FT AGL) U/S 2605311403-2609012359
FDC
8/3/26
2001Z
!FDC 6/1329 PHF IAP NEWPORT NEWS/WILLIAMSBURG INTL, NEWPORT NEWS, VA.
ILS OR LOC RWY 25, AMDT 2B...
ILS OR LOC RWY 7, AMDT 35A...
LOC RWY 20, AMDT 2...
RNAV (GPS) RWY 20, AMDT 3...
RNAV (GPS) RWY 25, AMDT 4...
RNAV (GPS) RWY 7, AMDT 5...
CIRCLING MDA 620/HAA 578 CAT A/B. TEMPORARY CRANE 254FT MSL 1.18NM SOUTH OF PHF AIRPORT (2025-AEA-11127-OE).
2608032001-2703152001EST
8/3/26
2001Z
!FDC 6/1328 PHF IAP NEWPORT NEWS/WILLIAMSBURG INTL, NEWPORT NEWS, VA.
RNAV (GPS) RWY 2, AMDT 2...
LNAV MDA 560/HAT 522 ALL CATS. VISIBILITY CAT C/D 1 1/2. VDP NA. CIRCLING MDA 620/HAA 578 CAT A/B. TEMPORARY CRANE 254FT MSL 4678FT SOUTH OF RWY 2 (2025-AEA-11127-OE).
2608032001-2703152001EST
Yes
0600-2230
PENINSULA ARPT CMSN
900 BLAND BLVD, SUITE G
NEWPORT NEWS, VA 23602
Phone: 757-877-0221
CHRIS MORELLO
900 BLAND BLVD, SUITE G
NEWPORT NEWS, VA 23602
Phone: 757-877-0221
LEESBURG FSS (DCA)
Toll Free: 1-800-WX-BRIEF
PHF
--
ACTVT MALSR RWY 07; REIL RWY 20 & 25; PAPI RWY 02, 20 & 25; HIRL RWY 02/20 & 07/25; TWY LGTS - CTAF.
N/A
Yes - Lighted
No
Yes
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
Major
Major
Low Pressure
None
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 02/20

6526 ft. x 150 ft.
CONC
Good
GRVD
HIGH

100,000lbs
200,000lbs
350,000lbs
--
  Runway 02 Runway 20
True Heading 13°193°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 37° 07' 28"N 37° 08' 31"N
Longitude 76° 29' 58"W 76° 29' 40"W
Elevation 37' 42'
Threshold Crossing Height 53 ft. AGL 43 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes

Runway 07/25

8003 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

100,000lbs
200,000lbs
350,000lbs
--
  Runway 07 Runway 25
True Heading 58°238°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 37° 07' 30"N 37° 08' 12"N
Longitude 76° 30' 05"W 76° 28' 41"W
Elevation 37' 39'
Threshold Crossing Height -- 71 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- P4R
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes
A110-1BIRDS INVOF ARPT.
A110-3GLIDER ACTIVITY APPROX 19 MILES SW OF ARPT UP TO BASE OF CLOUDS.
A110-4ACFT ARRIVING/DEPARTING NEWPORT NEWS SHOULD ANNOUNCE INTENTIONS ON CTAF WHEN ATCT CLSD.
A110-5RMKS: RC PARK APRXLY 2 MILES N OF ARPT, UP TO 400 FT.
A110-6RMKS: USE CTN LOW LVL HEL INVOF ARPT.
A110-7INTMT AIRFIELD MOWING OPS APR-NOV.
A110-8ARFF INDEX B COVERAGE PRVDD DURG SKED COML ACFT OPS.
A24LANDING FEE FOR ACFT OVER 12500 LBS.
A26PPR 45 MINS FOR UNSKED ACR OPNS WITH MORE THAN 30 PSGR SEATS CALL ARPT OPS 757-957-2887.
A33-02/20_SURF(CONC-GRVD FM AER 20 TO 5000 FT. REMAINDER ASPHALT-GRVD)
A39-02/20PCR VALUE: 540/R/C/W/U
A39-07/25PCR VALUE: 628/F/B/W/U
A49-07MALSR UNMONITORED.
A81-APTACTVT MALSR RWY 07; REIL RWY 20 & 25; PAPI RWY 02, 20 & 25; HIRL RWY 02/20 & 07/25; TWY LGTS - CTAF.
E111IN OPERATION PRIOR 1959.
NEWPORT NEWS/WILLIAMSBURG INTL (ICAO: KPHF, IATA: PHF) is a public airport located in NEWPORT NEWS, VA, US.
