iFlightPlanner



...

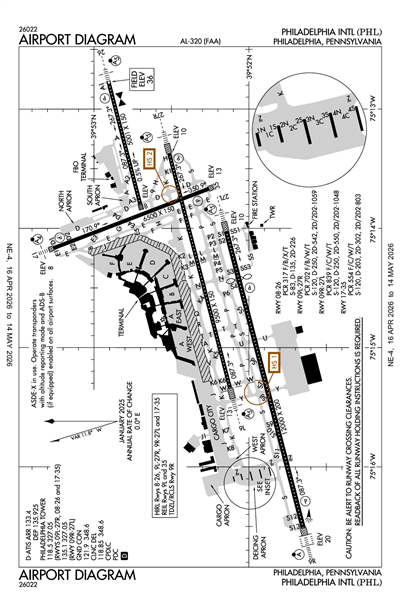

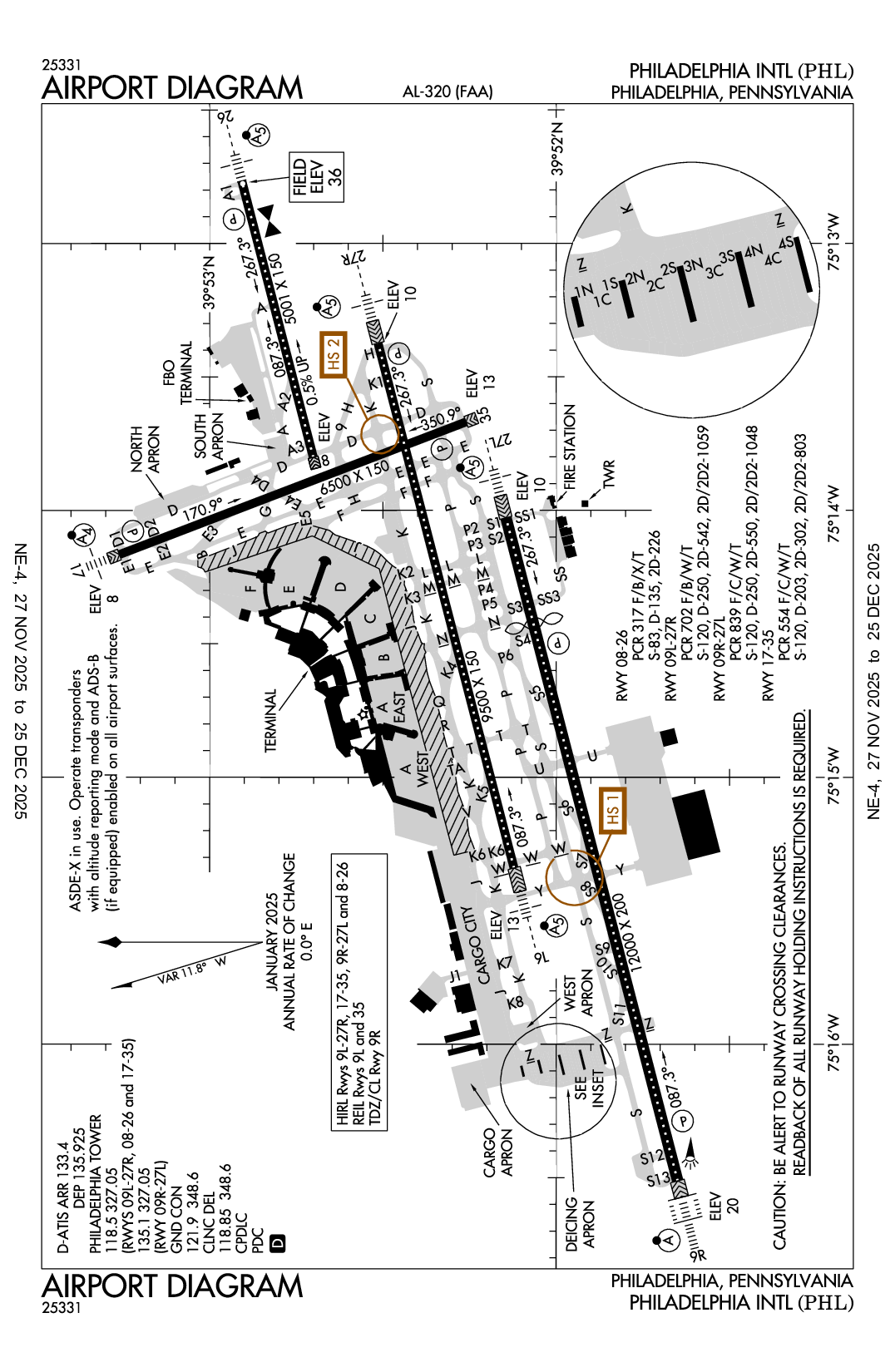

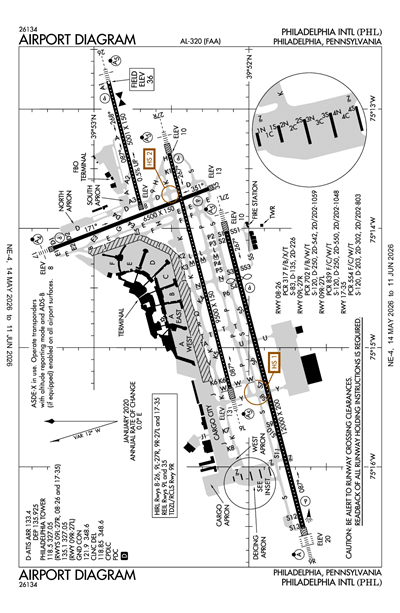

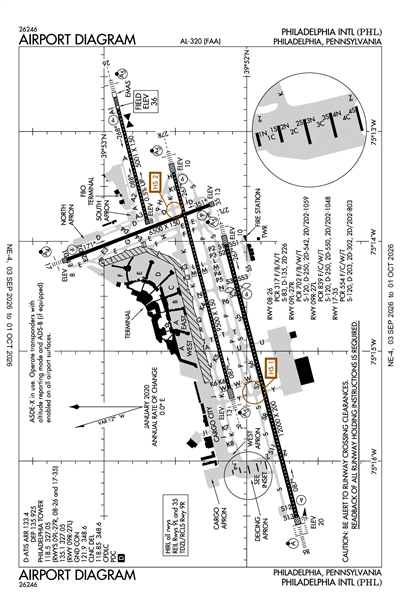

PHILADELPHIA INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KPHL
PHILADELPHIA INTL
PublicPUB

39° 52' 20"N 75° 14' 26"W
5 miles SW of PHILADELPHIA, PA
LiveATC.net: Live Air Traffic - From Their Headsets to You
KPHL VFR
17:54 Z
Broken 5,000'
Broken 3,600'
Scattered 2,800'
10sm
38°F
25°F
30.31"Hg
280° 7kts
AO2 SLP262 60000 T00331039 10033 20011 58012
KPHL 111754Z 28007KT 10SM SCT028 BKN036 BKN050 03/M04 A3031 RMK AO2 SLP262 60000 T00331039 10033 20011 58012
Operational
36' MSL
1036' MSL
12° W (2020)
Jet A, 100LL
WILLIAMSPORT (IPT)
WASHINGTON
ZDC - WASHINGTON
12/5/19-1/30/20
122.950 N/A

ATIS

D-ATIS
ARR
133.400
D-ATIS
DEP
135.925

Approach

APCH/P
001-089, 5000 FT & BLW
123.800
APCH/P
270-360, 5000 FT & BLW
126.850
APCH/P
090-269, 5000 FT & BLW
127.350
APCH/P
270-089, ABV 5000 FT
128.400
APCH/P
090-269, 6000-8000 FT
133.875

Departure

DEP/P
090-269
119.750
DEP/P
270-089
124.350

Approach/Departure

APCH/P DEP/P IC
124.350

Clearance Delivery

CD/P
118.850

Emergency

EMERG
121.500

Ground

GND/P
121.900
GND/S
121.650

Tower

LCL/P
RWY 08/26, 09L/27R, 17/35
118.500
LCL/P
RWY 09R/27L
135.100

Other

5500 & BLO
NORTH
123.800
BUNTS STAR
128.400
CEDAR LAKE STAR
133.875
CLASS B
SW 6000 FT & BLW
118.350
CLASS B
SE RWY 27 ACTIVE 8500-10000 FT
119.750
CLASS B
SOUTH/SOUTHWEST RWY 27 8500-10000 FT
119.750
CLASS B
SE RWY 09 ACTIVE 10000 FT & BLW
119.750
CLASS B
NE 6500 FT & BLW
123.800
CLASS B
NW 8000-10000 FT
124.350
CLASS B
W RWY 27 ACTIVE 10000 FT & BLW
124.350
CLASS B
NE 7000-10000 FT
124.350
CLASS B
W RWY 09 ACTIVE 8500-10000 FT
124.350
CLASS B
5500 FT & BLW
126.850
CLASS B
SE-SW 5000 FT & BLW
127.350
CLASS B
WEST RWY 09 ACTIVE 8000 FT & BLW
128.400
CLASS B
NORTH 6500-7500
128.400
CLASS B
SOUTHEAST RWY 27 5500-7500
133.875
CLASS B
6000-8000 FT
133.875
FINAL APCH
125.400
JIIMS STAR
133.875
PAATS STAR
133.875
PHL ONE DP
124.350
PRM
RWY 27L
120.425
PRM
RWY 26
123.600
RADAR
126.600
SPUDS STAR
128.400

Terminal Area Forecast

KPHL
17:25 Z
Wed, 12/11, 18:00 Z - Fri, 12/13, 00:00 Z
VFR
18:00 - 20:00 Z
Broken 4,000'
> 6sm
N/A
290° 10kts
VFR
20:00 - 2:00 Z
Scattered 4,000'
> 6sm
N/A
300° 12kts
VFR
2:00 - 9:00 Z
Few 4,000'
> 6sm
N/A
310° 6kts
VFR
9:00 - 15:00 Z
Sky Clear
> 6sm
N/A
350° 5kts
VFR
15:00 - 0:00 Z
Few 20,000'
> 6sm
N/A
060° 5kts
KPHL 111725Z 1118/1224 29010KT P6SM BKN040
   FM112000 30012KT P6SM SCT040
   FM120200 31006KT P6SM FEW040
   FM120900 35005KT P6SM SKC
   FM121500 06005KT P6SM FEW200
KPHL NOTAMs
Domestic
12/14/191845Z !PHL 12/139 PHL AIRSPACE SEE FDC 9/5582 ZDC, FDC 9/5584 ZNY 91.141 VIP TFR 1912141845-1912150030
12/13/190300Z !PHL 12/077 PHL NAV ILS RWY 27R LOC/GP U/S 1912130300-1912131100
12/12/190300Z !PHL 12/076 PHL NAV ILS RWY 27R LOC/GP/DME U/S 1912120300-1912121100
12/11/191430Z !PHL 12/136 PHL TWY K BTN TWY Z AND TWY K3 WIP INSPECTION 1912111430-1912112200
12/11/191430Z !PHL 12/135 PHL TWY P BTN TWY Y AND TWY E WIP INSPECTION 1912111430-1912112200
12/11/191430Z !PHL 12/134 PHL TWY S BTN TWY Z AND TWY E WIP INSPECTION 1912111430-1912112200
12/11/191406Z !PHL 12/137 PHL OBST TOWER LGT (ASR 1212474) 395025.10N0750714.90W (5.8NM ESE PHL) 289.0FT (232.0FT AGL) U/S 1912111406-1912261406
12/11/191204Z !PHL 12/132 PHL NAV ILS RWY 27R DME U/S 1912111204-1912252000EST
12/11/191204Z !PHL 12/131 PHL NAV ILS RWY 09L DME U/S 1912111204-1912252000EST
12/11/190828Z !PHL 12/128 PHL RWY 27L TWY DIRECTION SIGN AT TWY S7 LGT U/S 1912110828-2001311100
12/11/190826Z !PHL 12/127 PHL TWY D HLDG PSN SIGN FOR RWY 09L/27R LGT U/S 1912110826-2001311100
12/10/191300Z !PHL 12/116 PHL NAV ILS RWY 27R SPECIAL AUTH CAT II NA 1912101300-1912162100
12/10/191300Z !PHL 12/115 PHL RWY 09L RVRR U/S 1912101300-1912162100
12/10/191300Z !PHL 12/114 PHL RWY 27R RVRT U/S 1912101300-1912162100
12/9/191450Z !MIV 12/068 CYN NAV VOR U/S 1912091450-1912122000EST
12/8/190211Z !PHL 12/091 PHL RWY 35 TWY DIRECTION SIGN AT TWY K E SIDE LGT U/S 1912080211-2001311100
12/7/190207Z !PHL 12/082 PHL RWY 17 HLDG PSN SIGN AT RWY 09L/27R E SIDE LGT U/S 1912070207-2001311100
12/4/190759Z !PHL 12/044 PHL RWY 09L 4000FT DIST REMAINING SIGN MISSING 1912040759-2001311100
12/4/190759Z !PHL 12/043 PHL RWY 27R 5000FT DIST REMAINING SIGN MISSING 1912040759-2001311100
12/4/190538Z !PHL 12/041 PHL APRON DEICING APN DIRECTION SIGN FOR LANE 2 MISSING 1912040538-2001311100
12/3/191116Z !MIV 12/027 OOD NAV TACAN AZM U/S 1912031116-1912202000EST
12/2/192316Z !PHL 12/031 PHL TWY S5 HLDG PSN SIGN NORTHWEST SIDE FOR RWY 09R/27L LGT U/S 1912022316-1912311100
12/2/191721Z !PHL 12/023 PHL TWY L TWY DIRECTION SIGN FOR RWY 09L/27R MISSING 1912021721-1912311100
12/1/191015Z !PHL 12/002 PHL TWY K TWY DIRECTION SIGN FOR TWY T LGT U/S 1912011015-1912311100
11/29/191638Z !MIV 11/203 DQO NAV VORTAC U/S 1911291638-2001081630EST
11/29/191122Z !MIV 11/202 CYN NAV TACAN AZM U/S 1911291122-2001312000EST
11/29/190856Z !PHL 11/250 PHL TWY K TWY DIRECTION SIGN FOR TWY K3 LGT U/S 1911290856-1912311100
11/27/190532Z !PHL 11/245 PHL APRON TERMINAL DE ALLEY CL LGT U/S 1911270532-2001311100
11/21/190508Z !PHL 11/196 PHL OBST BRIDGE (ASN 1990-AEA-1345-OE) 395352N0751242W (2.1NM NE PHL) 196FT (193FT AGL) NOT LGTD 1911210508-1912311100
11/20/191514Z !PHL 11/194 PHL NAV ILS RWY 09L LOC/GP U/S 1911201514-1912202359
10/31/191150Z !PHL 10/282 PHL TWY D4 CL LGT NOT STD 1910311150-1912311000
10/31/191150Z !PHL 10/281 PHL RWY 09L/27R SAFETY AREA NOT STD S EDGE BTW TWY E AND L 1910311150-1912311000
10/31/191150Z !PHL 10/280 PHL TWY G CL LGT NOT STD 1910311150-1912311000
10/31/191150Z !MIV 10/156 OOD NAV TACAN U/S 1910311150-1912312000EST
10/31/191149Z !PHL 10/278 PHL RWY 09L/27R SAFETY AREA NOT STD N EDGE BTW TWY F AND TWY L 1910311149-1912311000
9/27/191814Z !MIV 09/124 CYN NAV VORTAC 044-054 SFC-3800FT UNUSABLE 1909271814-PERM
7/3/191317Z !PHL 07/025 PHL OBST CRANE (ASN 2018-AEA-190-NRA) 395156N0751421W (0.4NM S PHL) 140FT (130FT AGL) FLAGGED AND LGTD DLY SR-SS 1907031317-2001010100
9/14/181228Z !PNE 09/040 PNE NAV VOR OUT OF SERVICE 1809141228-PERM
FDC
12/9/191501Z !FDC 9/4279 PHL IAP PHILADELPHIA INTL,
Philadelphia, PA.
ILS OR LOC RWY 27L, AMDT 14B...
RADAR REQUIRED FOR PROCEDURE ENTRY EXCEPT FOR ACFT EQUIPPED WITH
SUITABLE RNAV SYSTEM WITH GPS,
CYN VOR OUT OF SERVICE. 1912091501-2001101501EST
12/7/191553Z !FDC 9/3975 PHL IAP PHILADELPHIA INTL,
Philadelphia, PA.
ILS OR LOC RWY 27L, AMDT 14B...
ALTERNATE MINIMUMS NA,
CYN VORTAC UNMONITORED. 1912071553-2001061553EST
12/5/191327Z !FDC 9/2508 PHL IAP PHILADELPHIA INTL,
PHILADELPHIA, PA.
RNAV (GPS) RWY 27L, AMDT 3B...
LNAV/VNAV DA 503/HAT 493 ALL CATS, VISIBILITY RVR 5000 ALL CATS.
LNAV MDA CATS A/B 560/HAT 550, VISIBILITY CATS A/B RVR 4000.
CHANGE NOTE TO READ: FOR INOPERATIVE ALS, INCREASE LNAV/VNAV
VISIBILITY ALL CATS TO 1 3/8 SM.
ADD NOTE: RWY 27L HELICOPTER VISIBILITY REDUCTION BELOW 3/4 SM NA.
TEMPORARY CRANES 210FT MSL 3780FT NORTHEAST OF RWY 27L
(2018-AEA-7283/7285-OE).
1912051327-2002151327EST
12/5/191327Z !FDC 9/2507 PHL IAP PHILADELPHIA INTL,
PHILADELPHIA, PA.
ILS OR LOC RWY 27L, AMDT 14B ...
S-LOC 27L VISIBILITY CATS A/B RVR 4000.
TEMPORARY CRANE 210 MSL 3780FT NORTHEAST OF RWY 27L
(2018-AEA-7283/7285-OE) 1912051327-2002151327EST
12/5/191327Z !FDC 9/2505 PHL ODP PHILADELPHIA INTL,
PHILADELPHIA, PA.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 10...
TAKEOFF MINIMUMS: RWY 9R, STANDARD WITH MINIMUM CLIMB OF 423FT PER
NM TO 1500.
TAKEOFF OBSTACLE NOTE: RWY 9R, TEMPORARY CRANE 3780FT FROM DER,
828FT RIGHT OF CENTERLINE.
TEMPORARY CRANE 210 MSL 3780FT NORTHEAST OF RWY 27L
(2018-AEA-7283/7285-OE).
ALL OTHER DATA REMAINS AS PUBLISHED. 1912051327-2002151327EST
12/5/191327Z !FDC 9/2504 PHL SID PHILADELPHIA INTL,
PHILADELPHIA, PA.
PHILADELPHIA TWO DEPARTURE...
TAKEOFF MINIMUMS: RWY 9R, STANDARD WITH MINIMUM CLIMB OF 423FT PER
NM TO 1500.
TAKEOFF OBSTACLE NOTE: RWY 9R, TEMPORARY CRANE 3780FT FROM DER,
828FT RIGHT OF CENTERLINE.
TEMPORARY CRANE 210 MSL 3780FT NORTHEAST OF RWY 27L
(2018-AEA-7283/7285-OE).
ALL OTHER DATA REMAINS AS PUBLISHED. 1912051327-2002151327EST
11/18/191416Z !FDC 9/5484 PHL ODP PHILADELPHIA INTL,
PHILADELPHIA, PA.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 10...
TAKE-OFF MINIMUMS: RWY 17: 300-1.
ALL OTHER DATA REMAINS AS PUBLISHED. 1911181416-2006291416EST
11/18/191414Z !FDC 9/5483 PHL IAP PHILADELPHIA INTL,
PHILADELPHIA, PA.
RNAV (GPS) RWY 17, AMDT 3B...
LNAV/VNAV DA 322/HAT 311 ALL CATS.
1911181414-2006291414EST
9/12/191816Z !FDC 9/9050 PHL IAP PHILADELPHIA INTL,
Philadelphia, PA.
VOR/DME-A, AMDT 3A...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM
WITH GPS,
OOD TACAN OUT OF SERVICE. 1909121816-2109121816EST
5/10/191903Z !FDC 9/5692 PHL IAP PHILADELPHIA INTL,
Philadelphia, PA.
ILS OR LOC RWY 27L, AMDT 14B...
CHANGE CATEGORY S-ILS 27L TO READ: S-ILS 27L ASTERISK ASTERISK.
ADD NOTE: ASTERISK ASTERISK, RVR 1800 AUTHORIZED WITH USE OF FD OR
AP OR HUD TO DA.
1905101903-2105101903EST
4/1/191811Z !FDC 9/5349 PHL IAP PHILADELPHIA INTL,
Philadelphia, PA.
RNAV (RNP) Z RWY 9R, ORIG-D...
RNP 0.16 DA 422/HAT 402, VIS RVR 5000 ALL CATS.
1904011811-2104011811EST
4/2/181200Z !FDC 8/1156 PHL STAR PHILADELPHIA INTERNATIONAL, PHILADELPHIA, PA.
BUNTS TWO ARRIVAL...
UNUSABLE
1) BLW 5000FT MSL BTN PSB AND HAR
2) BLW 4000FT MSL BTN HAR AND BOUHN
1804021200-PERM
Yes
ALL
CITY OF PHILADELPHIA
DIV OF AVIATION TERMINAL E
PHILADELPHIA, PA 19153
Phone: 215-937-6800
ROCHELLE CAMERON
DIV OF AVIATION TERMINAL E
PHILADELPHIA, PA 19153
Phone: 215-937-6914
WILLIAMSPORT FSS (IPT)
Toll Free: 1-800-WX-BRIEF
PHL
Yes - Lighted
No
N/A
Clear-Green
Jet A, 100LL
Landing Rights Airport
NOT an Airport of Entry

Runway 08/26

5001 ft. x 150 ft.
ASPH
Good
GRVD
HIGH
27 /F/A/X/T
0 lbs
145000 lbs
0 lbs
0 lbs
  Runway 08 Runway 26
Runway Heading 75° 256°
Traffic Pattern
Markings BSC PIR
Markings Condition GOOD GOOD
Latitude 39° 52' 42"N 39° 52' 54"N
Longitude 75° 13' 48"W 75° 12' 46"W
Elevation 9.3 ft. 35.9 ft.
Threshold Crossing Height 0 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3.15°
Visual Slope Indicator P4R
Approach Lights MALSR
Centerline Lights Yes Yes
Runway End Identifier Lights

Runway 09L/27R

9500 ft. x 150 ft.
ASPH
Good
GRVD
HIGH
60 /F/A/X/T
100000 lbs
210000 lbs
350000 lbs
0 lbs
  Runway 09L Runway 27R
Runway Heading 75° 255°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 39° 52' 07"N 39° 52' 31"N
Longitude 75° 15' 20"W 75° 13' 22"W
Elevation 13.2 ft. 10.4 ft.
Threshold Crossing Height 0 ft. AGL 81 ft. AGL
Visual Glide Path Angle
Visual Slope Indicator P4L
Approach Lights MALSR MALSR
Centerline Lights Yes Yes
Runway End Identifier Lights Yes

Runway 09R/27L

12000 ft. x 200 ft.
ASPH
Good
GRVD
HIGH
60 /F/A/X/T
200000 lbs
210000 lbs
350000 lbs
0 lbs
  Runway 09R Runway 27L
Runway Heading 75° 255°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 39° 51' 39"N 39° 52' 09"N
Longitude 75° 16' 31"W 75° 14' 02"W
Elevation 20.3 ft. 10.6 ft.
Threshold Crossing Height 72 ft. AGL 73 ft. AGL
Visual Glide Path Angle
Visual Slope Indicator P4R P4L
Approach Lights ALSF2 MALSR
Centerline Lights Yes Yes
Runway End Identifier Lights

Runway 17/35

6500 ft. x 150 ft.
ASPH
Good
GRVD
HIGH
27 /F/A/X/T
100000 lbs
170000 lbs
300000 lbs
0 lbs
  Runway 17 Runway 35
Runway Heading 159° 339°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 39° 53' 16"N 39° 52' 16"N
Longitude 75° 14' 10"W 75° 13' 40"W
Elevation 8.2 ft. 12.9 ft.
Threshold Crossing Height 50 ft. AGL 0 ft. AGL
Visual Glide Path Angle
Visual Slope Indicator P4L
Approach Lights MALSF
Centerline Lights No No
Runway End Identifier Lights No Yes

View hangar and property listings at KPHL, provided by our partner Hangar Network.

No Hangar Network listings are currently available for this airport.

A110-1BIRDS ON & INVOF ARPT.
A110-10TWY J BTN TWYS K3 AND Q RESTRICTED TO ACFT WITH WINGSPANS 171 FT AND LESS.
A110-12ONLY NOSE-IN PRKG PERMITTED ON NORTH REMOTE APNS. PPR FM ARPT OPS FOR ALL ACFT PRKG ON REMOTE APNS; CTC 215-937-6914/6800.
A110-13POSSIBLE UNMARKED SHIP OBSTRUCTION TRANSITING EAST OR WESTBOUND ALONG THE DELAWARE RIVER REACHING HEIGHTS OF 189' - BE ALERT WHEN APPROACHING PHL RUNWAY 35 AND WHENEVER CIRCLING OR VISUALLY APPROACHING ALL OTHER RUNWAYS.
A110-15ASDE-X IN USE. OPERATE TRANSPONDERS WITH ALTITUDE REPORTING MODE AND ADS-B (IF EQUIPPED) ENABLED ON ALL AIRPORT SURFACES.
A110-2RYS 27L, 27R & 35 SHIP CHNL (DELAWARE RIVER) MAX HEIGHT OF SHIPS 189 FT. RY 26 SHIP CHNL (SCHUYLKILL) MAX HEIGHT OF SHIPS 149 FT.
A110-3ARPT IS LCTD IN A NOISE SENSITIVE AREA. AIRPORT NOISE ABATEMENT TAKEOFF PROCEDURES ARE TO BE USED.
A110-5TCAS EQUIPPED ACFT-TCAS ALERT MAY BE CAUSED BY TRANSPONDER EQUIPPED SHIPS LCTD PHL NAVAL BASE 3 NM E.
A110-6UNLGTD STACK 288 FT MSL (271 FT AGL) 2.3 NM SW OF ARPT.
A110-7RY 09R ROLLOUT RVR USED FOR RY 09L MIDPOINT RVR.
A110-8ALL ENGINE RUNUPS REQUIRE PPR FM DUTY OPNS OFFICER AT 937-6914/6800; RUNUPS 20 MIN MAXIMUM.
A110-9ALL ACFT TRAVELING ON TWY J MUST USE MINIMUM POWER WHEN TURNING SOUTH DUE TO JETBLAST CONCERNS.

KPHL FBOs, Flight Schools and Ground Support

Atlantic Aviation
UNICOM: 130.400
Phone: (215) 492-7060
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
Fuel as of 12/10 100LL SS-- 100LL FS$6.95 Jet A$6.14 Jet A+-- MoGas--

KPHL Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KPHL Hotels

No hotels are listed for this airport.

KPHL Restaurants

Meals-Up
Phone: (267) 225-6325
No Rating Available
0 Reviews (Read | Sign In To Write)

KPHL Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

PHILADELPHIA INTL (ICAO: KPHL, IATA: PHL) is a public airport located in PHILADELPHIA, PA.
