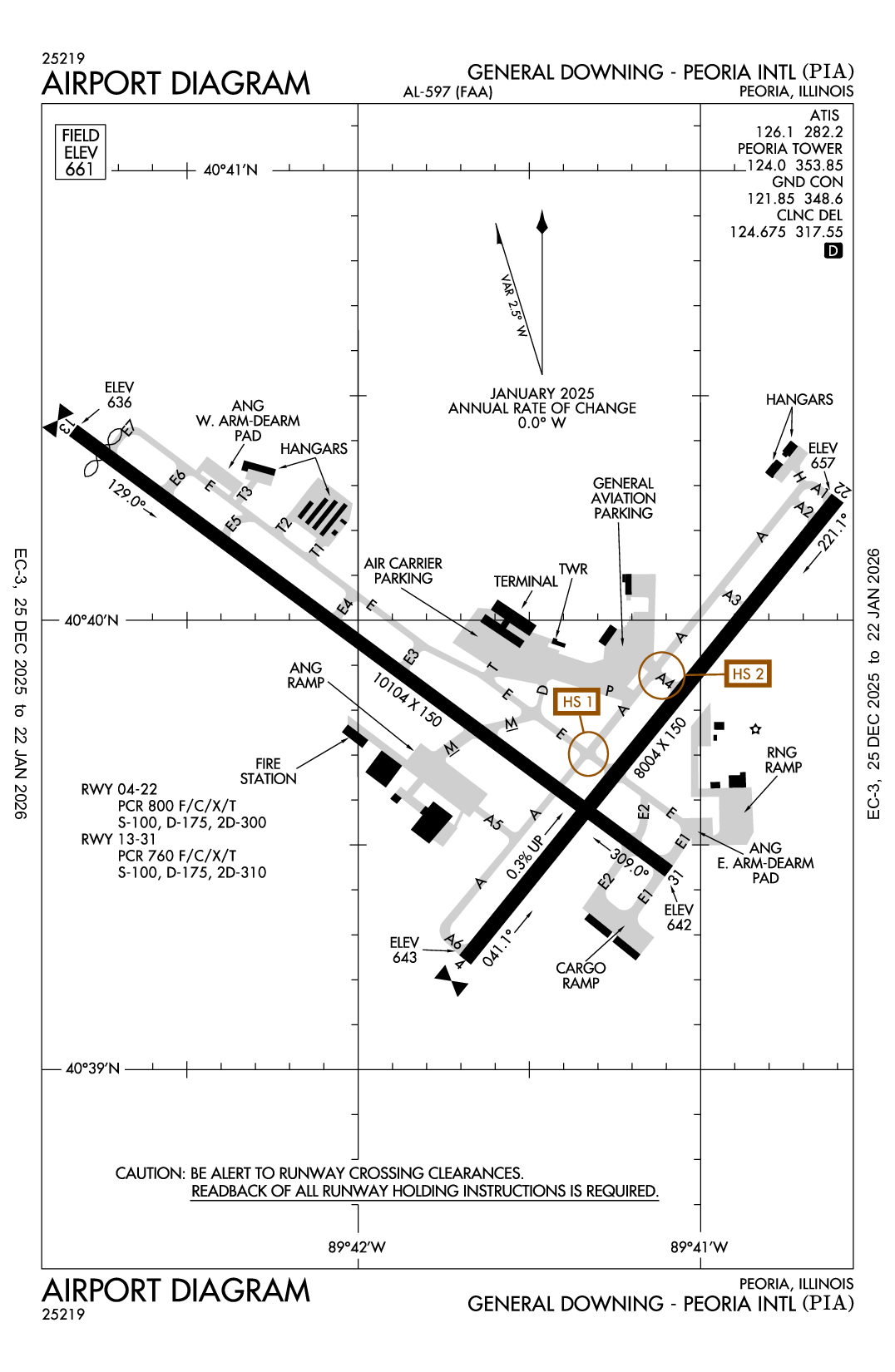

GENERAL DOWNING - PEORIA INTL - Airport Diagram

KPIA

ICAO KPIAIATA PIALocal PIA

GENERAL DOWNING - PEORIA INTL

PublicPUB

4 miles W of PEORIA, IL, US

View on Map

Status

Operational

Coordinates

40° 39' 51"N 89° 41' 36"W

Elevation

661' MSL

Pattern Alt

1661' MSL

Mag Variation

2°W

Declination

2°W

Fuel

JET A, JET A+, CILI, 100LL

FSS

KANKAKEE (IKK)

Sectional

CHICAGO

ARTCC

CHICAGO (ZAU)

Data Effective

5/14/26-6/11/26

KPIA VFR

10:54 PM CDT RAW

Clear

Viz

10sm

Temp

68°F

Dew

50°F

Pres

30.17"Hg

Wind

210° 4kts

RMK

AO2 SLP213 T02000100

METAR KPIA 040354Z 21004KT 10SM CLR 20/10 A3017 RMK AO2 SLP213 T02000100

Add Your Business

KPIA FBOs

Promote Listing

Byerly Aviation

UNICOM: 122.95

Phone: (309) 697-6300

0 Reviews (Read | Sign In To Write)

Avfuel

As of 5/31	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve
Full Serve	8.55	7.69	7.79

Fuel Notes

Prices include tax

KPIA Aircraft Service & Maintenance

Promote Listing

Byerly Aviation

Phone: (309) 697-6300

0 Reviews (Read | Sign In To Write)

Your Information

Business

Weather and Advisory

ATIS	126.1
ASOS	(309) 322-3740

Common

UNICOM

122.95

Clearance

Clearance Delivery

124.675

Ground

PEORIA GROUND

121.85

Tower

PEORIA TOWER

124.0

Approach

SAINT LOUIS APPROACH

125.8

Departure

SAINT LOUIS DEPARTURE

125.8

Flight Service

Flight Service	122.5
(IKK)

Emergency

121.5

Military

ANG OPS	141.35
ARNG OPS	38.925
ARNG OPS	141.15

Other

CLASS C

125.8

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

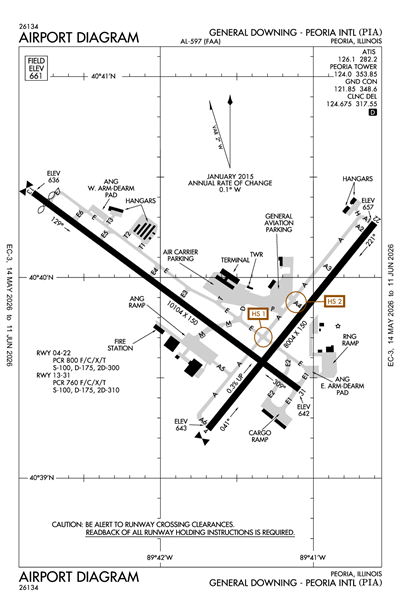

AIRPORT DIAGRAM

Airport Minimums

Instrument Approach

Hotspot

HOT SPOT

Terminal Area Forecast

KPIA

RAW

Reported

Wed, 6/3 6:24 PM CDT

Valid

Wed, 6/3 7:00 PM CDT - Thu, 6/4 7:00 PM CDT

VFR

7:00 PM CDT - 9:00 AM CDT

Sky Clear

Viz

6sm

Wind

180° 5kts

VFR

9:00 AM CDT - 7:00 PM CDT

Few 25,000'

Viz

6sm

Wind

200° 12kts

TAF KPIA 032324Z 0400/0424 18005KT P6SM SKC
FM041400 20012KT P6SM FEW250

KPIA

Effective	Expires	NOTAM
Domestic
6/8/26 1200Z	6/8/26 2200Z	!PIA 06/010 PIA NAV ILS RWY 04 U/S 2606081200-2606082200
6/5/26 1200Z	6/5/26 2000Z	!PIA 05/110 PIA SVC TAR/SSR U/S 2606051200-2606052000
6/4/26 1500Z	6/4/26 1600Z	!PIA 06/011 PIA AIRSPACE BLASTING WI AN AREA DEFINED AS .5NM RADIUS OF 404052N0893918W (2NM E PIA) SFC-500FT AGL 2606041500-2606041600
6/4/26 1300Z	6/4/26 2200Z	!PIA 06/009 PIA AIRSPACE UAS WI AN AREA DEFINED AS 1NM RADIUS OF 402836N0892913W (8.7NM E CI5) SFC-200FT AGL 2606041300-2606042200
6/4/26 1200Z	6/4/26 2000Z	!PIA 05/109 PIA SVC TAR/SSR U/S 2606041200-2606042000
6/3/26 1200Z	7/17/26 2030Z	!PIA 06/005 PIA TWY A5 CLSD 2606031200-2607172030
6/2/26 1641Z	6/4/26 2030Z	!PIA 06/006 PIA APRON TERMINAL RAMP NW 340FT WIP MAINT NW SIDE LGTD AND BARRICADED 2606021641-2606042030
5/29/26 1100Z	1/1/27 0559Z	!PIA 05/099 PIA OBST CRANE (ASN 2024-AGL-795-NRA) 403956N0894118W (0.2NM ENE PIA) 860FT (210FT AGL) FLAGGED 2605291100-2701010559
5/29/26 1100Z	1/1/27 0559Z	!PIA 05/098 PIA OBST CRANE (ASN 2024-AGL-794-NRA) 403956N0894117W (0.2NM ENE PIA) 859FT (210FT AGL) FLAGGED 2605291100-2701010559
5/29/26 1100Z	1/1/27 0559Z	!PIA 05/097 PIA OBST CRANE (ASN 2024-AGL-793-NRA) 403956N0894117W (0.3NM ENE PIA) 859FT (210FT AGL) FLAGGED 2605291100-2701010559
5/29/26 1100Z	1/1/27 0559Z	!PIA 05/096 PIA OBST CRANE (ASN 2024-AGL-792-NRA) 403956N0894118W (0.2NM ENE PIA) 860FT (210FT AGL) FLAGGED 2605291100-2701010559
5/29/26 1100Z	1/1/27 0559Z	!PIA 05/095 PIA OBST CRANE (ASN 2024-AGL-791-NRA) 403954N0894119W (0.2NM ENE PIA) 721FT (70FT AGL) FLAGGED 2605291100-2701010559
5/29/26 1100Z	1/1/27 0559Z	!PIA 05/094 PIA OBST CRANE (ASN 2024-AGL-790-NRA) 403955N0894114W (0.3NM ENE PIA) 719FT (70FT AGL) FLAGGED 2605291100-2701010559
5/29/26 1100Z	1/1/27 0559Z	!PIA 05/093 PIA OBST CRANE (ASN 2024-AGL-789-NRA) 403955N0894114W (0.3NM ENE PIA) 719FT (70FT AGL) FLAGGED 2605291100-2701010559
5/29/26 1100Z	1/1/27 0559Z	!PIA 05/092 PIA OBST CRANE (ASN 2024-AGL-788-NRA) 403953N0894116W (0.3NM E PIA) 722FT (70FT AGL) FLAGGED 2605291100-2701010559
5/29/26 1100Z	1/1/27 0559Z	!PIA 05/091 PIA OBST CRANE (ASN 2024-AGL-787-NRA) 403954N0894121W (0.2NM ENE PIA) 722FT (70FT AGL) FLAGGED 2605291100-2701010559
5/29/26 1100Z	1/1/27 0559Z	!PIA 05/090 PIA OBST CRANE (ASN 2024-AGL-786-NRA) 403954N0894121W (0.2NM ENE PIA) 722FT (70FT AGL) FLAGGED 2605291100-2701010559
5/29/26 1100Z	1/1/27 0559Z	!PIA 05/089 PIA OBST CRANE (ASN 2024-AGL-785-NRA) 403954N0894121W (0.2NM ENE PIA) 722FT (70FT AGL) FLAGGED 2605291100-2701010559
5/29/26 1100Z	1/1/27 0559Z	!PIA 05/088 PIA OBST CRANE (ASN 2024-AGL-784-NRA) 403954N0894119W (0.2NM ENE PIA) 721FT (70FT AGL) FLAGGED 2605291100-2701010559
5/29/26 1100Z	1/1/27 0559Z	!PIA 05/087 PIA OBST CRANE (ASN 2024-AGL-783-NRA) 403955N0894114W (0.3NM ENE PIA) 719FT (70FT AGL) FLAGGED 2605291100-2701010559
5/29/26 1100Z	1/1/27 0559Z	!PIA 05/086 PIA OBST CRANE (ASN 2024-AGL-782-NRA) 403956N0894114W (0.3NM ENE PIA) 720FT (70FT AGL) FLAGGED 2605291100-2701010559
5/29/26 1100Z	1/1/27 0559Z	!PIA 05/085 PIA OBST CRANE (ASN 2024-AGL-781-NRA) 403958N0894116W (0.3NM ENE PIA) 719FT (70FT AGL) FLAGGED 2605291100-2701010559
5/29/26 1100Z	1/1/27 0559Z	!PIA 05/084 PIA OBST CRANE (ASN 2024-AGL-779-NRA) 403958N0894119W (0.2NM ENE PIA) 719FT (70FT AGL) FLAGGED 2605291100-2701010559
5/29/26 1100Z	1/1/27 0559Z	!PIA 05/082 PIA OBST CRANE (ASN 2024-AGL-778-NRA) 404000N0894118W (0.3NM NE PIA) 716FT (70FT AGL) FLAGGED 2605291100-2701010559
5/29/26 1100Z	1/1/27 0559Z	!PIA 05/081 PIA OBST CRANE (ASN 2024-AGL-777-NRA) 404001N0894119W (0.3NM NE PIA) 716FT (70FT AGL) FLAGGED 2605291100-2701010559
5/26/26 2124Z	1/1/27 0559Z	!PIA 05/080 PIA OBST CRANE (ASN 2024-AGL-776-NRA) 403958N0894120W (0.2NM ENE PIA) 720FT (70FT AGL) FLAGGED 2605262124-2701010559
5/26/26 2123Z	1/1/27 0559Z	!PIA 05/079 PIA OBST CRANE (ASN 2024-AGL-780-NRA) 403958N0894117W (0.3NM ENE PIA) 720FT (70FT AGL) FLAGGED 2605262123-2701010559
5/26/26 1455Z	6/26/26 2359Z	!PIA 05/075 PIA OBST TOWER LGT (ASR 1232125) 403615.10N0893131.30W (8.4NM ESE PIA) 1020.3FT (249.3FT AGL) U/S 2605261455-2606262359
4/30/26 1200Z	7/10/26 2330Z	!PIA 04/108 PIA TWY A2, A3, A4, TWY A BTN TWY A1 AND TWY P CLSD 2604301200-2607102330
4/16/26 1448Z	4/30/27 2230Z	!PIA 04/078 PIA APRON GA RAMP WIP CONST ADJ W SIDE LGTD AND BARRICADED 2604161448-2704302230
4/16/26 1447Z	4/30/27 2230Z	!PIA 04/077 PIA APRON TERMINAL RAMP WIP CONST ADJ E SIDE LGTD AND BARRICADED 2604161447-2704302230
2/27/26 2115Z	8/31/26 2030Z	!PIA 02/073 PIA TWY E6 EDGE MARKINGS EAST SIDE FADED 2602272115-2608312030
6/30/25 0538Z		!PIA 06/099 PIA NAV ILS RWY 13 OM U/S 2506300538-2606252111EST
FDC
6/4/26 1130Z	6/11/26 1905Z	!FDC 6/5328 PIA IAP GENERAL DOWNING - PEORIA INTL, PEORIA, IL. ILS OR LOC RWY 13, AMDT 7... RADAR REQUIRED FOR PROCEDURE ENTRY EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS, PIA VORTAC OUT OF SERVICE. 2606041130-2606111905EST
6/4/26 1130Z	6/11/26 1905Z	!FDC 6/5327 PIA IAP GENERAL DOWNING - PEORIA INTL, PEORIA, IL. NDB RWY 31, AMDT 15C... PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS, PIA VORTAC OUT OF SERVICE. 2606041130-2606111905EST
6/4/26 1130Z	6/11/26 1905Z	!FDC 6/5326 PIA IAP GENERAL DOWNING - PEORIA INTL, PEORIA, IL. ILS OR LOC RWY 31, AMDT 8A... MISSED APPROACH: CLIMB TO 1200 THEN CLIMBING LEFT TURN TO 2400 DIRECT TUNGG LOM AND HOLD, CONTINUE CLIMB-IN-HOLD TO 2400. (ADF REQUIRED). RADAR REQUIRED FOR PROCEDURE ENTRY EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS, PIA VORTAC OUT OF SERVICE. 2606041130-2606111905EST
6/4/26 1130Z	6/11/26 1905Z	!FDC 6/5325 PIA IAP GENERAL DOWNING - PEORIA INTL, PEORIA, IL. ILS OR LOC RWY 4, AMDT 4... ILS RWY 4 (SA CAT I-II), AMDT 4... MISSED APPROACH: CLIMB TO 1500 THEN CLIMBING RIGHT TURN TO 2700 DIRECT TUNGG LOM AND HOLD, CONTINUE CLIMB-IN-HOLD TO 2700 (ADF REQUIRED). RADAR REQUIRED FOR PROCEDURE ENTRY EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS, PIA VORTAC OUT OF SERVICE. 2606041130-2606111905EST
5/6/26 1353Z		!FDC 6/8281 PIA IAP U.S. DOD GENERAL DOWNING - PEORIA INTL, PEORIA, IL. HI - VOR Y OR TACAN Y RWY 31, AMDT 2... ILS OR LOC RWY 13, AMDT 7... ILS OR LOC RWY 4, AMDT 4... VOR OR TACAN RWY 13, AMDT 24... VOR Z OR TACAN Z RWY 31, AMDT 10... ILS RWY 4 (SA CAT I-II), AMDT 4... MSA FROM PIA VORTAC 25 NM, ALTITUDE 2800. (2024-WTE-6007-OE PERMANENT). (2024-WTE-6008-OE PERMANENT). (2024-WTE-6009-OE PERMANENT). (2024-WTE-6010-OE PERMANENT). (2024-WTE-6011-OE PERMANENT). (2024-WTE-6012-OE PERMANENT). (2024-WTE-6016-OE PERMANENT). (2024-WTE-6017-OE PERMANENT). (2024-WTE-6018-OE PERMANENT). (2024-WTE-6019-OE PERMANENT). (2024-WTE-6020-OE PERMANENT). (2024-WTE-6021-OE PERMANENT). 2605061353-2805061353EST

ATC Tower

Yes

Attendance

ALL

Owner

METROPOLITAN ARPT AUTH OF PEORIA
6100 WEST E.M. DIRKSEN PKWY
PEORIA, IL 61607
Phone: 309-697-8272

Manager

GENE OLSON
6100 WEST E.M. DIRKSEN PKWY
PEORIA, IL 61607
Phone: 309-697-8272

FSS

KANKAKEE FSS (IKK)
Toll Free: 1-800-WX-BRIEF

NOTAM

PIA

Light Schedule

Lights

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Landing Fee

Parking

Hanger, Tie-Down

Int'l Operations

Landing Rights Airport
NOT an Airport of Entry

Airframe Repair

Major

Pwrplant Repair

Major

Bottled Oxygen

None

Bulk Oxygen

High & Low Pressure

Other Services

Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 04/22

Dimensions

8004 ft. x 150 ft.

Surface Type

ASPH

Surface Cond

Fair

Treatment

GRVD

Rwy Edge Lgts

HIGH

Pavement Class

Single Wheel

100,000lbs

Double Wheel

175,000lbs

Double Tandem

300,000lbs

Dual Dbl Tand

	Runway 04	Runway 22
True Heading	39°	219°
Traffic Pattern	Left	Left
Markings	PIR	PIR
Markings Condition	FAIR	FAIR
Latitude	40° 39' 15"N	40° 40' 16"N
Longitude	89° 41' 41"W	89° 40' 36"W
Elevation	642'	657'
Threshold Crossing Height	54 ft. AGL	45 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4R	P4L
Approach Lights	MALSR
Centerline Lights	No	No
Runway End Identifier Lights	No	No

Runway 13/31

Dimensions

10104 ft. x 150 ft.

Surface Type

CONC

Surface Cond

Good

Treatment

GRVD

Rwy Edge Lgts

HIGH

Pavement Class

Single Wheel

100,000lbs

Double Wheel

175,000lbs

Double Tandem

310,000lbs

Dual Dbl Tand

	Runway 13	Runway 31
True Heading	127°	307°
Traffic Pattern	Left	Left
Markings	PIR	PIR
Markings Condition	GOOD	GOOD
Latitude	40° 40' 25"N	40° 39' 26"N
Longitude	89° 42' 50"W	89° 41' 05"W
Elevation	636'	642'
Threshold Crossing Height	57 ft. AGL	--
Visual Glide Path Angle	3°	--
Visual Slope Indicator	P4R	--
Approach Lights	MALSR	MALSR
Centerline Lights	No	No
Runway End Identifier Lights	No	No

A110-1	LGTD PLINE RWY 04 APCH.
A110-4	BIRDS ON AND INVOF ARPT.
A110-5	PORTION OF TWY A-5 NOT VISIBLE FROM TWR DUE TO A BLDG.
A110-6	ANG: MILITARY AIRCRAFT CALL 'TORCH OPS' 20 MIN PRIOR TO LDG.
A16	AIRPORT OPERATIONS 309-697-8272 X 110
A39-04/22	PCR VALUE: 800/F/C/X/T
A39-13/31	PCR VALUE: 760/F/C/X/T
A43-22	RWY 22 PAPI UNUSBL BYD 9 DEGS RIGHT OF CNTRLN.
A57-13	APCH SLOPE 36:1 TO DSPLCD THLD.

GENERAL DOWNING - PEORIA INTL (ICAO: KPIA, IATA: PIA) is a public airport located in PEORIA, IL, US.
