ST PETE-CLEARWATER INTL - Airport Diagram

KPIE

ST PETE-CLEARWATER INTL

PublicPUB

8 miles N of ST PETERSBURG-CLEARWATER, FL

View on Map

Status

Operational

Coordinates

27° 54' 31"N 82° 41' 11"W

Elevation

11' MSL

Pattern Alt

1011' MSL

Mag Variation

05W

Fuel

JET A, JET A-1+, 100

FSS

SAINT PETERSBURG (PIE)

Sectional

MIAMI

ARTCC

MIAMI (ZMA)

Data Effective

11/27/25-12/25/25

KPIE VFR

1:53 AM EST RAW

Clear

Viz

10sm

Temp

66°F

Dew

64°F

Pres

30.08"Hg

Wind

130° 6kts

RMK

AO2 SLP185 T01890178

METAR KPIE 050653Z AUTO 13006KT 10SM CLR 19/18 A3008 RMK AO2 SLP185 T01890178

Add Your Business

KPIE FBOs

Promote Listing

Signature Aviation

UNICOM: 130.375

Phone: (727) 531-1441

0 Reviews (Read | Sign In To Write)

Independent

As of 12/3	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve
Full Serve	8.00	6.88

Fuel Notes

Prices include tax

Promote Listing

Sheltair

UNICOM: 131.975

Phone: (727) 530-3453

Other: (727) 417-8708

0 Reviews (Read | Sign In To Write)

Avfuel

As of 11/25	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve
Full Serve	8.58	6.73	6.81

KPIE Aircraft Service & Maintenance

Promote Listing

Clear Skies Avionics Inc.

Phone: (727) 415-0583

Fax: (727) 538-5658

0 Reviews (Read | Sign In To Write)

Your Information

Business

UNICOM 122.95 CTAF 118.3

ATIS

134.5

ASOS

727-502-6385

134.5

Clearance Delivery

CD/P

120.6

Ground

GND/P

121.9

Tower

LCL/P	118.3
LCL/S	128.4

FAA A/FD Pages

FAA A/FD Page

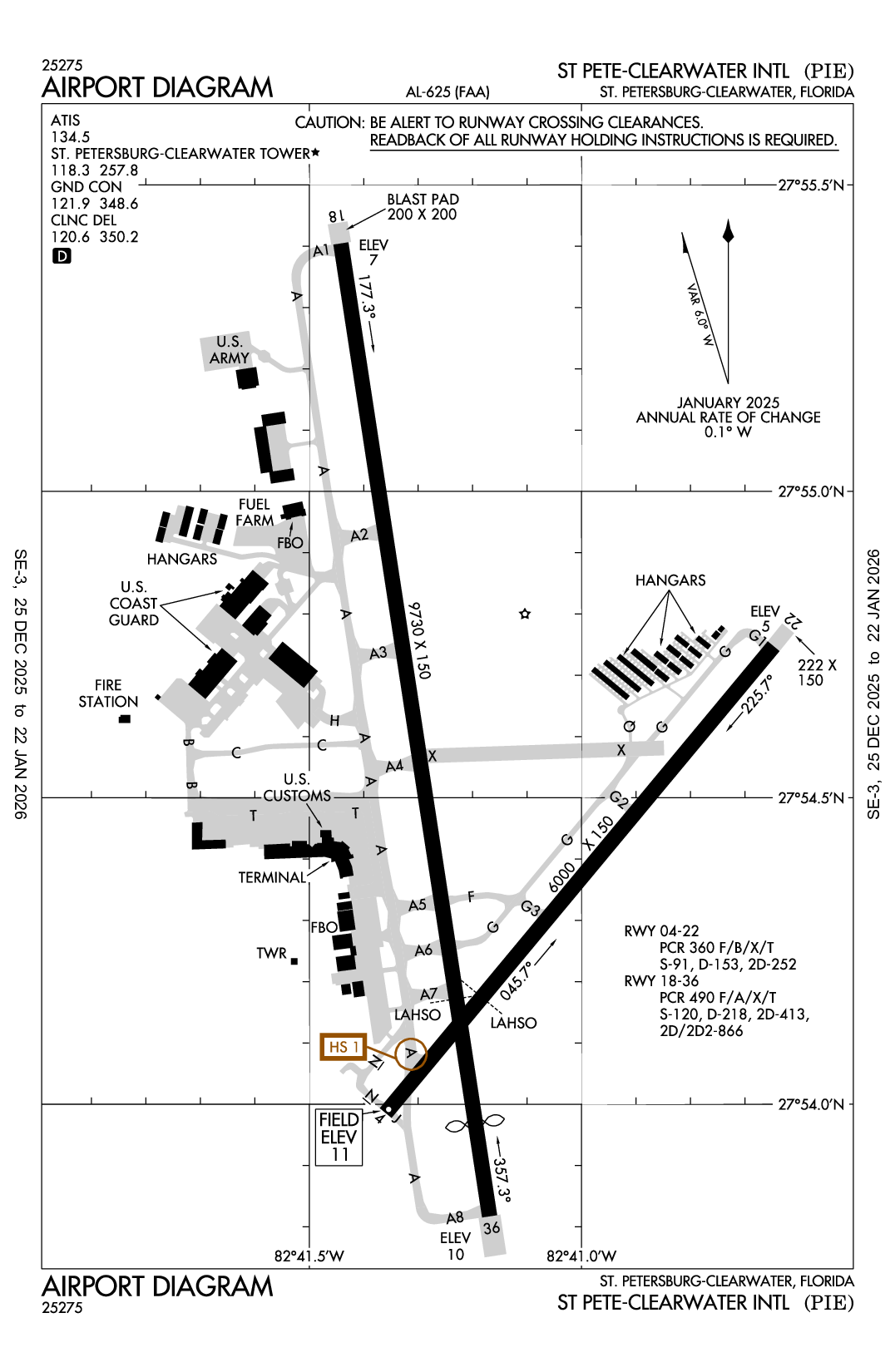

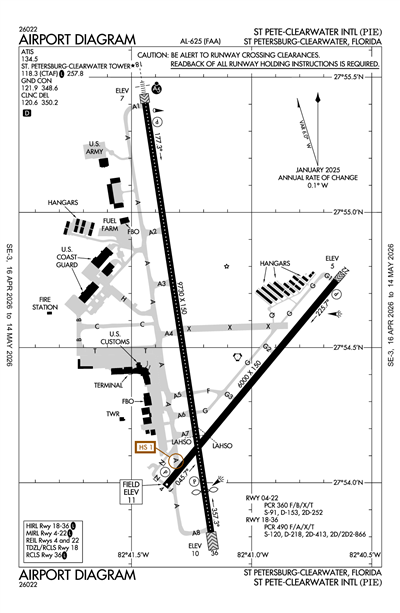

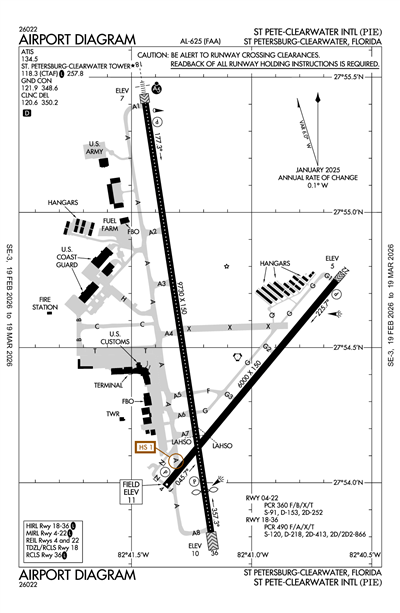

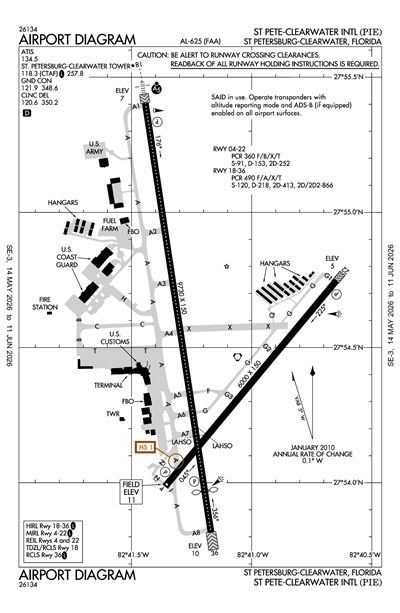

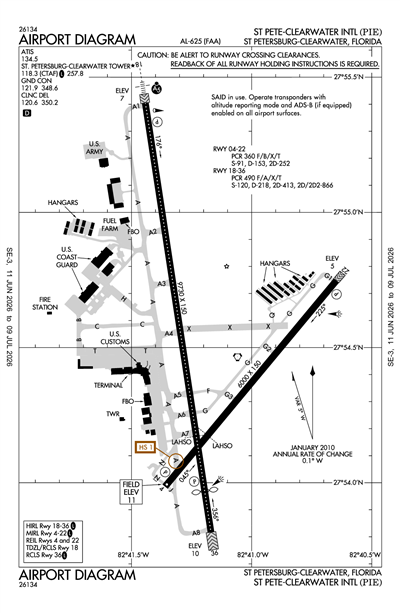

Airport Diagrams

AIRPORT DIAGRAM

Airport Minimums

Departure Procedures

Hotspot

HOT SPOT

Standard Term. Arrival

Instrument Approach

Terminal Area Forecast

KPIE

RAW

Reported

Fri, 12/5 12:31 AM EST

Valid

Fri, 12/5 1:00 AM EST - Sat, 12/6 1:00 AM EST

VFR

1:00 AM EST - 9:00 AM EST

Few 25,000'

Viz

6sm

Wind

VRB° 4kts

VFR

9:00 AM EST - 1:00 PM EST

Scattered 25,000'
Few 2,500'

Viz

6sm

Wind

190° 12kts

VFR

1:00 PM EST - 7:00 PM EST

Scattered 25,000'
Few 4,000'

Viz

6sm

Wind

210° 12kts

Gusts 20kts

VFR

7:00 PM EST - 1:00 AM EST

Scattered 25,000'

Viz

6sm

Wind

200° 8kts

TAF KPIE 050531Z 0506/0606 VRB04KT P6SM FEW250
   FM051400 19012KT P6SM FEW025 SCT250
   FM051800 21012G20KT P6SM FEW040 SCT250
   FM060000 20008KT P6SM SCT250

KPIE

Effective	Expires	Category	NOTAM
Domestic
12/11/25 1300Z	12/11/25 2000Z		!PIE 12/071 PIE NAV ILS RWY 18 CAT II NA 2512111300-2512112000
12/11/25 1300Z	12/11/25 2000Z		!PIE 12/070 PIE AD AP RVR ALL U/S 2512111300-2512112000
12/11/25 0200Z	12/11/25 1000Z	Runway	!PIE 12/060 PIE RWY 04/22 CLSD EXC XNG 2512110200-2512111000
12/10/25 1300Z	12/10/25 1800Z	Runway	!PIE 12/062 PIE RWY 18/36 CLSD EXC XNG 2512101300-2512101800
12/10/25 0200Z	12/10/25 1700Z	Runway	!PIE 12/059 PIE RWY 04/22 CLSD EXC XNG 2512100200-2512101700
12/9/25 1300Z	12/9/25 1800Z	Runway	!PIE 12/061 PIE RWY 18/36 CLSD EXC XNG 2512091300-2512091800
12/9/25 0200Z	12/9/25 1000Z	Runway	!PIE 12/058 PIE RWY 04/22 CLSD EXC XNG 2512090200-2512091000
12/8/25 0200Z	12/8/25 1000Z	Runway	!PIE 12/057 PIE RWY 04/22 CLSD EXC XNG 2512080200-2512081000
12/5/25 0900Z	12/5/25 2200Z		!PIE 12/056 PIE OBST CRANE (ASN 2023-ASO-10624-NRA) 275403N0824133W (.10NM W APCH END RWY 04) 59FT (50FT AGL) FLAGGED AND LGTD 2512050900-2512052200
12/5/25 0200Z	12/6/25 1000Z	Runway	!PIE 12/053 PIE RWY 04/22 CLSD EXC XNG DLY 0200-1000 2512050200-2512061000
12/4/25 1200Z	12/19/25 2130Z		!PIE 12/052 PIE OBST CRANE (ASN UNKNOWN) 275415N0824127W (0.47NM SW PIE) 95FT (85FT AGL) FLAGGED DLY 1200-2130 2512041200-2512192130
11/30/25 0204Z	12/31/25 1200Z		!PIE 11/294 PIE TWY A ELEVATED RWY GUARD LGT AT RWY 04/22 NOT STD 2511300204-2512311200
11/30/25 0202Z	12/31/25 1200Z	Runway	!PIE 11/293 PIE RWY 04 RWY END ID LGT U/S 2511300202-2512311200
11/27/25 1708Z	1/11/26 1707Z		!PIE 11/286 PIE OBST TOWER LGT (ASR 1302089) 275124.00N0823725.00W (4.5NM SE PIE) 502FT (499FT AGL) U/S 2511271708-2601111707
11/26/25 1950Z	12/12/25 2359Z		!PIE 11/271 PIE TWY A BTN TWY N AND RWY 04/22 CLSD 2511261950-2512122359
11/21/25 0005Z	12/31/25 1200Z		!PIE 11/236 PIE TWY A EDGE LGT BTN TWY A7 AND RWY 04/22 NOT STD 2511210005-2512311200
11/18/25 1827Z			!PIE 11/207 PIE NAV ILS RWY 18 OM U/S 2511181827-2605182111EST
11/10/25 2201Z	12/31/25 0001Z		!PIE 11/122 PIE TWY N SFC MARKINGS NOT STD 2511102201-2512310001
11/6/25 0523Z			!PIE 11/049 PIE COM REMOTE COM OUTLET 122.2 U/S 2511060523-2512262000EST
10/28/25 0918Z	12/31/25 0001Z		!PIE 10/293 PIE TWY A EDGE MARKINGS BTN TWY A7 AND RWY 04/22 NOT STD 2510280918-2512310001
10/28/25 0811Z	12/31/25 0001Z		!PIE 10/292 PIE TWY A CL MARKINGS BTN RWY 04/22 AND TWY A7 NOT STD 2510280811-2512310001
10/18/25 2050Z	2/15/26 2050Z		!PIE 10/181 PIE OBST TOWER LGT (ASR 1031089) 275335.60N0824228.70W (1.5NM SW PIE) 205.1FT (191.9FT AGL) U/S 2510182050-2602152050
9/26/25 0843Z		Runway	!PIE 09/269 PIE RWY 36 PAPI U/S 2509260843-2512302000EST
8/6/25 1729Z	12/31/25 1800Z	Runway	!PIE 08/070 PIE RWY 18 LAHSO MARKING FOR RWY 22 OBSC 2508061729-2512311800
7/28/25 0000Z	7/25/26 2359Z		!PIE 07/377 PIE AIRSPACE UAS WI AN AREA DEFINED AS 5NM RADIUS OF 280444.40N0824553.90W (6.1NM N CLW) SFC-400FT AGL DLY 0000-2359 2507280000-2607252359
7/4/25 0933Z	12/31/25 1200Z	Runway	!PIE 07/058 PIE RWY 22 PAPI U/S 2507040933-2512311200
7/4/25 0924Z	12/31/25 1200Z	Runway	!PIE 07/055 PIE RWY 04 PAPI U/S 2507040924-2512311200
6/5/25 0744Z		Runway	!PIE 06/062 PIE RWY 18 PAPI U/S 2506050744-2606252000EST
FDC
12/3/25 1500Z			!FDC 5/3734 PIE IAP ST PETE-CLEARWATER INTL, ST PETERSBURG-CLEARWATER, FL. ILS OR LOC RWY 18, AMDT 1... ILS OR LOC RWY 36, ORIG-A... VOR RWY 36, ORIG-A... VOR RWY 4, AMDT 1C... VOR-B, ORIG... ILS RWY 18 (SA CAT I-II), AMDT 1... ALTERNATE MINIMUMS NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS, PIE VORTAC UNMONITORED. 2512031500-2602181500EST
11/14/25 1439Z			!FDC 5/6460 PIE ODP ST PETE-CLEARWATER INTL, ST PETERSBURG-CLEARWATER, FL. TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 3B... TAKEOFF OBSTACLE NOTES: RWY 22, TEMPORARY CONSTRUCTION EQUIPMENT, 1050FT FROM DER, 427FT RIGHT OF CENTERLINE, 35 AGL/49 MSL (2023-ASO-10644-NRA). ALL OTHER DATA REMAINS AS PUBLISHED. 2511141439-2601181439EST
6/3/25 0750Z			!FDC 5/8165 PIE IAP ST PETE-CLEARWATER INTL, ST PETERSBURG-CLEARWATER, FL. ILS RWY 18 (SA CAT I AND II), AMDT 1 ... S-ILS 18 SA CAT I VIS RVR 1600. S-ILS 18 SA CAT II VIS RVR 1600. TEMPORARY CRANE 143 MSL 4786FT S OF RWY 18 (2023-ASO-7316-NRA). 2506030750-2512210750EST
3/20/25 1530Z			!FDC 5/5798 PIE IAP ST PETE-CLEARWATER INTL, ST PETERSBURG-CLEARWATER, FL. VOR RWY 4, AMDT 1C... S-4 AND JULSO FIX MINIMUMS S-4 NA. 2503201530-2703201530EST
4/5/24 1357Z			!FDC 4/7282 PIE ODP ST PETE-CLEARWATER INTL, ST PETERSBURG-CLEARWATER, FL. TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 3B... TAKEOFF MINIMUMS RWY 22: 300-1 1/8 OR STANDARD WITH MINIMUM CLIMB OF 230 FT/NM TO 300, OR ALTERNATIVELY, WITH STANDARD TAKEOFF MINIMUMS AND A NORMAL 200 FT/NM CLIMB GRADIENT, TAKEOFF MUST OCCUR NO LATER THAN 1700 FT PRIOR TO DER.. ALL OTHER DATA REMAINS AS PUBLISHED. 2404051357-2611151357EST

ATC Tower

Yes

Attendance

ALL

Owner

COUNTY OF PINELLAS
ST. PETE-CLEARWATER INTERNATIONAL, 14700 TERMINAL BLVD. SUITE 221
CLEARWATER, FL 33762
Phone: 727-453-7800

Manager

MARK SPRAGUE
ST PETE-CLEARWATER INTERNATIONAL
CLEARWATER, FL 33762
Phone: 727-453-7800

FSS

SAINT PETERSBURG FSS (PIE)
Toll Free: 1-800-WX-BRIEF

NOTAM

PIE

Light Schedule

Lights

WHEN ATCT CLSD ACTVT MALSR RWY 18; TDZ RWY 18; CNTLN RWY 18/36; MIRL RWY 04/22; HIRL RWY 18/36; TWY LGTS - CTAF.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Landing Fee

Parking

Hanger, Tie-Down

Int'l Operations

Landing Rights Airport
NOT an Airport of Entry

Airframe Repair

Major

Pwrplant Repair

Major

Bottled Oxygen

None

Bulk Oxygen

High & Low Pressure

Other Services

Air Freight
Air Ambulance
Charter Service
Pilot Instruction
Aircraft Rental

Runway 04/22

Dimensions

6000 ft. x 150 ft.

Surface Type

ASPH

Surface Cond

Fair

Treatment

GRVD

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

91,000lbs

Double Wheel

153,000lbs

Double Tandem

252,000lbs

Dual Dbl Tand

	Runway 04	Runway 22
True Heading	40°	220°
Traffic Pattern	Left	Left
Markings	NPI	NPI
Markings Condition	GOOD	GOOD
Latitude	27° 53' 59"N	27° 54' 45"N
Longitude	82° 41' 22"W	82° 40' 39"W
Elevation	11'	5'
Threshold Crossing Height	57 ft. AGL	45 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4L	P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights	Yes	Yes

Runway 18/36

Dimensions

9730 ft. x 150 ft.

Surface Type

ASPH

Surface Cond

Excellent

Treatment

GRVD

Rwy Edge Lgts

HIGH

Pavement Class

Single Wheel

120,000lbs

Double Wheel

218,000lbs

Double Tandem

413,000lbs

Dual Dbl Tand

866,000lbs

	Runway 18	Runway 36
True Heading	171°	351°
Traffic Pattern	Left	Left
Markings	PIR	PIR
Markings Condition	FAIR	FAIR
Latitude	27° 55' 24"N	27° 53' 49"N
Longitude	82° 41' 27"W	82° 41' 10"W
Elevation	7'	10'
Threshold Crossing Height	68 ft. AGL	76 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4L	P4L
Approach Lights	MALSR
Centerline Lights	Yes	Yes
Runway End Identifier Lights	No	No

A110-10	BANNER TOWING NA.
A110-11	BIRDS ON & INVOF ARPT.
A110-12	FOR CD IF UNA TO CTC ON FSS FREQ, CTC TAMPA APCH AT 813-878-2528.
A110-13	PPR RQRD FOR ALL TRANS ACFT REQUESTING TO PRK ON CLEARWATER USAR MIL RAMP/APRON. MUST CTC CLEARWATER ARMY SUPPORT FAC OPS AT (910)-771-3046 OR ASF MACDILL AT (813)-828-3183/3180 UP TO 7 DAYS BFR ARR. MIN NOTICE IS 24 HOURS BFR ARR. 1000Z-0300Z M-TH OR FRI 1000Z-1830Z EXCLUDING HOLIDAYS & WEEKENDS.
A110-2	NOISE SENSITIVE AREA 5 MI N EXTDG 1 MI E & W OF LOC SB TO SHORELINE.
A110-3	MILITARY: CONTRACT AVOIL O-128 AVBL.
A110-4	TBJT LNDG RWY 18 & DEP RWY 36 USE PUBLD NOISE ABATEMENT PROC.
A110-8	LGTS ON HWY N OF ARPT MAY BE MISTAKEN FOR RWY LGTS.

ST PETE-CLEARWATER INTL (ICAO: KPIE, IATA: PIE) is a public airport located in ST PETERSBURG-CLEARWATER, FL.
