KPIL
PORT ISABEL-CAMERON COUNTY
PublicPUB

10 miles NW of PORT ISABEL, TX
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
26° 09' 58"N 97° 20' 45"W
19' MSL
1019' MSL
05E
Jet A, 100LL
SAN ANGELO (SJT)
BROWNSVILLE
HOUSTON (ZHU)
4/18/24-5/16/24
KPIL VFR
5:53 AM CDT
Clear
8sm
32°F
32°F
29.99"Hg
120° 5kts
AO2 SLP157 $
KPIL 241053Z AUTO 12005KT 8SM CLR A2999 RMK AO2 SLP157 $
List Your Business

KPIL FBOs, Flight Schools and Ground Support

Promote Listing
Southwind Airlines
Freq: 122.8
Phone: (956) 559-6677
Other: (956) 233-4424
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 4/12
 100LL Jet A Jet A+ Mogas UL94
Self Serve 6.09 5.19
Full Serve 6.59 5.49

KPIL Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KPIL Hotels

No hotels are listed for this airport.

KPIL Restaurants

No restaurants are listed for this airport.

KPIL Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

ASOS

ASOS
956-233-1954
 118.525

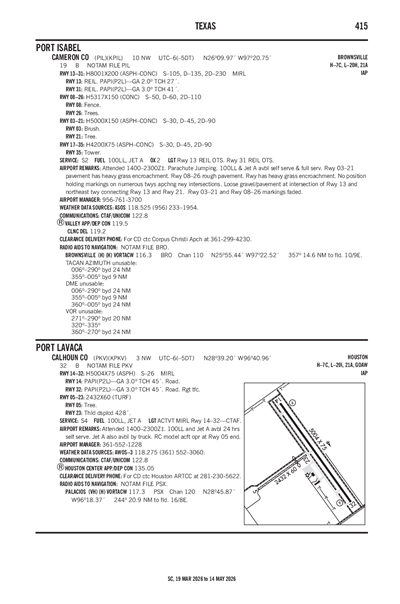

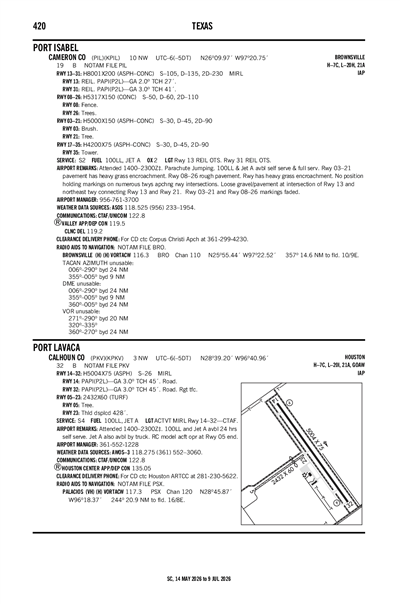

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KBRO (16nm)
Wed, 4/24 6:24 AM CDT
Wed, 4/24 7:00 AM CDT - Thu, 4/25 7:00 AM CDT
VFR
7:00 AM CDT - 11:00 AM CDT
Overcast 6,000'
Scattered 2,000'
6sm
150° 9kts
MVFR
Temporary 7:00 AM CDT - 11:00 AM CDT
Broken 2,500'
N/A
Calm
VFR
11:00 AM CDT - 11:00 PM CDT
Scattered 2,500'
6sm
130° 12kts
MVFR
11:00 PM CDT - 5:00 AM CDT
Broken 3,000'
Scattered 1,500'
6sm
130° 10kts
MVFR
5:00 AM CDT - 7:00 AM CDT
Broken 3,000'
Scattered 1,000'
6sm
150° 10kts
KBRO 241124Z 2412/2512 15009KT P6SM SCT020 OVC060
   TEMPO 2412/2416 BKN025
   FM241600 13012KT P6SM SCT025
   FM250400 13010KT P6SM SCT015 BKN030
   FM251000 15010KT P6SM SCT010 BKN030
KPIL
Domestic
4/15/241534Z !PIL 04/011 PIL OBST WIND TURBINE LGT (ASN 2014-WTW-7392-OE) 261204N0972824W (7.3NM WNW PIL) 516FT (496FT AGL) U/S 2404151534-2405151700EST
4/15/241530Z !PIL 04/010 PIL OBST WIND TURBINE LGT (ASN 2014-WTW-7390-OE) 261153N0972848W (7.6NM WNW PIL) 519FT (496FT AGL) U/S 2404151530-2405151200EST
4/15/241529Z !PIL 04/009 PIL OBST WIND TURBINE LGT (ASN 2014-WTW-7357-OE) 260823N0972956W (8.5NM W PIL) 515FT (496FT AGL) U/S 2404151529-2408311200EST
4/2/240816Z !PIL 04/002 PIL OBST TOWER LGT (ASN 2009-ASW-4076-OE) 260425N0970952W (11.3NM ESE PIL) 417FT (415FT AGL) U/S 2404020816-2405170816
3/28/241415Z !PIL 03/016 PIL OBST WIND TURBINE LGT (ASN 2014-WTW-7394-OE) 261118N0972710W (6.0NM WNW PIL) 516FT (496FT AGL) U/S 2403281415-2404302359
3/26/240345Z !PIL 03/012 PIL OBST TOWER LGT (ASR 1224555) 260356.10N0972352.90W (6.6NM SSW PIL) 257.2FT (244.1FT AGL) U/S 2403260345-2407240345
3/20/241526Z !PIL 03/008 PIL RWY 31 PAPI U/S 2403201526-2503202359
3/20/241525Z !PIL 03/007 PIL RWY 13 PAPI U/S 2403201525-2503202359
12/29/231431Z !PIL 12/008 PIL OBST TOWER LGT (ASN 2016-WTW-3637-OE) 261843N0972725W (10.5NM NW PIL) 337FT (328FT AGL) U/S 2312291431-2412312359
12/29/231421Z !PIL 12/007 PIL OBST TOWER LGT (ASN 2016-WTW-9481-OE) 260704N0972243W (3.4NM SSW PIL) 509FT (492FT AGL) U/S 2312291421-2412312359
12/29/231407Z !PIL 12/006 PIL OBST TOWER LGT (ASN 2011-WTW-5469-OE) 260709N0972243W (3.3NM SSW PIL) 216FT (200FT AGL) U/S 2312291407-2412312359
FDC
4/22/241003Z !FDC 4/3499 PIL IAP PORT ISABEL-CAMERON COUNTY, PORT ISABEL, TX.
VOR-A, AMDT 6B...
ALTERNATE MINIMUMS NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
BRO VORTAC UNMONITORED. 2404221003-2405221003EST
7/5/221817Z !FDC 2/7652 PIL IAP PORT ISABEL-CAMERON COUNTY, PORT ISABEL, TX.
VOR-A, AMDT 6B...
PROCEDURE NA.
2207051817-2407051817EST
No
0800-1700
CAMERON COUNTY
COUNTY COURTHOUSE, 1100 E. MONROE
BROWNSVILLE, TX 78520
Phone: 956-544-0830
JOE VEGA
33174 STATE PARK RD 100 SOUTH
SOUTH PADRE ISLAND, TX 78597
Phone: (956) 761-3700
SAN ANGELO FSS (SJT)
Toll Free: 1-800-WX-BRIEF
PIL
Sunset to Sunrise
--
N/A
Yes
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
20
2
0
1
0
0
Minor
Minor
None
Low Pressure
None

Runway 03/21

5000 ft. x 150 ft.
ASPH CONC
Poor
NONE


30,000lbs
45,000lbs
90,000lbs
--
  Runway 03 Runway 21
True Heading 35°215°
Traffic Pattern Left Left
Markings NRS NRS
Markings Condition POOR POOR
Latitude 26° 09' 43"N 26° 10' 24"N
Longitude 97° 21' 18"W 97° 20' 47"W
Elevation 13' 12'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 08/26

5317 ft. x 150 ft.
CONC
Poor
NONE


50,000lbs
60,000lbs
110,000lbs
--
  Runway 08 Runway 26
True Heading 90°270°
Traffic Pattern Left Left
Markings NRS NRS
Markings Condition FAIR FAIR
Latitude 26° 09' 49"N 26° 09' 49"N
Longitude 97° 21' 15"W 97° 20' 17"W
Elevation 13' 17'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 13/31

8001 ft. x 200 ft.
ASPH CONC
Good
NONE
MED

105,000lbs
135,000lbs
230,000lbs
--
  Runway 13 Runway 31
True Heading 135°315°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 26° 10' 23"N 26° 09' 27"N
Longitude 97° 20' 60"W 97° 19' 57"W
Elevation 14' 18'
Threshold Crossing Height 27 ft. AGL 41 ft. AGL
Visual Glide Path Angle 2° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 17/35

4200 ft. x 75 ft.
ASPH CONC
Good
NONE


30,000lbs
45,000lbs
90,000lbs
--
  Runway 17 Runway 35
True Heading 180°360°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 26° 10' 31"N 26° 09' 50"N
Longitude 97° 20' 56"W 97° 20' 56"W
Elevation 13' 16'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-3NO POSITION HOLDING MARKINGS ON NUMEROUS TWYS APPROACHING RY INTERSECTIONS.
A110-4LOOSE GRAVEL/PAVEMENT AT INTERSECTION OF RY 13 & NORTHEAST TWY CONNECTING RYS 13 & 21.
A110-5FOR CD CTC CORPUS CHRISTI APCH AT 361-299-4230.
PORT ISABEL-CAMERON COUNTY (ICAO: KPIL, IATA: PIL) is a public airport located in PORT ISABEL, TX.
