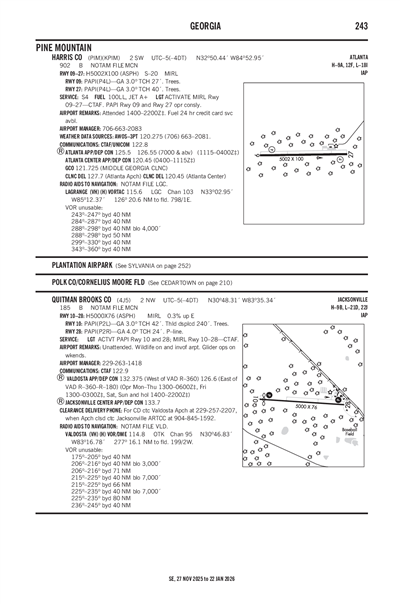

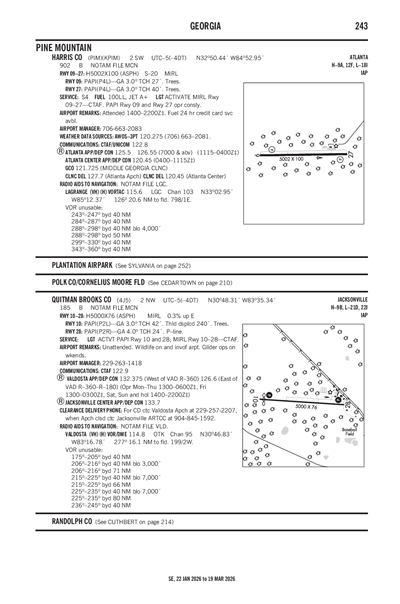

HARRIS COUNTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KPIM
ICAO KPIMIATA PIMLocal PIM
HARRIS COUNTY
PublicPUB

2 miles SW of PINE MOUNTAIN, GA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
32° 50' 26"N 84° 52' 57"W
Elevation
902' MSL
Pattern Alt
1902' MSL
Mag Variation
5°W
Declination
3°W
Fuel
JET A (FSII), 100LL
FSS
MACON (MCN)
Sectional
ATLANTA
ARTCC
ATLANTA (ZTL)
Data Effective
3/19/26-4/16/26
KPIM VFR
9:55 PM EDT
Broken 7,000'
Few 3,500'
10sm
68°F
68°F
30.16"Hg
220° 7kts
AO2
METAR KPIM 050155Z AUTO 22007KT 10SM FEW035 BKN070 20/20 A3016 RMK AO2
+ Add Your Business

KPIM FBOs

Promote Listing
Harris County Airport
UNICOM: 122.8
Phone: (706) 663-2083
Other: (706) 590-1414
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 3/21
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 4.59 5.99
Full Serve 5.00 5.99
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3PT 120.275
(706) 663-2081

Common

CTAF 122.8
ACTVT MIRL RWY 09/27 - CTAF. PAPI RWY 09 & 27 OPR CONSLY.
UNICOM 122.8

Clearance

Clearance Delivery 127.7

Approach

ATLANTA APPROACH 125.5
ATLANTA APPROACH 126.55
7000 FT & ABV

Departure

ATLANTA DEPARTURE 125.5
ATLANTA DEPARTURE 126.55
7000 FT & ABV

Center

ATLANTA CENTER 120.45
LOW, ATLANTA LARGE TRACON PROVIDES APCH/DEP SVC 0615-2300 ON FREQ 125.5; ATLANTA ARTCC PROVIDES APCH/DEP SVC 2300-0615 ON FREQS 120.45/298.850 & CLNC DEL ON FREQ 120.45 (COLUMBUS RCAG).

Flight Service

Ground Communication Outlet 121.725
GCO AVBL ON FREQ 121.725 THRU MCN CLEARANCE DELIVERY.

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KCSG (20nm)
Sat, 4/4 7:45 PM EDT
Sat, 4/4 8:00 PM EDT - Sun, 4/5 8:00 PM EDT
MVFR
Temporary 8:00 PM EDT - 10:00 PM EDT
Light Showers and Rain
Broken 5,000'
4sm
200° 15kts
Gusts 25kts
VFR
8:00 PM EDT - 7:00 AM EDT
Broken 10,000'
Scattered 5,000'
6sm
200° 7kts
IFR
7:00 AM EDT - 11:00 AM EDT
Light Showers and Rain and Mist
Overcast 3,000'
Broken 800'
6sm
230° 5kts
IFR
11:00 AM EDT - 5:00 PM EDT
Showers and Rain and Mist
Overcast 1,500'
Broken 800'
5sm
260° 7kts
VFR
5:00 PM EDT - 8:00 PM EDT
Broken 15,000'
Few 3,500'
6sm
320° 9kts
TAF KCSG 042345Z 0500/0524 20007KT P6SM SCT050 BKN100
   TEMPO 0500/0502 20015G25KT 4SM -SHRA BKN050
   FM051100 23005KT 6SM -SHRA BR BKN008 OVC030
   FM051500 26007KT 5SM SHRA BR BKN008 OVC015
   FM052100 32009KT P6SM FEW035 BKN150
KPIM
EffectiveExpiresCategoryNOTAM
Domestic
1/28/26
1607Z
Runway!MCN 01/711 PIM RWY 27 PAPI UNUSABLE 2601281607-2607282111EST
1/28/26
1607Z
Runway!MCN 01/710 PIM RWY 09 PAPI UNUSABLE 2601281607-2607282111EST
No
0900-1700
HARRIS COUNTY BOC
COUNTY COURTHOUSE 104 N. COLLEGE STREET
HAMILTON, GA 31811
Phone: 706-628-4958
RONALD PENDERGRASS
789 SKY MEADOW DRIVE
PINE MOUNTAIN, GA 31822
Phone: 706-663-2083
MACON FSS (MCN)
Toll Free: 1-800-WX-BRIEF
MCN
--
ACTVT MIRL RWY 09/27 - CTAF. PAPI RWY 09 & 27 OPR CONSLY.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Pilot Instruction

Runway 09/27

5002 ft. x 100 ft.
ASPH
Good
NONE
MED

20,000lbs
--
--
--
  Runway 09 Runway 27
True Heading 88°268°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 32° 50' 26"N 32° 50' 27"N
Longitude 84° 53' 26"W 84° 52' 27"W
Elevation 902' 900'
Threshold Crossing Height 27 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-2GCO AVBL ON FREQ 121.725 THRU MCN CLEARANCE DELIVERY.
A16AFT HRS CALL 770-880-0765.
A70-100LLFUEL 24 HR CREDIT CARD SVC AVBL.
A81-APTACTVT MIRL RWY 09/27 - CTAF. PAPI RWY 09 & 27 OPR CONSLY.
HARRIS COUNTY (ICAO: KPIM, IATA: PIM) is a public airport located in PINE MOUNTAIN, GA, US.
