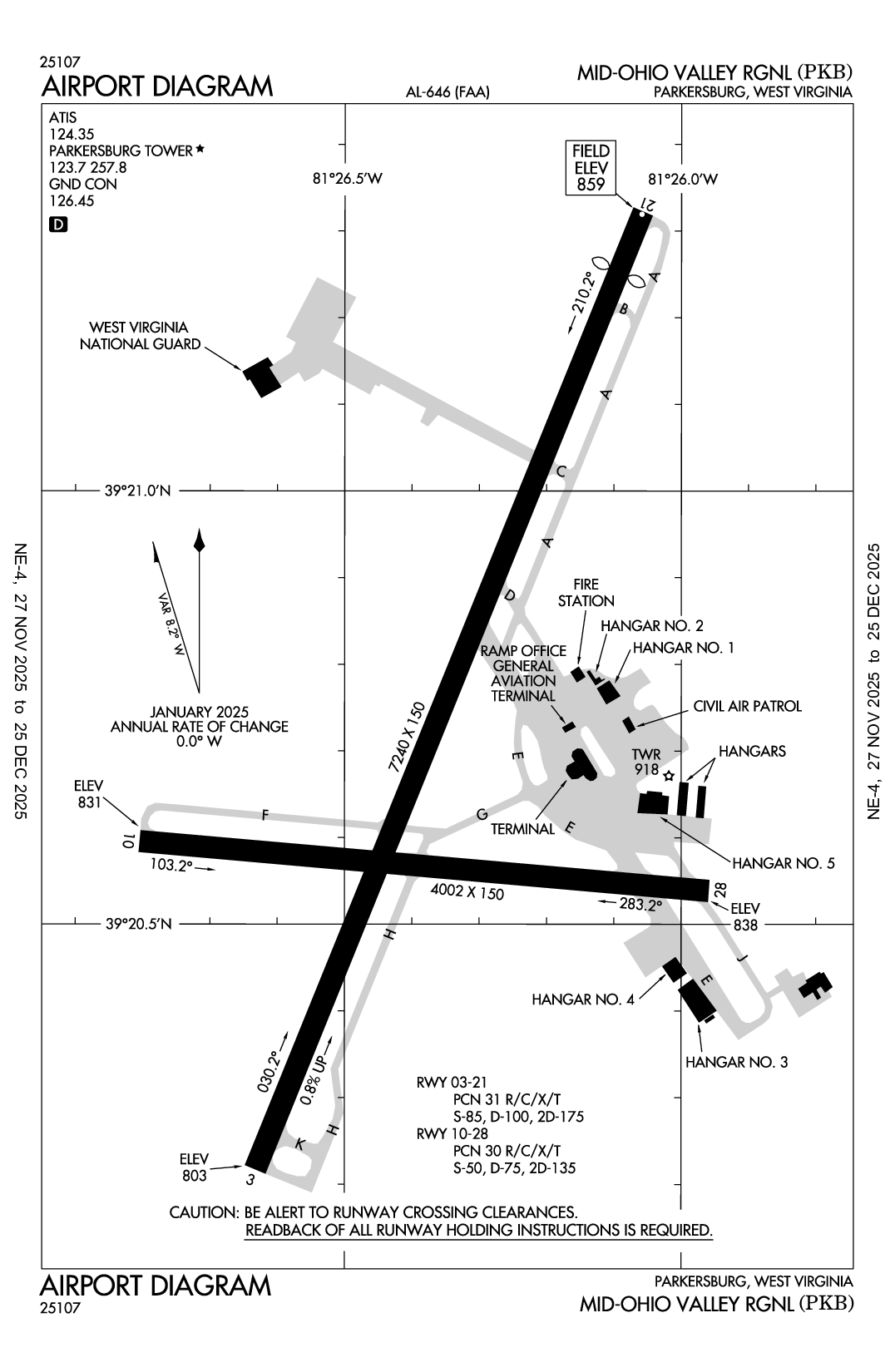

MID-OHIO VALLEY RGNL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KPKB
MID-OHIO VALLEY RGNL
PublicPUB

6 miles NE of PARKERSBURG, WV
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
39° 20' 42"N 81° 26' 21"W
858' MSL
1858' MSL
08° W (2010)
Jet A, 100LL
ELKINS (EKN)
CINCINNATI
INDIANAPOLIS (ZID)
9/10/20-10/8/20
KPKB VFR
7:53 AM EDT
Overcast 4,700'
9sm
60°F
59°F
30.05"Hg
Calm
AO2 SLP171 T01560150 10161 20139 53009
KPKB 261153Z 00000KT 9SM OVC047 16/15 A3005 RMK AO2 SLP171 T01560150 10161 20139 53009

KPKB FBOs, Flight Schools and Ground Support

No FBOs, flight schools or aircraft ground support businesses are listed for this airport.

KPKB Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KPKB Hotels

No hotels are listed for this airport.

KPKB Restaurants

No restaurants are listed for this airport.

KPKB Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.950 123.7

ATIS

ATIS
124.350

Emergency

EMERG
121.500

Ground

GND/P
121.700

Tower

LCL/P
123.700

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Terminal Area Forecast

KPKB
Sat, 9/26 7:28 AM EDT
Sat, 9/26 8:00 AM EDT - Sun, 9/27 8:00 AM EDT
VFR
8:00 AM EDT - 7:00 AM EDT
Broken 5,000'
> 6sm
N/A
VRB° 4kts
VFR
7:00 AM EDT - 8:00 AM EDT
Mist
Scattered 2,300'
6sm
N/A
Calm
KPKB 261128Z 2612/2712 VRB04KT P6SM BKN050
   FM271100 00000KT 6SM BR SCT023
KPKB NOTAMs
Domestic
9/21/201243Z !PKB 09/032 PKB OBST TOWER LGT (ASN 2017-AGL-18563-OE) 392818N0813754W (11.6NM NW PKB) 996FT (307FT AGL) U/S 2009211243-2010212300
9/18/200752Z !PKB 09/028 PKB OBST TOWER LGT (ASR 1299141) 393140.60N0812504.40W (11.1NM NE PKB) 1175.5FT (315.0FT AGL) U/S 2009180752-2010030751
9/18/200230Z !PKB 09/027 PKB AD AP FUEL NOT AVBL DLY 0230-0930 2009180230-2010310930
9/14/202105Z !PKB 09/021 PKB OBST TOWER LGT (ASR 1293157) 391455.30N0811409.00W (11.0NM ESE PKB) 1151.6FT (308.7FT AGL) U/S 2009142105-2010141700EST
8/20/201515Z !PKB 08/025 PKB OBST TOWER LGT (ASR 1216472) 391910.00N0812831.00W (2.3NM SW PKB) 1099.7FT (199.8FT AGL) U/S 2008201515-2011180400
6/13/201838Z !PKB 06/015 PKB OBST TOWER LGT (ASR 1035125) 391244.10N0813529.70W (10.7NM SW PKB) 1132.9FT (214.9FT AGL) U/S 2006131838-2012132359
1/1/200356Z !PKB 01/002 PKB RWY 03 PAPI OUT OF SERVICE 2001010356-2012312300
FDC
3/12/201842Z !FDC 0/6840 PKB IAP MID-OHIO VALLEY RGNL,
PARKERSBURG, WV.
VOR RWY 21, AMDT 17D...
CIRCLING CATS C/D MDA 1640/HAA 781, VIS CAT C 2 1/2, VIS CAT D 2
1/2.
CHANGE NOTE TO READ: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE
ATHENS/ALBANY ALTIMETER SETTING AND INCREASE ALL MDA 100 FEET,
INCREASE S-21 AND CIRCLING CATS C/D VISIBILITY 1/2 SM.
2003121842-2203121842EST
3/12/201842Z !FDC 0/6839 PKB IAP MID-OHIO VALLEY RGNL,
PARKERSBURG, WV.
ILS OR LOC RWY 3, AMDT 14C...
CIRCLING CATS C/D MDA 1640/HAA 781, VIS CAT C 2 1/4, VIS CAT D VIS
2 1/2. HADUP FIX MINIMUMS (DME REQUIRED) CIRCLING CAT B MDA
1380/HAA 521, CATS C/D 1640 MDA/HAA 781, VIS CAT C 2 1/4, VIS CAT
D VIS 2 1/2.
CHANGE NOTE TO READ: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE
ATHENS/ALBANY ALTIMETER SETTING AND INCREASE ALL DA/MDA 100 FT;
INCREASE S-ILS 3 ALL CATS VISIBILITY TO RVR 5000, S-LOC 3 CATS C/D
TO 1 3/8 SM, CIRCLING CAT C TO 2 3/4 SM, AND CIRCLING CAT D TO 3
SM, S-LOC 3 HADUP FIX MINIMUMS (DME REQUIRED) CATS C/D TO RVR 5500,
CIRCLING CAT C TO 2 3/4 SM, AND CIRCLING CAT D TO 3 SM.
2003121842-2203121842EST
3/12/201842Z !FDC 0/6838 PKB IAP MID-OHIO VALLEY RGNL,
PARKERSBURG, WV.
RNAV (GPS) RWY 28, ORIG-C...
CIRCLING CAT B MDA 1380/HAA 521. CIRCLING CATS C/D MDA 1640/HAA
781, VIS CAT C 2 1/4, VIS CAT D 2 1/2. ALTERNATE MINIMUMS: CAT C
800-2 1/4, CAT D 800-2 1/2 - NA WHEN LOCAL WEATHER NOT AVAILABLE.
CHANGE NOTE TO READ: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE
ATHENS/ALBANY ALTIMETER SETTING AND INCREASE ALL MDA 100 FT,
INCREASE LP/LNAV CATS C/D VISIBILITY TO 1 5/8 SM, CIRCLING CAT C TO
2 3/4 SM, AND CIRCLING CAT D TO 3 SM.
2003121842-2203121842EST
3/12/201842Z !FDC 0/6837 PKB IAP MID-OHIO VALLEY RGNL,
PARKERSBURG, WV.
RNAV (GPS) RWY 21, AMDT 2D...
CIRCLING CAT B MDA 1380/HAA 521. CIRCLING CATS C/D MDA 1640/HAA
781, VIS CAT C 2 1/4, VIS CAT D 2 1/2. ALTERNATE MINIMUMS: CAT C
800-2 1/4, CAT D 800-2 1/2 - NA WHEN LOCAL WEATHER NOT AVAILABLE.
CHANGE NOTE TO READ: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE
ATHENS/ALBANY ALTIMETER SETTING AND INCREASE LPV DA TO 1249,
LNAV/VNAV DA TO 1237, AND ALL MDA 100 FEET: INCREASE LPV ALL CATS
VISIBILITY TO 1 1/8 SM, LNAV/VNAV ALL CATS, LNAV CATS C/D
VISIBILITY TO 1 3/8 SM, CIRCLING CAT C TO 2 3/4 SM, AND CIRCLING
CAT D TO 3 SM.
2003121842-2203121842EST
3/12/201842Z !FDC 0/6836 PKB IAP MID-OHIO VALLEY RGNL,
PARKERSBURG, WV.
RNAV (GPS) RWY 10, ORIG-C...
CIRCLING CATS C/D MDA 1640/HAA 781. ALTERNATE MINIMUMS: CATS C/D
800-2 1/2 - NA WHEN LOCAL WEATHER NOT AVAILABLE.
CHANGE NOTE TO READ: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE
ATHENS/ALBANY ALTIMETER SETTING AND INCREASE ALL MDA 100 FEET,
INCREASE VISIBILITY LP ALL CATS, LNAV ALL CATS AND CIRCLING D 1/2
SM, AND CIRCLING CATS A/C 1/4 SM.
2003121842-2203121842EST
3/12/201842Z !FDC 0/6835 PKB IAP MID-OHIO VALLEY RGNL,
PARKERSBURG, WV.
RNAV (GPS) RWY 3, AMDT 2C...
CIRCLING CAT B MDA 1380/HAA 521. CIRCLING CAT C/D MDA 1640/HAA
781, VIS CAT C 2 1/4, VIS CAT D 2 1/2. ALTERNATE MINIMUMS: CAT C
800-2 1/4, CAT D 800-2 1/2 - NA WHEN LOCAL WEATHER NOT AVAILABLE.
CHANGE NOTE TO READ: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE
ATHENS/ALBANY ALTIMETER SETTING AND INCREASE ALL DA/MDA 100 FEET
AND LPV ALL CATS VISIBILITY TO RVR 5000, LNAV/VNAV ALL CATS
VISIBILITY TO 1 3/8 SM, LNAV CATS C/D VISIBILITY TO RVR 5500,
CIRCLING CAT C VISIBILITY TO 2 3/4 SM, AND CIRCLING CAT D
VISIBILITY TO 3 SM.
2003121842-2203121842EST
Yes
ALL
WOOD CO. ARPT AUTH
P.O. BOX 4089
PARKERSBURG, WV 26104-4089
Phone: 304-464-5113
GLEN KELLY
ROUTE 31 & AIRPORT ROAD, BOX 4089
WILLIAMSTOWN, WV 26187
Phone: 304-464-5113
ELKINS FSS (EKN)
Toll Free: 1-800-WX-BRIEF
PKB
--
WHEN ATCT CLSD ACTVT MALSR RWY 03; REIL RWY 10 AND 21; HIRL RWY 03/21 AND RWY 10/28 - CTAF. PAPI RWY 03/21 OPR CONSLY. REIL RWY 28 UNAVBL WHEN ATCT CLSD.
Clear-Green
Yes - Lighted
No
Yes
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
41
8
5
0
11
0
Minor
Minor
None
None
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 03/21

7240 ft. x 150 ft.
ASPH
Good
GRVD
HIGH
31 /R/C/X/T
85000 lbs
100000 lbs
175000 lbs
0 lbs
  Runway 03 Runway 21
Runway Heading 22° 202°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 39° 20' 13"N 39° 21' 19"N
Longitude 81° 26' 38"W 81° 26' 03"W
Elevation 802.9 ft. 858.4 ft.
Threshold Crossing Height 48 ft. AGL 56 ft. AGL
Visual Glide Path Angle
Visual Slope Indicator P4L P4R
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes

Runway 10/28

4002 ft. x 150 ft.
ASPH
Good
GRVD
HIGH
30 /R/C/X/T
50000 lbs
75000 lbs
135000 lbs
0 lbs
  Runway 10 Runway 28
Runway Heading 95° 275°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 39° 20' 36"N 39° 20' 32"N
Longitude 81° 26' 48"W 81° 25' 57"W
Elevation 830.7 ft. 838.3 ft.
Threshold Crossing Height 46 ft. AGL 43 ft. AGL
Visual Glide Path Angle
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1DEER ON & INVOF ARPT.
A110-3NO LANDING FEE FOR ACFT LESS THAN 6500 LBS; FOR ACFT GREATER THAN 6500, LNDG FEE WAIVED WITH FUEL PURCHASES.
A110-4ARNG OPS DSN 661-3400 C304-464-4530.
A110-5WHEN ATCT CLSD, FOR CD CTC INDIANAPOLIS ARTCC AT 317-247-2411.

View hangar and property listings at KPKB, provided by our partner Hangar Network.

No Hangar Network listings are currently available for this airport.

MID-OHIO VALLEY RGNL (ICAO: KPKB, IATA: PKB) is a public airport located in PARKERSBURG, WV.
