iFlightPlanner



...

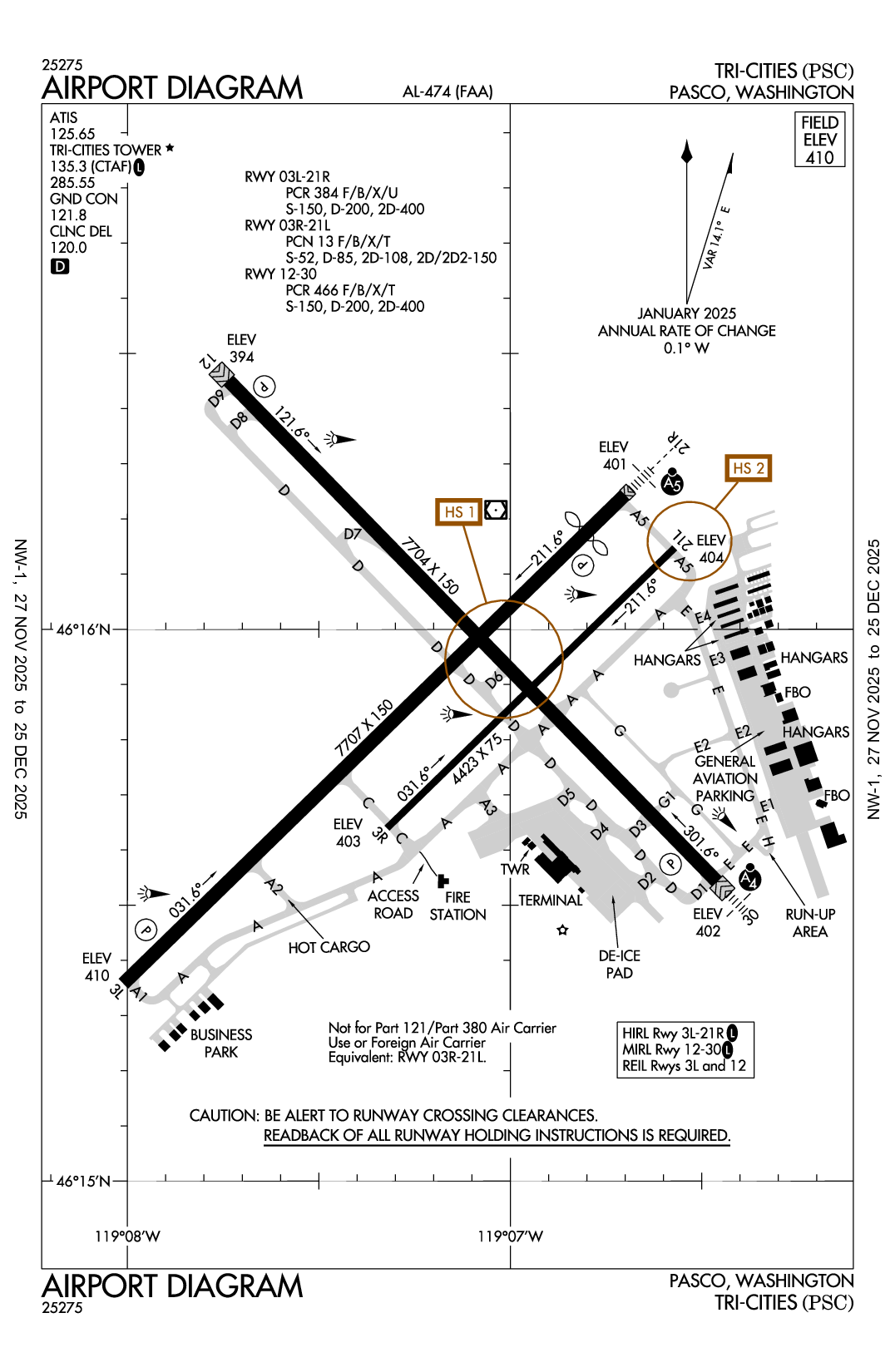

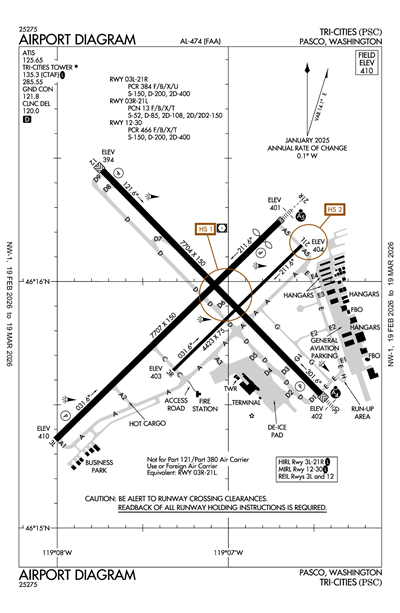

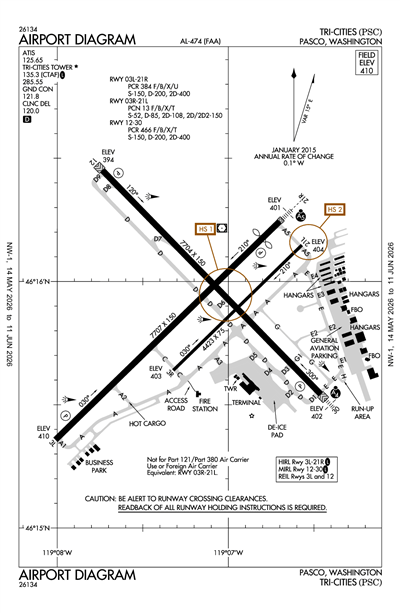

TRI-CITIES - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KPSC
TRI-CITIES
PublicPUB

2 miles NW of PASCO, WA
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
46° 15' 53"N 119° 07' 08"W
410' MSL
1410' MSL
15E
Jet A-1+, 100LL
SEATTLE (SEA)
SEATTLE
SEATTLE (ZSE)
10/7/21-11/4/21
KPSC VFR
4:53 PM PDT
Clear
10sm
68°F
45°F
29.85"Hg
320° 7kts
AO2 SLP107 T02000072 10211 20144 58025
KPSC 212353Z 32007KT 10SM CLR 20/07 A2985 RMK AO2 SLP107 T02000072 10211 20144 58025

KPSC FBOs, Flight Schools and Ground Support

Bergstrom Aircraft
Freq: 122.95
Phone: (509) 547-6271
Fax: (509) 547-7951
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 10/19
  100LL Jet A Jet A+ Mogas UL94
SS
FS 5.32 4.98 5.07
SullinAir Jet Center
Freq: 122.95
Phone: (509) 545-6524
No Rating Available
0 Reviews (Read | Sign In To Write)
EPIC
As of 10/19
  100LL Jet A Jet A+ Mogas UL94
SS 4.65
FS 4.25 4.34

KPSC Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KPSC Hotels

No hotels are listed for this airport.

KPSC Restaurants

No restaurants are listed for this airport.

KPSC Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 135.3

ATIS

ATIS
125.65

Approach/Departure

APCH/P DEP/P
S & E
133.15
APCH/P DEP/P IC
N & W
128.75

Clearance Delivery

CD/P
120.0

Ground

GND/P
121.8

Tower

LCL/P
135.3

Terminal Area Forecast

KPSC
Thu, 10/21 4:44 PM PDT
Thu, 10/21 5:00 PM PDT - Fri, 10/22 5:00 PM PDT
VFR
5:00 PM PDT - 7:00 PM PDT
Scattered 20,000'
Scattered 15,000'
> 6sm
320° 10kts
VFR
7:00 PM PDT - 6:00 AM PDT
Broken 15,000'
Scattered 12,000'
> 6sm
260° 5kts
VFR
6:00 AM PDT - 5:00 PM PDT
Light Rain and Mist
Overcast 4,000'
6sm
220° 11kts
KPSC 212344Z 2200/2224 32010KT P6SM SCT150 SCT200
   FM220200 26005KT P6SM SCT120 BKN150
   FM221300 22011KT 6SM -RA BR OVC040
KPSC
Domestic
10/21/212254Z !PSC 10/024 PSC RWY 21R ALS U/S 2110212254-2110220200
10/16/212335Z !PSC 10/016 PSC OBST TOWER LGT (ASR 1034215) 460542.00N1191145.00W (10.7NM SSW PSC) 2318.9FT (303.1FT AGL) U/S 2110162335-2111162359
10/13/211330Z !PSC 10/012 PSC OBST CRANE (ASN 2021-ANM-6887-OE) 461638N1190515W (1.5NM ENE PSC) 572FT (135FT AGL) FLAGGED 2110131330-2112180100
2/2/211820Z !PSC 02/002 PSC OBST TOWER LGT (ASR UNKNOWN) 461510.26N1185314.89W (10NM E PSC) UNKNOWN (210FT AGL) U/S 2102021820-2202022359
FDC
10/14/211227Z !FDC 1/3326 PSC IAP TRI-CITIES, PASCO, WA.
ILS OR LOC RWY 21R, AMDT 13B...
RNAV (GPS) Y RWY 12, AMDT 2...
RNAV (GPS) Y RWY 30, AMDT 3A...
RNAV (GPS) Y RWY 3L, AMDT 2A...
VOR RWY 21R, AMDT 7A...
VOR RWY 30, AMDT 5B...
CIRCLING CAT D MDA 1240/ HAA 830, VISIBILITY CAT D 2 3/4. TEMPORARY CRANE 878 MSL 3.75NM SE OF PSC AIRPORT (2020-ANM-1334-OE).
2110141227-2202011227EST
10/14/211227Z !FDC 1/3325 PSC IAP TRI-CITIES, PASCO, WA.
RNAV (GPS) Y RWY 21R, AMDT 2B...
LNAV/VNAV DA 861/HAT 457 ALL CATS. CIRCLING CAT D MDA 1240/ HAA 830, VISIBILITY CAT D 2 3/4. TEMPORARY CRANE 572 MSL 1.17NM NE RWY 21R (2021-ANM-6887-OE), TEMPORARY CRANE 878 MSL 3.75NM SE OF PSC AIRPORT (2020-ANM-1334-OE).
2110141227-2202011227EST
10/14/211227Z !FDC 1/3324 PSC IAP TRI-CITIES, PASCO, WA.
RNAV (RNP) Z RWY 21R, AMDT 1...
RNP 0.30 DA 885/HAT 481 ALL CATS, VISIBILITY ALL CATS RVR 5100. TEMPORARY CRANE 572 MSL 1.17NM NE RWY 21R (2021-ANM-6887-OE).
2110141227-2202011227EST
10/14/211227Z !FDC 1/3323 PSC ODP TRI-CITIES, PASCO, WA.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 8...
TAKEOFF MINIMUMS: RWY 3R, 300-1 1/4 OR STANDARD WITH A MINIMUM CLIMB OF 223FT PER NM TO 700. ADD TAKEOFF OBSTACLE NOTE: RWY 3R, TEMPORARY CRANE 6055FT FROM DER, 1729FT RIGHT OF CENTERLINE, 135FT AGL/572FT MSL (2021-ANM-6887-OE). ALL OTHER DATA REMAINS AS PUBLISHED. 2110141227-2202011227EST
Yes
0800-2000
PORT OF PASCO
3601 N 20TH AVE
PASCO, WA 99301
Phone: 509-547-6352
DONALD "BUCK" TAFT
3601 N 20TH AVE
PASCO, WA 99301
Phone: 509-547-6352
SEATTLE FSS (SEA)
Toll Free: 1-800-WX-BRIEF
PSC
--
WHEN ATCT CLSD HIRL RY 03L/21R AND MIRL RY 12/30 PRESET ON LOW INTST TO INCREASE INTST AND ACTVT MALSR RY 21R & ODALS RY 30 - CTAF.
Clear-Green
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
80
23
14
4
0
0
Major
Major
None
Low Pressure
Air Freight
Air Ambulance
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales
Annual Surveying

Runway 03L/21R

7707 ft. x 150 ft.
ASPH
Good
GRVD
HIGH
47 /F/B/X/T
150,000lbs
200,000lbs
400,000lbs
--
  Runway 03L Runway 21R
True Heading 45°225°
Traffic Pattern Left Right
Markings NPI PIR
Markings Condition GOOD GOOD
Latitude 46° 15' 21"N 46° 16' 15"N
Longitude 119° 08' 01"W 119° 06' 42"W
Elevation 410' 401'
Threshold Crossing Height 49 ft. AGL 54 ft. AGL
Visual Glide Path Angle
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes

Runway 03R/21L

4423 ft. x 75 ft.
ASPH
Fair


13 /F/B/X/T
52,000lbs
85,000lbs
108,000lbs
150,000lbs
  Runway 03R Runway 21L
True Heading 45°225°
Traffic Pattern Right Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 46° 15' 38"N 46° 16' 09"N
Longitude 119° 07' 19"W 119° 06' 34"W
Elevation 403' 404'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 12/30

7704 ft. x 150 ft.
ASPH
Good
GRVD
MED
53 /F/C/X/T
150,000lbs
200,000lbs
400,000lbs
--
  Runway 12 Runway 30
True Heading 135°315°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 46° 16' 25"N 46° 15' 30"N
Longitude 119° 07' 41"W 119° 06' 24"W
Elevation 396' 402'
Threshold Crossing Height 56 ft. AGL 54 ft. AGL
Visual Glide Path Angle
Visual Slope Indicator V4L P4L
Approach Lights ODALS
Centerline Lights
Runway End Identifier Lights Yes
A110-1BIRD HAZARD; SEE SPECIAL NOTICE FOR WASHINGTON IN AIM PART 3A.
A110-2TPA 1500' TURBINE PWRD ACFT; ALL OTRS 1000'.
A110-3RY 03R/21L IS AVBL FOR ACR ACFT FOR TAXIING DURING DALGT AND VFR CONDITIONS ONLY.
A110-4RY 21L & 03R NOT AVBL AS MOVEMENT AREA FOR ACR ACFT WITH MORE THAN 9 PSGR SEATS OR GREATER FOR LNDG AND TKOF.
A110-5WATER FOWL ON & INVOF ARPT SPRING & FALL.

View hangar and property listings at KPSC, provided by our partner Hangar Network.

No Hangar Network listings are currently available for this airport.

TRI-CITIES (ICAO: KPSC, IATA: PSC) is a public airport located in PASCO, WA.
