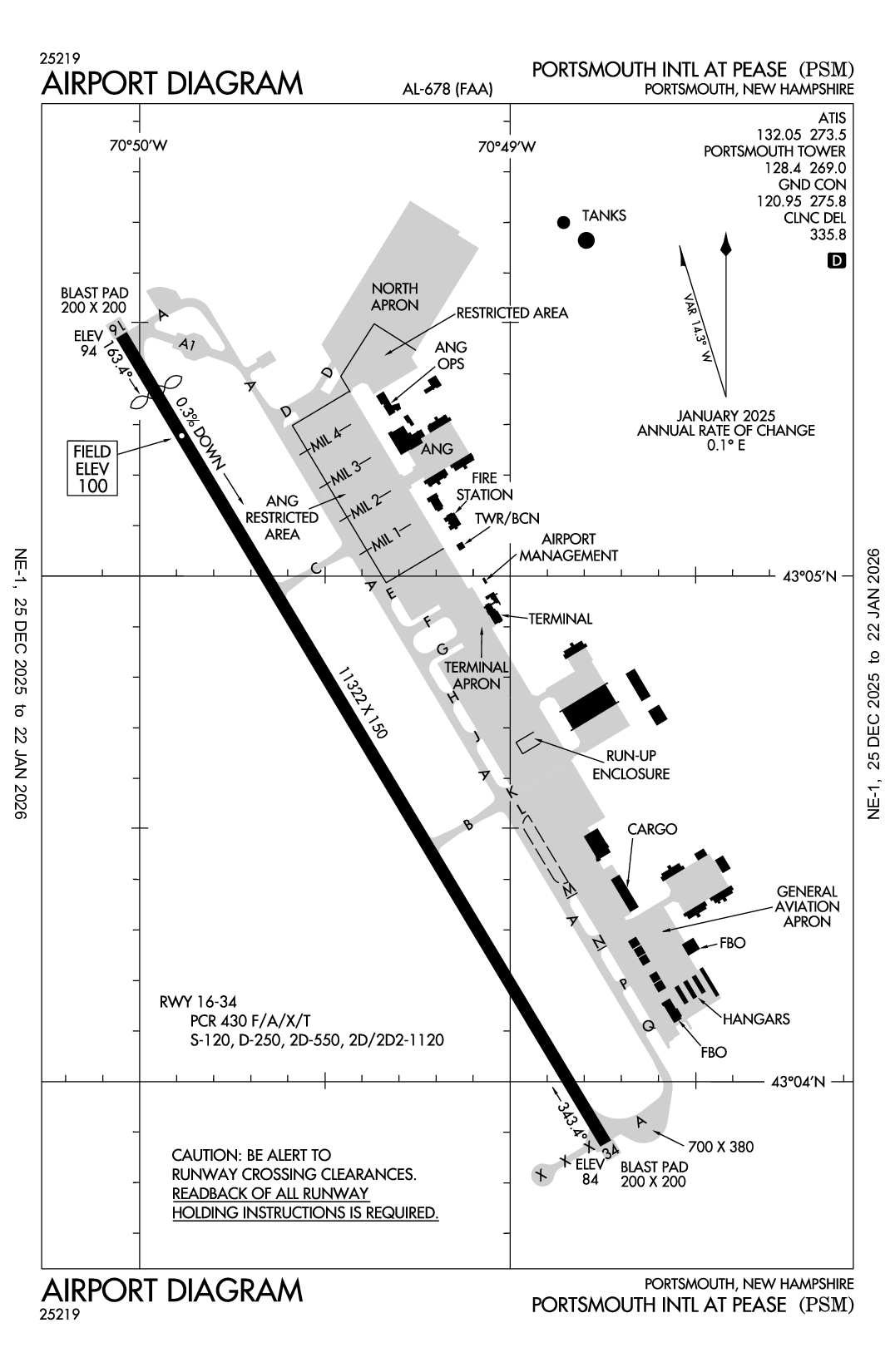

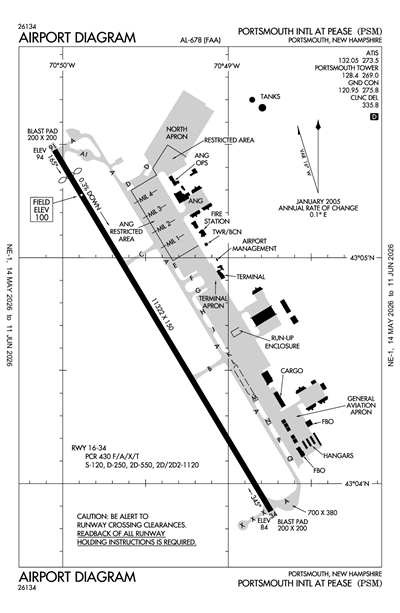

PORTSMOUTH INTL AT PEASE - Airport Diagram

KPSM

ICAO KPSMIATA PSMLocal PSM

PORTSMOUTH INTL AT PEASE

PublicPUB

1 miles W of PORTSMOUTH, NH, US

View on Map

Status

Operational

Coordinates

43° 04' 41"N 70° 49' 24"W

Elevation

100' MSL

Pattern Alt

1100' MSL

Mag Variation

14°W

Declination

16°W

Fuel

JET A, 100LL, JP-8

FSS

BANGOR (BGR)

Sectional

NEW YORK

ARTCC

BOSTON (ZBW)

Data Effective

6/11/26-7/9/26

KPSM VFR

7:55 PM EDT RAW

Overcast 5,500'
Few 3,000'

Viz

10sm

Temp

68°F

Dew

64°F

Pres

29.81"Hg

Wind

Calm

RMK

AO2A SLP097 T02000176 10232 20200 53001

METAR KPSM 232355Z 00000KT 10SM FEW030 OVC055 20/18 A2981 RMK AO2A SLP097 T02000176 10232 20200 53001

Add Your Business

KPSM FBOs

Promote Listing

Port City Air

ASRI: 128.825

Phone: (603) 350-4516

Fax: (603) 430-1199

Other: (888) 732-7324 x732-7324

0 Reviews (Read | Sign In To Write)

Titan

As of 6/19	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve
Full Serve	8.35	7.20	7.81

Fuel Notes

Prices include tax

Fuel Hours

24/7 for fuel

KPSM Aircraft Service & Maintenance

Promote Listing

Atlas Aircraft Center

Phone: (603) 501-7720

Fax: (603) 501-7721

0 Reviews (Read | Sign In To Write)

Your Information

Business

Weather and Advisory

ATIS	132.05
(603) 334-6070
ASOS	USAF AN/FMQ-19.

Common

UNICOM

122.95

Ground

PORTSMOUTH GROUND

120.95

Tower

PORTSMOUTH TOWER

128.4

Approach

BOSTON APPROACH	125.05
Initial Contact

Departure

BOSTON DEPARTURE	125.05
Initial Contact
BOSTON DEPARTURE	125.05

Emergency

121.5

Military

ANG OPS

141.95

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

AIRPORT DIAGRAM

Airport Minimums

Departure Procedures

Instrument Approach

Terminal Area Forecast

KPSM

RAW

Reported

Tue, 6/23 7:29 PM EDT

Valid

Tue, 6/23 8:00 PM EDT - Wed, 6/24 8:00 PM EDT

VFR

8:00 PM EDT - 10:00 PM EDT

Overcast 20,000'
Broken 3,500'

Viz

6sm

Wind

VRB° 3kts

MVFR

10:00 PM EDT - 8:00 AM EDT

Mist

Overcast 8,000'
Scattered 300'

Viz

3sm

Wind

Calm

VFR

8:00 AM EDT - 12:00 PM EDT

Few 23,000'

Viz

6sm

Wind

VRB° 3kts

VFR

12:00 PM EDT - 8:00 PM EDT

Few 22,000'

Viz

6sm

Wind

300° 6kts

TAF KPSM 232329Z 2400/2424 VRB03KT P6SM BKN035 OVC200
   FM240200 00000KT 3SM BR SCT003 OVC080
   FM241200 VRB03KT P6SM FEW230
   FM241600 30006KT P6SM FEW220

KPSM

Effective	Expires	Category	NOTAM
Domestic
6/22/26 1816Z	7/2/26 2359Z		!PSM 06/086 PSM NAV ILS RWY 16 U/S 2606221816-2607022359
6/19/26 1525Z	8/3/26 0400Z		!PSM 06/081 PSM SVC TWR CLSD CTAF 128.4 NOW CTC FOR CLR DELIVERY ON 120.95 2606191525-2608030400
6/19/26 1100Z	8/3/26 2100Z		!PSM 06/036 PSM NAV DME NOT MNT 2606191100-2608032100
6/19/26 1100Z	8/3/26 2100Z		!PSM 06/035 PSM NAV ILS RWY 16 LOC NOT MNT 2606191100-2608032100
6/19/26 0400Z	8/3/26 0400Z		!PSM 06/071 PSM AD AP SEGMENTED CIRCLE NOT STD MISSING 2606190400-2608030400
6/19/26 0400Z	8/3/26 0400Z	Runway	!PSM 06/070 PSM RWY 16/34 CLSD TO PLA 2606190400-2608030400
6/19/26 0400Z	8/3/26 0400Z	Runway	!PSM 06/066 PSM RWY 16 RIGHT TFC PATTERN 2606190400-2608030400
6/19/26 0400Z	8/3/26 0400Z		!PSM 06/065 PSM AD AP FIXED BASE OPR USE 128.825 2606190400-2608030400
6/19/26 0400Z	8/3/26 0400Z		!PSM 06/063 PSM AD AP ABN U/S 2606190400-2608030400
6/19/26 0400Z	8/3/26 0400Z		!PSM 06/060 PSM AD AP CLSD TO UAS OPS 2606190400-2608030400
6/19/26 0400Z	8/3/26 0400Z	Runway	!PSM 06/059 PSM RWY 16/34 CLSD TO TGL 2606190400-2608030400
6/19/26 0400Z	8/3/26 0400Z		!PSM 06/058 PSM AD AP CLSD TO NON RADIO ACFT 2606190400-2608030400
6/19/26 0400Z	8/3/26 0400Z		!PSM 06/057 PSM TWY B, C CLSD TO TKOF 2606190400-2608030400
6/19/26 0400Z	8/3/26 0400Z		!PSM 06/056 PSM AD AP CLSD TO NON SKED TRANSIENT GA ACFT EXC 24HR PPR 603-812-1863 2606190400-2608030400
6/18/26 1205Z	7/31/26 1800Z	Runway	!PSM 06/075 PSM RWY 34 ALS U/S EXC MEDIUM INTST ON CONS 2606181205-2607311800
6/18/26 1100Z	7/31/26 1800Z	Runway	!PSM 06/069 PSM RWY 16 ALS U/S EXC MEDIUM INTST ON CONS 2606181100-2607311800
6/17/26 1758Z	7/1/26 2359Z		!PSM 06/072 PSM NAV ILS RWY 34 LOC U/S 2606171758-2607012359
6/1/26 0312Z	7/1/26 0359Z		!PSM 06/006 PSM APRON SOUTH TERMINAL OVERFLOW APN NE 600FT CLSD 2606010312-2607010359
6/1/26 0311Z	7/1/26 0359Z		!PSM 06/005 PSM TWY A CL MARKINGS BTN TWY D AND APCH END RWY 16 FADED 2606010311-2607010359
6/1/26 0309Z	7/1/26 0459Z		!PSM 06/004 PSM APRON NORTH APN CLSD TO FIXED WING AND ROTARY WING 2606010309-2607010459
6/1/26 0308Z	7/1/26 0359Z		!PSM 06/003 PSM APRON GND RUNUP ENCLOSURE CLSD 2606010308-2607010359
5/23/26 1244Z	6/30/26 2100Z		!PSM 05/100 PSM TWY A EDGE MARKINGS BTN TWY D AND TWY Q WEST SIDE FADED 2605231244-2606302100
5/11/26 0900Z	10/30/26 2100Z		!PSM 05/022 PSM AD AP ALL SFC WIP GRASS CUTTING MON-FRI 0900-2100 2605110900-2610302100
12/1/25 0221Z			!PSM 12/003 PSM APRON SOUTH MAINT APN CLSD 2512010221-PERM

ATC Tower

Yes

Attendance

ALL

Owner

PEASE DEVELOPMENT AUTHORITY
55 INTERNATIONAL DR
PORTSMOUTH, NH 03801
Phone: 603-433-6536

Manager

JOHN MEEHAN
36 AIRLINE DR
PORTSMOUTH, NH 03801
Phone: 603-766-9238

FSS

BANGOR FSS (BGR)
Toll Free: 1-800-WX-BRIEF

NOTAM

PSM

Light Schedule

Lights

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Landing Fee

Parking

Hanger, Tie-Down

Int'l Operations

Landing Rights Airport
NOT an Airport of Entry

Airframe Repair

Major

Pwrplant Repair

Major

Bottled Oxygen

High & Low Pressure

Bulk Oxygen

None

Other Services

Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental

Runway 16/34

Dimensions

11322 ft. x 150 ft.

Surface Type

ASPH CONC

Surface Cond

Good

Treatment

GRVD

Rwy Edge Lgts

HIGH

Pavement Class

Single Wheel

120,000lbs

Double Wheel

250,000lbs

Double Tandem

550,000lbs

Dual Dbl Tand

1,120,000lbs

	Runway 16	Runway 34
True Heading	149°	329°
Traffic Pattern	Right	Left
Markings	PIR	PIR
Markings Condition	GOOD	GOOD
Latitude	43° 05' 29"N	43° 03' 53"N
Longitude	70° 50' 03"W	70° 48' 45"W
Elevation	94'	84'
Threshold Crossing Height	72 ft. AGL	80 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4L	P4L
Approach Lights	MALSR	MALSR
Centerline Lights
Runway End Identifier Lights

A110-10	ON DEP MNTN RWY HDG TO 1100 FT MSL OR END OF RWY (WHICHEVER OCCURS LAST) PRIOR TO TURNING.
A110-11	200 FT BLAST PAD EACH RWY END.
A110-12	LITTLEBROOK AIRPARK LCTD 052 DEG 4.4 NM; TFC PAT 1130 FT MSL. FLY DOWNWIND LEG NO CLOSER THAN 1/2 MI FM RWY.
A110-15	NO 180 DEG TURNS FOR ACFT OVER 12500 LBS GWT ON ASPH PORTION OF RWY 16/34.
A110-17	CUST 24X7X365 CUST CLEARING AVBL. STD OFC HRS MON THRU FRI 0900-1630. CUST MUST BE ARNGD IN ADVN AT 603-422-0910. INT'L ARRS MUST ARNG FOR GND HANDLING PRIOR TO ARR. FBO 603-430-1111/128.825 ARINC.
A110-19	RWY 34 IS PREFERRED WHEN TAILWIND CMPT IS LESS THAN FIVE KTS. RWY 16 IS PREFERRED FOR TKOF, BTN 2200-0659, WHEN TAILWIND CMPT IS FIVE KTS OR LESS.
A110-2	ALL INBD ACFT WITH HAZUS CARGO INFO CALL ATCT 60 NM OUT.
A110-21	MILITARY: ANG: CTN: BASH PHASE II IN EFF MAR THRU MAY & SEP THRU OCT ANNUALLY. BASH MITIGATION PRO IN PLACE. CTC PEASE TWR FOR CURRENT BWC.
A110-23	CAUTION: HGT GROUP 1 WCH 54 FT.
A110-3	TURB APCH END RWY 34 IN STRONG X WINDS.
A110-31	MILITARY OIL: RQR 48 HR PROCESSING TIME.
A110-32	AFLD MGMT HRS 1200-0400++ MON-THU, 1200-2100++ FRI, CLSD SAT-SUN, AND HOL EXC UNIT TRNG. ALL TRAN ACFT RQR PPR NLT 72 HR. CTC AFLD MGMT DSN 852-2458 OR 2407. PPR RQRD OUTSIDE PUBLD HRS, CTC COMD POST DSN 852-2459, C603-430-2459. CTC PACK CONTROL 323.8, 30 MIN PRIOR TO LDG. AFLD MGMT DOES NOT STORE COMSEC, CTC COMD POST FOR TEMPO STORAGE. DEICING AVBL, ANTI-ICE AVBL AT FBO.
A110-4	NO PLA OR TGL 2300-0700 FOR LCL-BASED ACFT, 2100-0700 FOR TSNT ACFT OR BFR 1200 SUN FOR ALL ACFT.
A110-5	BIRDS ON AND INVOF ARPT.
A110-6	NOISE SENSITIVE AREAS OFF BOTH ENDS OF RWY.
A110-7	TFC PAT: RECTANGULAR 1600 FT MSL OVD 2100 FT MSL - LGT ACFT 1100 FT MSL.
A110-8	ON OTHER THAN A PUBLD IAP--ARRG ACFT SHOULD ESTAB THEMSELVES ON FINAL APCH AT LEAST 2 NM FM THE RWY THR AT A MIN OF 700 FT MSL.
A110-9	AVOID CLOSE IN BASE LEGS/SHORT APCHS.
A26	INDEX E ARFF CAPABILITY AVBL 24/7.
A33-16/34_SURF	RWY 16-FST 600 FT CONC-GROOVED.
A39-16/34	PCR VALUE: 430/F/A/X/T
A40-16/34	EDGE LGTS ARE 24 IN TALL; 85 FT FM CNTRLN.
A42-16_MARK	16/34 DBL FACED DIST MKRS BOTH SIDES OF RWY AT 1000 FT INTVLS.
A57-16	50:1 TO DTHR.
A70-J8	AVBL AT ANG 603-430-2459.

PORTSMOUTH INTL AT PEASE (ICAO: KPSM, IATA: PSM) is a public airport located in PORTSMOUTH, NH, US.
