KPTS
ATKINSON MUNI
PublicPUB

3 miles NW of PITTSBURG, KS
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
37° 27' 00"N 94° 43' 52"W
946' MSL
1946' MSL
02E
Jet A, 100LL
WICHITA (ICT)
KANSAS CITY
KANSAS CITY (ZKC)
4/18/24-5/16/24
KPTS VFR
7:55 PM CDT
Clear
10sm
65°F
38°F
30.10"Hg
050° 3kts
AO2 T01850032 PWINO
KPTS 250055Z AUTO 05003KT 10SM CLR 19/03 A3010 RMK AO2 T01850032 PWINO
List Your Business

KPTS FBOs, Flight Schools and Ground Support

Promote Listing
Atkinson Municipal Airport
Freq: 123.0
Phone: (620) 231-5760
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 4/4
 100LL Jet A Jet A+ Mogas UL94
Self Serve
Full Serve 6.41 5.15

KPTS Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KPTS Hotels

No hotels are listed for this airport.

KPTS Restaurants

No restaurants are listed for this airport.

KPTS Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.0 123.0

AWOS-3PT

AWOS-3PT
620-230-5654
 118.775

FAA A/FD Pages

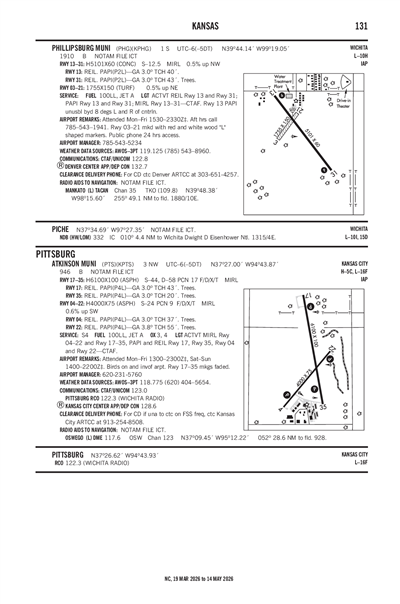

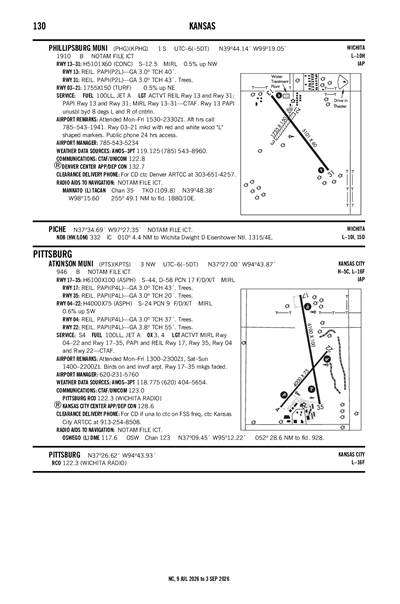

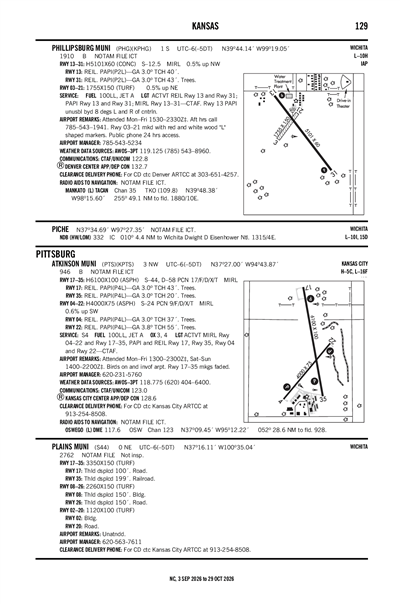

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KJLN (21nm)
Wed, 4/24 6:37 PM CDT
Wed, 4/24 7:00 PM CDT - Thu, 4/25 7:00 PM CDT
VFR
7:00 PM CDT - 5:00 AM CDT
Scattered 24,000'
6sm
100° 5kts
VFR
5:00 AM CDT - 9:00 AM CDT
Showers and Rain and Mist
Overcast 6,000'
6sm
140° 9kts
MVFR
5:00 AM CDT - 9:00 AM CDT
Thunderstorm and Rain and Mist
Overcast 2,500'
4sm
Calm
MVFR
9:00 AM CDT - 1:00 PM CDT
Showers and Rain and Mist
Overcast 3,000'
6sm
130° 15kts
Gusts 24kts
IFR
9:00 AM CDT - 1:00 PM CDT
Thunderstorm and Rain and Mist
Overcast 1,500'
2sm
Calm
IFR
1:00 PM CDT - 4:00 PM CDT
Showers and Rain and Mist and Thunderstorm in vicinity
Overcast 800'
4sm
140° 16kts
Gusts 25kts
MVFR
4:00 PM CDT - 7:00 PM CDT
Showers and Rain and Mist and Thunderstorm in vicinity
Overcast 1,000'
4sm
130° 17kts
Gusts 27kts
KJLN 242337Z 2500/2524 10005KT P6SM SCT240
   FM251000 14009KT 6SM SHRA BR OVC060
   PROB30 2510/2514 4SM TSRA BR OVC025CB
   FM251400 13015G24KT 6SM SHRA BR OVC030
   PROB30 2514/2518 2SM TSRA BR OVC015CB
   FM251800 14016G25KT 4SM SHRA BR VCTS OVC008CB
   FM252100 13017G27KT 4SM SHRA BR VCTS OVC010CB
KPTS
Domestic
4/24/241736Z !ICT 04/323 PTS OBST TOWER LGT (ASR 1032211) 372629.20N0945839.40W (11.8NM W PTS) 1386.8FT (427.8FT AGL) U/S 2404241736-2408221736
4/24/241446Z !ICT 04/318 PTS TWY ALL LGT U/S 2404241446-2404252359
4/19/241656Z !ICT 04/273 PTS OBST TOWER LGT (ASN 2023-ACE-1807-OE) 373222N0944248W (5.4NM NE PTS) 1292FT (300FT AGL) U/S 2404191656-2406212359
4/9/240200Z !ICT 04/110 PTS OBST TOWER LGT (ASR 1033240) 372654.80N0943811.80W (4.5NM E PTS) 1380.9FT (424.9FT AGL) U/S 2404090200-2405122359
3/30/240620Z !ICT 03/416 PTS OBST TOWER LGT (ASR 1057508) 373159.20N0944104.90W (5.5NM NNE PTS) 1290.0FT (294.9FT AGL) U/S 2403300620-2405302359
3/29/241934Z !ICT 03/412 PTS OBST TOWER LGT (ASR 1031730) 371844.00N0944859.00W (9.2NM SSW PTS) 1983.9FT (1054.1FT AGL) U/S 2403291934-2409292359
3/27/241155Z !ICT 03/385 PTS OBST TOWER LGT (ASR 1235794) 372620.40N0944057.40W (2.4NM ESE PTS) 1145.0FT (220.1FT AGL) U/S 2403271155-2406272359
3/18/240600Z !ICT 03/205 PTS APRON ACFT PRKG RAMP E 200FT WIP CONST NO ACCESS FM RWY17/35 LGTD AND BARRICADED 2403180600-2405312359
3/18/240600Z !ICT 03/204 PTS APRON ACFT PRKG RAMP E 200FT CLSD 2403180600-2405312359
11/14/231236Z !ICT 11/207 PTS RWY 22 PAPI U/S 2311141236-2405122359
11/9/231456Z !ICT 11/126 PTS RWY 04 PAPI U/S 2311091456-2405122111EST
FDC
3/10/231311Z !FDC 3/6078 PTS ODP ATKINSON MUNI, PITTSBURG, KS.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 2...
TAKEOFF OBSTACLE NOTES: RWY 4, BUILDING, 1704 FT FROM DER, 194 FT RIGHT OF CENTER LINE, 54 AGL/983 MSL. ELEVATOR 2322 FT FROM DER, 215 FT LEFT OF CENTERLINE, UP TO 90 FT AGL/1030 FT MSL. SILO 2302 FT FROM DER, 282 FT LEFT OF CENTERLINE, UP TO 88 FT AGL/1028 FT MSL. MILL TOWER 2314 FT FROM DER, 208 FT LEFT OF CENTERLINE, UP TO 72FT AGL/1012 FT MSL. (2021-ACE-1840-OE PERMANENT) (2022-ACE-8822-8824-OE PERMANENT). ALL OTHER DATA REMAINS AS PUBLISHED. 2303101311-2503101311EST
3/10/231307Z !FDC 3/6077 PTS IAP ATKINSON MUNI, PITTSBURG, KS.
RNAV (GPS) RWY 17, AMDT 3A...
RNAV (GPS) RWY 35, AMDT 3...
RNAV (GPS) RWY 4, AMDT 2...
CIRCLING RWY 22 NA AT NIGHT.
2303101307-2503101307EST
3/10/231307Z !FDC 3/6076 PTS IAP ATKINSON MUNI, PITTSBURG, KS.
RNAV (GPS) RWY 22, AMDT 1D...
RWY 22 HELICOPTER VISIBILITY REDUCTION BELOW 1 SM NOT AUTHORIZED. STRAIGHT-IN AND CIRCLING RWY 22 NA AT NIGHT. VDP NA.
2303101307-2503101307EST
No
MON-FRI 0700-1700
SAT-SUN 0800-1600
CITY OF PITTSBURG
201 W 4TH ST
PITTSBURG, KS 66762
Phone: 620-231-4100
BILL PYLE
3510 ARPT DR
PITTSBURG, KS 66762
Phone: 620-231-5760
WICHITA FSS (ICT)
Toll Free: 1-800-WX-BRIEF
ICT
--
DUSK-DAWN. ACTVT MIRL RYS 04/22 & 17/35; PAPI & REIL RYS 17, 35, 04 & 22 - CTAF.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
20
4
4
1
0
0
Major
Major
High & Low Pressure
None
Air Ambulance
Pilot Instruction
Aircraft Rental

Runway 04/22

4000 ft. x 75 ft.
ASPH
Good
NONE
MED
9 /F/D/X/T
24,000lbs
--
--
--
  Runway 04 Runway 22
True Heading 40°220°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 37° 26' 35"N 37° 27' 06"N
Longitude 94° 44' 11"W 94° 43' 39"W
Elevation 946' 922'
Threshold Crossing Height 37 ft. AGL 55 ft. AGL
Visual Glide Path Angle 3° 3.8°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 17/35

6100 ft. x 100 ft.
ASPH
Good
NONE
MED
17 /F/D/X/T
44,000lbs
58,000lbs
--
--
  Runway 17 Runway 35
True Heading 170°350°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 37° 27' 36"N 37° 26' 37"N
Longitude 94° 43' 57"W 94° 43' 44"W
Elevation 936' 926'
Threshold Crossing Height 43 ft. AGL 20 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-2BIRDS ON & INVOF ARPT.
A110-3GCO AVBL ON FREQ 121.725 THRU KANSAS CITY CENTER & FLT SVCS.
A110-4FOR CD IF UNA TO CTC ON FSS FREQ, CTC KANSAS CITY ARTCC AT 913-254-8508.
ATKINSON MUNI (ICAO: KPTS, IATA: PTS) is a public airport located in PITTSBURG, KS.
