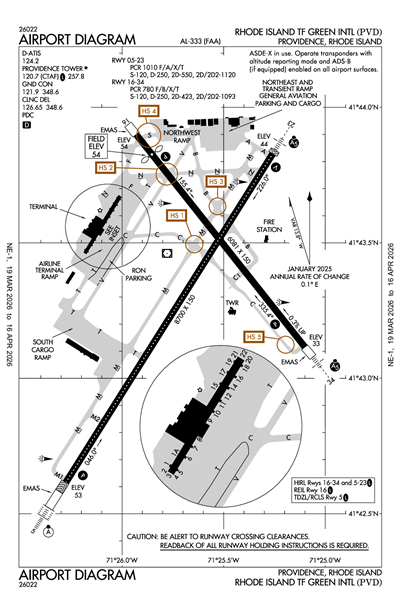

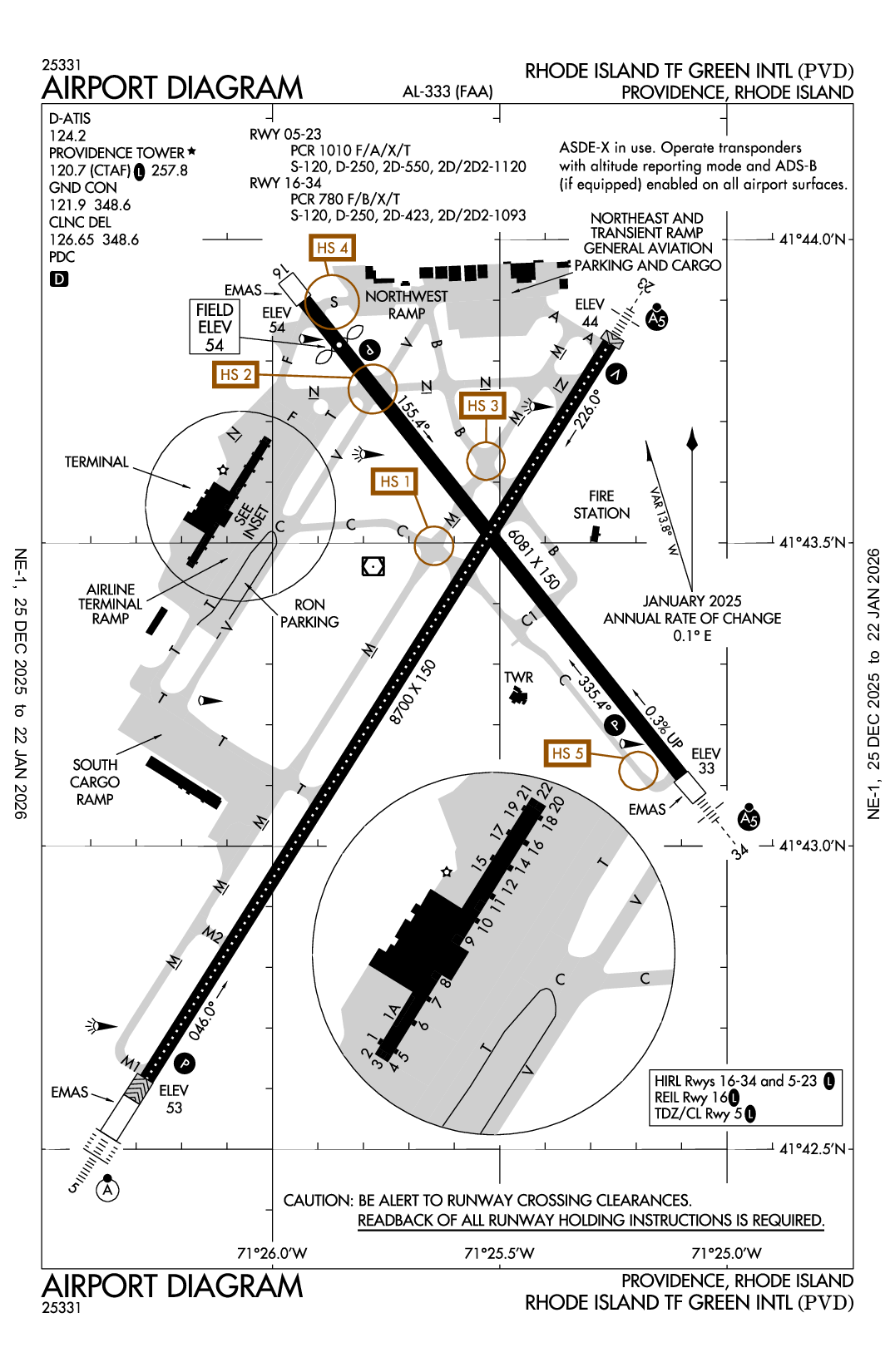

RHODE ISLAND TF GREEN INTL - Airport Diagram

KPVD

ICAO KPVDIATA PVDLocal PVD

RHODE ISLAND TF GREEN INTL

PublicPUB

6 miles S of PROVIDENCE, RI, US

View on Map

Status

Operational

Coordinates

41° 43' 20"N 71° 25' 40"W

Elevation

54' MSL

Pattern Alt

1054' MSL

Mag Variation

14°W

Declination

15°W

Fuel

JET A, 100LL

FSS

BRIDGEPORT (BDR)

Sectional

NEW YORK

ARTCC

BOSTON (ZBW)

Data Effective

10/1/26-10/29/26

KPVD VFR

4:51 AM EDT RAW

Clear

Viz

10sm

Temp

62°F

Dew

50°F

Pres

30.10"Hg

Wind

360° 6kts

RMK

AO2 SLP191 60000 T01670100 51021 $

METAR KPVD 030851Z 36006KT 10SM CLR 17/10 A3010 RMK AO2 SLP191 60000 T01670100 51021 $

Add Your Business

KPVD FBOs

Promote Listing

Atlantic Aviation

UNICOM: 129.8

Phone: (401) 738-2600

0 Reviews (Read | Sign In To Write)

Titan

As of 9/22	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve
Full Serve	9.00	11.31

Fuel Notes

Prices include tax

Your Information

Business

Weather and Advisory

Digital ATIS	124.2
(401) 737-3215
ASOS	124.2
(401) 734-2818

Common

CTAF	120.7
WHEN ATCT CLSD, ALSF-2 BCMS SSALS PRESET MED INTST ONLY. WHEN ATCT CLSD, ACTVT MALSR RWY 23 & 34; REIL RWY 16; PAPI RWY 05, 16 & 34; VASI RWY 23; TDZ RWY 05; CNTLN RWY 5/23; HIRL RWY 5/23 & 16/34 - CTAF.; GND VEHICLES MNT CTAF WHEN ATCT CLSD.

Clearance

Clearance Delivery

126.65

Ground

PROVIDENCE GROUND	121.9
SUN-FRI 0530-0030 SAT 0530-0000

Tower

PROVIDENCE TOWER	120.7
SUN-FRI 0530-0030 SAT 0530-0000

Arrival

WIPOR STAR

123.675

Approach

PROVIDENCE APPROACH	123.675
Initial Contact

Departure

PROVIDENCE DEPARTURE	123.675
Initial Contact

Center

PROVIDENCE CENTER	124.85
LOW, APCH/DEP SVC PRVDD BY BOSTON ARTCC ON FREQS 124.85/307.9 (WOODSTOCK RCAG) WHEN APCH CTL CLSD.

Flight Service

Flight Service	122.6
(BDR)

Emergency

121.5

Other

CLASS C

123.675

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

AIRPORT DIAGRAM

Airport Minimums

Instrument Approach

Hotspot

HOT SPOT

Terminal Area Forecast

KPVD

RAW

Reported

Sat, 10/3 1:40 AM EDT

Valid

Sat, 10/3 2:00 AM EDT - Sun, 10/4 2:00 AM EDT

MVFR

2:00 AM EDT - 5:00 AM EDT

Light Showers and Rain

Broken 2,500'

Viz

N/A

Wind

Calm

VFR

2:00 AM EDT - 6:00 AM EDT

Broken 5,000'
Few 3,000'

Viz

6sm

Wind

350° 8kts

VFR

6:00 AM EDT - 1:00 PM EDT

Scattered 8,000'

Viz

6sm

Wind

360° 6kts

VFR

1:00 PM EDT - 5:00 PM EDT

Few 25,000'

Viz

6sm

Wind

040° 7kts

VFR

5:00 PM EDT - 11:00 PM EDT

Few 25,000'

Viz

6sm

Wind

070° 6kts

VFR

11:00 PM EDT - 2:00 AM EDT

Sky Clear

Viz

6sm

Wind

020° 3kts

TAF KPVD 030540Z 0306/0406 35008KT P6SM FEW030 BKN050
   PROB30 0306/0309 -SHRA BKN025
   FM031000 36006KT P6SM SCT080
   FM031700 04007KT P6SM FEW250
   FM032100 07006KT P6SM FEW250
   FM040300 02003KT P6SM SKC

KPVD

Effective	Expires	Category	NOTAM
Domestic
10/3/26 0030Z	10/9/26 2030Z		!PVD 10/025 PVD TWY M1, M2, TWY A BTN APCH END RWY 23 AND TWY M, TWY B BTN RWY 16/34 AND TWY M, TWY M BTN SOUTH CARGO RAMP AND TWY M1, TWY N BTN RWY 05/23 AND TWY M, TWY T BTN RWY 05/23 AND TWY M CLSD 2610030030-2610092030
10/3/26 0030Z	10/9/26 2030Z	Runway	!PVD 10/010 PVD RWY 05/23 CLSD EXC XNG 2610030030-2610092030
10/3/26 0030Z	10/9/26 2030Z		!PVD 09/195 PVD NAV ILS RWY 23 U/S 2610030030-2610092030
10/3/26 0030Z	10/9/26 2030Z		!PVD 09/194 PVD NAV ILS RWY 05 U/S 2610030030-2610092030
10/3/26 0030Z	10/9/26 2030Z	Runway	!PVD 09/193 PVD RWY 05 PAPI U/S 2610030030-2610092030
10/3/26 0030Z	10/9/26 2030Z	Runway	!PVD 09/192 PVD RWY 23 ALS U/S 2610030030-2610092030
10/3/26 0030Z	10/9/26 2030Z	Runway	!PVD 09/191 PVD RWY 05 ALS U/S 2610030030-2610092030
10/2/26 1400Z	10/17/26 1359Z		!PVD 10/014 PVD OBST TOWER LGT (ASN 2022-ANE-3907-OE) 413959N0712913W (4.3NM SW PVD) 279FT (90FT AGL) U/S 2610021400-2610171359
10/2/26 1400Z	10/17/26 1359Z		!PVD 10/013 PVD OBST TOWER LGT (ASN 2022-ANE-3905-OE) 414010N0712908W (4.1NM SW PVD) 269FT (100FT AGL) U/S 2610021400-2610171359
10/2/26 0649Z	11/15/26 2359Z		!PVD 10/007 PVD OBST BLDG (ASN UNKNOWN) 414357N0712537W (.5NM N PVD) 104FT (50FT AGL) NOT LGTD 2610020649-2611152359
10/1/26 0607Z	11/30/26 2359Z	Runway	!PVD 10/001 PVD RWY 16/34 EDGE MARKINGS NOT STD 2610010607-2611302359
9/30/26 1231Z	10/16/26 1930Z		!PVD 09/190 PVD OBST CRANE (ASN UNKNOWN) 414338N0712638W (0.89NM W PVD) UNKNOWN (177FT AGL) FLAGGED AND LGTD 2609301231-2610161930
9/18/26 2016Z	10/16/26 2030Z	Runway	!PVD 09/103 PVD RWY 16/34 CLSD TO TGL 2609182016-2610162030
9/17/26 1549Z	10/16/26 2030Z	Runway	!PVD 09/083 PVD RWY 05/23 REDL NOT STD 2609171549-2610162030
9/11/26 1440Z	10/30/26 2359Z		!PVD 09/051 PVD APRON SOUTH CARGO RAMP CLSD 2609111440-2610302359
9/5/26 0052Z	10/31/26 2359Z	Runway	!PVD 09/022 PVD RWY 16/34 REDL NOT STD 2609050052-2610312359
8/22/26 2159Z	12/31/26 2359Z		!PVD 08/171 PVD TWY V BTN TWY T AND TWY C CLSD 2608222159-2612312359
8/22/26 2159Z	12/31/26 2359Z		!PVD 08/170 PVD TWY T BTN TWY C AND TWY M CLSD TO ACFT WINGSPAN MORE THAN 118FT 2608222159-2612312359
8/9/26 1522Z	11/9/26 2359Z		!PVD 08/049 PVD TWY A SFC PAINTED HLDG PSN SIGNS NOT STD 2608091522-2611092359
8/9/26 1451Z	11/9/26 2359Z	Runway	!PVD 08/048 PVD RWY 05/23 CL MARKINGS NOT STD 2608091451-2611092359
7/30/26 2047Z	11/30/26 2359Z	Runway	!PVD 07/284 PVD RWY 05/23 EDGE MARKINGS NOT STD 2607302047-2611302359
6/27/26 2148Z	12/31/26 2359Z		!PVD 06/233 PVD APRON REMAIN OVERNIGHT PRKG CLSD 2606272148-2612312359
5/25/26 2349Z	12/31/26 2359Z		!PVD 05/263 PVD TWY T RUNUP PAD CLSD 2605252349-2612312359
4/14/26 0200Z	11/20/26 2359Z	Runway	!PVD 04/093 PVD RWY 05 NAV ILS REDUCED LGT SPECIAL AUTH CAT II AVAIL 2604140200-2611202359
4/14/26 0200Z	11/20/26 2359Z	Runway	!PVD 04/088 PVD RWY 05/23 RCLL U/S 2604140200-2611202359
FDC
10/2/26 1358Z	11/2/26 1358Z		!FDC 6/6845 PVD IAP RHODE ISLAND TF GREEN INTL, PROVIDENCE, RI. ILS OR LOC RWY 23, AMDT 8A... ILS OR LOC RWY 34, AMDT 12B... ILS OR LOC RWY 5, AMDT 20... VOR RWY 5, AMDT 15... ILS RWY 5 (CAT II AND III), AMDT 20... ILS RWY 23 (SA CAT I AND II), AMDT 8A... ALTERNATE MINIMUMS NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS, ORW VOR/DME UNMONITORED. 2610021358-2611021358EST
9/3/26 1446Z			!FDC 6/0798 PVD IAP RHODE ISLAND TF GREEN INTL, PROVIDENCE, RI. RNAV (RNP) Z RWY 23, ORIG-B... RNP 0.30 DA 491/HAT 441. TEMPORARY CRANE 166FT MSL 119FT AGL 6617FT NE OF APCH END RWY 23 (2025-ANE-3935-OE). 2609031446-2702052355EST
6/26/26 1407Z			!FDC 6/0931 PVD IAP RHODE ISLAND TF GREEN INTL, PROVIDENCE, RI. RNAV (GPS) Y RWY 23, AMDT 2C... LNAV/VNAV DA 452/HAT 402. TEMPORARY CRANE 166FT MSL 119FT AGL 6617FT NE OF APCH END RWY 23. 2025-ANE-3935-OE. 2606261407-2702052355EST
6/26/26 1406Z			!FDC 6/0930 PVD IAP RHODE ISLAND TF GREEN INTL, PROVIDENCE, RI. ILS OR LOC RWY 23, AMDT 8A... WIVPA FIX MINIMUMS, S-LOC 23 MDA 420/HAT 370. TEMPORARY CRANE 166FT MSL 119FT AGL 6617FT NE OF APCH END RWY 23. 2025-ANE-3935-OE. 2606261406-2702052355EST
5/18/26 1534Z			!FDC 6/1161 PVD IAP RHODE ISLAND TF GREEN INTL, PROVIDENCE, RI. ILS OR LOC RWY 5, AMDT 20... ILS RWY 5 (CAT II-III), AMDT 20... PROFILE NOTE: VGSI AND ILS GLIDEPATH NOT COINCIDENT (VGSI ANGLE 3.00/TCH 69). 2605181534-2805181534EST
4/28/26 1247Z			!FDC 6/6350 PVD IAP RHODE ISLAND TF GREEN INTL, PROVIDENCE, RI. RNAV (GPS) RWY 5, AMDT 1... PROFILE NOTE: VGSI AND RNAV GLIDEPATH NOT COINCIDENT (VGSI ANGLE 3.00/TCH 69). 2604281247-2804301247EST
5/12/25 1856Z			!FDC 5/9525 PVD IAP RHODE ISLAND TF GREEN INTL, PROVIDENCE, RI. RNAV (GPS) RWY 5, AMDT 1... VGSI AND RNAV GLIDEPATH NOT COINCIDENT (VGSI ANGLE 3.00/TCH 69). 2505121856-2705131856EST
5/12/25 1855Z			!FDC 5/9519 PVD IAP RHODE ISLAND TF GREEN INTL, PROVIDENCE, RI. VOR RWY 5, AMDT 15... VGSI AND DESCENT ANGLE NOT COINCIDENT (VGSI ANGLE 3.00/TCH 69). 2505121855-2705131854EST

ATC Tower

Yes

Attendance

ALL

Owner

STATE OF RHODE ISLAND
RI AIRPORT CORP 2000 POST RD
WARWICK, RI 02886
Phone: 401-691-2000

Manager

IFTIKHAR AHMAD
RI AIRPORT CORP 2000 POST RD
WARWICK, RI 02886
Phone: 401-691-2000

FSS

BRIDGEPORT FSS (BDR)
Toll Free: 1-800-WX-BRIEF

NOTAM

PVD

Light Schedule

Lights

WHEN ATCT CLSD, ALSF-2 BCMS SSALS PRESET MED INTST ONLY. WHEN ATCT CLSD, ACTVT MALSR RWY 23 & 34; REIL RWY 16; PAPI RWY 05, 16 & 34; VASI RWY 23; TDZ RWY 05; CNTLN RWY 5/23; HIRL RWY 5/23 & 16/34 - CTAF.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Yes

Landing Fee

Yes

Parking

Hanger, Tie-Down

Int'l Operations

Landing Rights Airport
NOT an Airport of Entry

Airframe Repair

Major

Pwrplant Repair

Major

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

Air Freight
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 05/23

Dimensions

8700 ft. x 150 ft.

Surface Type

ASPH

Surface Cond

Fair

Treatment

GRVD

Rwy Edge Lgts

HIGH

Pavement Class

1010/F/A/X/T

Single Wheel

120,000lbs

Double Wheel

250,000lbs

Double Tandem

550,000lbs

Dual Dbl Tand

1,120,000lbs

	Runway 05	Runway 23
True Heading	32°	212°
Traffic Pattern	Left	Left
Markings	PIR	PIR
Markings Condition	GOOD	GOOD
Latitude	41° 42' 37"N	41° 43' 50"N
Longitude	71° 26' 17"W	71° 25' 16"W
Elevation	53'	44'
Threshold Crossing Height	69 ft. AGL	41 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4R	V4L
Approach Lights	ALSF2	MALSR
Centerline Lights	Yes	Yes
Runway End Identifier Lights	No	No

Runway 16/34

Dimensions

6081 ft. x 150 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

GRVD

Rwy Edge Lgts

HIGH

Pavement Class

780/F/B/X/T

Single Wheel

120,000lbs

Double Wheel

250,000lbs

Double Tandem

423,000lbs

Dual Dbl Tand

1,093,000lbs

	Runway 16	Runway 34
True Heading	142°	322°
Traffic Pattern	Left	Left
Markings	PIR	PIR
Markings Condition	GOOD	GOOD
Latitude	41° 43' 54"N	41° 43' 07"N
Longitude	71° 25' 56"W	71° 25' 06"W
Elevation	54'	33'
Threshold Crossing Height	49 ft. AGL	60 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4L	P4L
Approach Lights		MALSR
Centerline Lights
Runway End Identifier Lights	Yes	No

A110-1	GND VEHICLES MNT CTAF WHEN ATCT CLSD.
A110-23	TRML RAMP PROHIBITED FOR USE BY GA.
A110-24	TWY V CLSD DLY 2000-0800 BTN RWY 16/34 AND TWY C.
A110-27	PARKED ACFT ON THE NE RAMP WEST OF TWY A, BE ALERT. FQT FLT SCHOOL, TSNT JET ACFT, AND VER ACTVTY.
A110-28	NE RAMP ACFT WITH WINGSPAN GTR THAN 150 FT RQR GND CREW ASSISTANCE FOR THRU TAXI AND PRKG.
A110-29	FOR CD WHEN APCH CLSD CTC BOSTON ARTCC AT 603-879-6859.
A110-3	DEER & BIRDS ON & INVOF ARPT.
A110-30	TWY A UNEVEN PAVEMENT BTN TWY M & RWY 23.
A110-4	110 FT UNMKD LGT POLES, 2700 FT FM THR RWY 34, 900 FT LEFT OF CNTRLN.
A110-5	RUN UP PAD FOR TWY F CLSD TO ACFT WITH WINGSPAN OVER 118 FT.
A110-8	NOISE ABATEMENT PROCS IN EFCT. HELS AVOID RESL AREAS WHEN BLW 1000 FT.
A110-9	NW RAMP ACFT WITH WINGSPAN GTR THAN 110 FT RQR GND CREW ASSISTANCE FOR THRU TAXI AND PRKG.
A57-16	54 FT TREES 700 FT R OF CNTRLN 2000 FT FM RWY END. 37:1 TO DTHR.
A81-APT	WHEN ATCT CLSD, ALSF-2 BCMS SSALS PRESET MED INTST ONLY. WHEN ATCT CLSD, ACTVT MALSR RWY 23 & 34; REIL RWY 16; PAPI RWY 05, 16 & 34; VASI RWY 23; TDZ RWY 05; CNTLN RWY 5/23; HIRL RWY 5/23 & 16/34 - CTAF.
E111	EXISTED PRIOR TO 1959.
E60-16_EMAS	ENGINEERED MATERIAL ARRESTING SYSTEM (EMAS) 462 FT IN LENGTH BY 178 FT IN WIDTH LCTD AT THE DER 16.
E60-23_EMAS	ENGINEERED MATERIAL ARRESTING SYSTEM (EMAS) 417 FT IN LENGTH BY 178 FT IN WIDTH LCTD AT THE DER 23.
E60-34_EMAS	ENGINEERED MATERIAL ARRESTING SYSTEM (EMAS) 255 FT IN LENGTH BY 170 FT IN WIDTH LCTD AT THE DER 34.

RHODE ISLAND TF GREEN INTL (ICAO: KPVD, IATA: PVD) is a public airport located in PROVIDENCE, RI, US.
