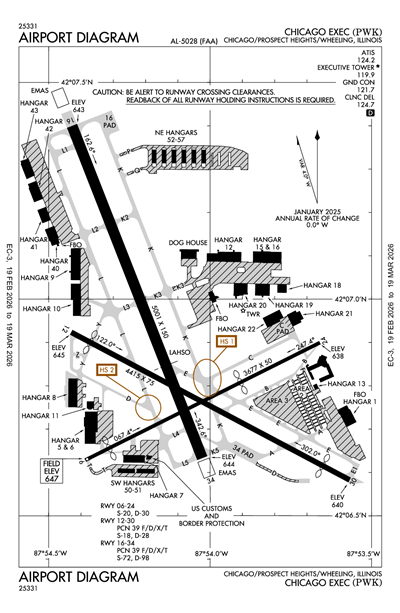

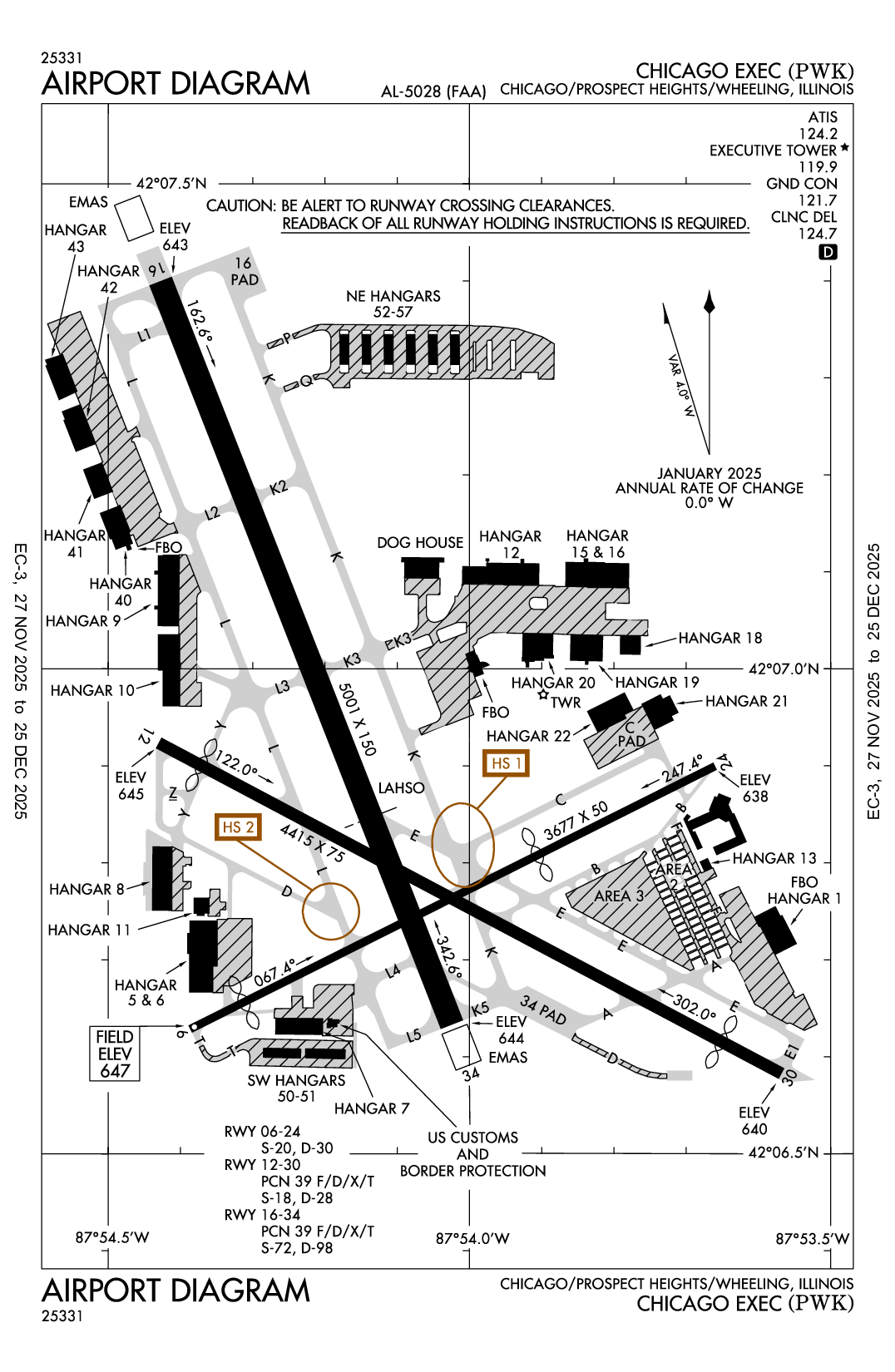

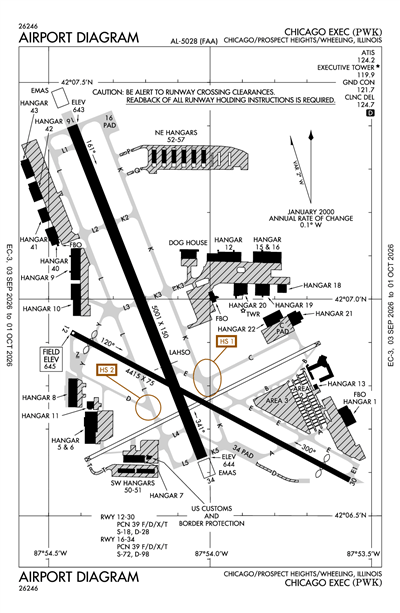

CHICAGO EXEC - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KPWK
ICAO KPWKIATA PWKLocal PWK
CHICAGO EXEC
PublicPUB

18 miles NW of CHICAGO/PROSPECT HEIGHTS/WHEELING, IL, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
42° 06' 51"N 87° 54' 06"W
Elevation
647' MSL
Pattern Alt
1647' MSL
Mag Variation
4°W
Declination
2°W
Fuel
JET A-1+, 100LL
FSS
KANKAKEE (IKK)
Sectional
CHICAGO
ARTCC
CHICAGO (ZAU)
Data Effective
5/14/26-6/11/26
KPWK VFR
2:52 PM CDT
Clear
10sm
85°F
46°F
30.05"Hg
240° 10kts
Gusts 20kts
AO2 SLP171 T02940078
METAR KPWK 041952Z 24010G20KT 10SM CLR 29/08 A3005 RMK AO2 SLP171 T02940078
+ Add Your Business

KPWK FBOs

Ascension FBO
UNICOM: 129.9
Phone: (847) 325-0566
Fax: (847) 325-0567
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 5/26
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 8.39 10.44 10.60
Fuel Notes
Prices include tax
Promote Listing
Signature Aviation
UNICOM: 129.95
Phone: (847) 537-1200
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 6/2
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 9.66 9.93
Fuel Notes
Prices include tax
Promote Listing
Atlantic Aviation
UNICOM: 130.325
Phone: (847) 808-0812
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 5/17
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 8.82 10.78
Fuel Notes
Prices include tax

KPWK Aircraft Service & Maintenance

Promote Listing
CC Industries
Phone: (847) 459-4665
Fax: (847) 459-8026
No Rating Available
0 Reviews (Read | Sign In To Write)

KPWK Other Businesses

Promote Listing
Leading Edge Flying Club
UNICOM: 122.95
Phone: (872) 333-2955
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 124.2
ASOS (847) 465-0291

Common

CTAF 119.9
ACTVT REIL RWY 16 & 34; RLLS RWY 16; HIRL RWY 06/24; 16/34; MIRL RWY 12/30 - CTAF.
UNICOM 122.95

Clearance

Clearance Delivery 124.7
Clearance Delivery 124.7
WHEN TWR CLSD

Ground

EXECUTIVE GROUND 121.7
0600-2200 MON-FRI & 0700-2200 SAT-SUN

Tower

EXECUTIVE TOWER 119.9
0600-2200 MON-FRI & 0700-2200 SAT-SUN

Approach

CHICAGO APPROACH 120.55
CHICAGO APPROACH 128.575
Secondary

Departure

CHICAGO DEPARTURE 120.55
CHICAGO DEPARTURE 128.575
Secondary

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

Arrival Procedures

Instrument Approach

Hotspot

Terminal Area Forecast

KORD (9nm)
Thu, 6/4 12:21 PM CDT
Thu, 6/4 1:00 PM CDT - Fri, 6/5 7:00 PM CDT
VFR
1:00 PM CDT - 8:00 PM CDT
Scattered 25,000'
6sm
220° 12kts
Gusts 20kts
VFR
8:00 PM CDT - 7:00 AM CDT
Broken 20,000'
6sm
210° 9kts
VFR
7:00 AM CDT - 12:00 PM CDT
Showers in vicinity
Broken 5,000'
6sm
220° 14kts
Gusts 24kts
MVFR
Temporary 9:00 AM CDT - 12:00 PM CDT
Light Showers and Rain
Broken 2,500'
5sm
Calm
IFR
Temporary 12:00 PM CDT - 3:00 PM CDT
Thunderstorm and Rain
Broken 2,000'
2sm
Calm
VFR
12:00 PM CDT - 6:00 PM CDT
Light Showers and Rain
Broken 5,000'
6sm
220° 12kts
Gusts 20kts
VFR
6:00 PM CDT - 7:00 PM CDT
Broken 10,000'
Scattered 2,500'
6sm
240° 10kts
TAF KORD 041721Z 0418/0524 22012G20KT P6SM SCT250
   FM050100 21009KT P6SM BKN200
   FM051200 22014G24KT P6SM VCSH BKN050
   TEMPO 0514/0517 5SM -SHRA BKN025
   FM051700 22012G20KT P6SM -SHRA BKN050
   TEMPO 0517/0520 2SM TSRA BKN020CB
   FM052300 24010KT P6SM SCT025 BKN100
KPWK
EffectiveExpiresCategoryNOTAM
Domestic
5/27/26
0439Z
6/11/26
0339Z
!PWK 05/094 PWK OBST TOWER LGT (ASR 1213664) 421535.60N0875148.00W (8.9NM NE PWK) 819.9FT (149.9FT AGL) U/S 2605270439-2606110339
5/25/26
0533Z
7/9/26
0615Z
!PWK 05/092 PWK OBST POWER LINE LGT (ASN 2023-AGL-6953-OE) 420712N0875509W (.86NM WNW PWK) 749FT (102FT AGL) U/S 2605250533-2607090615
5/20/26
1934Z
1/31/27
2359Z
!PWK 05/069 PWK APRON HANGAR 7 RAMP CLSD EXC VEHICLES 2605201934-2701312359
5/8/26
1554Z
7/31/26
2359Z
!PWK 05/043 PWK TWY B LOCATION MARKINGS BTN RWY 12/30 AND TWY E NOT MARKED 2605081554-2607312359
5/2/26
1904Z
12/31/26
0539Z
!PWK 05/020 PWK TWY L RWY LOCATION SIGN SOUTH SIDE FOR RWY 06/24 LGT U/S 2605021904-2612310539
5/2/26
1900Z
12/31/26
0559Z
!PWK 05/019 PWK TWY T HLDG PSN SIGN FOR APCH END RWY 06 LGT U/S 2605021900-2612310559
5/2/26
0155Z
12/31/26
0559Z
Runway!PWK 05/018 PWK RWY 24 HLDG PSN SIGN AT RWY 34/16 AND RWY 30/12 LEFT SIDE LGT U/S 2605020155-2612310559
5/2/26
0144Z
12/31/26
0559Z
!PWK 05/017 PWK TWY L RWY LOCATION SIGN NORTH SIDE FOR RWY 06/24 LGT U/S 2605020144-2612310559
5/2/26
0126Z
12/31/26
0559Z
!PWK 05/016 PWK TWY T TWY DIRECTION SIGN LGT U/S 2605020126-2612310559
5/2/26
0124Z
12/31/26
0559Z
Runway!PWK 05/015 PWK RWY 34 HLDG PSN SIGN AT RWY 06 LEFT SIDE LGT U/S 2605020124-2612310559
5/1/26
1300Z
12/31/26
2359Z
!PWK 04/213 PWK TWY B ELEVATED RWY GUARD LGT FOR RWY 12/30 MISSING 2605011300-2612312359
5/1/26
1300Z
12/31/26
2359Z
!PWK 04/212 PWK TWY B HLDG PSN SIGN FOR RWY 12/30 MISSING 2605011300-2612312359
5/1/26
1300Z
!PWK 04/153 PWK TWY B BTN TWY E AND APCH END RWY 24 CLSD 2605011300-PERM
5/1/26
1300Z
Runway!PWK 04/152 PWK RWY 06/24 CLSD EXC TAX 2605011300-PERM
5/1/26
1300Z
Runway!PWK 04/151 PWK RWY 06/24 REDL DECOMMISSIONED 2605011300-PERM
5/1/26
1300Z
!PWK 04/150 PWK TWY C BTN C RAMP AND APCH END RWY 24 CLSD 2605011300-PERM
5/1/26
0001Z
Runway!PWK 04/147 PWK RWY 06 PAPI DECOMMISSIONED 2605010001-PERM
4/22/26
1100Z
10/30/26
2100Z
!PWK 04/139 PWK AD AP ALL SFC WIP GRASS CUTTING DLY SR-SS 2604221100-2610302100
11/6/25
0358Z
10/31/26
2359Z
!PWK 11/044 PWK APRON HANGAR 13 RAMP CLSD 2511060358-2610312359
Yes
ALL
CITIES OF WHEELING & PROSPECT HGTS
1020 S. PLANT ROAD
WHEELING, IL 60090
Phone: 847-537-2580
JEFF MILLER
1020 S. PLANT ROAD
WHEELING, IL 60090
Phone: 847-537-2580
KANKAKEE FSS (IKK)
Toll Free: 1-800-WX-BRIEF
PWK
--
ACTVT REIL RWY 16 & 34; RLLS RWY 16; HIRL RWY 06/24; 16/34; MIRL RWY 12/30 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
High & Low Pressure
High & Low Pressure
Charter Service
Pilot Instruction
Aircraft Rental

Runway 06/24

3677 ft. x 50 ft.
ASPH
Fair
NONE
HIGH

20,000lbs
30,000lbs
--
--
  Runway 06 Runway 24
True Heading 63°243°
Traffic Pattern Left Right
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 42° 06' 38"N 42° 06' 54"N
Longitude 87° 54' 23"W 87° 53' 40"W
Elevation 647' 638'
Threshold Crossing Height 33 ft. AGL --
Visual Glide Path Angle 3° --
Visual Slope Indicator P4L --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 12/30

4415 ft. x 75 ft.
ASPH
Good
GRVD
MED
39/F/D/X/T
18,000lbs
28,000lbs
--
--
  Runway 12 Runway 30
True Heading 118°298°
Traffic Pattern Left Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 42° 06' 55"N 42° 06' 35"N
Longitude 87° 54' 26"W 87° 53' 34"W
Elevation 645' 640'
Threshold Crossing Height 42 ft. AGL 42 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes

Runway 16/34

5001 ft. x 150 ft.
ASPH
Good
GRVD
HIGH
39/F/D/X/T
72,000lbs
98,000lbs
--
--
  Runway 16 Runway 34
True Heading 159°339°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 42° 07' 24"N 42° 06' 38"N
Longitude 87° 54' 26"W 87° 54' 01"W
Elevation 643' 644'
Threshold Crossing Height 49 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights RLLS
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-11NOISE SENSITIVE AREA N & S.
A110-14CONDS NOT RPRTD MON, THU & FRI 2100-0630; TUE, WED & WKEND 1530-0630.
A110-19NOISE ABATEMENT PROC: RWY 34 HOLD PAD PREFERRED TURBINE RUN UP AREA; ALIGN 190 DEG FOR TKOF OR RUN UP. RWY 16 HOLD PAD ALIGN 315 DEG.
A110-23TWY F, P, Q & T EDGE LGT NA; REFLECTORS ONLY.
A110-24HANGAR 5 & 6 APRON, NE T QUARANT, SW T HANGARS PERMITTED TENANT ACFT PRKG ONLY. NO TRANSIENT ACFT PERMITTED.
A110-25NE HNGR TRANSVERSE OPS ENTER TWY Q; EXIT TWY P.
A110-26RWY GUARD LGTS NOT AVBL AT ALL RWY & TWY INTS.
A110-28FOR CD WHEN ATCT CLSD, AND IF UNA ON FREQ, CTC CHICAGO APCH AT 847-289-0926.
A110-29MAINT RUN UP AREA: TXY C ABM ATCT; EXHAUST FACING TWD CNTR OF ARPT. RWY 16 HOLD PAD MAINT RUN NA. TURBINE ENG RUN 2200- 0700 NA. ATCT RADIO CTC RQRD.
A110-30TAXILANE P; TWR VIEW PRLY OBSTD BY HNGRS & TREES. TAXILANE Q AND NE HNGRS; TWR VIEW PRLY OBSTD BY BLDGS & TREES. TWY T AND SW HNGRS; TWR VIEW PRLY OBSTD BY HNGRS.
A110-33CUST CLNC 2 HR PPR - 847-894-7292. TSNT UTILIZE FBO AFT CLR CUST. FBO CBP USER FEE.
A110-35ARR ALERT NOTICE PUBLD LNDG NW RWY 34 & RWY 30. VISIT FAA.GOV/AIRPORTS/RUNWAY_SAFETY/HOTSPOTS/AAN/PWK-ARRIVAL-ALERT-NOTICE.PDF
A110-37PRE-PAID ARFF SDBY SER AVBL W/72 HOUR NOTICE VISIT WWW.CHIEXEC.COM OR HTTPS://CHIEXEC.JOTFORM.COM/252055531962052
A110-38RWY SAFETY AREAS USED FOR EMERGENCY TAKE OFF AND LANDING ONLY.
A110-39WHEN SNOW AND/OR ICE REMOVAL OPS NOTAM ACTIVE, FULL STOP TAXI BACKS AND TOUCH AND GOES NOT PERMITTED.
A110-4BIRDS & WILDLIFE ON AND INVOF ARPT. PYROTECHNICS, WILDLIFE LASER BIRD CTL IN USE, PLASTIC COYOTE EFFIGIES INVOF A/P.
A110-40TWY F CLSD EXC VEHICLES PERMANTLEY.
A110-41AREA 2 CLSD PERM.
A23-34CTN: WHEN CRCG E FOR R TFC RWY 34 VFY ALNMT; DO NOT MISALIGN WITH RWY 30.
A43-16PAPI UNUSBL BYD 8 DEG LEFT & 9 DEG RIGHT OF CNTRLN.
A43-34PAPI UNUSBL BYD 8 DEG LEFT & RIGHT OF CNTRLN.
A49-16NSTD SPACING.
A57-06APCH RATIO 22:1 AT DTHR.
A57-12APCH RATIO 20:1 AT DTHR.
A57-16CTLG OBSTN EXCEEDS 45 DEG SLP.
A57-24APCH RATIO 20:1 AT DTHR.
A57-30APCH RATIO 21:1 AT DTHR.
A58-1215 FT ROAD & 6 FT FENCE.
A58-2414 FT ROAD & +40 FT TREES 150 FT & 50 FT L; 6 FT FENCE.
A58-30+6 FT FENCE 0 FT FM THR; +20 FT TREES 0 FT & 50 FT FM THR; 15 FT ROAD.
A81-APTACTVT REIL RWY 16 & 34; RLLS RWY 16; HIRL RWY 06/24; 16/34; MIRL RWY 12/30 - CTAF.
E111ARPT ESTD PRIOR TO 1959. NO OBJECTION FOR ASP ON RWYS 12L/30R & 16/34 ONLY.
E60-16_EMASENGINEERED MATERIALS ARRESTING SYSTEM (EMAS) RWY 16 DEP END: 242.97 FT IN LENGTH BY 170.10 FT IN WIDTH, SETBACK 35 FT FROM RWY END.
E60-34_EMASENGINEERED MATERIALS ARRESTING SYSTEM (EMAS) RWY 34 DEP END: 230.82 FT IN LENGTH BY 170.10 FT IN WIDTH, SETBACK 304.18 FT FROM RWY END.
E80ACUST USER FEE. MON-FRI 1100-1900.
CHICAGO EXEC (ICAO: KPWK, IATA: PWK) is a public airport located in CHICAGO/PROSPECT HEIGHTS/WHEELING, IL, US.
