iFlightPlanner



...

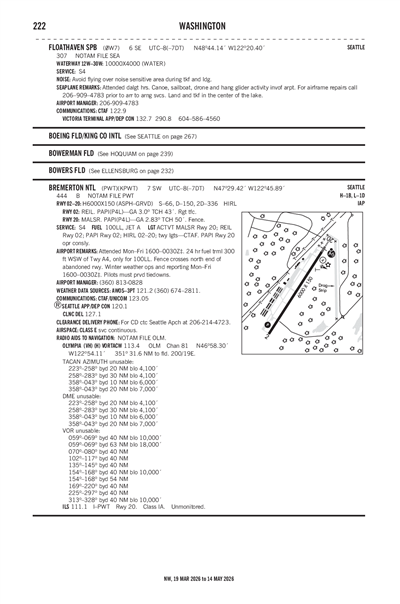

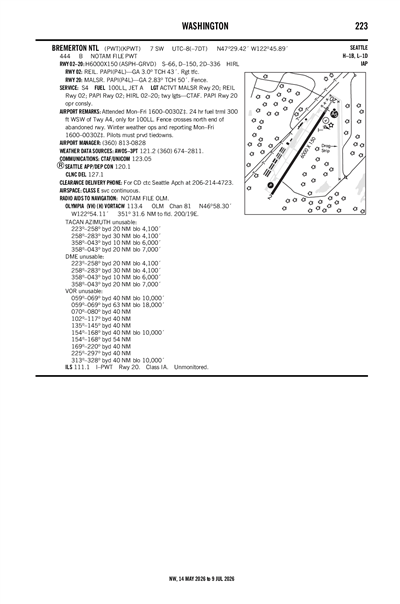

BREMERTON NTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KPWT
ICAO KPWTIATA PWTLocal PWT
BREMERTON NTL
PublicPUB

7 miles SW of BREMERTON, WA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
47° 29' 25"N 122° 45' 53"W
Elevation
444' MSL
Pattern Alt
1444' MSL
Mag Variation
15°E
Declination
16°E
Fuel
JET A, 100LL
FSS
SEATTLE (SEA)
Sectional
SEATTLE
ARTCC
SEATTLE (ZSE)
Data Effective
8/6/26-9/3/26
KPWT IFR
5:56 AM PDT
Overcast 700'
10sm
58°F
58°F
30.10"Hg
200° 6kts
AO2 SLP194 T01440144 PNO $
METAR KPWT 231256Z AUTO 20006KT 10SM OVC007 14/14 A3010 RMK AO2 SLP194 T01440144 PNO $
+ Add Your Business

KPWT FBOs

Promote Listing
Avian Flight Center
UNICOM: 123.05
Phone: (360) 674-2111
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 8/8
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 7.43
Full Serve 8.15 8.16 8.26
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3PT 121.2
(360) 674-2811

Common

CTAF 123.05
ACTVT MALSR RWY 20; REIL RWY 02; PAPI RWY 02; HIRL 02/20; TWY LGTS - CTAF. PAPI RWY 20 OPR CONSLY.
UNICOM 123.05

Clearance

Clearance Delivery 127.1

Approach

SEATTLE APPROACH 120.1

Departure

SEATTLE DEPARTURE 120.1

Terminal Area Forecast

KPWT
Sun, 8/23 4:39 AM PDT
Sun, 8/23 5:00 AM PDT - Mon, 8/24 5:00 AM PDT
VFR
5:00 AM PDT - 8:00 AM PDT
Scattered 5,000'
6sm
210° 8kts
VFR
8:00 AM PDT - 2:00 PM PDT
Broken 4,000'
6sm
210° 8kts
VFR
2:00 PM PDT - 10:00 PM PDT
Scattered 4,000'
6sm
030° 8kts
VFR
10:00 PM PDT - 5:00 AM PDT
Scattered 25,000'
6sm
030° 6kts
TAF KPWT 231139Z 2312/2412 21008KT P6SM SCT050
   FM231500 21008KT P6SM BKN040
   FM232100 03008KT P6SM SCT040
   FM240500 03006KT P6SM SCT250
KPWT
EffectiveExpiresCategoryNOTAM
Domestic
7/24/26
1119Z
10/22/26
1119Z
!PWT 07/014 PWT OBST TOWER LGT (ASR 1031234) 473249.70N1224233.30W (4.1NM NNE PWT) 931.1FT (250.0FT AGL) U/S 2607241119-2610221119
FDC
8/20/26
1430Z
!FDC 6/6357 PWT IAP BREMERTON NTL, BREMERTON, WA. ILS OR LOC RWY 20, AMDT 17B... MISSED APPROACH: CLIMB TO 1300 THEN CLIMBING LEFT TURN TO 4000 ON HEADING 160 AND ON SEA VORTAC R-230 TO CARRO/SEA 23.91 DME AND HOLD. (DME REQUIRED), OLM VORTAC OUT OF SERVICE. 2608201430-2608262130EST
8/20/26
1430Z
8/26/26
2130Z
!FDC 6/6347 PWT ODP BREMERTON NTL, BREMERTON, WA.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 6...
DEPARTURE PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
OLM VORTAC OUT OF SERVICE. 2608201430-2608262130EST
No
M-F 0800-1630
PORT OF BREMERTON
8850 SW STATE HIGHWAY 3
BREMERTON, WA 98312
Phone: (360) 674-2381
COLE BARNES
8850 STATE HIGHWAY 3 SW
BREMERTON, WA 98312
Phone: (360) 813-0828
SEATTLE FSS (SEA)
Toll Free: 1-800-WX-BRIEF
PWT
--
ACTVT MALSR RWY 20; REIL RWY 02; PAPI RWY 02; HIRL 02/20; TWY LGTS - CTAF. PAPI RWY 20 OPR CONSLY.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Air Freight
Air Ambulance
Avionics
Charter Service
Pilot Instruction
Aircraft Rental

Runway 02/20

6000 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

66,000lbs
150,000lbs
336,000lbs
--
  Runway 02 Runway 20
True Heading 33°213°
Traffic Pattern Right Left
Markings NPI PIR
Markings Condition GOOD GOOD
Latitude 47° 28' 60"N 47° 29' 50"N
Longitude 122° 46' 17"W 122° 45' 30"W
Elevation 444' 442'
Threshold Crossing Height 43 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 2.83°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes
A110*GTHIS AIRPORT HAS BEEN SURVEYED BY THE NATIONAL GEODETIC SURVEY.
A110-10FOR CD CTC SEATTLE APCH AT 206-214-4723.
A110-11WINTER WEATHER OPS AND REPORTING MON - FRI 8:00-16:30.
A110-9FENCE CROSSES N END OF ABND RWY.
A58-02+6 FT TRN 25 FT FM RWY END & 250 FT R.
A58-20+6 FT' FENCE 0 TO 200 FT FM RWY END 300 FT R.
A70-100LL24 HR FUEL TRML 300 FT WSW OF TWY A4, ONLY FOR 100LL.
A75-TPILOT MUST PRVD TIEDOWNS.
A81-APTACTVT MALSR RWY 20; REIL RWY 02; PAPI RWY 02; HIRL 02/20; TWY LGTS - CTAF. PAPI RWY 20 OPR CONSLY.
E111ESTABD PRIOR TO 1959.
BREMERTON NTL (ICAO: KPWT, IATA: PWT) is a public airport located in BREMERTON, WA, US.
