iFlightPlanner



...

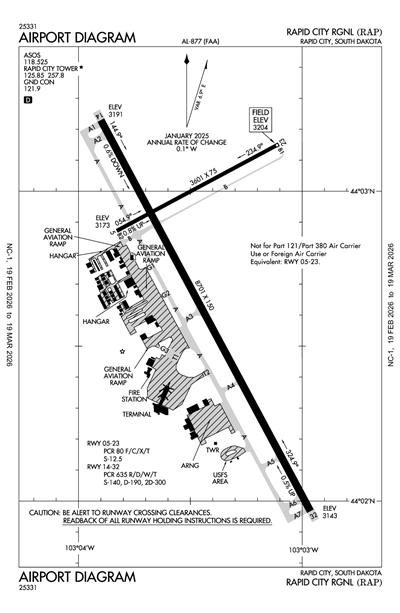

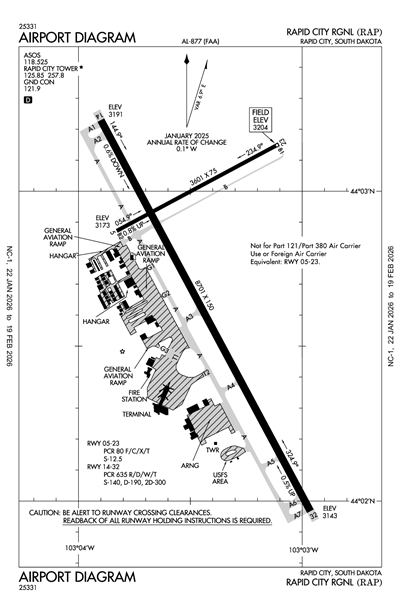

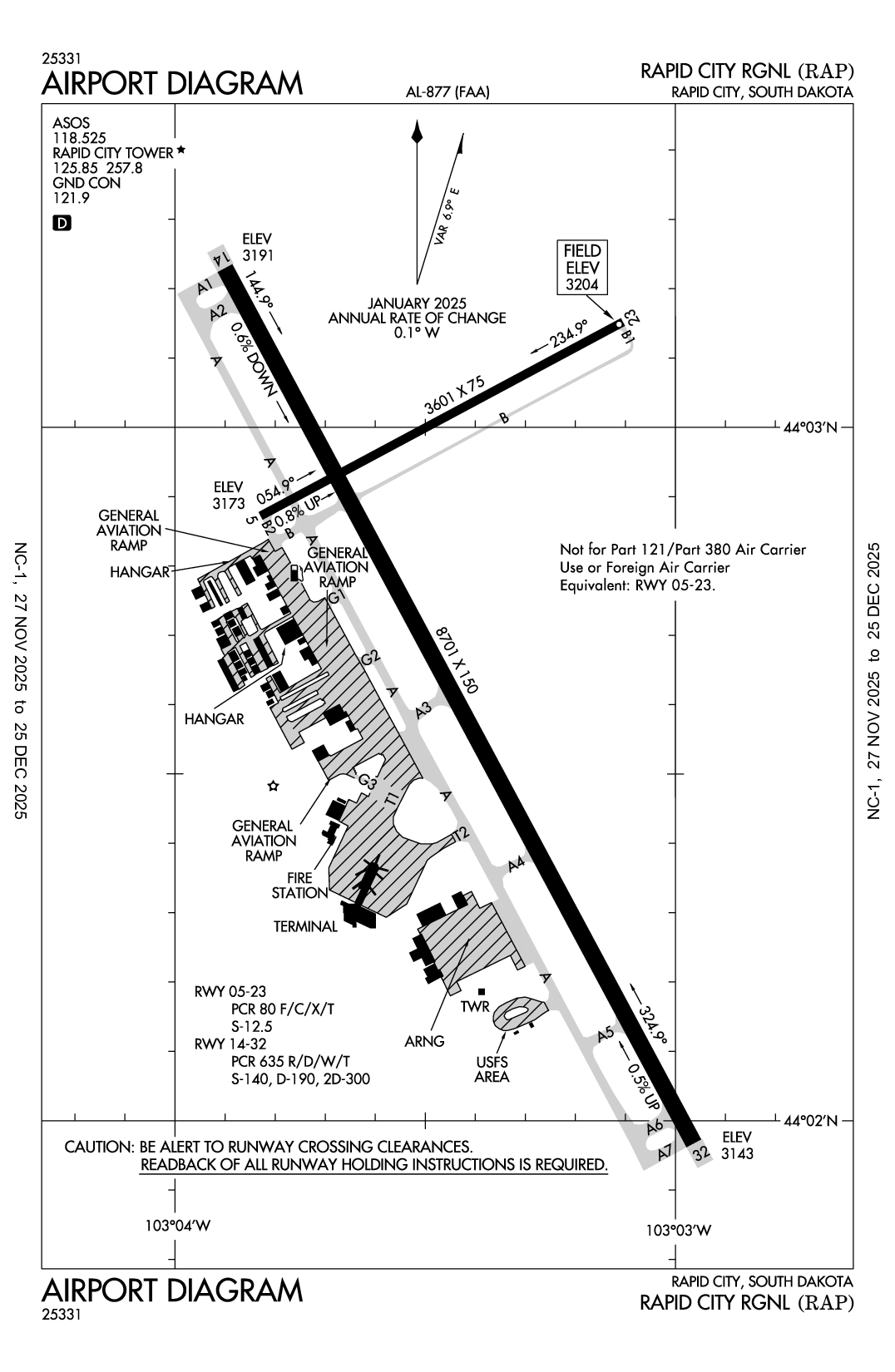

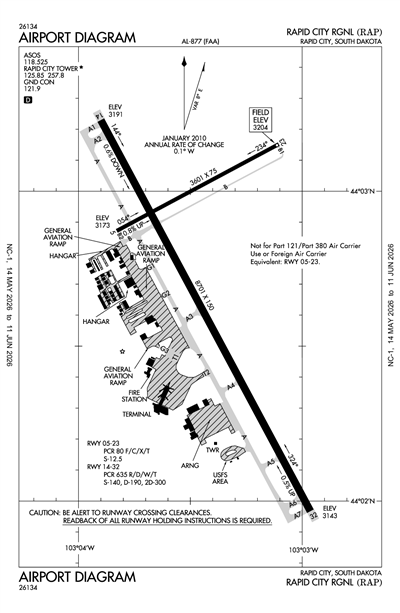

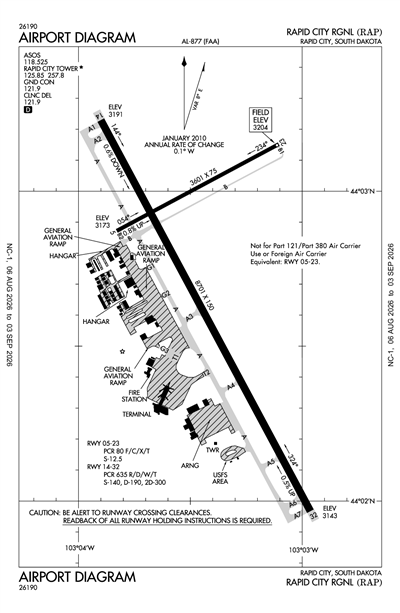

RAPID CITY RGNL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KRAP
RAPID CITY RGNL
PublicPUB

8 miles SE of RAPID CITY, SD
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
44° 02' 43"N 103° 03' 27"W
3204' MSL
4204' MSL
08E
JET A, 100LL
HURON (HON)
CHEYENNE
DENVER (ZDV)
11/27/25-12/25/25
KRAP VFR
7:52 PM MST
Clear
10sm
20°F
13°F
29.82"Hg
170° 4kts
AO2 SLP141 T10671106 58025
METAR KRAP 190252Z 17004KT 10SM CLR M07/M11 A2982 RMK AO2 SLP141 T10671106 58025
+ Add Your Business

KRAP FBOs

Promote Listing
Rapid Fuel
UNICOM: 122.95
Phone: (605) 209-5466
Other: (605) 393-2254
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 11/27
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 5.49 4.49
Full Serve
Fuel Notes
Prices include tax
Promote Listing
Westjet Air Center
UNICOM: 122.95
Phone: (605) 393-2500
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 12/9
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 5.79 5.69
Fuel Notes
Prices include tax

KRAP Aircraft Service & Maintenance

Promote Listing
Rapid Avionics
Phone: (605) 877-5839
Fax: (605) 393-9706
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 125.85

ASOS

ASOS
605-223-0202
 118.525

Emergency

EMERG
 121.5

Ground

GND/P
 121.9

Tower

LCL/P
 125.85

Other

NG OPS
FM
 41.925
NG OPS
 123.05

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KRAP
Thu, 12/18 4:20 PM MST
Thu, 12/18 5:00 PM MST - Fri, 12/19 5:00 PM MST
VFR
5:00 PM MST - 8:00 PM MST
Broken 20,000'
6sm
020° 8kts
VFR
8:00 PM MST - 10:00 AM MST
Broken 20,000'
6sm
160° 8kts
VFR
10:00 AM MST - 5:00 PM MST
Broken 25,000'
6sm
250° 14kts
Gusts 28kts
TAF KRAP 182320Z 1900/1924 02008KT P6SM BKN200
   FM190300 16008KT P6SM BKN200
   FM191700 25014G28KT P6SM BKN250
KRAP
EffectiveExpiresCategoryNOTAM
Domestic
12/22/25
1700Z
12/22/25
2100Z
!RAP 12/269 RAP AD AP RVR ALL U/S 2512221700-2512222100
12/19/25
0107Z
1/19/26
2359Z
!RAP 12/273 RAP OBST TOWER LGT (ASR 1042913) 440202.00N1031117.00W (5.7NM W RAP) 3537.7FT (307.7FT AGL) U/S 2512190107-2601192359
12/19/25
0105Z
12/22/25
2359Z
!RAP 12/272 RAP OBST TOWER LGT (ASR 1224506) 440406.50N1031503.70W (8.5NM W RAP) 4366.1FT (575.1FT AGL) U/S 2512190105-2512222359
12/18/25
2335Z
12/20/25
2335Z
!RAP 12/271 RAP OBST TOWER LGT (ASR 1225713) 440407.40N1031505.00W (8.5NM W RAP) 4400.9FT (606.0FT AGL) U/S 2512182335-2512202335
12/18/25
1816Z
1/18/26
2359Z
Runway!RAP 12/270 RAP RWY 14 4000FT DIST REMAINING SIGN LGT U/S 2512181816-2601182359
12/18/25
1617Z
!RAP 12/268 RAP NAV ILS RWY 32 GP U/S 2512181617-2512222000EST
12/18/25
1414Z
12/18/25
1500Z
Runway!RAP 12/267 RAP RWY 05 SIGNS LGT U/S 2512181414-2512181500
12/18/25
1051Z
1/19/26
2359Z
!RAP 12/265 RAP OBST TOWER LGT (ASR 1315361) 433857.60N1025347.40W (24.64NM SSE RAP) 3270FT (405FT AGL) U/S 2512181051-2601192359
12/18/25
0941Z
2/1/26
0941Z
!RAP 12/262 RAP OBST TOWER LGT (ASN 2020-AGL-22118-OE) 440752N1032232W (14.7NM WNW RAP) 4468FT (298FT AGL) U/S 2512180941-2602010941
12/18/25
0015Z
12/18/25
1215Z
!RAP 12/255 RAP OBST TOWER LGT (ASR 1224506) 440406.50N1031503.70W (8.5NM W RAP) 4366.1FT (575.1FT AGL) U/S 2512180015-2512181215
12/17/25
2327Z
12/22/25
2359Z
!RAP 12/254 RAP OBST TOWER LGT (ASR 1035414) 440413.00N1031503.00W (8.5NM W RAP) 4178.5FT (399.0FT AGL) U/S 2512172327-2512222359
12/17/25
1935Z
12/18/25
1530Z
Runway!RAP 12/253 RAP RWY 14 4000FT DIST REMAINING SIGN LEFT SIDE LGT U/S 2512171935-2512181530
12/16/25
2323Z
!RAP 12/251 RAP OBST TOWER LGT (ASR 1238124) 435555.40N1031146.50W (9.1NM SW RAP) 3896.0FT (339.9FT AGL) U/S 2512162323-2601151700EST
12/2/25
2149Z
1/2/26
2359Z
!RAP 12/051 RAP OBST TOWER LGT (ASR 1042157) 440342.00N1031036.00W (5.2NM W RAP) 3399.6FT (272.6FT AGL) U/S 2512022149-2601022359
FDC
8/27/25
1900Z
!FDC 5/4781 RAP IAP RAPID CITY RGNL, RAPID CITY, SD.
VOR OR TACAN RWY 32, AMDT 24H...
S-32 MDA 3540/MDA 380 ALL CATS. FOR INOPERATIVE ALS, INCREASE S-32 ALL CATS VISIBILITY TO RVR 5500. TEMPORARY CRANE 3294 MSL 3337FT NE OF RWY 32 (2024-AGL-3215-NRA).
2508271900-2611012355EST
8/27/25
1858Z
!FDC 5/4775 RAP IAP RAPID CITY RGNL, RAPID CITY, SD.
RNAV (GPS) RWY 5, ORIG-A...
LNAV/VNAV CAT A/B DA 3486/HAT 287. LNAV CAT A/B MDA 3600/HAT 401. VDP: 1.21 NM TO RW05. TEMPORARY CRANE 3294 MSL 3590FT S OF RWY 5 (2024-AGL-3215-NRA).
2508271858-2611012355EST
Yes
ALL
CITY OF RAPID CITY
4550 TERMINAL RD - STE 102
RAPID CITY, SD 57703
Phone: 605-394-4195
PATRICK DAME
4550 TERMINAL RD - STE 102
RAPID CITY, SD 57703
Phone: 605-394-4195
HURON FSS (HON)
Toll Free: 1-800-WX-BRIEF
RAP
--
WHEN ATCT CLSD ACTVT MALSR RWY 32; REIL RWY 14; HIRL RWY 14/32; MIRL RWY 05/23; TWY A & B LGTS - CTAF. PAPI RWYS 05, 14, 23, 32 OPR CONSLY.
N/A
Yes - Lighted
Yes
Yes
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
High Pressure
None
Air Freight
Air Ambulance
Avionics
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales
Annual Surveying

Runway 05/23

3601 ft. x 75 ft.
ASPH
Good
NONE
MED

12,000lbs
--
--
--
  Runway 05 Runway 23
True Heading 62°242°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 44° 02' 52"N 44° 03' 09"N
Longitude 103° 03' 50"W 103° 03' 06"W
Elevation 3,173' 3,204'
Threshold Crossing Height 34 ft. AGL 38 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 14/32

8701 ft. x 150 ft.
CONC
Good
GRVD
HIGH

140,000lbs
190,000lbs
300,000lbs
--
  Runway 14 Runway 32
True Heading 152°332°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 44° 03' 14"N 44° 01' 58"N
Longitude 103° 03' 54"W 103° 02' 58"W
Elevation 3,191' 3,143'
Threshold Crossing Height 50 ft. AGL 54 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights No No
Runway End Identifier Lights Yes No
A110-1BIRDS ON & INVOF ARPT.
A110-10TWR HAS LIMITED VISIBILITY OF TWY T1 AND TWY T2 AND TWY B AT AER RWY 23
A110-12USE OF ARMY NATIONAL GUARD (ANG) RAMP IS OFFICIAL BUSINESS ONLY; FOR PPR CALL ANG FLIGHT OPS AT (605) 737-6128. NORMAL ANG OPS ARE TUES-FRI 1400-0030Z++ EXCEPT HOLIDAYS.
A110-13OVERNIGHT PARKING ALLOWED IN DESIGNATED TIEDOWN AREAS ONLY.
A110-14CTC GROUND FOR FREE TIE-DOWN LOCATIONS, OR CALL ARPT OPNS AT 605-593-3419.
A110-15ALL CHARTER SERVICED ACFT OVER 12,500 LBS MUST CTC ARPT OPNS AT 605-593-3419 AT LEAST 48 HOURS PRIOR TO ARRIVAL.
A110-16DIVERTING NON-BASED AIR CARRIERS CTC ARPT OPS AT (605) 593-3419 PRIOR TO DIVERTING DUE TO LIMITED GATE SPACE. NO CUSTOMS SERVICE AVBL.
A110-17FOR CD CTC GND OR ATCT ON FREQ. IF UNA, CTC RAP ATCT AT 605-393-1161. WHEN ATCT CLSD, CTC ELLSWORTH APCH AT 605-385-6198. WHEN APCH CLSD CTC DENVER ARTCC AT 303-651-4257.
A110-18RWY 5/23 NOT AVBL TO ACFT OVER 12500 LBS TO TAXI.
A110-19HIGH VOL OF HELI TOURS INVOF MT RUSHMORE AND CRAZY HORSE MONUMENTS AT OR BLW 7500 FT; ALL OTR ACFT SHOULD RMN AT OR ABOVE 7700 FT AND MAINTAIN 1 NM HORIZONTAL SEPARATION FROM THE MONUMENTS; PILOTS ARE ADVISED TO MONITOR 122.85 FOR TFC ADVISORIES.
A110-2BE ALERT: EXTENSIVE MILITARY JET TFC INVOF & NNW OF ARPT.
A110-3LINE-OF-SIGHT IS RESTRICTED BETWEEN RY 14 & RY 23 PHYSICAL ENDS.
A110-6152 FT AGL TWR 2.5 NM NNW OF ARPT.
A110-9BE ALERT DO NOT MISTAKE ELLSWORTH AFB, LOCATED 6.5 NM NNW FOR RAPID CITY RGNL.
RAPID CITY RGNL (ICAO: KRAP, IATA: RAP) is a public airport located in RAPID CITY, SD.
