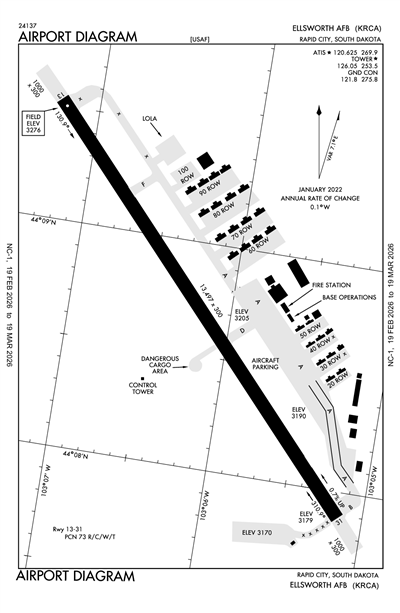

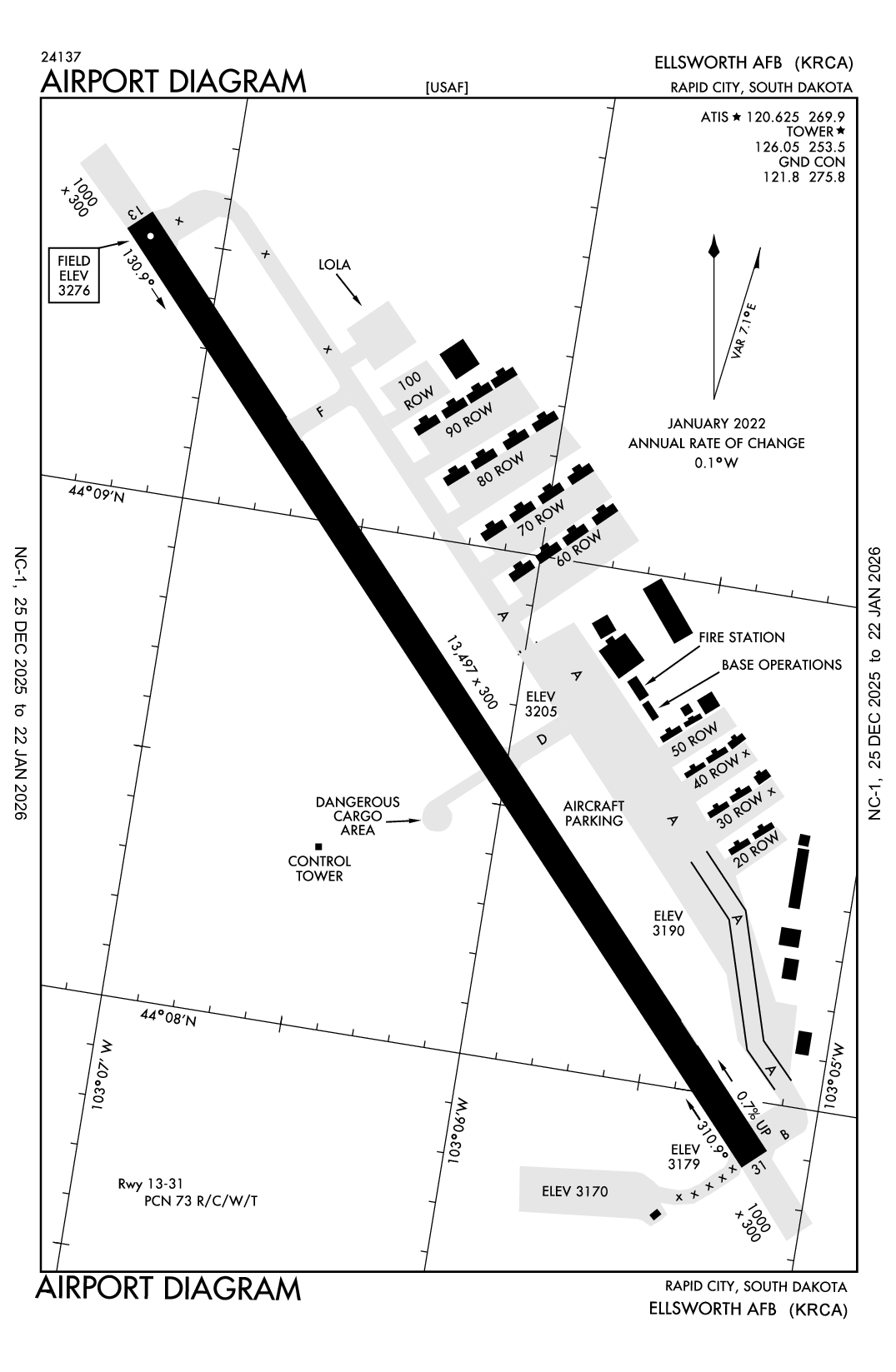

ELLSWORTH AFB - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KRCA
ICAO KRCAIATA RCALocal RCA
ELLSWORTH AFB
PrivatePVT

5 miles SW of RAPID CITY, SD, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
44° 08' 42"N 103° 06' 13"W
Elevation
3276' MSL
Pattern Alt
7776' MSL
Mag Variation
7°E
Declination
8°E
Fuel
None Listed
FSS
HURON (HON)
Sectional
CHEYENNE
ARTCC
DENVER (ZDV)
Data Effective
5/14/26-6/11/26
KRCA MVFR
3:55 AM MDT
Broken 2,400'
10sm
59°F
55°F
29.94"Hg
Calm
AO2 SLP124 T01490127
METAR KRCA 040955Z AUTO 00000KT 10SM BKN024 15/13 A2994 RMK AO2 SLP124 T01490127
+ Add Your Business

KRCA FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 120.625
Hours: SAME AS ATCT HRS.

Ground

ELLSWORTH GROUND 121.8
1400-0730Z++ MON-THU, 1400-0100Z++ FRI, CLSD SAT, SUN, GLOBAL STRIKE COMD DOWN DAYS, & HOL.

Tower

ELLSWORTH TOWER 126.05
1400-0730Z++ MON-THU, 1400-0100Z++ FRI, CLSD SAT, SUN, GLOBAL STRIKE COMD DOWN DAYS, & HOL.

Approach

ELLSWORTH APPROACH 119.5

Departure

ELLSWORTH DEPARTURE 119.5

Center

ELLSWORTH CENTER 127.95
LOW, APCH/DEP CTL SVC PRVDD BY DENVER ARTCC (ZDV) ON 127.95/338.2 (CRAWFORD RCAG) WHEN ELLSWORTH APCH (RCA) CLSD.

Emergency

Emergency 121.5

Terminal Area Forecast

KRCA
Wed, 6/3 9:00 PM MDT
Wed, 6/3 9:00 PM MDT - Fri, 6/5 3:00 AM MDT
VFR
9:00 PM MDT - 7:00 AM MDT
Few 5,000'
6sm
29.97"Hg
070° 5kts
MVFR
Becoming 7:00 AM MDT - 11:00 AM MDT
Light Showers and Rain
Overcast 3,000'
Broken 1,000'
4.97sm
29.91"Hg
VRB° 6kts
MVFR
Becoming 11:00 AM MDT - 4:00 PM MDT
Broken 2,000'
6sm
29.79"Hg
100° 12kts
VFR
Becoming 4:00 PM MDT - 9:00 PM MDT
Light Rain
Overcast 5,000'
Scattered 3,200'
5.59sm
29.88"Hg
020° 10kts
Gusts 15kts
VFR
Becoming 9:00 PM MDT - 3:00 AM MDT
Overcast 6,000'
Broken 3,500'
6sm
29.88"Hg
360° 10kts
Gusts 15kts
VFR
Temporary 12:00 AM MDT - 3:00 AM MDT
Light Showers and Rain
No Clouds
5.59sm
Calm
TAF KRCA 040300Z 0403/0509 07005KT 9999 FEW050 QNH2996INS
   BECMG 0413/0414 VRB06KT 8000 -SHRA BKN010 OVC030 QNH2991INS
   BECMG 0417/0418 10012KT 9999 NSW BKN020 QNH2979INS
   BECMG 0422/0423 02010G15KT 9000 -RA SCT032 OVC050 QNH2987INS
   BECMG 0503/0504 36010G15KT 9999 NSW BKN035 OVC060 QNH2988INS
   TEMPO 0506/0509 9000 -SHRA TX26/0500Z TN13/0406Z
KRCA
EffectiveExpiresCategoryNOTAM
Military
6/4/26
0500Z
6/4/26
0630Z
Services!KRCA M0568/26 RCA SVC ATC TWR CLSD 2606040500-2606040630
6/4/26
0500Z
6/4/26
0630Z
Aerodrome!KRCA M0567/26 RCA AD AIRPORT CLSD 2606040500-2606040630
6/3/26
1315Z
6/30/26
2359Z
) AIRCRAFT RESCUE AND FIREFIGHTING CAPABILITY (ARFF) REDUCED LEVEL OF SERVICE (YELLOW) FOR NFPA CAT 9-10 AND AIR FORCE VEHICLE SETS 5-6. OPTIMUM LEVEL OF SERVICE (GREEN) FOR NFPA CAT 1-8 AND AIR VEHICLE SETS 1-4. ONLY APPLICABLE ON WEEKDAYS EXCLUDING FEDERAL HOLIDAYS AND AIR FORCE GLOBAL STRIKE FAMILY DAYS. CONTACT FD AT COMM +1-605-385-1113 FOR FURTHER INFORMATION.
6/3/26
1215Z
6/6/26
1215Z
M0563/26 NOTAMC M0560/26
6/2/26
1725Z
6/5/26
1725Z
M0558/26 NOTAMC M0544/26
6/2/26
1340Z
6/5/26
1340Z
M0557/26 NOTAMC M0554/26
6/2/26
1340Z
6/5/26
1340Z
M0556/26 NOTAMC M0553/26
6/2/26
1200Z
6/27/26
0001Z
AerodromeAERODROME CRANE WORKING WITHIN 44°7'48.40 "N 103°5'51.76 "W, 44°7'41.47 "N 103°5'50.20 "W, 44°7'43.82 "N 103°5'22.77 "W, 44°7'50.56 "N 103°5'25.39 "W, MAX CRANE HEIGHT 100 FT AGL, WEST OF RWY 31 THRESHOLD. MONDA-SATURDAY 0600L-1800L(1200Z-0001Z)
6/1/26
2143Z
6/4/26
2143Z
M0551/26 NOTAMC M0479/26
6/1/26
2050Z
6/4/26
2050Z
M0550/26 NOTAMC M0472/26
6/1/26
2049Z
6/22/26
2359Z
SPOT 4 CLOSED
5/29/26
1511Z
8/26/26
2359Z
AerodromeAERODROME OFFICIAL BUSINESS ONLY
5/29/26
1509Z
8/26/26
2359Z
DOCK 22 CLOSED
5/29/26
1504Z
8/26/26
2359Z
TaxiwayTAXIWAY A BETWEEN TAXIWAY F & TAXIWAY D RESTRICTED TO 28 BW/B-1 USE ONLY. OBSTRUCTION 119' NORTH OF TAXIWAY A CENTERLINE.
5/29/26
1500Z
8/26/26
2359Z
EDGE STRIPE MISSING ON TWY ALPHA FROM 60 ROW TO SOUTH APRON SPOT 17
5/29/26
1453Z
8/26/26
2359Z
40 ROW CLOSED
5/21/26
1337Z
8/14/26
2359Z
SPOT 90 CLOSED TO AIRCRAFT OPERATIONS.
5/21/26
1336Z
8/14/26
2359Z
TRANSIENT ALERT HOURS OF OPERATION ARE 1300-2200Z MONDAY - FRIDAY.
5/21/26
1335Z
8/14/26
2359Z
ATIS VHF 120.625MHZ UNSERVICEABLE
5/19/26
1500Z
7/31/26
2359Z
RCA TAC AZM 067-077 & 013-023 UNUSABLE BYD 25NM BLO 6000.
5/19/26
1500Z
7/31/26
2359Z
RCA TAC AZM 240-250 UNUSABLE
5/19/26
1459Z
7/31/26
2359Z
RCA TAC AZM/DME UNUSABLE 321-013, 023-067, 077-117, 135-240, & 250-306 BYD 25 NM
5/19/26
1457Z
7/31/26
2359Z
USE CAUTION: TWY CENTERLINES MISSING RETROREFLECTIVITY: TWY A BTWN TWY G AND TWY F, TWY B HOLDING AREA, AND 70 ROW.
5/13/26
1924Z
7/30/26
2359Z
Apron!KRCA M0459/26 RCA APRON 100 ROW CLSD 2605131924-2607302359
5/1/26
2216Z
7/29/26
2359Z
TaxiwayTWY ALPHA NORTH AND TWY GOLF ARE OPEN
5/1/26
2214Z
7/29/26
2359Z
TACAN GROUND CHECKPOINT AT APPROACH END 31 UNUSABLE
5/1/26
2212Z
7/29/26
2359Z
TACAN GROUND CHECKPOINT AT APPROACH END 13 UNUSABLE
5/1/26
2209Z
7/29/26
2359Z
CAUTION 3 FOOT TRENCH ADJ TO HAZ CARGO PAD SOUTHWEST SIDE MARKED BY LOW PROFILE BARRICADES.
5/1/26
1633Z
7/29/26
2359Z
TaxiwayTWY DELTA WEST CLOSED FOR CONSTRUCTION
4/30/26
2042Z
7/28/26
2359Z
AerodromeAERODROME LED OBSTRUCTION LIGHTS MAY AFFECT FLIR AND NVG.
4/13/26
1300Z
6/15/26
2359Z
ALL FIXED WING AIRCRAFT ARRIVING RWY 13 MUST MAKE A 180-DEGREE CLOCKWISE TURN AT END OF RUNWAY DUE TO WORK IN PROGRESS AT TWY H. EXIT AT TWY D IF ABLE.
3/27/26
1917Z
6/24/26
2359Z
TaxiwayTWY H WORK IN PROGRESS
3/13/26
1734Z
6/10/26
2359Z
FLEET & LAV SERVICES UNAVAILABLE.
Yes
MON-THU 1400-0730Z++
FRI 1400-0100Z++
CLSD WKND, HOLS AND GLOBAL STRIKE COMD (GSC) DOWN DAYS.
U.S. AIR FORCE
44TH CSG, ELLSWORTH AFB
RAPID CITY, SD 57706
BASE OPERATIONS
44TH CSG, ELLSWORTH AFB
RAPID CITY, SD 57706
Phone: 605-385-1052
HURON FSS (HON)
Toll Free: 1-800-WX-BRIEF
RAP
--
AIRFIELD LIGHTING ONLY AVAILABLE DURING TWR HOURS.
N/A
N/A
No
No
None
No
Major
Major
None
Low Pressure
None

Runway 13/31

13497 ft. x 300 ft.

CONC
NONE
HIGH
73/R/C/W/T
--
--
--
--
  Runway 13 Runway 31
True Heading 138°318°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 44° 09' 32"N 44° 07' 53"N
Longitude 103° 07' 15"W 103° 05' 11"W
Elevation 3,276' 3,178'
Threshold Crossing Height 50 ft. AGL 54 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights ALSF1 ALSF1
Centerline Lights
Runway End Identifier Lights No No
A110-12OIL: O-132-133-148
A110-13SERVICE - TRAN ALERT- SVC AVBL 1400-2300Z++ MON-FRI; CLSD SAT, SUN, HOL, AND GLOBAL STRIKE COMD DOWN DAYS. FLEET SVC AVBL 1400-2300Z++ MON-FRI; CLSD SAT, SUN, HOL, AND GLOBAL STRIKE COMD DOWN DAYS
A110-14RSTD: ALL ACFT MAINT AT OR ABV 7700 FT & 2640 FT HORIZONTAL SEPARATION IN THE IMMED VCNTY OF MT. RUSHMORE; AVOID DEVILS TWR BY 5 NM. PPR ALL FULL STOP ACFT CTC BASE OPS NO EARLIER THAN 72 HR PRIOR TO ETA. FAX DSN 675-1053, C605-385-1053.
A110-19MISC: INBD VIP CODE 7 OR HI, CTC RAYMOND 33 15 MIN PRIOR TO BLOCK TIME WITH NAME, RANK AND PURPOSE OF VISIT.
A110-20FM OBS POINT WX TECHNICIANS UNABLE TO SEE THE TDZ OF BOTH RYS.
A110-21RSTD: PPR MIN 24 HR NTC, CTC DSN 675-1052, C605-385-1052.
A110-26GLOBAL STRIKE COMD RSRS APPLIED TO GLOBAL STRIKE COMD ONLY
A110-31EXTV GENERAL AVN AND COML TFC IN VCNTY OF RAPID CITY ARPT 6.5 NM SE OF ARPT.
A110-33CSTMS/AG/IMG: LTD TO US DOD ACFT ONLY; AVBL WITH 24 HR NOTICE. IMG SERVICE UNAVBL FOR NON-DOD PERS. CTC 28 OSS/OSAA, DSN 675-1052, C605-385-1052.
A110-34RSTD: AIRCREW SHOULD AVOID BEAR BUTTE, DEFINED BY THE RCA 317/25 FIX, BY FLYING NO LOWER THAN 10,000 FT MSL WITHIN 2NM.
A110-35FUEL: A++. HOT REFUEL AVBL TO B-1 AND EA-18 ACFT ONLY.
A110-37CAUTION: MIGRATORY BIRD ACT BASH (PHASE II) MAY AND AUG-OCT OR ACTIVE VIA NOTAM. DEER HAZ, RPT ANY ACT TO TWR/PTD.
A110-38COMSEC ISSUING AND CLASSIFIED MATERIAL STORAGE UNAVBL FROM AMOPS, CTC COMD POST FOR STORAGE.
A110-40MISC: TRAN ACFT REQ FOR APCH AND PATTERN WORK, RQR 24 HR NTC, CTC OPS DSN 675-1052, C605-385-1052.
A110-41OPR 1400-0730Z++ MON-THUR; 1400-0100Z++ FRI. CLSD WKENDS, HOL AND GLOBAL STRIKE COMD DOWN DAYS.
A110-42PRIM FREQ 311.0.
A110-43MISC: WX STN AUGMENTS FOR VIS AT OR BELOW 3 SM WHEN NEEDEDED. VIS LTD NE TO SE DUE TO BLDGS.
A110-45"VERIFY POWDER RIVER TRAINING COMPLEX STATUS BEFORE FILING IFR FPL" VIA SPECIAL USE AIRSPACE SITE: HTTPS://SUA.FAA.GOV/SUA/"
A110-46WHEN ATCT CLSD, FOR CD CTC DENVER ARTCC AT 303-651-4257.
A110-47LGT: RWY 31 NSTD ALSF-1, MISSING FIRST CNTRLN BARRETTE PRIOR TO THLD.
A110-48MISC: ARFF CRITICAL LVL OF SVC (RED) FOR NFPA CAT 9-10 AND USAF VEH SETS 5-6. REDUCED LEVEL OF SVC (YELLOW) FOR NFPA CAT 1-8 AND USAF VEH SETS 1-4. ONLY APPLICABLE WKD EXCLD FEDERAL HOL AND USAF GLOBAL STRIKE FAMILY DAYS. CTC FD C605-385-1113 FOR FURTHER INFO.
A110-8CAUTION: HI POTENTIAL FOR MID-AIR COLLISION EXISTS WITH ACFT FR RAPID CITY ARPT LCTD APRX 6.5 NM SE OF ARPT.
A110-9JASU: (AM32A-95) (A/M32A-86)
A16BASE OPS V675-1052/2861.
A17-M1CLSD WKND, HOLS AND GLOBAL STRIKE COMD (GSC) DOWN DAYS.
A81-APTAIRFIELD LIGHTING ONLY AVAILABLE DURING TWR HOURS.
E147TPA: RECTANGULAR 4500 FT MSL, 5000 FT MSL OVHD, AVOID OVFT OF BASE PROPER WHEN CRC TO LDG.
ELLSWORTH AFB (ICAO: KRCA, IATA: RCA) is a private airport located in RAPID CITY, SD, US.
