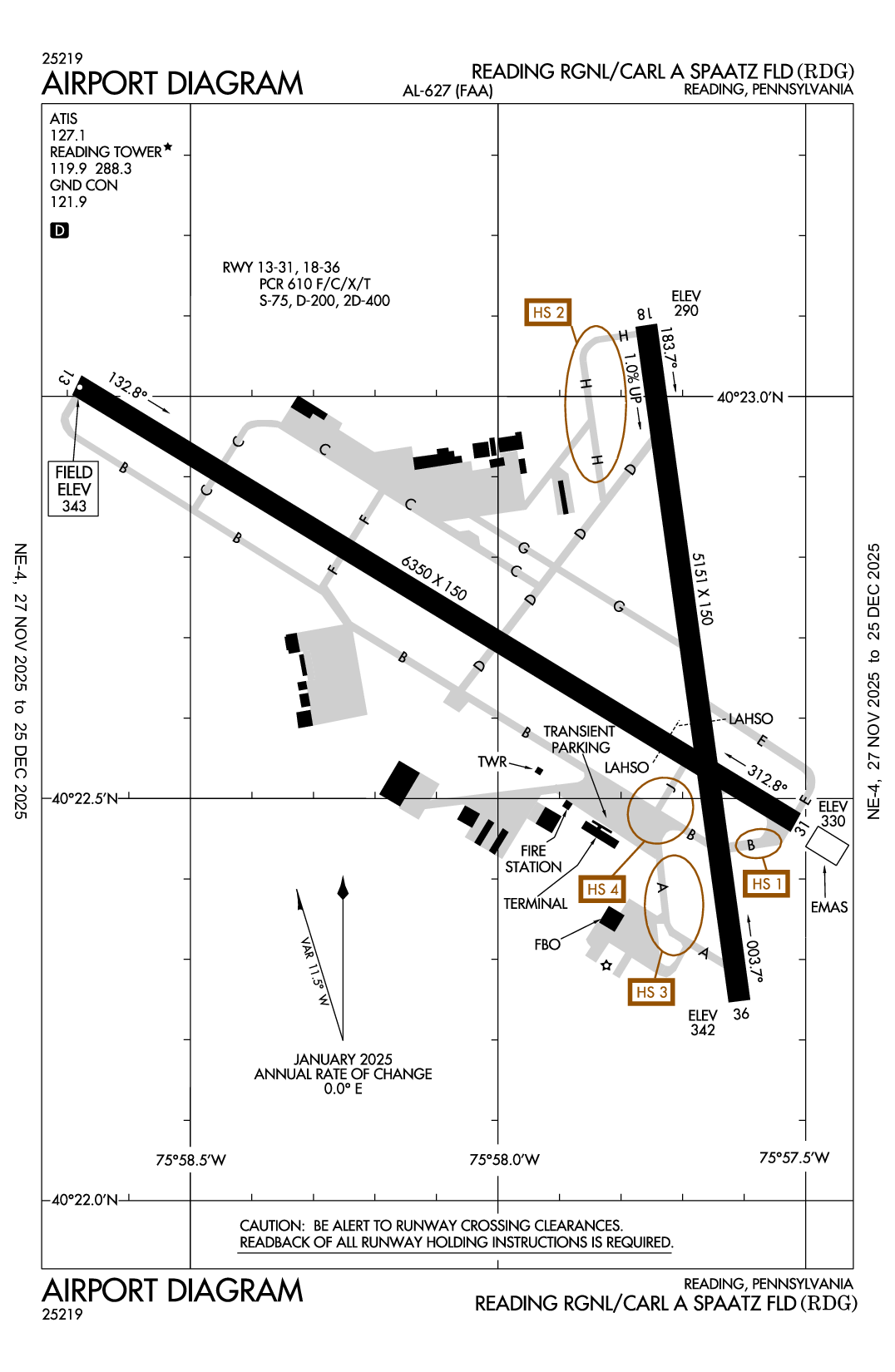

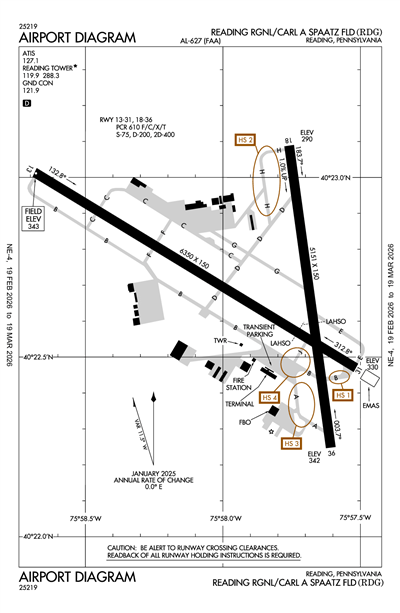

READING RGNL/CARL A SPAATZ FLD - Airport Diagram

KRDG

READING RGNL/CARL A SPAATZ FLD

PublicPUB

3 miles NW of READING, PA

View on Map

Status

Operational

Coordinates

40° 22' 43"N 75° 57' 55"W

Elevation

343' MSL

Pattern Alt

1343' MSL

Mag Variation

12W

Fuel

JET A, 100LL

FSS

WILLIAMSPORT (IPT)

Sectional

NEW YORK

ARTCC

NEW YORK (ZNY)

Data Effective

12/25/25-1/22/26

KRDG VFR

2:54 PM EST RAW

Clear

Viz

10sm

Temp

53°F

Dew

33°F

Pres

30.20"Hg

Wind

230° 3kts

RMK

AO2 SLP232 T01170006

METAR KRDG 081954Z 23003KT 10SM CLR 12/01 A3020 RMK AO2 SLP232 T01170006

Add Your Business

KRDG FBOs

Promote Listing

Reading Aviation

UNICOM: 122.95

Phone: (610) 374-0100

Other: (610) 373-3000

0 Reviews (Read | Sign In To Write)

Avfuel

As of 1/6	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve
Full Serve	6.34	6.22	6.33

Fuel Notes

Prices include tax

Your Information

Business

UNICOM 122.95 CTAF 119.9

ATIS

127.1

ASOS

610-372-9863

127.1

Emergency

EMERG

121.5

Ground

GND/P

121.9

Tower

LCL/P

119.9

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

AIRPORT DIAGRAM

Airport Minimums

Departure Procedures

No Documents

Hotspot

HOT SPOT

Standard Term. Arrival

No Documents

Instrument Approach

Terminal Area Forecast

KRDG

RAW

Reported

Thu, 1/8 12:21 PM EST

Valid

Thu, 1/8 1:00 PM EST - Fri, 1/9 1:00 PM EST

VFR

1:00 PM EST - 7:00 PM EST

Few 20,000'

Viz

6sm

Wind

300° 5kts

VFR

7:00 PM EST - 9:00 AM EST

Few 20,000'

Viz

6sm

Wind

VRB° 3kts

VFR

9:00 AM EST - 11:00 AM EST

Scattered 10,000'

Viz

6sm

Wind

170° 4kts

VFR

11:00 AM EST - 1:00 PM EST

Broken 4,000'

Viz

6sm

Wind

170° 7kts

TAF KRDG 081721Z 0818/0918 30005KT P6SM FEW200
   FM090000 VRB03KT P6SM FEW200
   FM091400 17004KT P6SM SCT100
   FM091600 17007KT P6SM BKN040

KRDG

Effective	Expires	NOTAM
Domestic
1/12/26 1300Z	1/12/26 1600Z	!RDG 01/011 RDG OBST CRANE (ASN UNKNOWN) 402227N0755752W (0.25NM S RDG) 442FT (100FT AGL) FLAGGED 2601121300-2601121600
12/27/25 0153Z	2/28/26 2300Z	!RDG 12/183 RDG APRON TXL SOUTH W 160FT CLSD LIGHTED AND BARRICADED 2512270153-2602282300
12/26/25 0158Z		!RDG 12/153 RDG AD AP RVR ALL U/S 2512260158-2604292000EST
12/18/25 0449Z		!RDG 12/126 RDG NAV ILS RWY 13 NOT MNT 2512180449-2602192000EST
12/9/25 1140Z	3/9/26 0500Z	!RDG 12/035 RDG OBST TOWER LGT (ASR 1219584) 401411.50N0755441.50W (8.9NM SSE RDG) 710.0FT (200.1FT AGL) U/S 2512091140-2603090500

ATC Tower

Yes

Attendance

0600-2300

Owner

READING REGIONAL ARPT AUTH.
2501 BERNVILLE RD
READING, PA 19605
Phone: 610-372-4666

Manager

ZACKARY J. TEMPESCO
2501 BERNVILLE RD
READING, PA 19605
Phone: 610-372-4666

FSS

WILLIAMSPORT FSS (IPT)
Toll Free: 1-800-WX-BRIEF

NOTAM

RDG

Light Schedule

Lights

WHEN ATCT CLSD ACTVT MALSF RWY 36; REIL RWY 13, 31; PAPI RWY 13 & 18; HIRL RWY 13/31 & 18/36; TWY LGTS - CTAF.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Landing Fee

Yes

Parking

Hanger, Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

Airframe Repair

Major

Pwrplant Repair

Major

Bottled Oxygen

High & Low Pressure

Bulk Oxygen

High & Low Pressure

Other Services

Air Freight
Air Ambulance
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 13/31

Dimensions

6350 ft. x 150 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

GRVD

Rwy Edge Lgts

HIGH

Pavement Class

Single Wheel

75,000lbs

Double Wheel

200,000lbs

Double Tandem

400,000lbs

Dual Dbl Tand

	Runway 13	Runway 31
True Heading	121°	301°
Traffic Pattern		Left
Markings	PIR	PIR
Markings Condition	GOOD	GOOD
Latitude	40° 23' 01"N	40° 22' 28"N
Longitude	75° 58' 41"W	75° 57' 31"W
Elevation	343'	330'
Threshold Crossing Height	45 ft. AGL	--
Visual Glide Path Angle	3°	--
Visual Slope Indicator	P4L	--
Approach Lights
Centerline Lights
Runway End Identifier Lights	Yes	Yes

Runway 18/36

Dimensions

5151 ft. x 150 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

GRVD

Rwy Edge Lgts

HIGH

Pavement Class

Single Wheel

75,000lbs

Double Wheel

200,000lbs

Double Tandem

400,000lbs

Dual Dbl Tand

	Runway 18	Runway 36
True Heading	172°	352°
Traffic Pattern	Left	Left
Markings	PIR	PIR
Markings Condition	GOOD	GOOD
Latitude	40° 23' 05"N	40° 22' 15"N
Longitude	75° 57' 46"W	75° 57' 37"W
Elevation	290'	342'
Threshold Crossing Height	56 ft. AGL	--
Visual Glide Path Angle	3°	--
Visual Slope Indicator	P4L	--
Approach Lights		MALSF
Centerline Lights
Runway End Identifier Lights

A110-1	BIRDS ON & INVOF ARPT.
A110-2	FOR CD WHEN ATCT CLSD, CTC HARRISBURG APCH AT 800-932-0712.
A110-3	ARFF INDEX C AVBL UPON REQ CTC AMGR.

READING RGNL/CARL A SPAATZ FLD (ICAO: KRDG, IATA: RDG) is a public airport located in READING, PA.
