iFlightPlanner



...

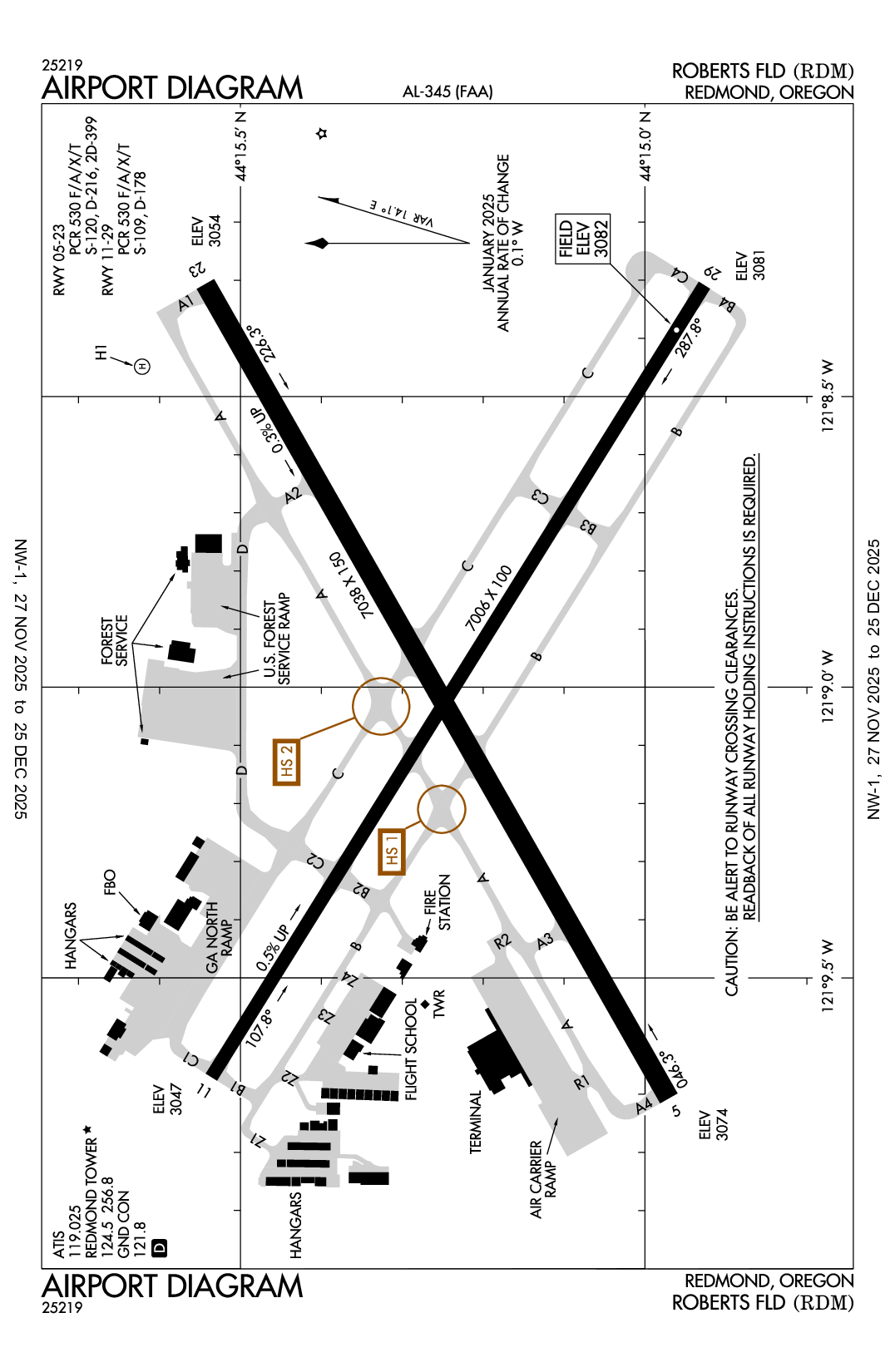

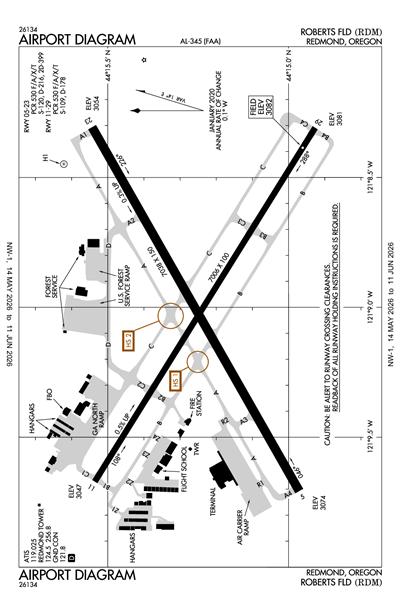

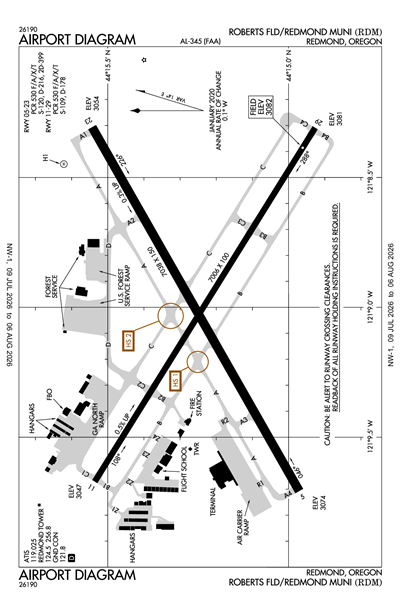

ROBERTS FLD REDMOND MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KRDM
ICAO KRDMIATA RDMLocal RDM
ROBERTS FLD REDMOND MUNI
PublicPUB

1 miles SE of REDMOND, OR, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
44° 15' 15"N 121° 08' 60"W
Elevation
3082' MSL
Pattern Alt
4082' MSL
Mag Variation
14°E
Declination
14°E
Fuel
JET A, 100LL, MOGAS
FSS
MC MINNVILLE (MMV)
Sectional
KLAMATH FALLS
ARTCC
SEATTLE (ZSE)
Data Effective
6/11/26-7/9/26
KRDM VFR
4:56 PM PDT
Clear
10sm
86°F
31°F
30.03"Hg
350° 14kts
AO2 SLP145 T03001006 10317 20261 57008
METAR KRDM 232356Z 35014KT 10SM CLR 30/M01 A3003 RMK AO2 SLP145 T03001006 10317 20261 57008
+ Add Your Business

KRDM FBOs

Promote Listing
Skyservice
UNICOM: 122.85
Phone: (541) 504-3848
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 6/16
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 7.96 8.52 8.62
Fuel Notes
Prices include tax

KRDM Aircraft Service & Maintenance

Promote Listing
AI Systems Inc.
Phone: (541) 316-3653
No Rating Available
0 Reviews (Read | Sign In To Write)

KRDM Other Aviation Services

Promote Listing
Skyman Avionics
Phone: (541) 604-9573
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 119.025
(541) 548-1742
ASOS 119.025
(541) 504-8743

Common

CTAF 124.5
WHEN ATCT CLSD ACTVT HIRL RY 05/23, MIRL RY 11/29, MALSR RY 23, REIL RY 05, 11 & 29, AND TWY LGTS - CTAF.
UNICOM 122.95

Ground

REDMOND GROUND 121.8
0600-2200

Tower

REDMOND TOWER 124.5
0600-2200

Center

SEATTLE CENTER 126.15
LOW, APCH/DEP CTL SVC PRVDD BY SEATTLE ARTCC (ZSE) ON FREQS126.15/269.475 (REDMOND RCAG).

Flight Service

Flight Service 122.5
(MMV)

Terminal Area Forecast

KRDM
Tue, 6/23 4:20 PM PDT
Tue, 6/23 5:00 PM PDT - Wed, 6/24 5:00 PM PDT
VFR
5:00 PM PDT - 6:00 PM PDT
Broken 20,000'
6sm
340° 10kts
Gusts 21kts
VFR
6:00 PM PDT - 1:00 AM PDT
Broken 20,000'
6sm
340° 10kts
VFR
1:00 AM PDT - 5:00 PM PDT
Sky Clear
6sm
VRB° 3kts
TAF KRDM 232320Z 2400/2424 34010G21KT P6SM BKN200
   FM240100 34010KT P6SM BKN200
   FM240800 VRB03KT P6SM SKC
KRDM
EffectiveExpiresCategoryNOTAM
Domestic
6/23/26
1441Z
6/23/26
1800Z
!RDM 06/043 RDM OBST CRANE (ASN UNKNOWN) 441519N1210801W (.30NM E APCH END RWY 23)
UNKNOWN (50FT AGL) FLAGGED 2606231441-2606231800
6/22/26
1551Z
6/23/26
2359Z
!RDM 06/041 RDM OBST CRANE (ASN UNKNOWN) 441617N1211130W (1.5NM SW APCH END RWY 11)
UNKNOWN (125FT AGL) FLAGGED 2606221551-2606232359
6/20/26
0618Z
Runway!RDM 06/037 RDM RWY 29 PAPI U/S 2606200618-2606262000EST
5/28/26
2038Z
8/31/26
1900Z
!RDM 05/085 RDM TWY B BTN RWY 05/23 AND TWY B4 CLSD TO ACFT MORE THAN 20000LB 2605282038-2608311900
3/23/26
1400Z
7/9/26
2359Z
!RDM 03/042 RDM NAV ILS RWY 23 U/S 2603231400-2607092359
3/23/26
1400Z
7/10/26
0100Z
!RDM 03/029 RDM OBST CRANE (ASN UNKNOWN) 441508N1210942W (0.2NM N APCH END RWY 05)
UNKNOWN (177FT AGL) FLAGGED DLY 1400-0100 2603231400-2607100100
FDC
3/23/26
2200Z
!FDC 6/2771 RDM IAP ROBERTS FLD, REDMOND, OR.
ILS OR LOC RWY 23, AMDT 6...
RNAV (GPS) Y RWY 23, AMDT 2...
RNAV (GPS) Y RWY 29, AMDT 2B...
CIRCLING CATS A/B/C MDA 3660/HAA 578. TEMPORARY CRANE 3309 MSL, 3038FT W OF RDM AIRPORT (2025-ANM-3909-NRA.
2603232200-2608282013EST
3/23/26
2200Z
!FDC 6/2769 RDM IAP ROBERTS FLD, REDMOND, OR.
RNAV (RNP) Z RWY 5, AMDT 3...
RNP 0.10 DA 3474/HAT 399, VIS 1 1/8 ALL CATS. TEMPORARY CRANE 3242 MSL 1029FT NORTH OF RWY 5 (2025-ANM-3983-NRA). TEMPORARY CRANE 3309 MSL 850FT N OF RWY 5 (2025-ANM-3909-NRA.
2603232200-2608282013EST
3/23/26
2200Z
!FDC 6/2766 RDM IAP ROBERTS FLD, REDMOND, OR.
RNAV (GPS) RWY 11, AMDT 4...
LPV DA 3365/HAT 297, VIS 7/8 ALL CATS.
LNAV/VNAV DA 3520/HAT 452 ALL CATS, VISIBILITY ALL CATS 1 3/8. LNAV MDA 3620/HAT 552 ALL CATS, VISIBILITY CATS C/D 1 5/8. CIRCLING CATS A/B/C MDA 3660/HAA 578. VDP 1.60 NM TO RWY 11. TEMPORARY CRANE 3242 MSL 2409FT S OF RWY 11 (2025-ANM-3983-NRA). TEMPORARY CRANE 3309 MSL 2551FT S OF RWY 11 (2025-ANM-3909-NRA).
2603232200-2608282013EST
3/23/26
2200Z
!FDC 6/2765 RDM IAP ROBERTS FLD, REDMOND, OR.
RNAV (GPS) Y RWY 5, AMDT 3A...
LPV DA 3437 HAT 362, VIS 1 ALL CATS. LNAV/VNAV DA 3609/HAT 534, VIS 1 ½ ALL CATS. LNAV MDA 3620/HAT 545 ALL CATS.CIRLCING CATS A/B/C MDA 3660/HAA 578. VDP 1.52NM TO RWY 5. TEMPORARY CRANE 3173 MSL, 872FT NW OF RWY 5 (2025-ANM-3180-NRA). TEMPORARY CRANE 3242 MSL 1029FT NORTH OF RWY 5 (2025-ANM-3983-NRA).
TEMPORARY CRANE 3309 MSL 850FT N OF RWY 5 (2025-ANM-3909-NRA).
2603232200-2608282013EST
3/20/26
1603Z
!FDC 6/1749 RDM IAP ROBERTS FLD, REDMOND, OR.
ILS OR LOC RWY 23, AMDT 6...
RNAV (GPS) RWY 11, AMDT 4...
RNAV (GPS) Y RWY 23, AMDT 2...
RNAV (GPS) Y RWY 29, AMDT 2B...
RNAV (GPS) Y RWY 5, AMDT 3A...
APT ELEV 3082. CIRC CAT A/B MDA 3600/HAA 518. TEMPORARY CRANE 3243 MSL 1.4NM NW OF RDM AIRPORT (2025-ANM-3822-OE).
2603201603-2610061603EST
2/19/26
1243Z
!FDC 6/6521 RDM IAP ROBERTS FLD, REDMOND, OR.
VOR-A, AMDT 7...
DELETE PROCEDURE NOTE: DME REQUIRED.
THIS IS VOR-A, AMDT 7A. 2602191243-PERM
1/23/26
1708Z
!FDC 6/6463 RDM IAP ROBERTS FLD, REDMOND, OR.
RNAV (GPS) Y RWY 23, AMDT 2...
CHANGE NOTE: CHART SPEED ICON IN PLANVIEW AT YUBUB: MAX 230 KIAS.
2601231708-2801231708EST
Yes
0400-2000
FOR FUEL AFT HRS CALL FBO 541-504-3848. UNICOM: FBO 122.85.
CITY OF REDMOND
411 SW 9TH STREET
REDMOND, OR 97756
Phone: (541) 504-3085
ZACHARY BASS
2522 SE JESSE BUTLER CIRCLE #17
REDMOND, OR 97756
Phone: (541) 504-3085
MC MINNVILLE FSS (MMV)
Toll Free: 1-800-WX-BRIEF
RDM
--
WHEN ATCT CLSD ACTVT HIRL RY 05/23, MIRL RY 11/29, MALSR RY 23, REIL RY 05, 11 & 29, AND TWY LGTS - CTAF.
N/A
Yes
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
High & Low Pressure
High & Low Pressure
Air Freight
Air Ambulance
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental

Runway 05/23

7038 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

120,000lbs
216,000lbs
399,000lbs
--
  Runway 05 Runway 23
True Heading 60°240°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 44° 14' 58"N 44° 15' 33"N
Longitude 121° 09' 42"W 121° 08' 18"W
Elevation 3,074' 3,054'
Threshold Crossing Height 50 ft. AGL 51 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator V4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes

Runway 11/29

7006 ft. x 100 ft.
ASPH
Good
GRVD
MED

109,000lbs
178,000lbs
--
--
  Runway 11 Runway 29
True Heading 122°302°
Traffic Pattern
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 44° 15' 32"N 44° 14' 56"N
Longitude 121° 09' 40"W 121° 08' 19"W
Elevation 3,047' 3,081'
Threshold Crossing Height 50 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway H1

48 ft. x 48 ft.

CONC
NONE


--
--
--
--
  Runway H1 Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition
Latitude 44° 15' 37"N N/A
Longitude 121° 08' 27"W N/A
Elevation 3,056' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-12TRANSIENT HELICOPTER OPS PREFERRED NORTH (CONCRETE) GENERAL AVIATION RAMP.
A110-13FOR CD IF UNA TO CTC ON FSS FREQ, CTC SEATTLE ARTCC AT 253-351-3694.
A110-14COLD TEMPERATURE AIRPORT. ALTITUDE CORRECTION REQUIRED AT OR BELOW -16C.
A110-15PILOTS CONDUCTING EFVS OPS; BE AWARE LED ALS IN USE RWY 23.
A110-3OCNL WILDLIFE ON AND INVOF ARPT.
A110-4TERMINAL APRON NOT AVBL FOR GENERAL AVIATION ACFT.
A17-M1FOR FUEL AFT HRS CALL FBO 541-504-3848. UNICOM: FBO 122.85.
A30-H1PVT USE HELIPAD, CTC TWR. WHEN TWR CLSD USE CTAF.
A39-05/23PCR VALUE: 530/F/A/X/T
A39-11/29PCR VALUE: 530/F/A/X/T
A43-29UNUSBL BYD 5.0 NM FM THD, DOES NOT PRVD OBSTN CLNC.
A76-AMBLIFE FLIGHT
A76-AVNCSBY APPOINTMENT ONLY
A81-APTWHEN ATCT CLSD ACTVT HIRL RY 05/23, MIRL RY 11/29, MALSR RY 23, REIL RY 05, 11 & 29, AND TWY LGTS - CTAF.
E111ESTABD PRIOR TO 1959.
ROBERTS FLD REDMOND MUNI (ICAO: KRDM, IATA: RDM) is a public airport located in REDMOND, OR, US.
