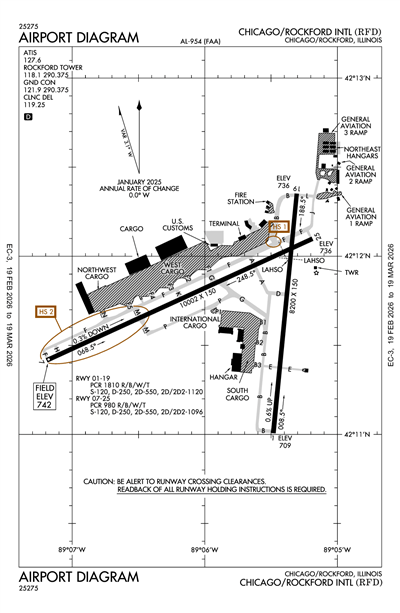

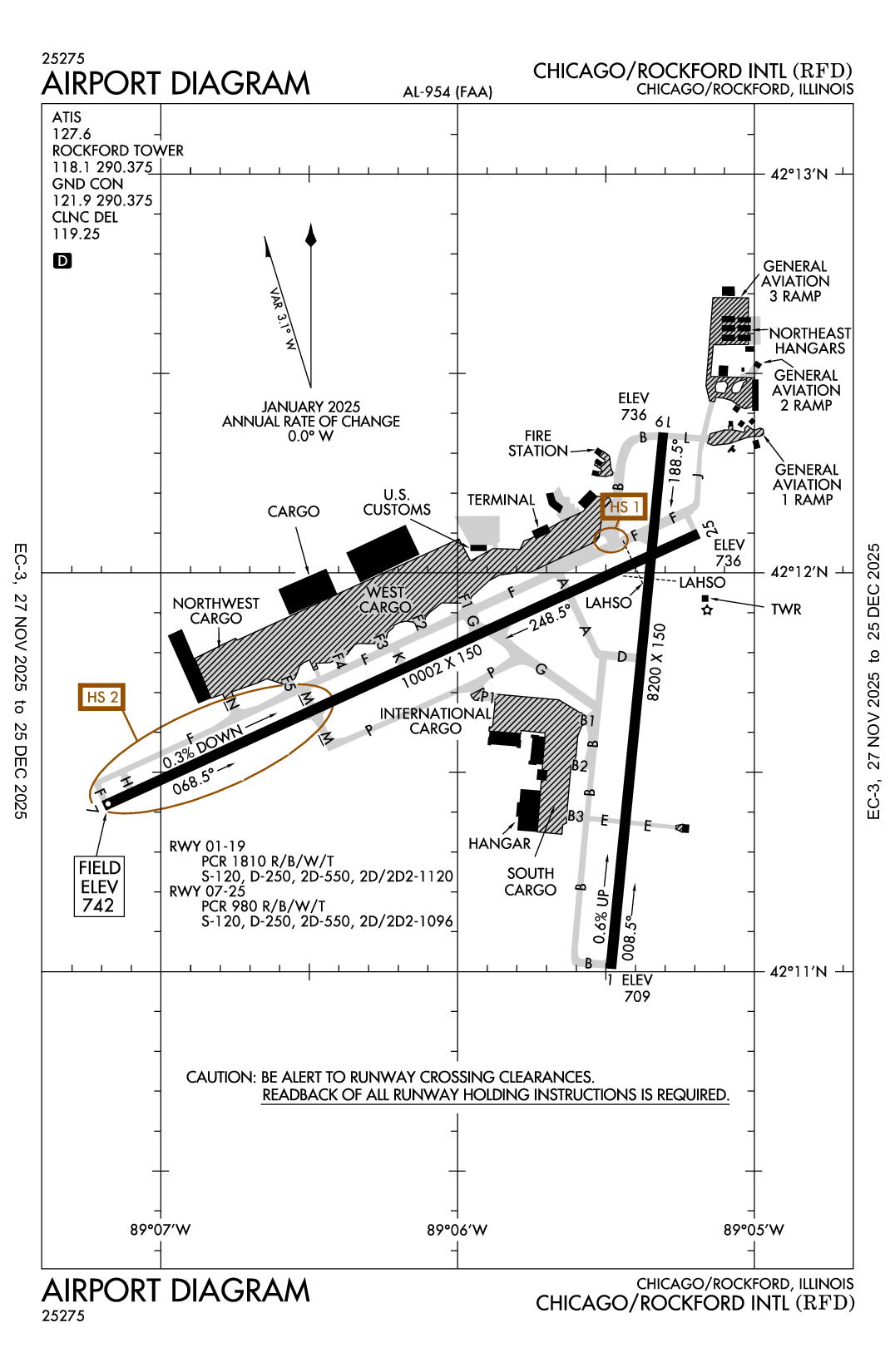

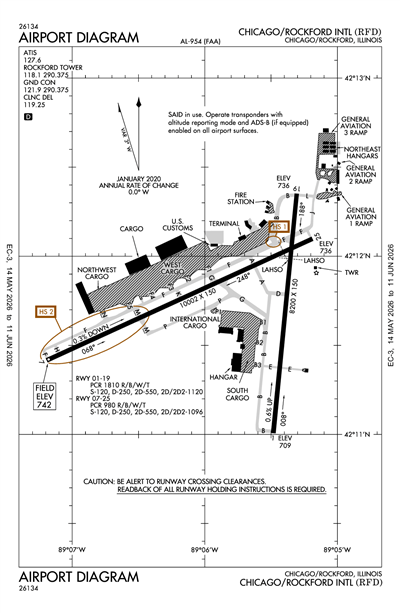

CHICAGO/ROCKFORD INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KRFD
CHICAGO/ROCKFORD INTL
PublicPUB

68 miles NW of CHICAGO/ROCKFORD, IL
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
42° 11' 43"N 89° 05' 50"W
742' MSL
1742' MSL
03W
Jet A, Jet A-1+, 100LL
KANKAKEE (IKK)
CHICAGO
CHICAGO (ZAU)
5/19/22-6/16/22
KRFD VFR
11:54 PM CDT
Overcast 16,000'
10sm
53°F
35°F
30.27"Hg
Calm
AO2 SLP252 T01170017
KRFD 240454Z 00000KT 10SM OVC160 12/02 A3027 RMK AO2 SLP252 T01170017
List Your Business

KRFD FBOs, Flight Schools and Ground Support

Promote Listing
Emery Air
Freq: 132.0
Phone: (815) 968-8287
No Rating Available
0 Reviews (Read | Sign In To Write)
EPIC
As of 5/21
 100LL Jet A Jet A+ Mogas UL94
Self Serve
Full Serve 7.15 7.20 7.20
Promote Listing
Chronos Aviation
Freq: 122.95
Phone: (815) 395-8275
No Rating Available
0 Reviews (Read | Sign In To Write)

KRFD Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KRFD Hotels

No hotels are listed for this airport.

KRFD Restaurants

No restaurants are listed for this airport.

KRFD Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 --

ATIS

ATIS
 127.6

Approach/Departure

APCH/P DEP/P
WEST
 126.0
APCH/P DEP/P IC
EAST
 121.0

Clearance Delivery

CD/P
 119.25

Emergency

EMERG
 121.5

Ground

GND/P
 121.9

Tower

LCL/P
 118.1

Other

TRSA
EAST
 121.0
TRSA
WEST
 126.0

Terminal Area Forecast

KRFD
Tue, 5/24 12:20 AM CDT
Tue, 5/24 1:00 AM CDT - Wed, 5/25 1:00 AM CDT
VFR
1:00 AM CDT - 9:00 AM CDT
Broken 12,000'
> 6sm
060° 5kts
VFR
9:00 AM CDT - 1:00 AM CDT
Broken 10,000'
Scattered 7,000'
> 6sm
090° 12kts
Gusts 18kts
KRFD 240520Z 2406/2506 06005KT P6SM BKN120
   FM241400 09012G18KT P6SM SCT070 BKN100
KRFD
Domestic
5/23/221200Z !RFD 05/070 RFD RWY 01 RVRT U/S 2205231200-2205272330
5/13/220930Z !RFD 05/040 RFD OBST POWER LINE LGT (ASN 2016-AGL-8992-OE) 421140N0890417W (1.1NM E RFD) 841FT (89FT AGL) U/S 2205130930-2206270930
5/12/220216Z !RFD 05/035 RFD OBST POLE LGT (ASN UNKNOWN) 421200N0890606W (1NM NE APCH END RWY 07)
UNKNOWN (90FT AGL) U/S 2205120216-2206242359
5/6/220346Z !RFD 05/017 RFD TWY G IN PAVEMENT RWY GUARD LGT AT RWY 07/25 NOT STD 2205060346-2206242359
5/2/221207Z !RFD 05/002 RFD TWY G BTN RWY 07/25 AND TWY B EAST EDGE IRREGULAR SFC 2205021207-2205312359
4/19/221121Z !RFD 04/099 RFD OBST TOWER LGT (ASN 2016-AGL-8983-OE) 421222N0890417W (1.3NM ENE RFD) 815FT (62FT AGL) U/S 2204191121-2206031121
4/18/220504Z !RFD 04/091 RFD OBST TOWER LGT (ASN 2016-AGL-8984-OE) 421222N0890417W (1.32NM ENE) 815FT (62FT AGL) NOT LGTD 2204180504-2206020504
4/17/221004Z !RFD 04/086 RFD OBST POWER LINE LGT (ASN 2016-AGL-8983-OE) 421226N0890418W (1.3NM ENE RFD) 821FT (57FT AGL) U/S 2204171004-2206011003
4/13/220832Z !RFD 04/076 RFD OBST POWER LINE LGT (ASN 2016-AGL-8993-OE) 421139N0890413W (1.2NM E RFD) 845FT (89FT AGL) U/S 2204130832-2205280832
4/13/220830Z !RFD 04/075 RFD OBST TOWER LGT (ASR UNKNOWN) 421208.00N0890418.00W (1.2NM NE RFD) 814FT (79FT AGL) U/S 2204130830-2205280830
4/6/221318Z !RFD 04/049 RFD TWY F5 CL MARKINGS BTN TWY F AND WEST CARGO RAMP E NOT STD 2204061318-2209302359
3/7/220247Z !RFD 03/023 RFD RWY 07 PAPI U/S 2203070247-2209302359
2/9/221516Z !RFD 02/019 RFD AD AP BIRD ACT 2202091516-2206012359
1/19/220501Z !RFD 01/140 RFD AD AP RDO ALTIMETER UNREL. AUTOLAND, HUD TO TOUCHDOWN, ENHANCED FLT VISION SYSTEMS TO TOUCHDOWN, HEL OPS REQUIRING RDO ALTIMETER DATA TO INCLUDE HOVER AUTOPILOT MODES AND CAT A/B/PERFORMANCE CLASS TKOF AND LDG NOT AUTHORIZED EXC FOR ACFT USING APPROVED ALTERNATIVE METHODS OF COMPLIANCE DUE TO 5G C-BAND INTERFERENCE PLUS SEE AIRWORTHINESS DIRECTIVES 2021-23-12, 2021-23-13 2201190501-2401190501
12/30/212353Z !RFD 12/176 RFD OBST TOWER LGT (ASR UNKNOWN) 420436.00N0891648.00W (13NM SW RFD) 880FT (495FT AGL) U/S 2112302353-2212302359
FDC
4/15/221502Z !FDC 2/8594 RFD IAP CHICAGO/ROCKFORD INTL, CHICAGO/ROCKFORD, IL.
RADAR-1, AMDT 10 B...
ASR RWY 7 MDA 1260/HAT 518. VISIBILITY CATS C/D RVR 5500.
2204151502-2404151457EST
4/7/220124Z !FDC 2/4862 RFD IAP CHICAGO/ROCKFORD INTL, CHICAGO/ROCKFORD, IL.
ILS OR LOC RWY 7, AMDT 2...
MISSED APPROACH: CLIMB TO 3000 ON HEADING 070, EXPECT RADAR VECTORS. (RADAR REQUIRED)..
JVL VOR/DME R-165 RESTRICTED.
2204070124-2310071249EST
1/19/220500Z !FDC 2/3801 RFD IAP CHICAGO/ROCKFORD INTL, CHICAGO/ROCKFORD, IL.
ILS RWY 07 (SA CAT I), AMDT 2 ...
ILS RWY 07 (CAT II - III), AMDT 2 ...
PROCEDURE NA EXC FOR ACFT USING APPROVED ALTERNATIVE METHODS OF COMPLIANCE DUE TO 5G C-BAND INTERFERENCE PLUS SEE AIRWORTHINESS DIRECTIVES 2021-23-12, 2021-23-13 2201190500-2401190506EST
12/3/211533Z !FDC 1/5735 RFD IAP CHICAGO/ROCKFORD INTL, CHICAGO/ROCKFORD, IL.
ILS OR LOC RWY 1, AMDT 29...
S-LOC 1 MDA 1200/HAT 471 ALL CATS. VIS CATS C/D RVR 5000.
TRANSMISSION LINE, 900 MSL, 3.48 NM SOUTH OF APPROACH END RWY 1, 2016-AGL-8932-OE.
2112031533-2312031533EST
4/1/212018Z !FDC 1/3919 RFD ODP CHICAGO/ROCKFORD INTL, CHICAGO/ROCKFORD, IL.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES ORIG...
TAKEOFF MINIMUMS: RWY 7, 300-1 1/2 OR STANDARD WITH MINIMUM CLIMB OF 230 FT PER NM TO 1000, OR ALTERNATIVELY, WITH STANDARD TAKEOFF MINIMUMS AND NORMAL 200 FT PER NM CLIMB GRADIENT, TAKEOFF MUST OCCUR NO LATER THAN 1700 FT FROM DER. ADD TAKEOFF OBSTACLE NOTE FOR RWY 7, TREE 5359 FT FROM DER, 1786 FT LEFT OF CENTERLINE, 140 FT AGL/888 FT MSL.
ALL OTHER DATA REMAINS AS PUBLISHED. 2104012018-2304152018EST
Yes
ALL
GREATER ROCKFORD ARPT. AUTH.
60 ARPT DRIVE
ROCKFORD, IL 61109-2902
Phone: 815-969-4011
MIKE DUNN
60 AIRPORT DR
ROCKFORD, IL 61109-2902
Phone: 815-965-4011
KANKAKEE FSS (IKK)
Toll Free: 1-800-WX-BRIEF
RFD
--
--
Clear-Green
Yes - Lighted
No
No
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
78
18
15
3
0
0
Major
Major
High Pressure
High Pressure
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental

Runway 01/19

8200 ft. x 150 ft.
ASPH CONC
Good
GRVD
HIGH
96 /F/B/W/T
100,000lbs
210,000lbs
390,000lbs
850,000lbs
  Runway 01 Runway 19
True Heading 5°185°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 42° 11' 00"N 42° 12' 21"N
Longitude 89° 05' 29"W 89° 05' 19"W
Elevation 709' 736'
Threshold Crossing Height -- 75 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- P4L
Approach Lights MALSR
Centerline Lights Yes Yes
Runway End Identifier Lights Yes

Runway 07/25

10002 ft. x 150 ft.
ASPH CONC
Good
GRVD
HIGH
85 /R/B/W/T
100,000lbs
190,000lbs
360,000lbs
850,000lbs
  Runway 07 Runway 25
True Heading 65°245°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 42° 11' 25"N 42° 12' 06"N
Longitude 89° 07' 12"W 89° 05' 11"W
Elevation 742' 736'
Threshold Crossing Height 69 ft. AGL 75 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4R P4L
Approach Lights ALSF2
Centerline Lights Yes Yes
Runway End Identifier Lights Yes
A110-1ARFF INDEX E EQUIP AVBL WITH 1 HR PPR CALL 815-969-4011
A110-2BIRDS & DEER ON & INVOF ARPT.
A110-4TRIPLE-TANDEM TRT550 RY 07/25 & TRT590 RY 01/19.
A110-5US CUSTOMS OFFICE RQR 2 HR ADVANCE NOTICE DURING BUSINESS HRS MON-FRI 0830-1700.
CHICAGO/ROCKFORD INTL (ICAO: KRFD, IATA: RFD) is a public airport located in CHICAGO/ROCKFORD, IL.
