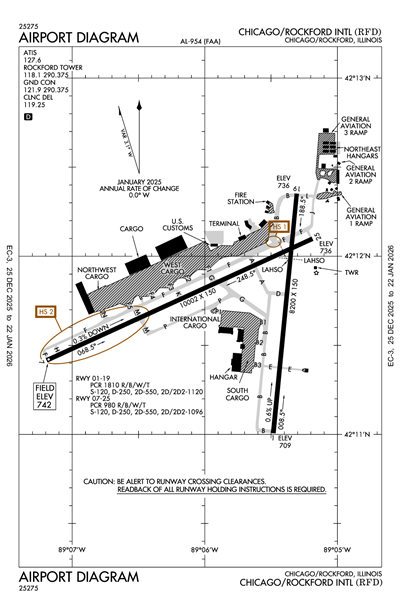

CHICAGO/ROCKFORD INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KRFD
ICAO KRFDIATA RFDLocal RFD
CHICAGO/ROCKFORD INTL
PublicPUB

68 miles NW of CHICAGO/ROCKFORD, IL, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
42° 11' 43"N 89° 05' 50"W
Elevation
742' MSL
Pattern Alt
1742' MSL
Mag Variation
3°W
Declination
3°W
Fuel
JET A, JET A-1+, 100LL
FSS
KANKAKEE (IKK)
Sectional
CHICAGO
ARTCC
CHICAGO (ZAU)
Data Effective
2/19/26-3/19/26
KRFD VFR
10:54 PM CST
Scattered 25,000'
Few 7,500'
10sm
57°F
56°F
29.77"Hg
130° 8kts
AO2 SLP082 T01390133 $
METAR KRFD 070454Z 13008KT 10SM FEW075 SCT250 14/13 A2977 RMK AO2 SLP082 T01390133 $
+ Add Your Business

KRFD FBOs

Promote Listing
Chronos Aviation
UNICOM: 122.95
Phone: (203) 671-5499
No Rating Available
0 Reviews (Read | Sign In To Write)
Promote Listing
Emery Air
UNICOM: 132.0
Phone: (815) 968-8287
No Rating Available
0 Reviews (Read | Sign In To Write)
World Fuel
As of 2/24
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 5.99 6.17 6.17

KRFD Aircraft Service & Maintenance

Promote Listing
Avionics Place
Phone: (815) 229-5360
Fax: (815) 229-0308
No Rating Available
0 Reviews (Read | Sign In To Write)

KRFD Other Aviation Services

Promote Listing
Code 1 Aviation LLC
Phone: (815) 315-9715
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 127.6
ASOS (224) 634-4737

Common

UNICOM 122.95

Clearance

Clearance Delivery 119.25

Ground

ROCKFORD GROUND 121.9

Tower

ROCKFORD TOWER 118.1

Terminal

TRSA 121.0
EAST
TRSA 126.0
WEST

Approach

ROCKFORD APPROACH 121.0
Initial Contact - EAST
ROCKFORD APPROACH 126.0
WEST

Departure

ROCKFORD DEPARTURE 121.0
Initial Contact - EAST
ROCKFORD DEPARTURE 126.0
WEST

Flight Service

Flight Service 122.5
(IKK)

Emergency

Emergency 121.5

Terminal Area Forecast

KRFD
Fri, 3/6 11:20 PM CST
Sat, 3/7 12:00 AM CST - Sun, 3/8 12:00 AM CST
VFR
12:00 AM CST - 1:00 AM CST
Broken 8,000'
6sm
180° 12kts
MVFR
1:00 AM CST - 5:00 AM CST
Light Showers and Rain
Broken 2,000'
Scattered 600'
6sm
210° 14kts
Gusts 23kts
IFR
Temporary 2:00 AM CST - 4:00 AM CST
Light Thunderstorm and Rain
Broken 1,500'
2sm
Calm
MVFR
5:00 AM CST - 10:00 AM CST
Light Drizzle and Mist
Broken 1,500'
Scattered 500'
6sm
240° 17kts
Gusts 26kts
MVFR
10:00 AM CST - 9:00 PM CST
Broken 2,000'
6sm
290° 15kts
Gusts 25kts
VFR
9:00 PM CST - 12:00 AM CST
Scattered 20,000'
6sm
270° 10kts
TAF KRFD 070520Z 0706/0806 18012KT P6SM BKN080 WS020/21050KT
   FM070700 21014G23KT 6SM -SHRA SCT006 BKN020
   TEMPO 0708/0710 2SM -TSRA BKN015CB
   FM071100 24017G26KT 6SM -DZ BR SCT005 BKN015
   FM071600 29015G25KT P6SM BKN020
   FM080300 27010KT P6SM SCT200
KRFD
EffectiveExpiresCategoryNOTAM
Domestic
3/9/26
1200Z
3/9/26
2130Z
!RFD 03/017 RFD SVC TAR/SSR U/S 2603091200-2603092130
3/7/26
0329Z
4/30/26
2300Z
!RFD 03/035 RFD TWY M HLDG PSN SIGN BTN RWY 07/25 AND TWY P LGT U/S 2603070329-2604302300
3/7/26
0327Z
4/30/26
2300Z
!RFD 03/034 RFD TWY G IN PAVEMENT RWY GUARD LGT BTN RWY 07/25 AND TWY F NOT STD 2603070327-2604302300
3/7/26
0118Z
3/8/26
0118Z
Runway!RFD 03/033 RFD RWY 25 FICON 5/5/5 100 PCT WET OBS AT 2603070118. 2603070118-2603080118
3/6/26
2224Z
3/7/26
2224Z
Runway!RFD 03/030 RFD RWY 19 FICON 5/5/5 100 PCT WET OBS AT 2603062224. 2603062224-2603072224
3/6/26
1515Z
3/27/26
2359Z
!RFD 03/023 RFD TWY M ELEVATED RWY GUARD LGT BTN TWY P AND RWY 07/25 NOT STD 2603061515-2603272359
2/26/26
2017Z
3/31/26
2359Z
!RFD 02/103 RFD TWY G ELEVATED RWY GUARD LGT BTN RWY 07/25 AND TWY F NOT STD 2602262017-2603312359
2/26/26
1700Z
8/28/26
2359Z
!RFD 02/101 RFD TWY F SHOULDER MARKINGS BTN TWY F1 AND TWY G NOT STD 2602261700-2608282359
2/25/26
0608Z
4/12/26
1042Z
!RFD 02/091 RFD OBST POWER LINE LGT (ASN 2016-AGL-8983-OE) 421226N0890418W (1.3NM ENE RFD) 821FT (57FT AGL) U/S 2602250608-2604121042
2/14/26
0038Z
5/31/26
2359Z
!RFD 02/055 RFD APRON WEST CARGO RAMP E NONMOVEMENT AREA BDRY MARKINGS FADED 2602140038-2605312359
2/13/26
2113Z
8/28/26
2359Z
!RFD 02/054 RFD TWY P1 SAFETY AREA IRREGULAR SFC WEST SIDE
2602132113-2608282359
2/13/26
2109Z
8/28/26
2359Z
!RFD 02/053 RFD TWY P SAFETY AREA BTN TWY G AND TWY P1 IRREGULAR SFC NORTH SIDE 2602132109-2608282359
2/13/26
2051Z
8/28/26
2359Z
!RFD 02/052 RFD TWY M HLDG PSN MARKINGS BTN TWY F AND RWY 07/25 FADED 2602132051-2608282359
2/13/26
0620Z
3/30/26
0640Z
!RFD 02/049 RFD OBST POWER LINE LGT (ASN 2016-AGL-8989-OE) 421157N0890418W (1NM E RFD) 829FT (89FT AGL) U/S 2602130620-2603300640
2/10/26
0937Z
3/28/26
0609Z
!RFD 02/043 RFD OBST POWER LINE LGT (ASN 2016-AGL-8993-OE) 421139N0890413W (1.2NM E RFD) 845FT (89FT AGL) U/S 2602100937-2603280609
2/5/26
1347Z
8/28/26
2359Z
Runway!RFD 02/032 RFD RWY 07/25 SAFETY AREA BTN TWY K AND M NOT STD N EDGE RUTS 2602051347-2608282359
1/15/26
2057Z
3/27/26
2359Z
Runway!RFD 01/088 RFD RWY 25 PAPI U/S 2601152057-2603272359
12/31/25
1823Z
12/31/26
2359Z
!RFD 12/286 RFD AD AP BIRD ACT 2512311823-2612312359
12/25/25
0439Z
5/31/26
2359Z
!RFD 12/229 RFD TWY F EDGE MARKINGS BTN TWY F1 AND TWY F2 NOT STD 2512250439-2605312359
11/27/25
1439Z
10/30/26
2359Z
!RFD 11/106 RFD AD AP ALL RWY SAFETY AREA NOT STD 2511271439-2610302359
10/18/25
1954Z
5/29/26
2359Z
!RFD 10/060 RFD TWY J CL MARKINGS BTN GA 2 RAMP AND TWY L FADED 2510181954-2605292359
9/17/25
2145Z
!RFD 09/059 RFD NAV ILS RWY 07 IM U/S 2509172145-2609182111EST
FDC
3/25/25
1451Z
!FDC 5/7398 RFD IAP CHICAGO/ROCKFORD INTL, CHICAGO/ROCKFORD, IL.
RADAR-1, AMDT 11...
S-25 MDA 1260/HAT 524 ALL CATS, VIS CAT C/D 1 1/2.
2503251451-2703251451EST
3/19/25
1447Z
!FDC 5/5077 RFD IAP CHICAGO/ROCKFORD INTL, CHICAGO/ROCKFORD, IL.
RNAV (GPS) RWY 7, AMDT 1E...
LNAV/VNAV DA 1172/ HAT 431 ALL CATS.
2503191447-2703191447EST
2/12/25
1424Z
!FDC 5/2245 RFD IAP CHICAGO/ROCKFORD INTL, CHICAGO/ROCKFORD, IL.
RNAV (GPS) RWY 25, AMDT 1C...
LNAV/VNAV DA 1259/HAT 523 ALL CATS, VIS 1 1/2 ALL CATS.
2502121424-2702151424EST
3/14/24
1730Z
!FDC 4/7358 RFD IAP CHICAGO/ROCKFORD INTL, CHICAGO/ROCKFORD, IL.
RNAV (GPS) RWY 25, AMDT 1C...
LNAV CAT C/D VISIBILITY 1 1/4 SM.
2403141730-2610241730EST
Yes
ALL
GREATER ROCKFORD ARPT. AUTH.
60 ARPT DRIVE
ROCKFORD, IL 61109
Phone: 815-969-4011
ZACHARY OAKLEY
60 AIRPORT DR
ROCKFORD, IL 61109
Phone: 815-965-4011
KANKAKEE FSS (IKK)
Toll Free: 1-800-WX-BRIEF
RFD
--
--
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
Major
Major
High Pressure
High Pressure
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental

Runway 01/19

8200 ft. x 150 ft.
ASPH CONC
Good
GRVD
HIGH

120,000lbs
250,000lbs
550,000lbs
1,120,000lbs
  Runway 01 Runway 19
True Heading 5°185°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 42° 11' 00"N 42° 12' 21"N
Longitude 89° 05' 29"W 89° 05' 19"W
Elevation 709' 736'
Threshold Crossing Height -- 75 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- P4L
Approach Lights MALSR
Centerline Lights Yes Yes
Runway End Identifier Lights Yes

Runway 07/25

10002 ft. x 150 ft.
ASPH CONC
Good
GRVD
HIGH

120,000lbs
250,000lbs
550,000lbs
1,096,000lbs
  Runway 07 Runway 25
True Heading 65°245°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 42° 11' 25"N 42° 12' 06"N
Longitude 89° 07' 12"W 89° 05' 11"W
Elevation 742' 736'
Threshold Crossing Height 69 ft. AGL 75 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4R P4L
Approach Lights ALSF2
Centerline Lights Yes Yes
Runway End Identifier Lights Yes
A110-1ARFF INDEX E EQUIP AVBL WITH 1 HR PPR CALL 815-969-4011
A110-2BIRDS & DEER ON & INVOF ARPT.
A110-4TRIPLE-TANDEM TRT550 RY 07/25 & TRT590 RY 01/19.
A110-5US CUSTOMS OFFICE RQR 2 HR ADVANCE NOTICE DURING BUSINESS HRS MON-FRI 0830-1700.
A33-07/25_SURFCONC PORTION GOOD CONDITION.
A39-01/19PCR VALUE: 1810/R/B/W/T
A39-07/25PCR VALUE: 980/R/B/W/T
CHICAGO/ROCKFORD INTL (ICAO: KRFD, IATA: RFD) is a public airport located in CHICAGO/ROCKFORD, IL, US.
