iFlightPlanner



...

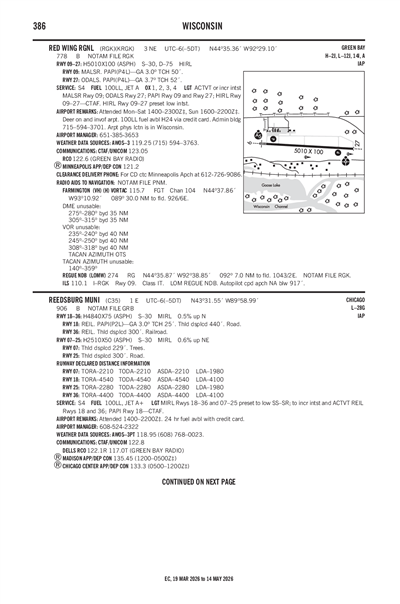

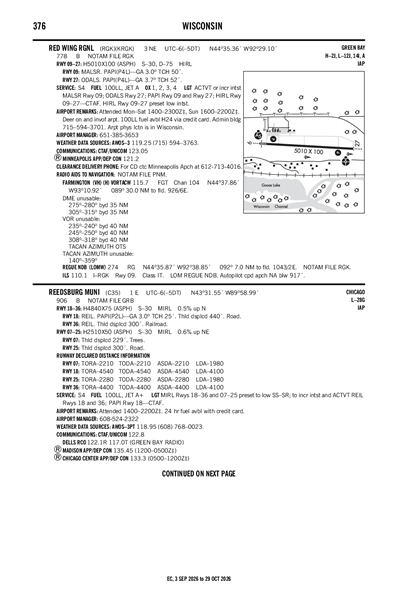

RED WING RGNL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KRGK
RED WING RGNL
PublicPUB

3 miles NE of RED WING, MN
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
44° 35' 22"N 92° 29' 06"W
778' MSL
1778' MSL
02° E (1995)
Jet A, 100LL
GREEN BAY (GRB)
GREEN BAY
MINNEAPOLIS (ZMP)
9/10/20-10/8/20
KRGK VFR
10:15 AM CDT
Scattered 3,000'
10sm
55°F
45°F
29.72"Hg
320° 12kts
Gusts 21kts
AO2
KRGK 301515Z AUTO 32012G21KT 10SM SCT030 13/07 A2972 RMK AO2
List Your Business

KRGK FBOs, Flight Schools and Ground Support

Claim Listing
Blue Airways
Freq: 123.050
Phone: (715) 594-3999
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
Fuel as of 9/21 100LL SS$4.25 100LL FS-- Jet A-- Jet A+$3.53 MoGas--

KRGK Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KRGK Hotels

No hotels are listed for this airport.

KRGK Restaurants

No restaurants are listed for this airport.

KRGK Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.050 123.05

AWOS-3

AWOS-3
715-594-3763
 119.250

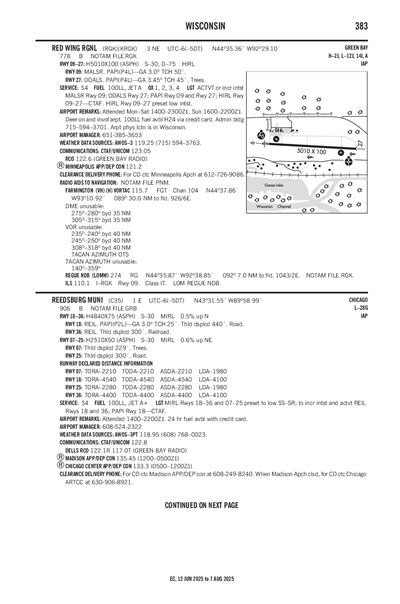

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KRNH (34nm)
Wed, 9/30 7:05 AM CDT
Wed, 9/30 7:00 AM CDT - Thu, 10/1 7:00 AM CDT
MVFR
7:00 AM CDT - 10:00 AM CDT
Light Rain and Mist
Overcast 2,800'
Broken 1,900'
Scattered 800'
6sm
N/A
330° 11kts
Gusts 19kts
VFR
10:00 AM CDT - 4:00 PM CDT
Broken 3,000'
> 6sm
N/A
320° 12kts
Gusts 20kts
VFR
4:00 PM CDT - 7:00 PM CDT
Broken 5,000'
> 6sm
N/A
300° 17kts
Gusts 27kts
VFR
4:00 PM CDT - 7:00 PM CDT
Light Showers and Rain
Overcast 5,000'
> 6sm
N/A
Calm
VFR
7:00 PM CDT - 12:00 AM CDT
Overcast 5,000'
> 6sm
N/A
300° 12kts
Gusts 20kts
MVFR
12:00 AM CDT - 2:00 AM CDT
Overcast 2,500'
> 6sm
N/A
310° 10kts
MVFR
2:00 AM CDT - 4:00 AM CDT
Light Showers and Rain
Overcast 1,500'
> 6sm
N/A
Calm
MVFR
2:00 AM CDT - 7:00 AM CDT
Overcast 1,500'
> 6sm
N/A
310° 7kts
KRNH 301205Z 3012/0112 33011G19KT 6SM -RA BR SCT008 BKN019 OVC028
   FM301500 32012G20KT P6SM BKN030
   FM302100 30017G27KT P6SM BKN050
   PROB30 3021/3024 P6SM -SHRA OVC050
   FM010000 30012G20KT P6SM OVC050
   FM010500 31010KT P6SM OVC025
   FM010700 31007KT P6SM OVC015
   PROB30 0107/0109 P6SM -SHRA OVC015
KRGK NOTAMs
Domestic
9/5/201540Z !RGK 09/001 RGK OBST TOWER LGT (ASR 1200071) 442125.00N0920551.00W (21.7NM SE RGK) 1414.7FT (244.8FT AGL) U/S 2009051540-2010042355
8/25/202154Z !RGK 08/013 RGK OBST TOWER LGT (ASR 1024929) 443726.00N0923813.00W (6.8NM WNW RGK) 1055.8FT (359.9FT AGL) U/S 2008252154-2012312359
FDC
7/23/201929Z !FDC 0/4194 RGK IAP RED WING RGNL, RED WING, MN.
ILS OR LOC RWY 9, AMDT 1A...
CIRCLING CAT B MDA 1540/HAA 762, CAT C MDA 1640/HAA 862, CAT D MDA
1780/HAA 1002. CIRCLING VISIBILITY CAT C 2 1/2, CAT D 3. CHANGE
NOTE TO READ:WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE SOUTH
ST. PAUL ALTIMETER SETTING; INCREASE S-ILS 9 DA TO 1050 FEET AND
ALL MDA 80 FEET; INCREASE S-LOC 9 CATS C/D VISIBILITY 1/8 SM, AND
CIRCLING CATS A/C VISIBILITY 1/4 SM.
2007231929-2207311929EST
7/23/201929Z !FDC 0/4193 RGK IAP RED WING RGNL, RED WING, MN.
RNAV (GPS) RWY 27, AMDT 2C...
CIRCLING CAT B MDA 1540/HAA 762, CAT C MDA 1640/HAA 862. CIRCLING
VISIBILITY CAT C 2 1/2. ALTERNATE MINIMUMS: STANDARD EXCEPT CAT C
900-2 1/2.
2007231929-2207311929EST
7/23/201929Z !FDC 0/4192 RGK IAP RED WING RGNL, RED WING, MN.
RNAV (GPS) RWY 9, AMDT 1A...
CIRCLING CAT B MDA 1540/HAA 762, CAT C MDA 1640/HAA 862, CAT D MDA
1780/HAA 1002. CIRCLING VISIBILITY CAT C 2 1/2, CAT D 3. CHANGE
NOTE TO READ: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE SOUTH
ST. PAUL ALTIMETER SETTING; INCREASE LPV DA TO 1050 FEET, LNAV/VNAV
DA TO 1232 FEET AND ALL MDA 80 FEET; INCREASE LNAV/VNAV VISIBILITY
3/8 SM ALL CATS, LNAV VISIBILITY CATS B/C/D AND CIRCLING
VISIBILITY CATS B/C 1/4 SM. ALTERNATE MINIMUMS: STANDARD EXCEPT CAT
C 900-2 1/2, CAT D 1100-3.
2007231929-2207311929EST
No
MON-SAT 0800-1700
SUN 1000-1600
CITY OF RED WING
PUBLIC WORKS, 229 TYLER ROAD NORTH, 229 TYLER ROAD NORTH
RED WING, MN 55066
Phone: (651) 385-3674
RICK MOSKWA
229 TYLER ROAD NORTH
RED WING, MN 55066
Phone: 651-385-3653
GREEN BAY FSS (GRB)
Toll Free: 1-800-WX-BRIEF
RGK
--
HIRL RY 09 & 27 PRESET LOW INTST TO INCR INTST AND ACTVT MALSR RY 09, ODALS RY 27, PAPI RYS 09 & 27 - CTAF.
Clear-Green
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
30
2
15
0
0
0
Major
Major
High & Low Pressure
High & Low Pressure
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 09/27

5010 ft. x 100 ft.
ASPH
Good

HIGH

30000 lbs
75000 lbs
0 lbs
0 lbs
  Runway 09 Runway 27
Runway Heading 93° 273°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition FAIR GOOD
Latitude 44° 35' 23"N 44° 35' 20"N
Longitude 92° 29' 40"W 92° 28' 31"W
Elevation 777.8 ft. 776.7 ft.
Threshold Crossing Height 50 ft. AGL 45 ft. AGL
Visual Glide Path Angle 3° 3.45°
Visual Slope Indicator P4L P4L
Approach Lights MALSR ODALS
Centerline Lights
Runway End Identifier Lights No No
A110-1ARPT ADMINISTRATION BLDG TELEPHONE 715-594-3701.
A110-2RED WING RGNL IS PHYSICALLY LCTD IN WISCONSIN.
A110-4CAUTION: DEER ON & INVOF AIRPORT.
A110-5FOR CD CTC MINNEAPOLIS APCH AT 612-726-9086.

View hangar and property listings at KRGK, provided by our partner Hangar Network.

No Hangar Network listings are currently available for this airport.

RED WING RGNL (ICAO: KRGK, IATA: RGK) is a public airport located in RED WING, MN.
