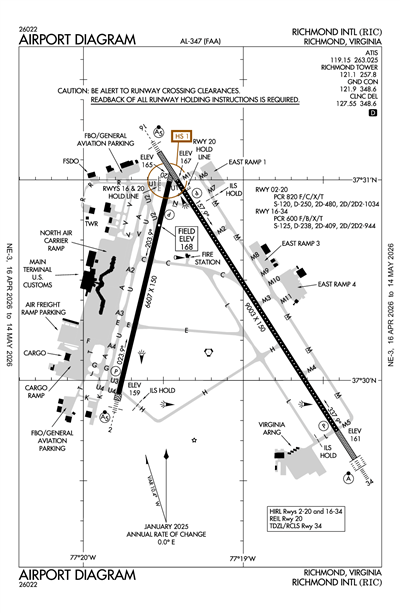

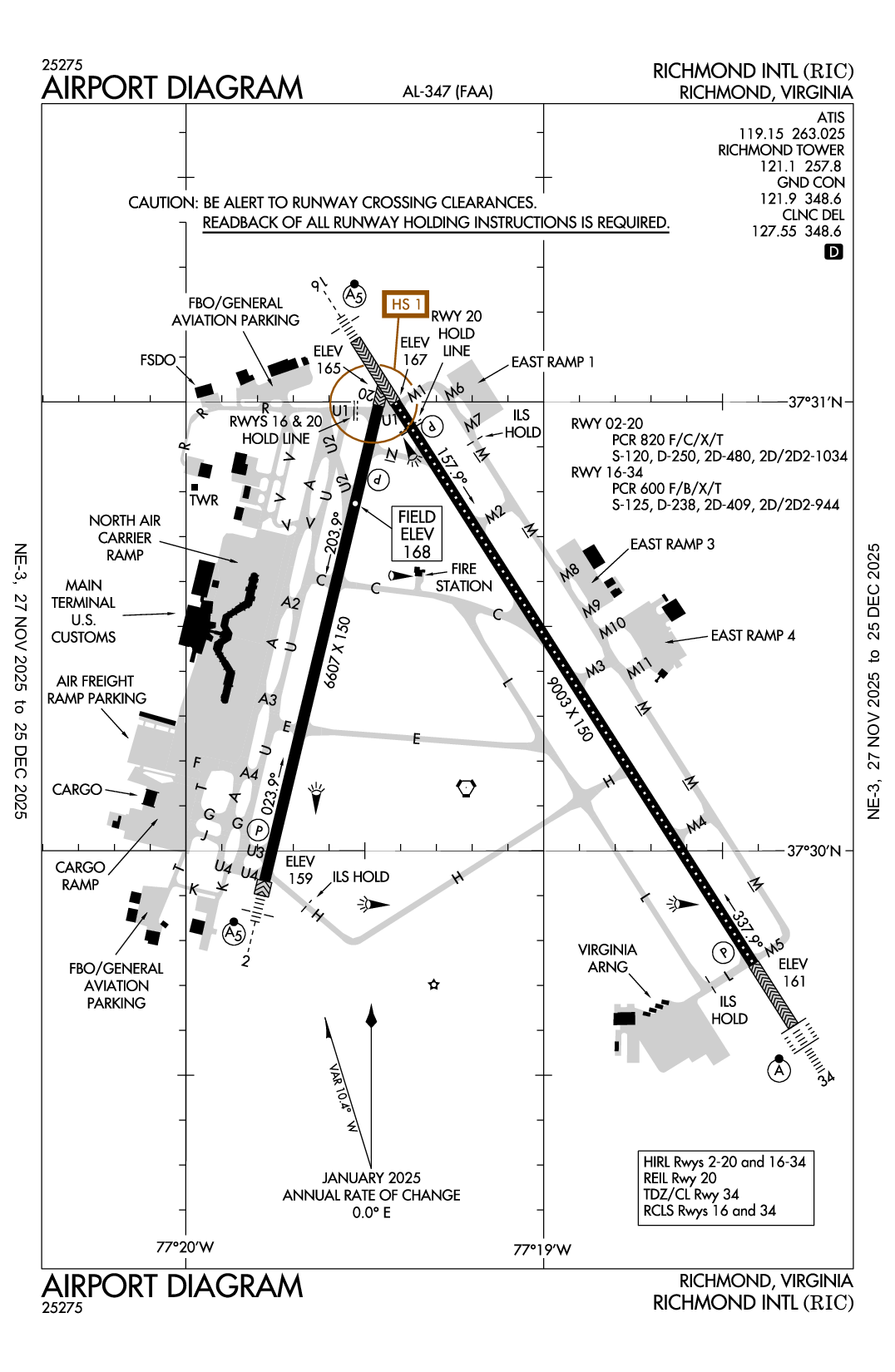

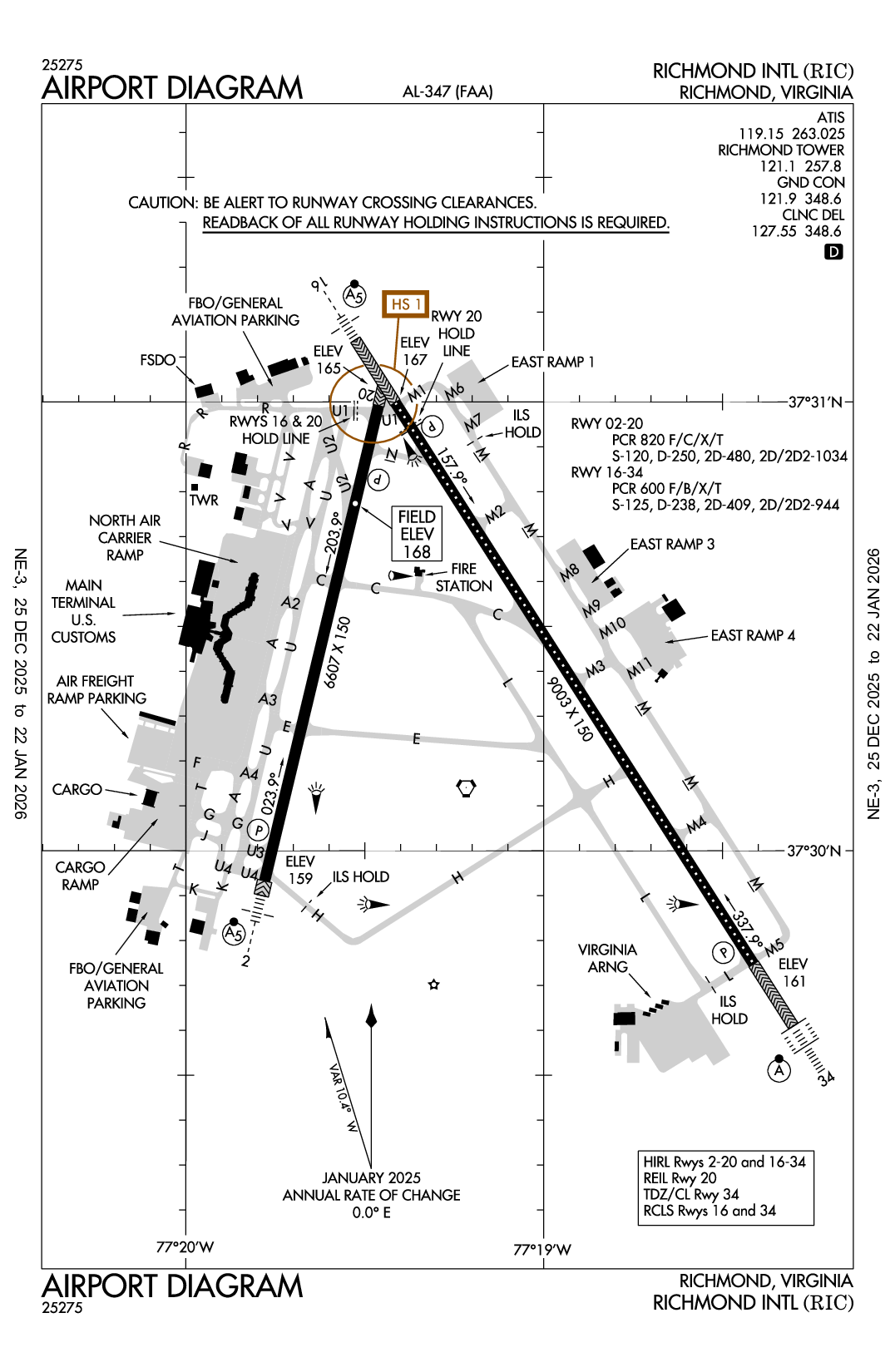

RICHMOND INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KRIC
RICHMOND INTL
PublicPUB

37° 30' 19"N 77° 19' 11"W
6 miles E of RICHMOND, VA
LiveATC.net: Live Air Traffic - From Their Headsets to You
KRIC VFR
8:54 Z
Clear
10sm
45°F
30°F
29.84"Hg
Calm
AO2 SLP109 T00721011 56007
KRIC 030854Z 00000KT 10SM CLR 07/M01 A2984 RMK AO2 SLP109 T00721011 56007
Operational
168' MSL
1168' MSL
10° W (2020)
Jet A, 100LL
LEESBURG (DCA)
WASHINGTON
ZDC - WASHINGTON
3/26/20-5/21/20

Terminal Area Forecast

KRIC
5:20 Z
Fri, 4/3, 06:00 Z - Sat, 4/4, 06:00 Z
VFR
6:00 - 14:00 Z
Sky Clear
> 6sm
N/A
320° 9kts
VFR
14:00 - 21:00 Z
Sky Clear
> 6sm
N/A
320° 16kts
Gusts 27kts
VFR
21:00 - 0:00 Z
Scattered 6,000'
> 6sm
N/A
340° 14kts
Gusts 23kts
VFR
0:00 - 6:00 Z
Scattered 6,000'
> 6sm
N/A
350° 9kts
KRIC 030520Z 0306/0406 32009KT P6SM SKC
   FM031400 32016G27KT P6SM SKC
   FM032100 34014G23KT P6SM SCT060
   FM040000 35009KT P6SM SCT060
KRIC NOTAMs
Domestic
4/3/201300Z !RIC 04/004 RIC TWY C BTN RWY 02/20 AND RWY 16/34 CLSD 2004031300-2004031500
4/3/200327Z !RIC 04/003 RIC TWY L BTN TWY C AND TWY E CLSD BARRICADED 2004030327-2004102100
3/30/201138Z !RIC 03/028 RIC NAV TACAN U/S 2003301138-2004242000EST
3/17/200050Z !RIC 03/015 RIC OBST TOWER LGT (ASR 1017215) 373401.00N0772835.00W (8.2NM WNW RIC) 1046.6FT (843.2FT AGL) U/S 2003170050-2004072359
3/2/201400Z !RIC 02/093 RIC RWY 07/25 CLSD 2003021400-PERM
3/2/201400Z !RIC 02/085 RIC TWY M4, M5, TWY M BTN TWY M5 AND TWY M11 CLSD 2003021400-2004172100
3/2/201400Z !RIC 02/084 RIC TWY L BTN TWY E AND APCH END RWY 34 CLSD 2003021400-2004172100
3/2/201400Z !RIC 02/083 RIC RWY 16/34 CLSD EXC TAX BTN TWY N AND TWY M3 AND XNG TWY M1 2003021400-2004172100
3/2/201200Z !RIC 02/071 RIC AD AP RVR ALL U/S 2003021200-2004172000
3/2/201200Z !RIC 02/070 RIC RWY 16 PAPI U/S 2003021200-2004172000
3/2/201200Z !RIC 02/069 RIC RWY 34 PAPI U/S 2003021200-2004172000
3/2/201200Z !RIC 02/068 RIC RWY 34 ALS U/S 2003021200-2004172000
3/2/201200Z !RIC 02/067 RIC RWY 16 ALS U/S 2003021200-2004172000
3/2/201200Z !RIC 02/066 RIC NAV ILS RWY 34 LOC/GP/IM/OM U/S 2003021200-2004172000
3/2/201200Z !RIC 02/065 RIC NAV ILS RWY 16 LOC/GP U/S 2003021200-2004172000
2/27/202230Z !RIC 02/094 RIC TWY H CLSD BARRICADED 2002272230-2006302300
2/20/201100Z !RIC 02/045 RIC COM REMOTE COM OUTLET 122.4 U/S 2002201100-PERM
2/20/201100Z !RIC 02/044 RIC COM VOR VOICE U/S 2002201100-PERM
12/18/192052Z !RIC 12/064 RIC OBST BLDG LGT (ASN UNKNOWN) 373216N0772618W (5.9NM WNW RIC) 399FT (303FT AGL) U/S 1912182052-2005312359
4/2/191823Z !RIC 04/005 RIC APRON AIR CARRIER RAMP WIP CONST ADJ GATE A5, A8, A8A, A8B, A8C LGTD AND BARRICADED 1904021823-2112312200
3/21/191100Z !RIC 03/072 RIC OBST CRANE (ASN 2019-AEA-41-OE) 373232N0772548W (5.6NM WNW RIC) 504FT (350FT AGL) FLAGGED AND LGTD 1903211100-2006072359
3/1/191300Z !RIC 02/092 RIC APRON NORTH AIR CARRIER RAMP CLSD TO NON SKED AIR CARRIER ACFT 1903011300-2009302300
FDC
3/26/201105Z !FDC 0/0996 RIC IAP RICHMOND INTL, RICHMOND, VA.
ILS OR LOC RWY 2, AMDT 2B...
ILS OR LOC RWY 34, AMDT 14A...
RNAV (GPS) Z RWY 2, AMDT 1C...
RNAV (GPS) Z RWY 34, AMDT 1E...
VOR RWY 2, AMDT 6A...
VOR RWY 34, AMDT 23B...
CIRCLING CATS A/B/C MDA 720/HAA 552.
EXCEPT WHEN ADVISED BY ATC THAT THIS CRANE IS DOWN.
TEMPORARY CRANE 360FT MSL 1.87 NM NORTHWEST OF RIC AIRPORT
(2020-AEA-2046-OE).
2003261105-2009141105EST
3/26/201105Z !FDC 0/0995 RIC IAP RICHMOND INTL, RICHMOND, VA.
ILS OR LOC RWY 16, AMDT 9B...
GORDD FIX MINIMUMS: CIRCLING CATS A/B/C MDA 720/HAA 552.
EXCEPT WHEN ADVISED BY ATC THAT THIS CRANE IS DOWN.
TEMPORARY CRANE 360FT MSL 1.17NM NORTH OF RWY 16
(2020-AEA-2046-OE).
2003261105-2009141105EST
3/26/201105Z !FDC 0/0994 RIC ODP RICHMOND INTL, RICHMOND, VA.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 3...
300-1 3/8 OR STANDARD WITH MINIMUM CLIMB OF 293FT PER NM TO 500.
EXCEPT WHEN ADVISED BY ATC THAT THIS CRANE IS DOWN.
TEMPORARY CRANE 360FT MSL 1.17NM NORTH OF RWY 16
(2020-AEA-2046-OE).
ALL OTHER DATA REMAINS AS PUBLISHED. 2003261105-2009141105EST
3/26/201105Z !FDC 0/0993 RIC IAP RICHMOND INTL, RICHMOND, VA.
VOR RWY 20, AMDT 1C...
S-20 MDA 660/HAT 493 ALL CATS. VISIBILITY CATS C/D 1 3/8.
VDP AT RIC 2.29 DME.
CIRCLING CATS A/B/C MDA 720/HAA 553.
TEMPORARY CRANE 360FT MSL 1.17NM NORTH OF RWY 16
(2020-AEA-2046-OE).
2003261105-2009141105EST
3/26/201105Z !FDC 0/0992 RIC IAP RICHMOND INTL, RICHMOND, VA.
VOR RWY 16, AMDT 27C...
S-16 MDA 660/HAT 493 ALL CATS, VISIBILITY CAT C RVR 5000.
CIRCLING CATS A/B/C MDA 720/HAA 553.
FOR INOPERATIVE MALSR, INCREASE S-16 CAT A/B VISIBILITY TO RVR 5000
AND CAT C/D VISIBILITY TO 1 3/8 SM.
TEMPORARY CRANE 360FT MSL 1.17NM NORTH OF RWY 16
(2020-AEA-2046-OE).
TEMPORARY CRANE 345FT MSL 1.51 NM NORTHWEST OF RIC AIRPORT
(2019-AEA-11169-OE).
2003261105-2009141105EST
3/26/201105Z !FDC 0/0991 RIC IAP RICHMOND INTL, RICHMOND, VA.
RNAV (GPS) Z RWY 20, AMDT 2C...
LNAV/VNAV DA 713/HAT 545 ALL CATS. VISIBILITY ALL CATS 1 5/8.
CIRCLING CATS A/B/C MDA 720/HAA 552.
EXCEPT WHEN ADVISED BY ATC THAT THIS CRANE IS DOWN.
TEMPORARY CRANE 360FT MSL 1.17NM NORTH OF RWY 16
(2020-AEA-2046-OE).
2003261105-2009141105EST
3/26/201105Z !FDC 0/0990 RIC IAP RICHMOND INTL, RICHMOND, VA.
RNAV (GPS) Z RWY 16, AMDT 1D...
LNAV/VNAV DA 710/HAT 543 ALL CATS, VISIBILITY ALL CATS RVR 6000.
LNAV MDA 660/ HAT 493 ALL CATS. VISIBILITY CATS C/D RVR 5000.
FOR INOPERATIVE ALS, INCREASE LNAV CATS C/D VISIBILITY TO 1 3/8 SM.
CIRCLING CATS A/B/C MDA 720/ HAA 552.
TEMPORARY CRANE 360FT MSL 1.17NM NORTH OF RWY 16
(2020-AEA-2046-OE).
TEMPORARY CRANE 345FT MSL 1.51 NM NORTHWEST OF RIC AIRPORT
(2019-AEA-11169-OE).
2003261105-2009141105EST
3/26/201105Z !FDC 0/0989 RIC IAP RICHMOND INTL, RICHMOND, VA.
RNAV (RNP) Y RWY 20, ORIG-C...
RNP 0.11 DA 604/HAT 436 ALL CATS, VISIBILITY ALL CATS 1 1/4.
RNP 0.30 DA 704/HAT 536 ALL CATS. VISIBILITY ALL CATS 1 3/8.
TEMPORARY CRANE 360FT MSL 1.17NM NORTH OF RWY 16
(2020-AEA-2046-OE).
TEMPORARY CRANE 345FT MSL 1.51 NM NORTHWEST OF RIC AIRPORT
(2019-AEA-11169-OE).
2003261105-2009141105EST
3/26/201105Z !FDC 0/0988 RIC IAP RICHMOND INTL, RICHMOND, VA.
RNAV (RNP) Y RWY 16, ORIG-C...
RNP 0.11 DA 607/HAT 440 ALL CATS.
RNP 0.30 DA 693/HAT 526. VISIBILITY ALL CATS RVR 5500.
FOR INOPERATIVE ALS, INCREASE RNP 0.11 ALL CATS VISIBILITY TO RVR
5500 AND RNP 0.30 ALL CATS VISIBILITY TO 1 3/8 SM.
TEMPORARY CRANE 360FT MSL 1.17NM NORTH OF RWY 16
(2020-AEA-2046-OE).
TEMPORARY CRANE 345FT MSL 1.51 NM NORTHWEST OF RIC AIRPORT
(2019-AEA-11169-OE).
2003261105-2009141105EST
3/4/201657Z !FDC 0/2803 RIC IAP RICHMOND INTL, RICHMOND, VA.
VOR RWY 20, AMDT 1B...
DELETE PLANVIEW NOTE: RADAR REQUIRED. DELETE NOTE: DME OR RADAR
REQUIRED. EQUIPMENT REQUIREMENTS NOTE: DME OR RADAR REQUIRED.
EQUIPMENT REQUIREMENTS NOTE: RADAR REQUIRED FOR PROCEDURE ENTRY.
CHART CIRCLING ICON. S-20 HAT 472 ALL CATS. CIRCLING CAT A/B HAA
492, CAT C MDA 700/HAA 532. CAT D MDA 720/HAA 552. DELETE TDZE 167,
CHART TDZE 168. DELETE APT ELEV 167, CHART APT ELEV 168.
THIS IS VOR RWY 20, AMDT 1C. 2003041657-PERM
7/22/191215Z !FDC 9/5573 RIC IAP RICHMOND INTL, Richmond, VA.
ILS OR LOC RWY 34, AMDT 14A...
ILS RWY 34 (SA CAT I), AMDT 14A... ILS RWY 34 (CAT II AND III),
AMDT 14A...
PROFILE NOTE: VGSI AND ILS GLIDEPATH NOT COINCIDENT (VGSI ANGLE
{3.00}/TCH {79}).
1907221215-2107221215EST
3/11/192141Z !FDC 9/5353 RIC IAP RICHMOND INTL, Richmond, VA.
ILS OR LOC RWY 2, AMDT 2B...
S-LOC 2: MDA 560/HAT 399 ALL CATS.
1903112141-2103112141EST
Yes
ALL
CAPITAL REGION ARPT COMM.
1 RICHARD E BYRD TERMINAL DR
RICHMOND, VA 23250
Phone: 804-226-3000
PERRY J. MILLER
1 RICHARD E BYRD TERMINAL DR
RICHMOND, VA 23250
Phone: (804) 226-3001
LEESBURG FSS (DCA)
Toll Free: 1-800-WX-BRIEF
RIC
Yes - Lighted
No
N/A
Clear-Green
SS-SR
Jet A, 100LL
Landing Rights Airport
NOT an Airport of Entry

Runway 02/20

6607 ft. x 150 ft.
ASPH
Excellent
GRVD
HIGH
70 /F/C/W/T
125000 lbs
200000 lbs
340000 lbs
0 lbs
  Runway 02 Runway 20
Runway Heading 13° 193°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 37° 29' 56"N 37° 30' 59"N
Longitude 77° 19' 47"W 77° 19' 28"W
Elevation 158.6 ft. 165.3 ft.
Threshold Crossing Height 49 ft. AGL 49 ft. AGL
Visual Glide Path Angle
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights No Yes

Runway 16/34

9003 ft. x 150 ft.
ASPH
Good
GRVD
HIGH
92 /F/B/W/T
125000 lbs
200000 lbs
340000 lbs
0 lbs
  Runway 16 Runway 34
Runway Heading 147° 327°
Traffic Pattern Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 37° 30' 60"N 37° 29' 45"N
Longitude 77° 19' 25"W 77° 18' 25"W
Elevation 166.9 ft. 160.5 ft.
Threshold Crossing Height 71 ft. AGL 79 ft. AGL
Visual Glide Path Angle
Visual Slope Indicator P4L P4L
Approach Lights MALSR ALSF2
Centerline Lights Yes Yes
Runway End Identifier Lights

View hangar and property listings at KRIC, provided by our partner Hangar Network.

No Hangar Network listings are currently available for this airport.

A110-1NO PRACTICE LANDINGS 2200-0700.
A110-10AIR CARRIER APRON CLSD TO UNSKED ACFT WEIGHING UNDER 35000 LBS.
A110-13NO EDGE LGTS ON NORTH/SOUTH SECTION OF TWY V - REFLECTORS ONLY.
A110-15TWR 245 FT AGL 2.5 NM NW; UNLGTD.
A110-31TWY T (NORTH OF TWY F) RESTRICTED FM USE BY ACFT WITH WINGSPANS GREATER THAN 118 FT. INTERSECTION REQUIRES JUDGEMENTAL OVERSTEERING.
A110-32TWY A BTN TWY C & TWY E RESTRICTED FM USE BY ACFT WITH WINGSPANS GREATER THAN 171 FT.
A110-33HOLD LINE RY 20 EAST SIDE LCTD ACROSS RY 34 150 FT FM DEP END. HOLD LINE RY 20 WEST SIDE ACROSS TY A & ALSO SERVES AS HOLD LINE FOR RY 16; SIGNAGE INDICATES BOTH RYS.
A110-35FUEL: J8 AT ARNG RAMP ONLY.
A110-36NON-RADIO EQUIPPED VEHICLES CROSSING MIDFIELD TWYS C, E AND H AND DRIVING ON TWY L.
A110-39THE FOLLOWING AREAS ARE NOT VISIBLE FROM THE TOWER: PORTIONS OF THE AIR CARRIER APRON; ARMY NATIONAL GUARD ACFT PARKING RAMP.
A110-4ARNG: OPR 1100-2130Z++ TUE-FRI EXC HOL.
A110-40DUE TO THE CLOSE PROXIMITY TO RY 02/20, TAXIWAY UNIFORM SIGNAGE MAY BE BEHIND ACFT, ONCE CLEAR OF RY 02/20.
A110-41RIC HAS FACILITY CONSTRAINTS THAT LIMIT ITS ABILITY TO ACCOMMODATE DIVERTED FLIGHTS AND STRONGLY ENCOURAGES AIRCRAFT OPERATORS TO CONTACT AIRPORT OPERATIONS AT 804-226-0001 FOR PRIOR COORDINATION OF DIVERTED FLIGHTS, EXCEPT IN THE CASE OF A DECLARED IN-FLIGHT EMERGENCY.
A110-42TWY V BTN TWY A & TWY R RESTRICTED FM USE BY ACFT WITH WINGSPANS GREATER THAN 99 FT.
A110-43TWY J RESTRICTED FROM USE BY ACFT WITH WINGSPANS GREATER THAN 118 FT & WHEEL BASES GREATER THAN 59 FT.
A110-44TWY K RESTRICTED FROM USE BY ACFT WITH WINGSPANS GREATER THAN 118 FT & WHEEL BASES GREATER THAN 59 FT.
A110-45TWY R BTN TWY A & FSDO RAMP RESTRICTED FROM USE BY ACFT WITH WINGSPANS GREATER THAN 118 FT & WHEEL BASES GREATER THAN 59 FT & TWY R WEST OF FSDO RAMP FROM USE BY ACFT WITH WINGSPANS LESS THAN 79 FT.
A110-46TWY T SOUTH OF TWY J RESTRICTED FROM USE BY ACFT WITH WINGSPANS GREATER THAN 118 FT & WHEEL BASES GREATER THAN 59 FT.
A110-48NO TAXIING BTWN PUSHED BACK AFCT AND THE TERMINAL ON THE AIR CARRIER RAMP.
A110-49DUE TO OPERATIONAL CONSTRAINTS AFCT PUSHED BACK FOR DEP PROHIBITED FM HOLDING ON AIR CARRIER RAMPS FOR MORE THAN 5 MINS.
A110-50CONTINUOUS CONSTRUCTION ON APRT; BE ALERT FOR FREQUENT RY &TWY CLOSURES.
A110-51ATC CLNC RQRD FOR PUSHBACKS FROM GATES A6, A8, B5, B7, B9, B11, B13 ONTO TWY A.
A110-52ATC CLNC RQRD FOR PUSHBACK FROM HARDSTANDS C9, C10 AND C12 ONTO TWY T.
A110-53ARPT SFC COND NOT MNTD 0000 TO 0600 LCL TIME.
A110-9BIRD ACTIVITY INVOF ALL RYS & TWYS & INVOF ARPT.

KRIC FBOs, Flight Schools and Ground Support

Richmond Jet Center
UNICOM: 122.950
Phone: (804) 222-7200
No Rating Available
0 Reviews (Read | Sign In To Write)
Shell
Fuel as of 4/1 100LL SS-- 100LL FS$5.14 Jet A$3.31 Jet A+$3.35 MoGas--
Million Air
UNICOM: 122.950
Phone: (804) 222-3700
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
Fuel as of 3/31 100LL SS-- 100LL FS$7.08 Jet A$4.86 Jet A+$4.90 MoGas--

KRIC Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KRIC Hotels

No hotels are listed for this airport.

KRIC Restaurants

No restaurants are listed for this airport.

KRIC Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

RICHMOND INTL (ICAO: KRIC, IATA: RIC) is a public airport located in RICHMOND, VA.
