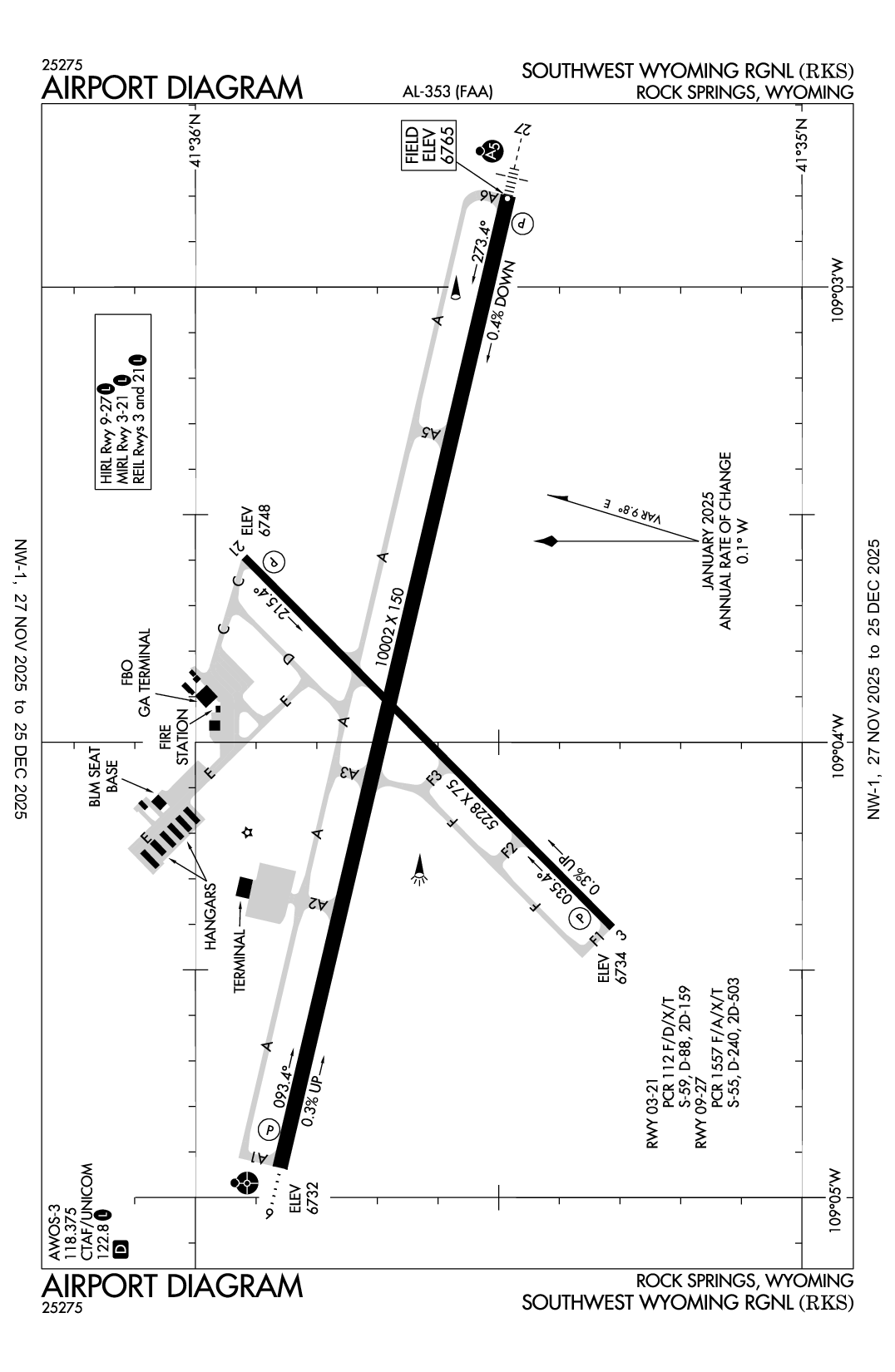

SOUTHWEST WYOMING RGNL - Airport Diagram

KRKS

ICAO KRKSIATA RKSLocal RKS

SOUTHWEST WYOMING RGNL

PublicPUB

7 miles E of ROCK SPRINGS, WY, US

View on Map

Status

Operational

Coordinates

41° 35' 39"N 109° 03' 55"W

Elevation

6765' MSL

Pattern Alt

7765' MSL

Mag Variation

10°E

Declination

13°E

Fuel

JET A-1+, 100LL

FSS

CASPER (CPR)

Sectional

SALT LAKE CITY

ARTCC

SALT LAKE CITY (ZLC)

Data Effective

4/16/26-5/14/26

KRKS VFR

10:54 AM MDT RAW

Clear

Viz

10sm

Temp

44°F

Dew

19°F

Pres

29.85"Hg

Wind

260° 12kts

Gusts 22kts

RMK

AO2 SLP097 T00671072

METAR KRKS 251654Z AUTO 26012G22KT 10SM CLR 07/M07 A2985 RMK AO2 SLP097 T00671072

Add Your Business

KRKS FBOs

Sweetwater Aviation

UNICOM: 122.8

Phone: (307) 352-6880

Other: (307) 352-6888

0 Reviews (Read | Sign In To Write)

Avfuel

As of 4/8	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve
Full Serve	6.88		6.80

Fuel Notes

Prices include tax

Your Information

Business

Weather and Advisory

AWOS-3	118.375
(307) 362-2541

Common

CTAF	122.8
ACTVT MALSR RWY 27; ODALS RWY 09; REIL RWY 03 & 21; HIRL RWY 09/27 & TWY LGTS - CTAF. PAPI RWY 09, 27, 03, 21 OPR CONSLY.
UNICOM	122.8

Center

SALT LAKE CENTER	124.35
LOW/HIGH, APCH/DEP CTL SVC PRVDD BY SALT LAKE ARTCC (ZLC) ON 124.35/353.5 (GREEN RIVER RCAG).

Flight Service

Flight Service	122.2
(CPR), COMMUNICATIONS PRVDD BY CASPER RADIO ON FREQ 122.2 (ROCK SPRINGS RCO).

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

AIRPORT DIAGRAM

Airport Minimums

Instrument Approach

Terminal Area Forecast

KRKS

RAW

Reported

Sat, 4/25 11:20 AM MDT

Valid

Sat, 4/25 12:00 PM MDT - Sun, 4/26 12:00 PM MDT

VFR

12:00 PM MDT - 3:00 PM MDT

Scattered 15,000'

Viz

6sm

Wind

270° 12kts

Gusts 22kts

VFR

3:00 PM MDT - 8:00 PM MDT

Broken 10,000'
Scattered 9,000'

Viz

6sm

Wind

270° 14kts

Gusts 24kts

VFR

8:00 PM MDT - 11:00 PM MDT

Overcast 15,000'
Scattered 10,000'

Viz

6sm

Wind

320° 8kts

VFR

11:00 PM MDT - 5:00 AM MDT

Overcast 12,000'
Scattered 10,000'

Viz

6sm

Wind

070° 8kts

MVFR

5:00 AM MDT - 12:00 PM MDT

Mist

Overcast 2,500'
Broken 1,500'
Few 1,000'

Viz

4sm

Wind

100° 8kts

TAF KRKS 251720Z 2518/2618 27012G22KT P6SM SCT150
   FM252100 27014G24KT P6SM SCT090 BKN100
   FM260200 32008KT P6SM SCT100 OVC150
   FM260500 07008KT P6SM SCT100 OVC120
   FM261100 10008KT 4SM BR FEW010 BKN015 OVC025

KRKS

Effective	Expires	Category	NOTAM
Domestic
4/17/26 2321Z			!RKS 04/034 RKS TWY A5 HLDG PSN SIGN LGT U/S 2604172321-2607312300EST
FDC
4/17/26 0219Z			!FDC 6/3698 RKS IAP SOUTHWEST WYOMING RGNL, ROCK SPRINGS, WY. VOR RWY 9, AMDT 3B... S-9 MDA 7040/HAT 299 ALL CATS. TEMPORARY CRANE/EQUIPMENT 6840 MSL 3231FT NE OF RWY 9 (2024-ANM-2695-NRA). 2604170219-2611272355EST
2/20/26 1531Z			!FDC 6/7531 RKS IAP SOUTHWEST WYOMING RGNL, ROCK SPRINGS, WY. ILS OR LOC RWY 27, AMDT 2A... RNAV (GPS) RWY 27, AMDT 1C... RNAV (GPS) RWY 9, ORIG-B... VOR RWY 9, AMDT 3B... VOR/DME RWY 27, AMDT 2C... CIRCLING CAT A MDA 7200/HAA 435. TEMPORARY CRANE 6847FT MSL 2833FT N OF RWY 09 (2021-ANM-2681-NRA). 2602201531-2610021530EST

ATC Tower

Attendance

0400-2200

Owner

ROCK SPRINGS/SWEETWATER COUNTY
BOX 1987
ROCK SPRINGS, WY 82902
Phone: 307-352-6880

Manager

DEVON BRUBAKER
382 HWY 370
ROCK SPRINGS, WY 82901
Phone: 307-352-6880

FSS

CASPER FSS (CPR)
Toll Free: 1-800-WX-BRIEF

NOTAM

RKS

Light Schedule

Lights

ACTVT MALSR RWY 27; ODALS RWY 09; REIL RWY 03 & 21; HIRL RWY 09/27 & TWY LGTS - CTAF. PAPI RWY 09, 27, 03, 21 OPR CONSLY.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Yes

Landing Fee

Parking

Hanger, Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

Airframe Repair

Minor

Pwrplant Repair

Minor

Bottled Oxygen

High & Low Pressure

Bulk Oxygen

None

Other Services

Air Freight
Air Ambulance
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental

Runway 03/21

Dimensions

5228 ft. x 75 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

PFC

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

59,000lbs

Double Wheel

88,000lbs

Double Tandem

159,000lbs

Dual Dbl Tand

	Runway 03	Runway 21
True Heading	45°	225°
Traffic Pattern
Markings	BSC	BSC
Markings Condition	GOOD	GOOD
Latitude	41° 35' 19"N	41° 35' 55"N
Longitude	109° 04' 24"W	109° 03' 36"W
Elevation	6,734'	6,748'
Threshold Crossing Height	30 ft. AGL	30 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P2L	P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights	Yes	Yes

Runway 09/27

Dimensions

10002 ft. x 150 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

GRVD

Rwy Edge Lgts

HIGH

Pavement Class

Single Wheel

55,000lbs

Double Wheel

240,000lbs

Double Tandem

503,000lbs

Dual Dbl Tand

	Runway 09	Runway 27
True Heading	103°	283°
Traffic Pattern	Left	Left
Markings	PIR	PIR
Markings Condition	GOOD	GOOD
Latitude	41° 35' 52"N	41° 35' 29"N
Longitude	109° 04' 56"W	109° 02' 48"W
Elevation	6,732'	6,764'
Threshold Crossing Height	50 ft. AGL	55 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4L	P4L
Approach Lights	ODALS	MALSR
Centerline Lights
Runway End Identifier Lights

A11	ROCK SPRINGS/SWEETWATER CO ARPT JOINT PWRS BOARDS.
A110-1	FOR CD IF UNA TO CTC ON FSS FREQ, CTC SALT LAKE ARTCC AT 801-320-2568.
A26	PPR FOR ACR OPS WITH MORE THAN 30 PAX SEATS 2200-0400 CALL ARPT OPS 307-352-6888. ARFF INDEX C AVBL WITH 30 MIN NOTICE: CALL ARPT OPS 307-352-6888.
A39-03/21	PCR VALUE: 112/F/D/X/T
A39-09/27	PCR VALUE: 1557/F/A/X/T
A81-APT	ACTVT MALSR RWY 27; ODALS RWY 09; REIL RWY 03 & 21; HIRL RWY 09/27 & TWY LGTS - CTAF. PAPI RWY 09, 27, 03, 21 OPR CONSLY.
E111	EXISTED PRIOR TO 1959.

SOUTHWEST WYOMING RGNL (ICAO: KRKS, IATA: RKS) is a public airport located in ROCK SPRINGS, WY, US.
